VSHOW Q7 IP65 Magic dot Matrix LED panel stage lighting for DJ Event Concert

2025-12-01

This lamp is a multifunctional effect light with a strong main beam. Paired with auxiliary lighting, the effect is rich and diverse. The overall and single point control is flexible, and pixels and beams can be freely transformed and overlaid for rich effects. The screen is assembled in a matrix style. The starting point of the light bead can be changed in direction Dual system control of DMX and Ethernet

event lighting

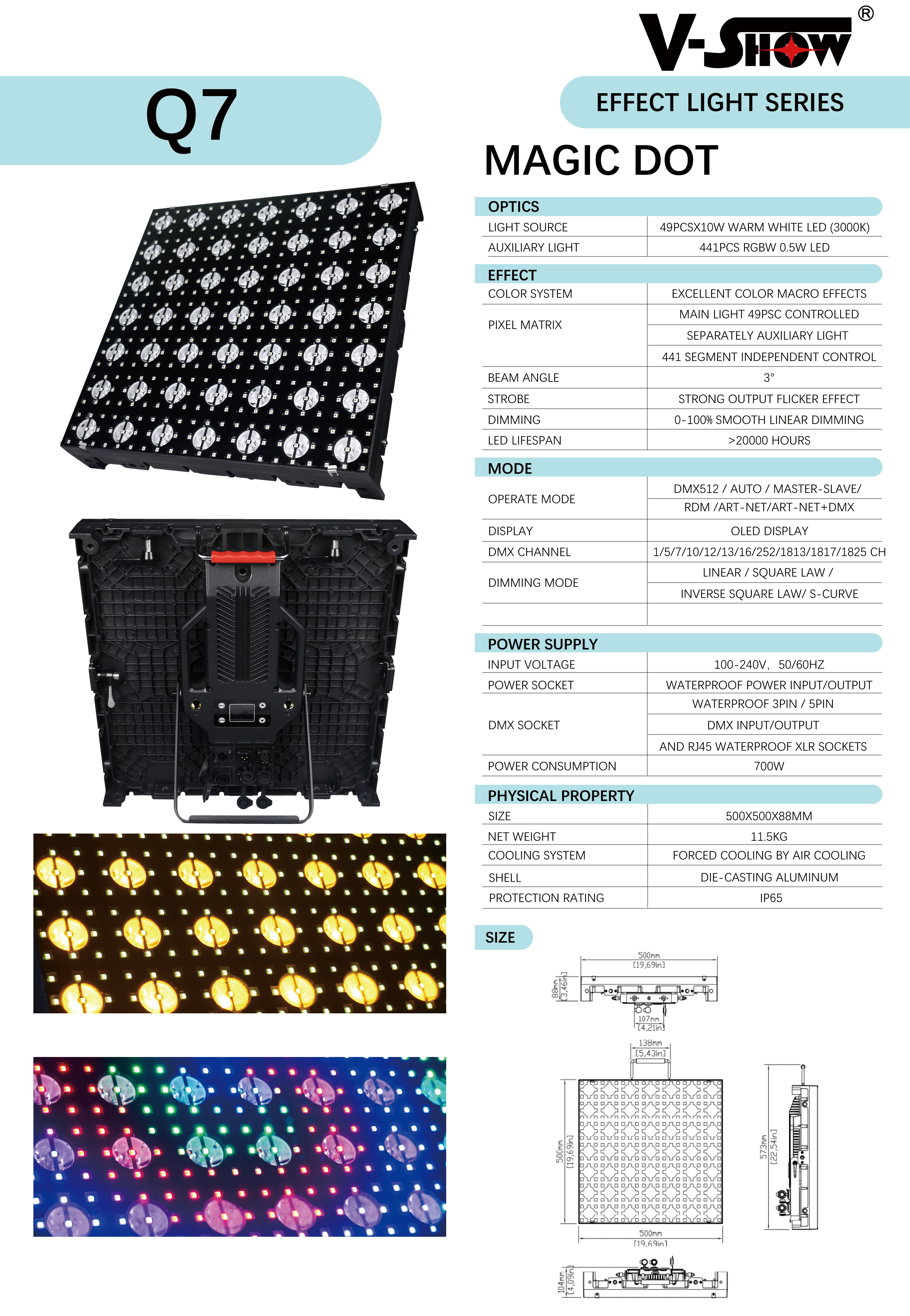

Input voltage: 100-240V, 50/60Hz

Power consumption: 700W

Power supply: 800W

Main light source: 49PCSx10W warm white LED (3000K)

Auxiliary light: 441pcs RGBW 0.5W LED

Color System: Excellent Color Macro Effects

Powerful color mixing effect

Rich dynamic color effects

main LED and Auxiliary light controlled separately,Flexible overall and single point control

Pixel and beam can be freely transformed and overlaid for rich effects

Pixel matrix: Main light 49psc controlled separately

Auxiliary light 441 segment independent control

Auxiliary lights can also be independently controlled in 49 segments (9 per set)

LED lifespan:>20000 hours

The starting point of the light bead can be changed in direction

Beam angle: 3°

Matrix Splicing, Assembleable into a Screen

CTO:Adjustable color temperature

DMX channel:1/5/7/10/12/13/16/252/1813/1817/1825 channels

Operation mode: DMX512Auto, master-slave/ RDM /art-net/art-net+DMX

Dimmer: 0-100% smooth linear dimming

Three dimming modes: fast, medium, and slow

Dimming curves: linear, square law, inverse square law, S-curve

Strobe: strong output flicker effect

Display: OLED display

Signal input/output: 3-pin OR 5-pin and RJ45 waterproof XLR sockets

Power socket: Waterproof power connector input/output

Protection level: IP65

Size: 500x500x88mm

Net weight: 11.5kg
