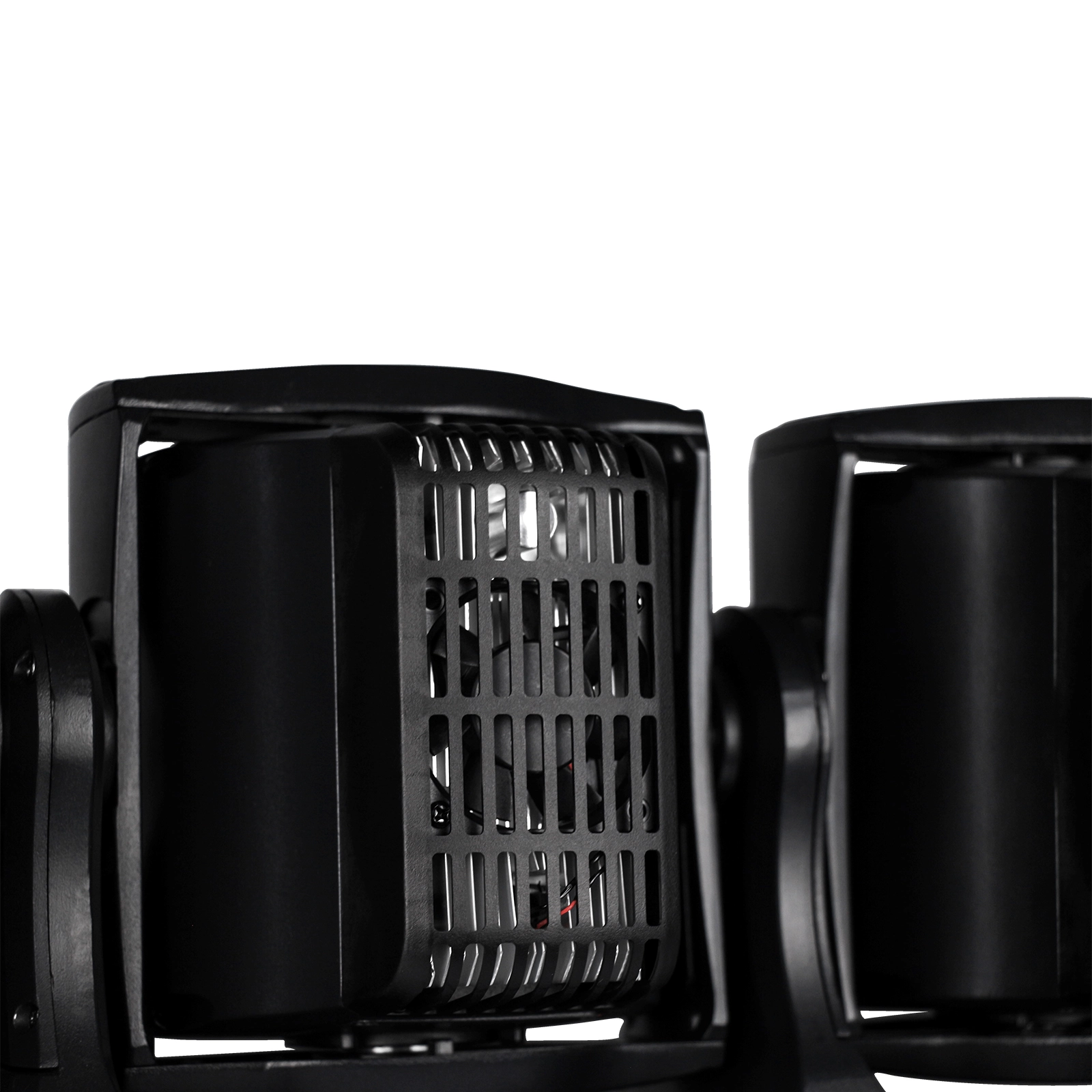

8
undefined
19
17
1
4

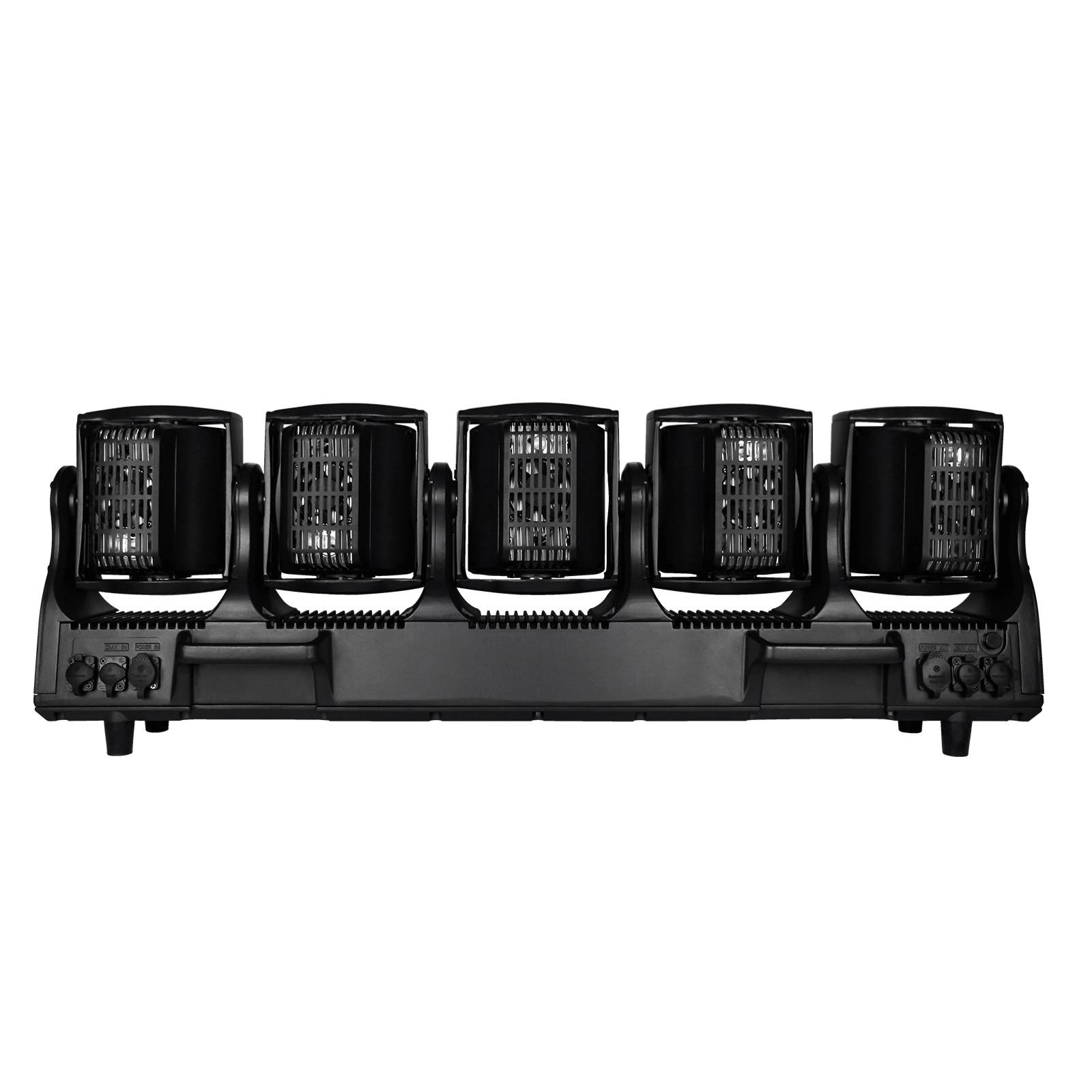

12

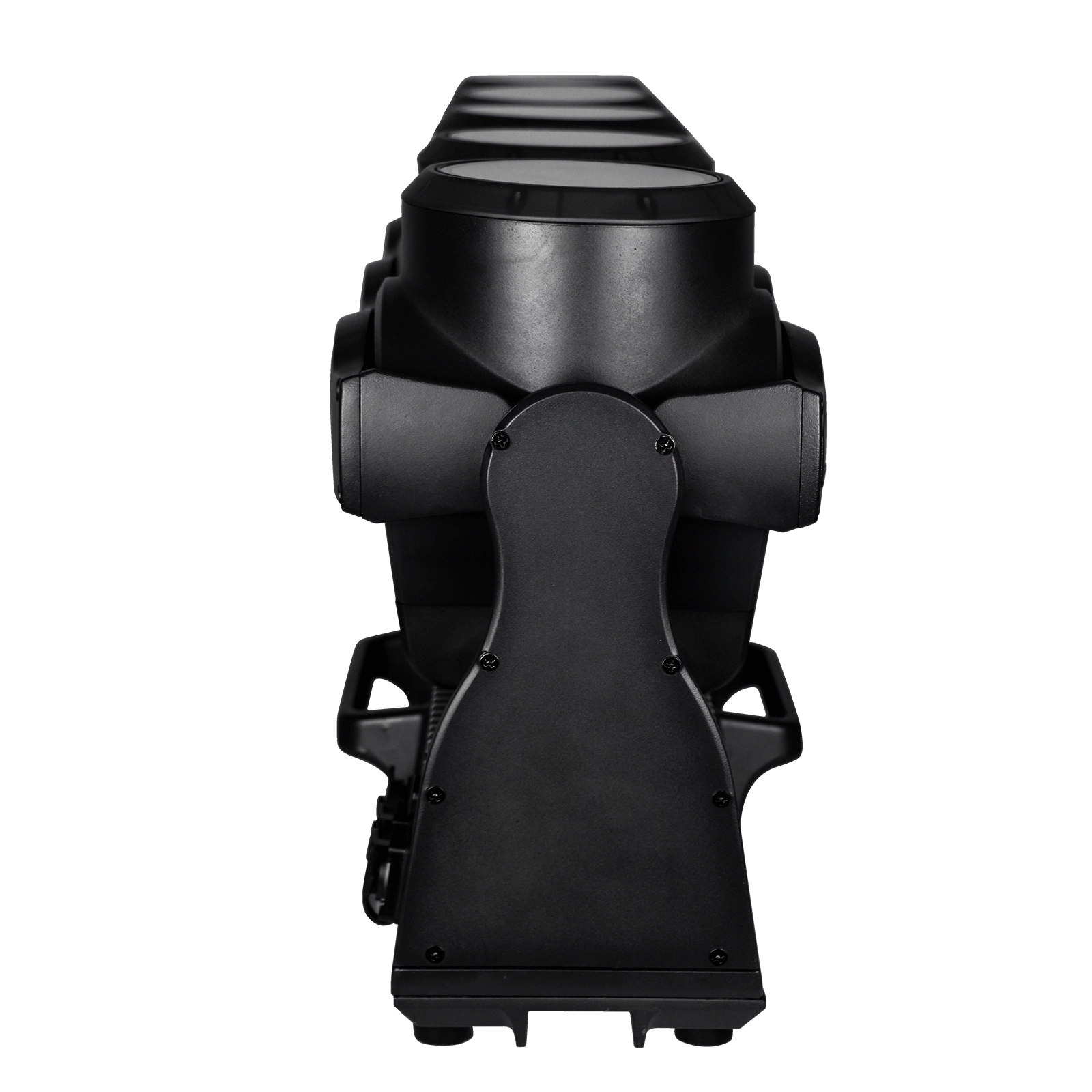

13
5
8

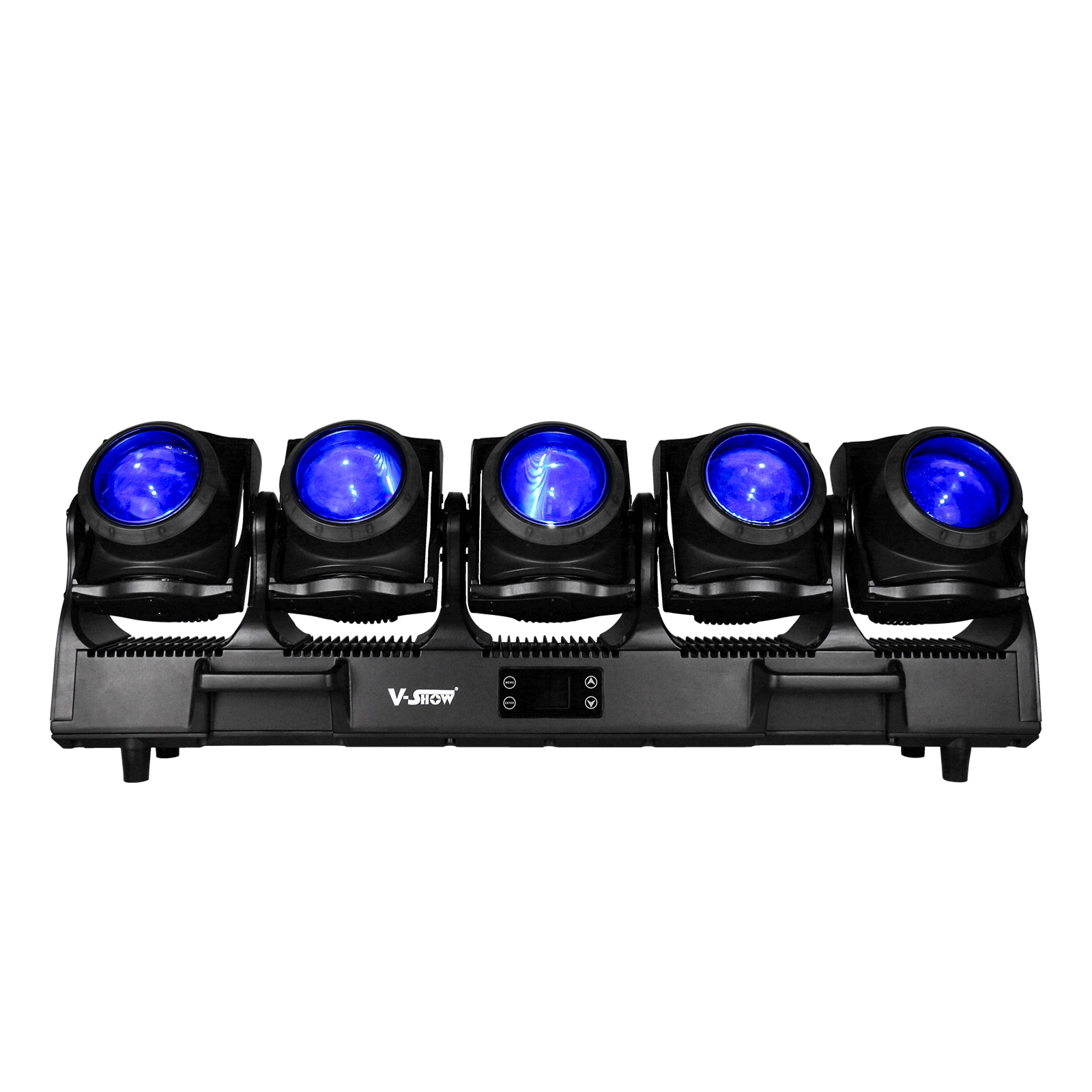

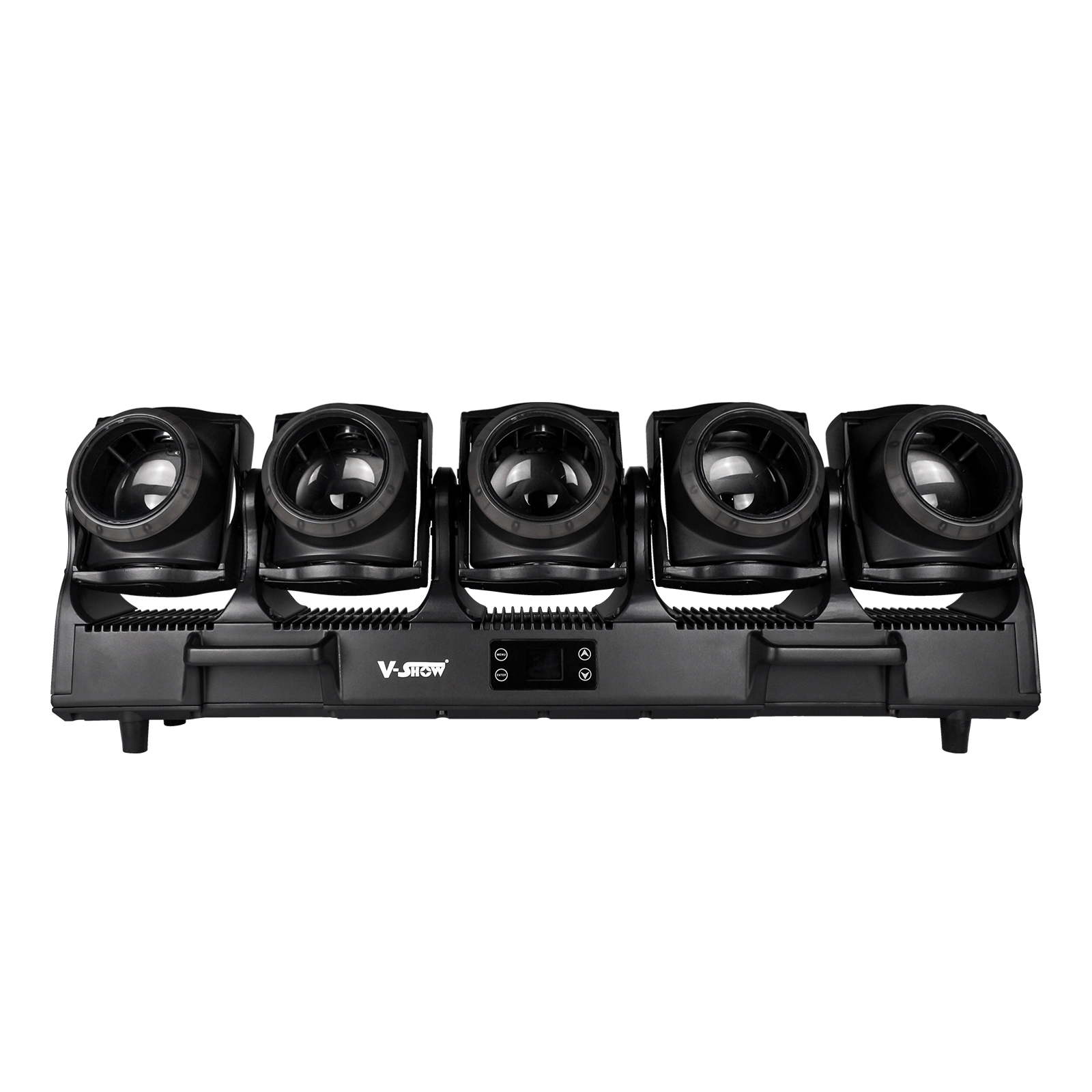

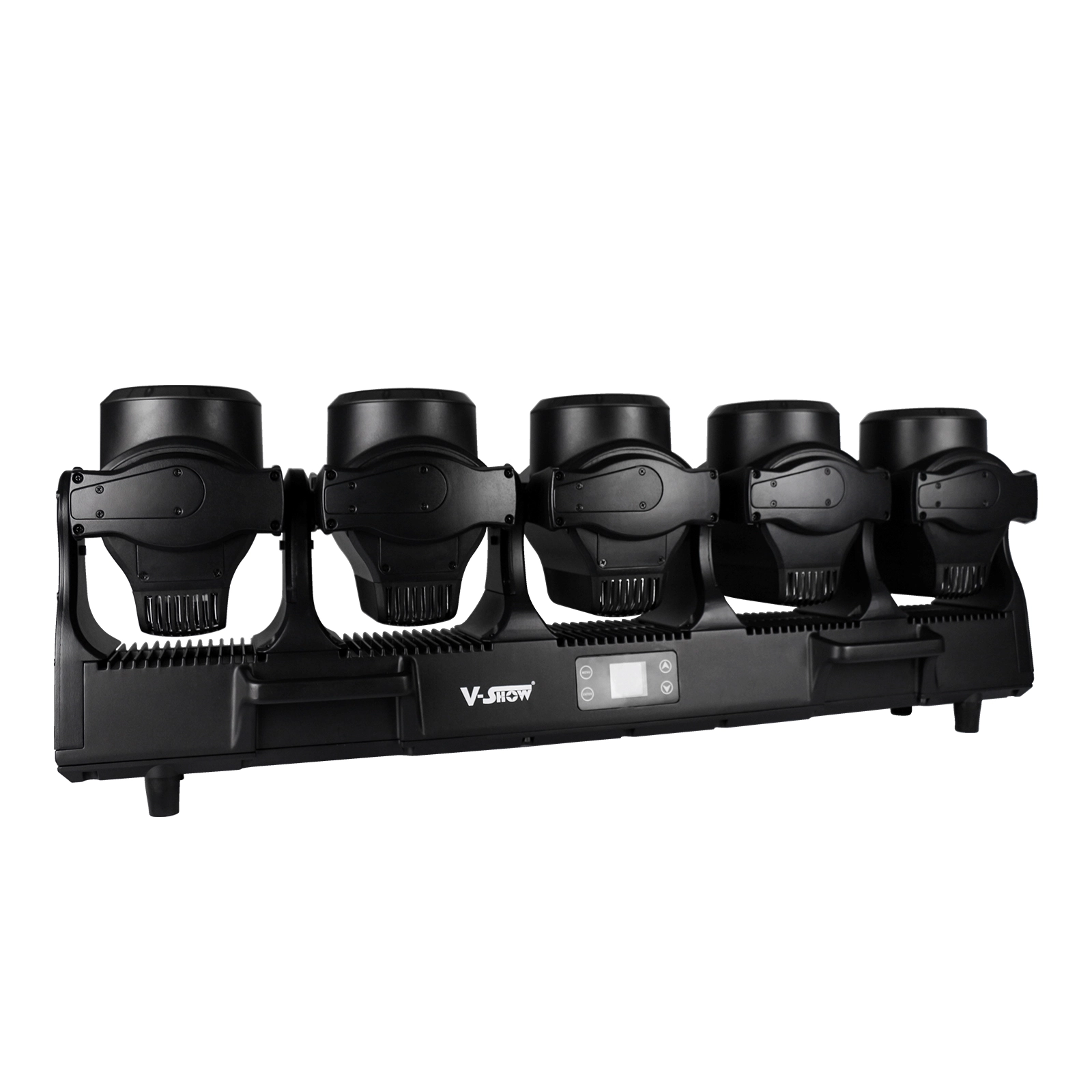

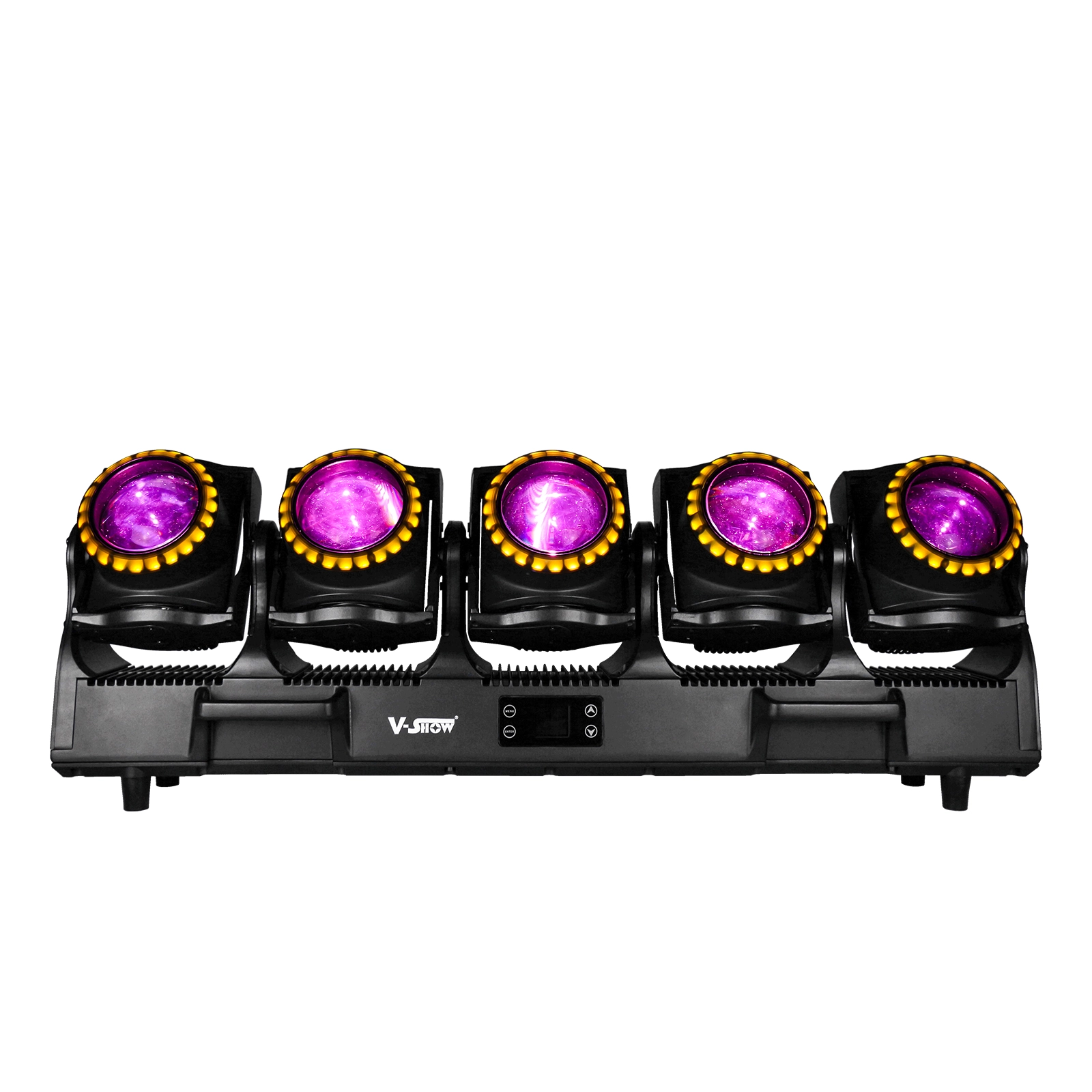

VSHOW TB5F IP65 TORNADO 5pcs 120w Moving Lights RGBW 4in1 Beam Wash Strobe Rotating Effect Lighting

VSHOW TB5F IP65 Tornado is a powerful set of 5 moving lights, each with 120W RGBW 4in1 LEDs. Designed for dynamic effect lighting, these beam, wash, strobe, and rotating fixtures deliver vibrant shows with IP65 waterproofing – perfect for indoor and outdoor events.
Brand Name
VSHOW
Input Voltage
100-240V,50/60Hz
Light source
5x120W RGBL LED
Light source life
>20000 hours
Place of Original
Guangdong,China
Size
1019x206x356mm
N.W
26.5kg
Signal Output
3-pin OR 5-pin and RJ45 waterproof XLR sockets
Control Mode
DMX512, Auto、Sound, Master/Slave,RDM/Art-net/SACN
Operate mode
DMX512 RDM
DMX Channels
41/71/75/85/170CH
Dimming mode
0-100%16bit linear dimming

Return Tips   After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection   Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

The fixture is equipped with 5 120W RGBL LEDs as its main light source, supplemented by an outer ring of 120 0.5W RGB LEDs. The fixture is equipped with five independently controlled LED heads, which independently control the XY axis and focusing of each LED, providing unlimited possibilities for artistic creation on stage. Quick focusing produces a sharp and saturated beam effect in beam mode, and a uniform and soft dyeing effect in dyeing mode Excellent color mixing function and color macro effect, multiple speed strobe effects, rich dynamic built-in effects of auxiliary lighting, 0-100% smooth dimming, multiple dimming curves and refresh rates, can be quickly spliced horizontally, ensuring consistent and equidistant spacing for each.



Parameters

  Input Voltage

100-240V, 50/60Hz

Light source


5*120W RGBL



Power supply

840W

Auxiliary light

120X0.5W RGB LED

 Color System

RGBL

Color temperature

2500-8000K

Pixel matrix



Five independently controlled LED heads



Dimming

0-100%16bit linear dimming

Lifetime

≥20,000Hours
Dimming modes
Quick dimming and standard dimming can be set
CRI 80

 Strobe

Multiple strobe speed effects
  Field angle 4-35°

Beam angle

 3-30°

Control panel

 LCD display

Signal socket


Waterproof 3 PIN XLR /5PIN XLR socket

Protection Grade IP65

 Working enviroment

-40°-45°

DMX Channel

41/71/75/85/170CH

Operate mode

 DMX512, Auto,Sound, Master/Slave,RDM/Art-net/SACN

Net Weight 27.5kg

 Gross Weight

33kg

Fixture size

1002x196x334mm

 Package size

109*47*36cm/ 33kg (Carton)
108*56*64cm/ 93kg (Flight case 2 in 1)

Details & Features

1
4
12
19
17
20

Excellent color mixing effect

• 10 main lights can be controlled by a single point
• Auxiliary light CW/WW/RGB is independently controlled by 24 segments
• Full and sharp beam with rich built-in effects

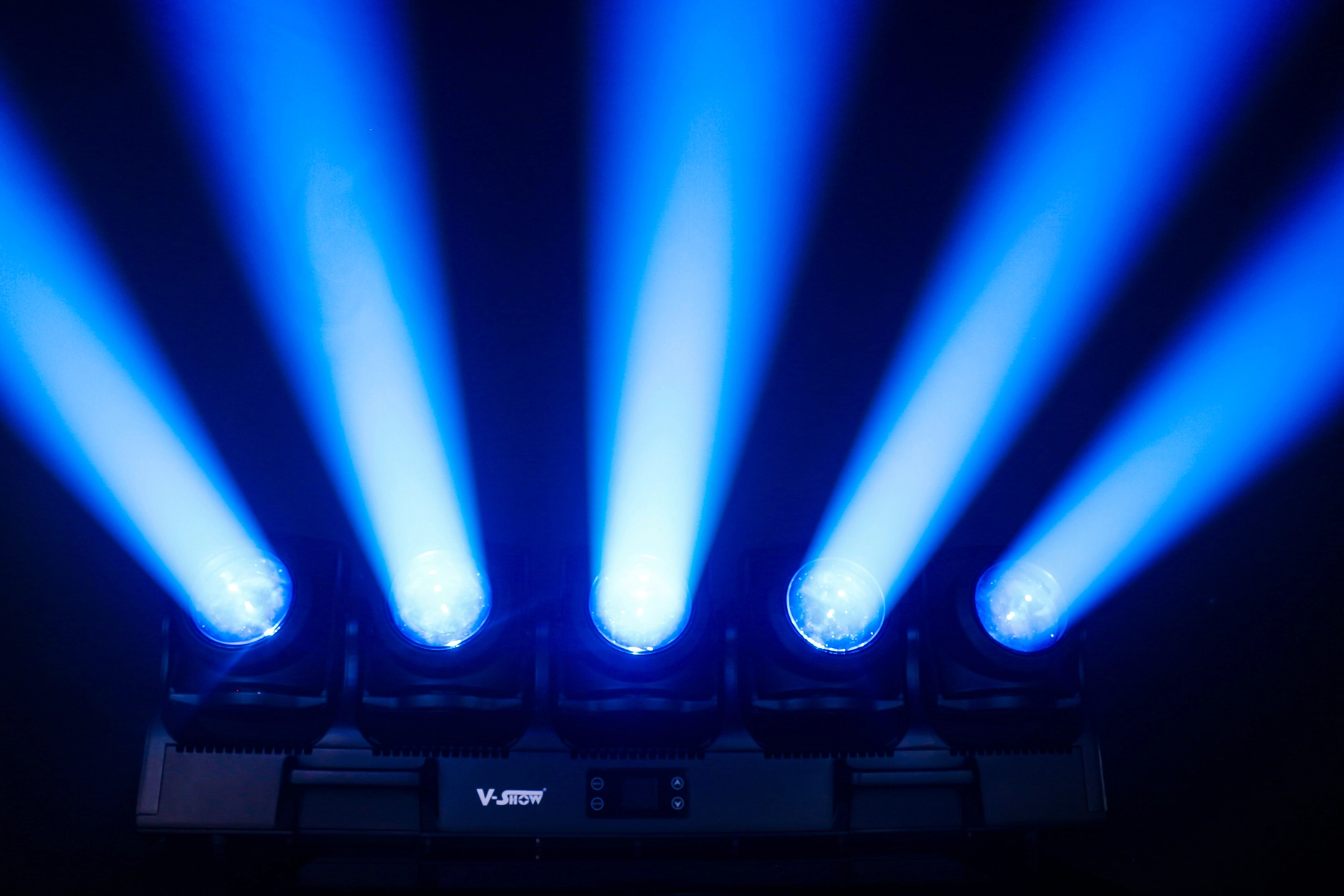

_MG_8380

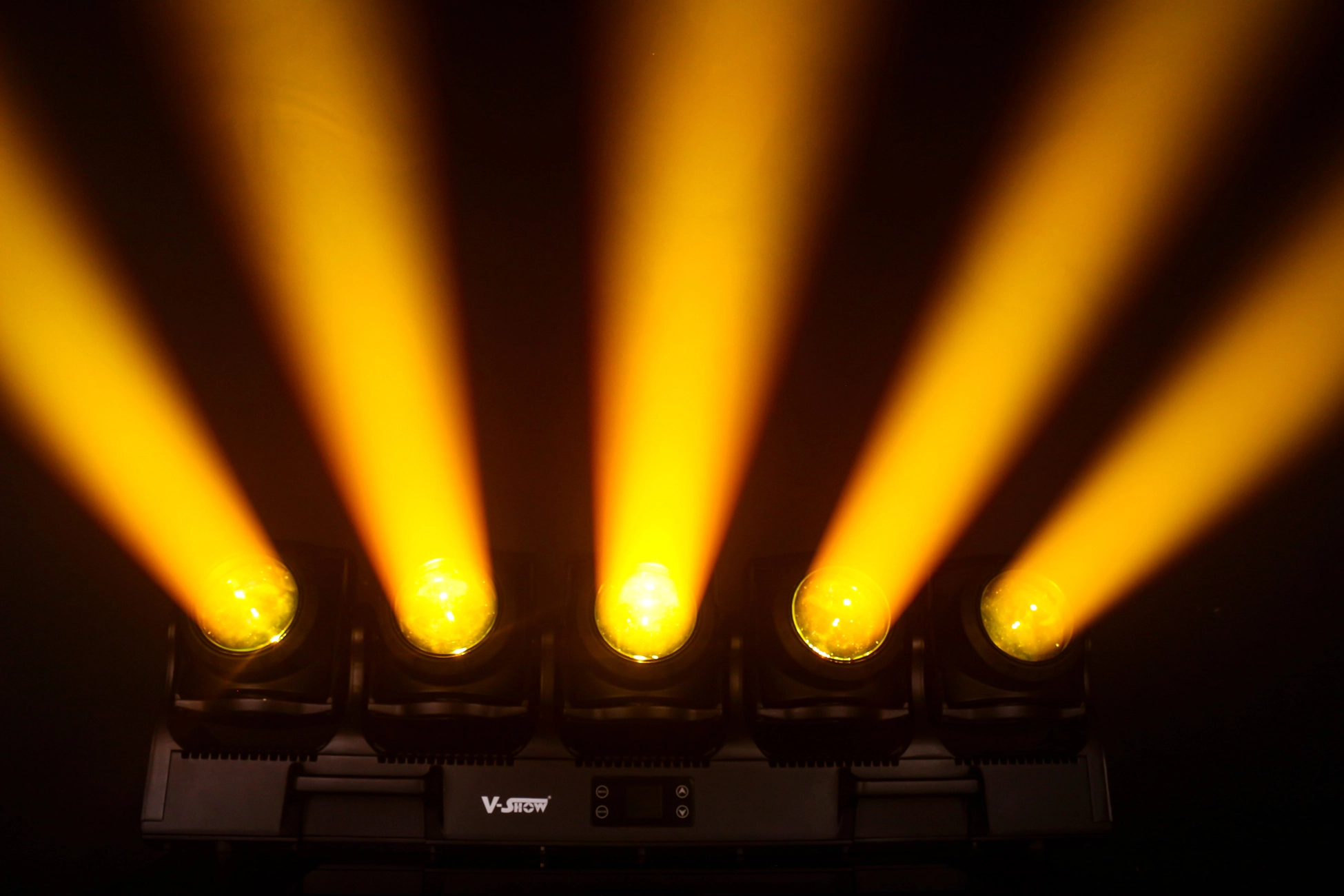

_MG_8378

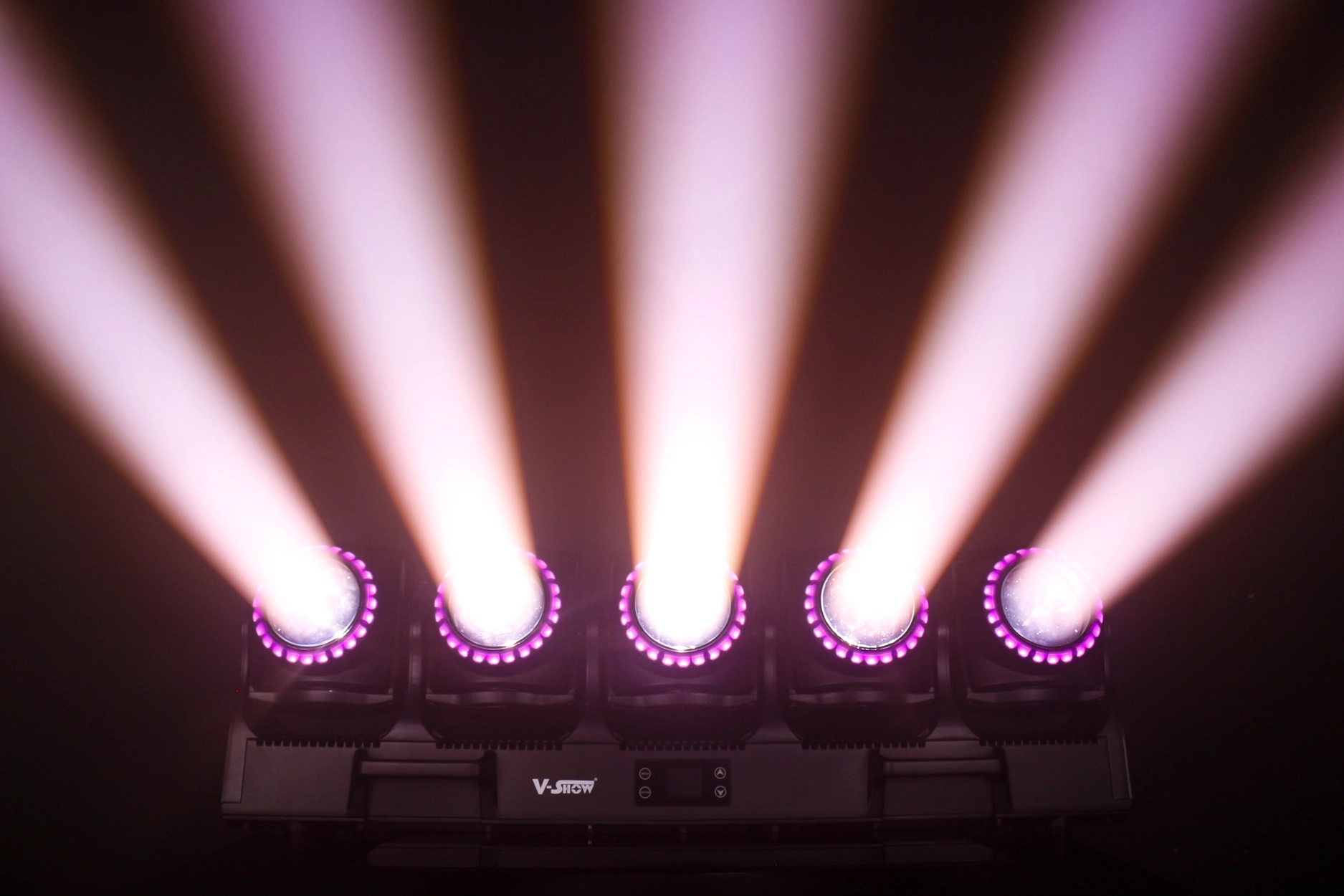

_MG_8339

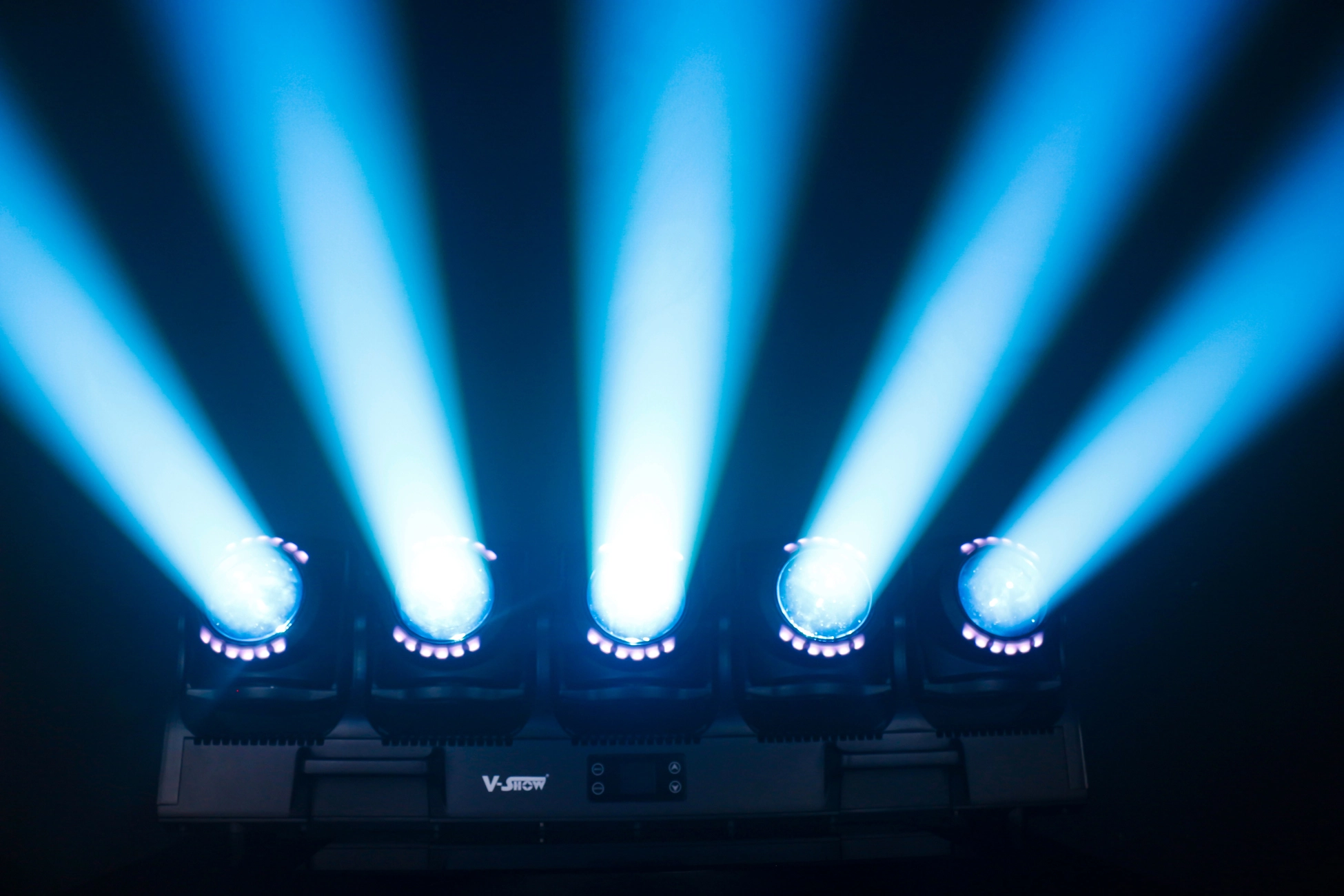

_MG_8352

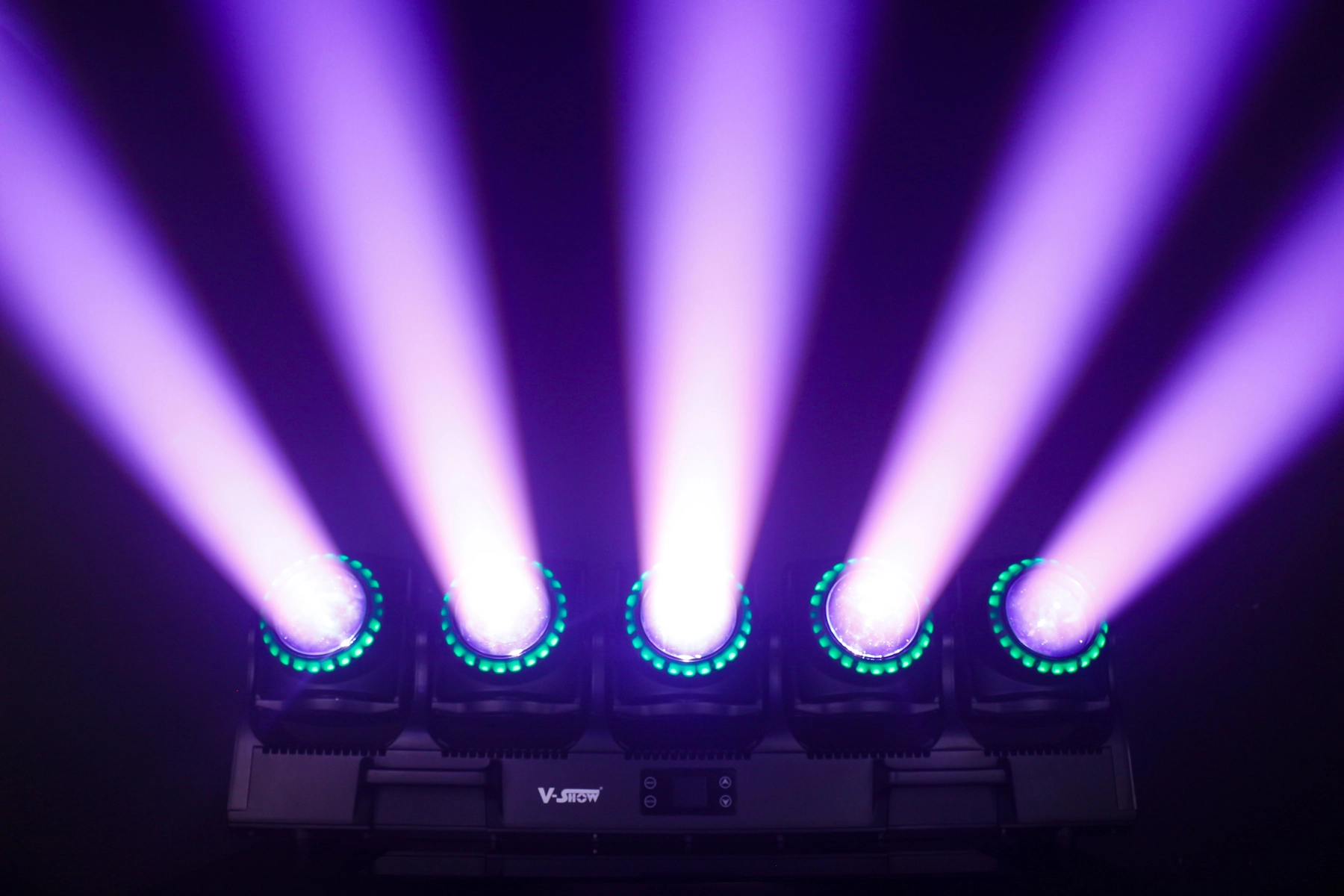

_MG_8340

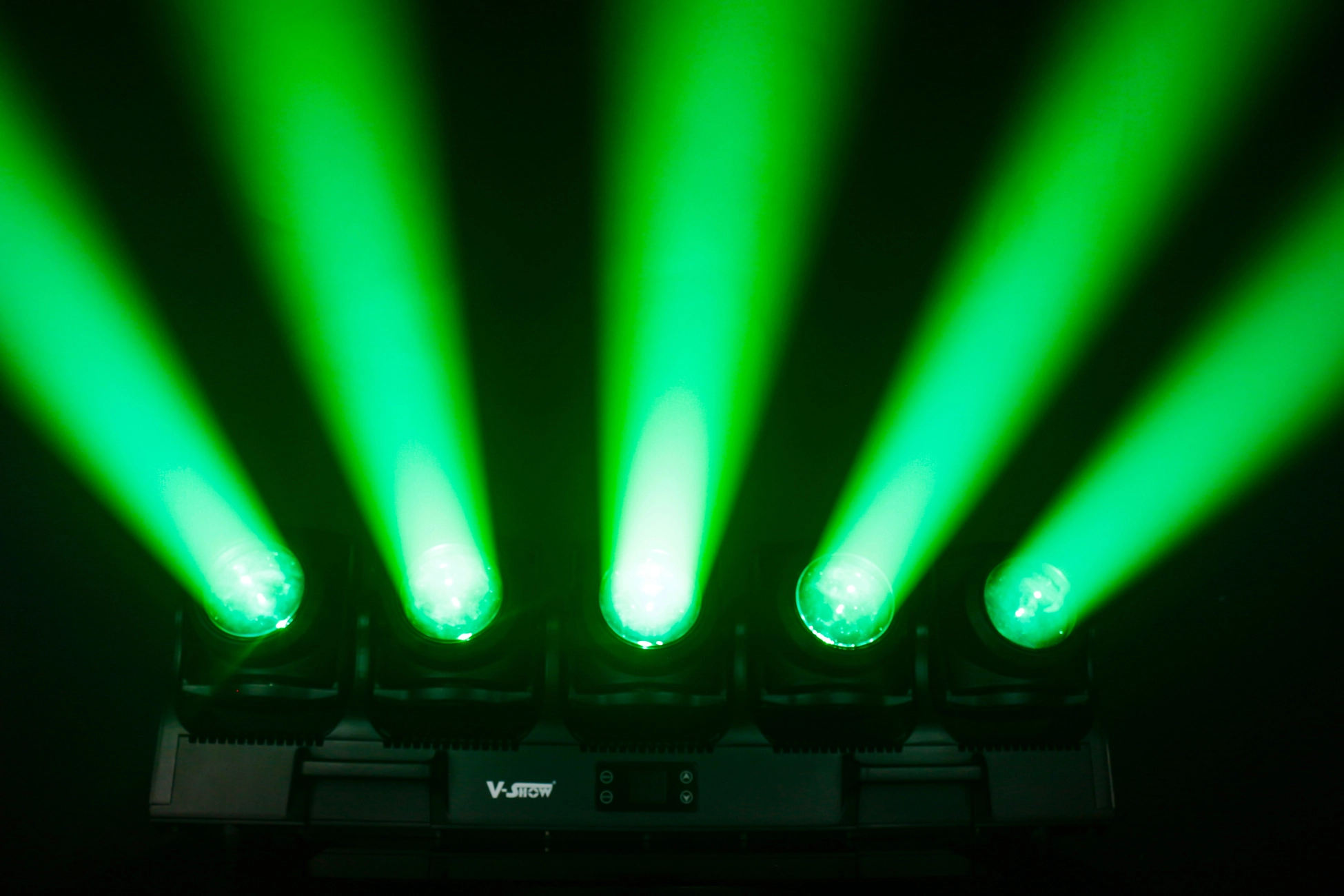

_MG_8375

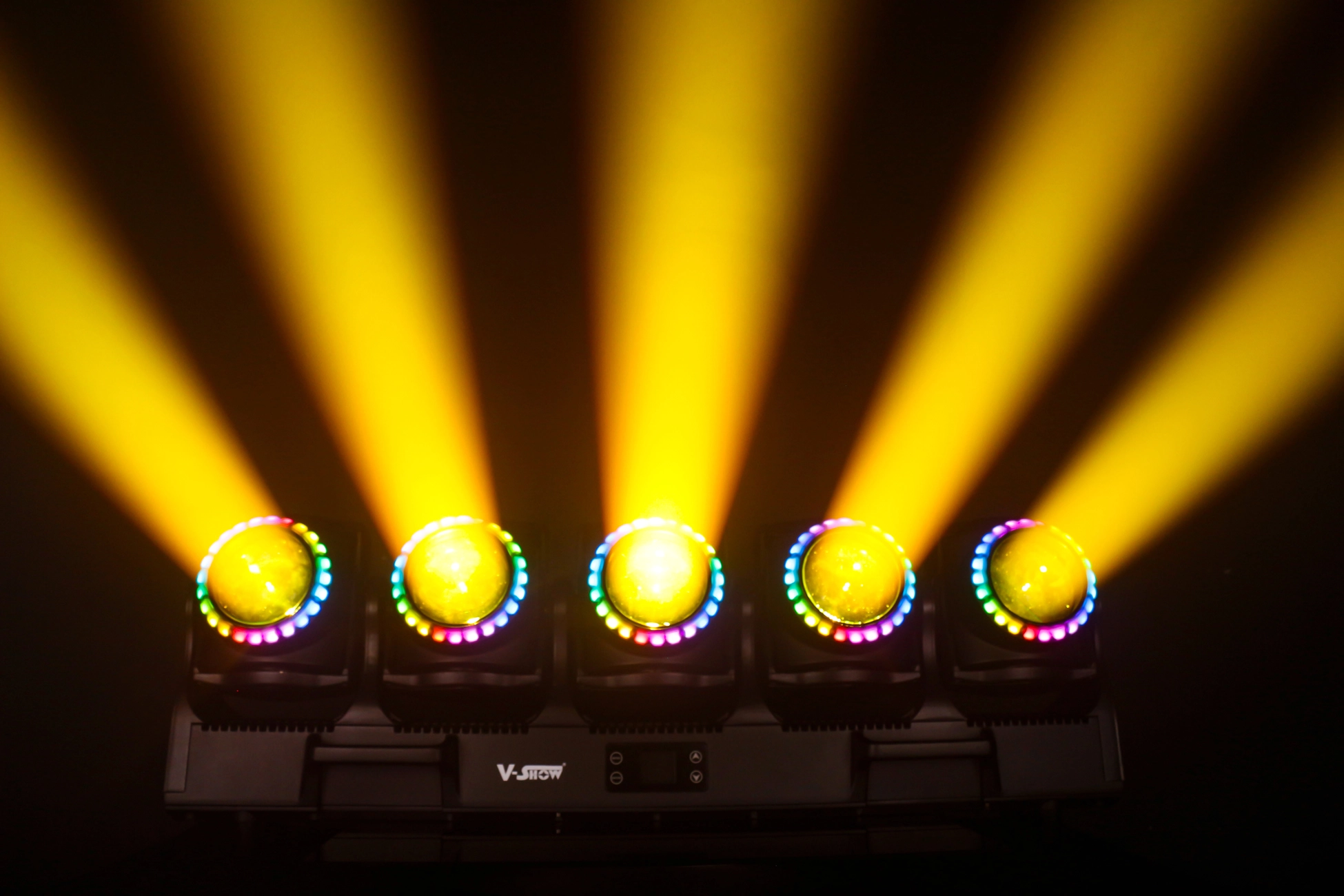

_MG_8355

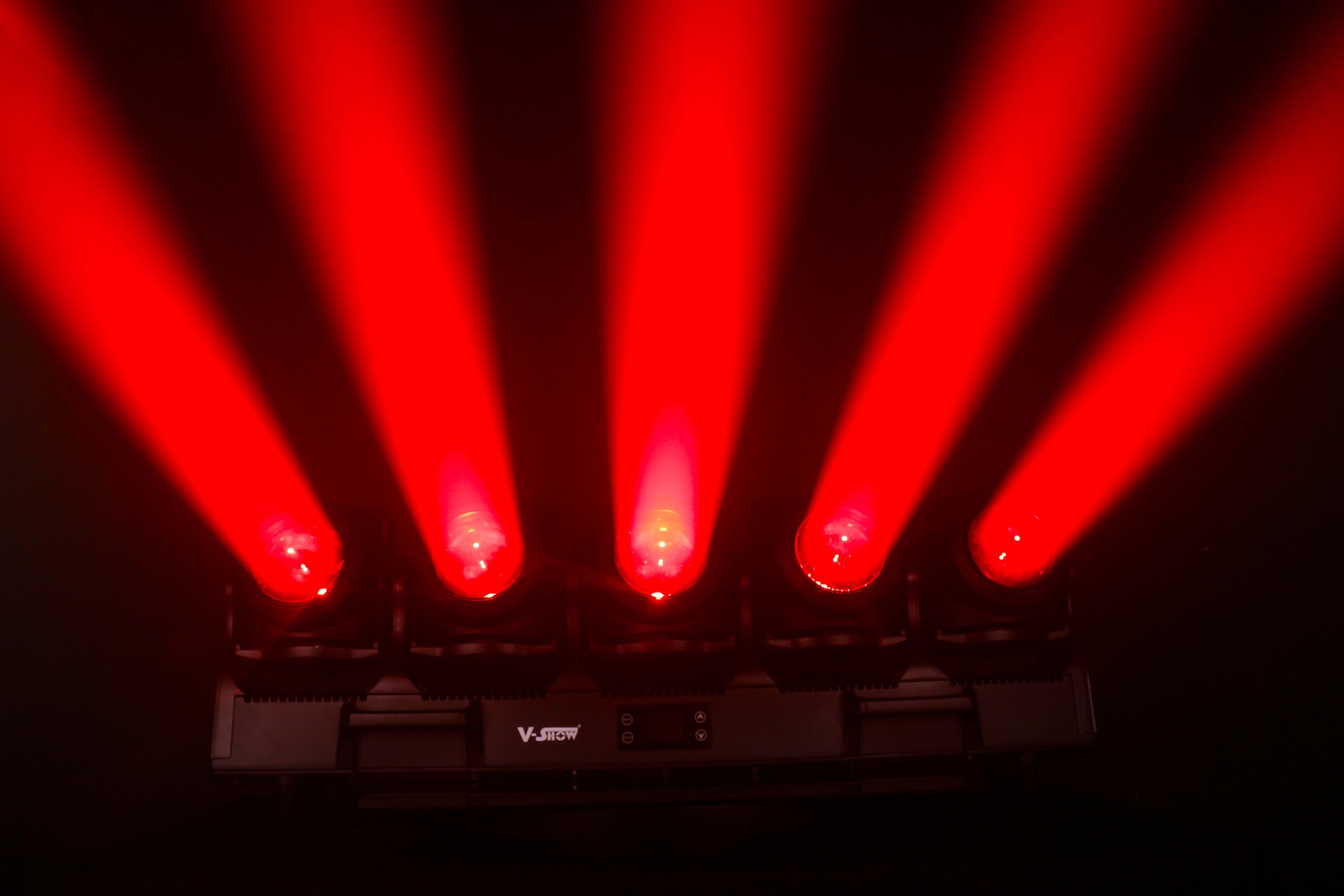

_MG_8336

Download

TB5F

TB5F USER MANUAL

DOWNLOAD
压缩文件封面

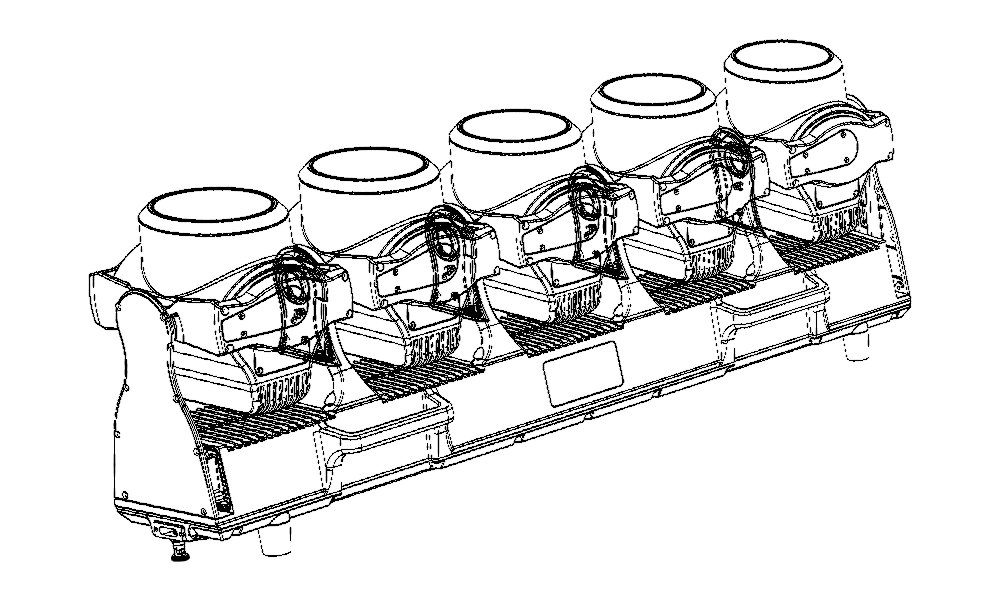

TB5F DWG
