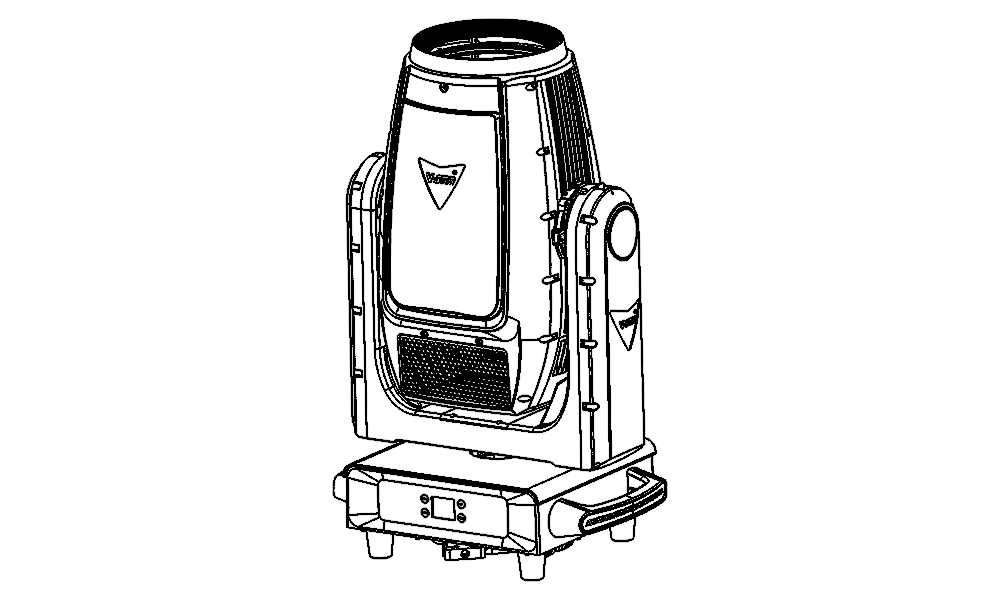

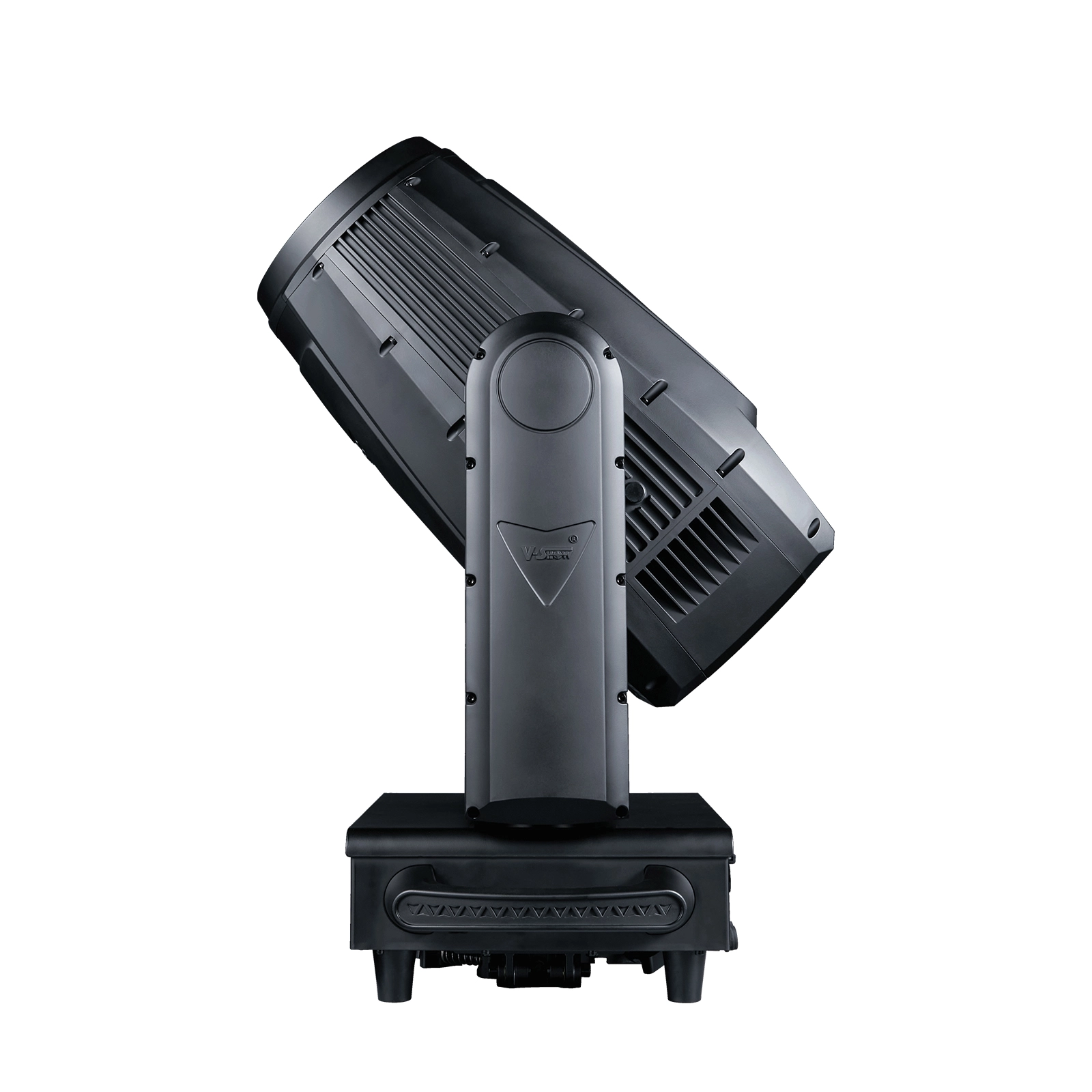

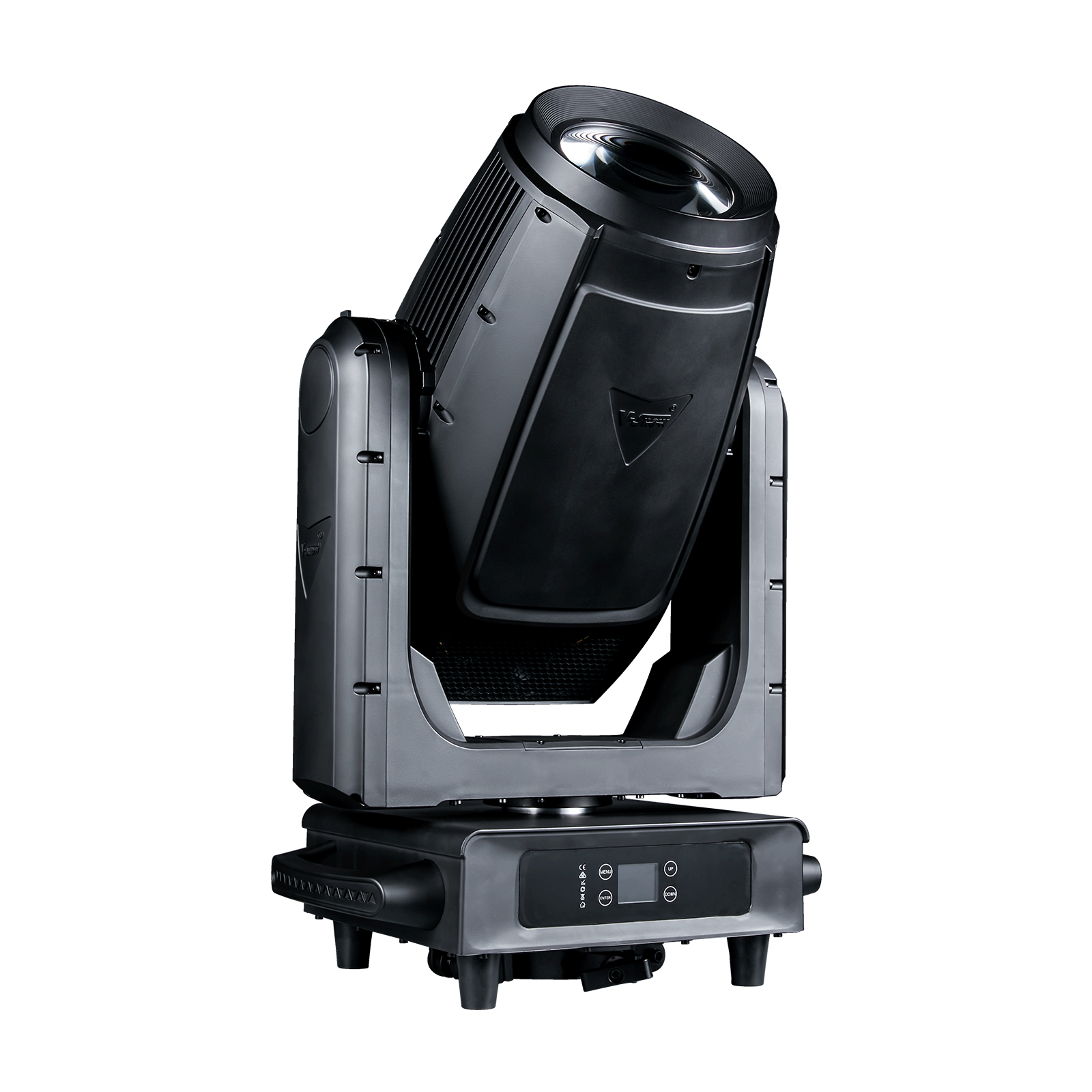

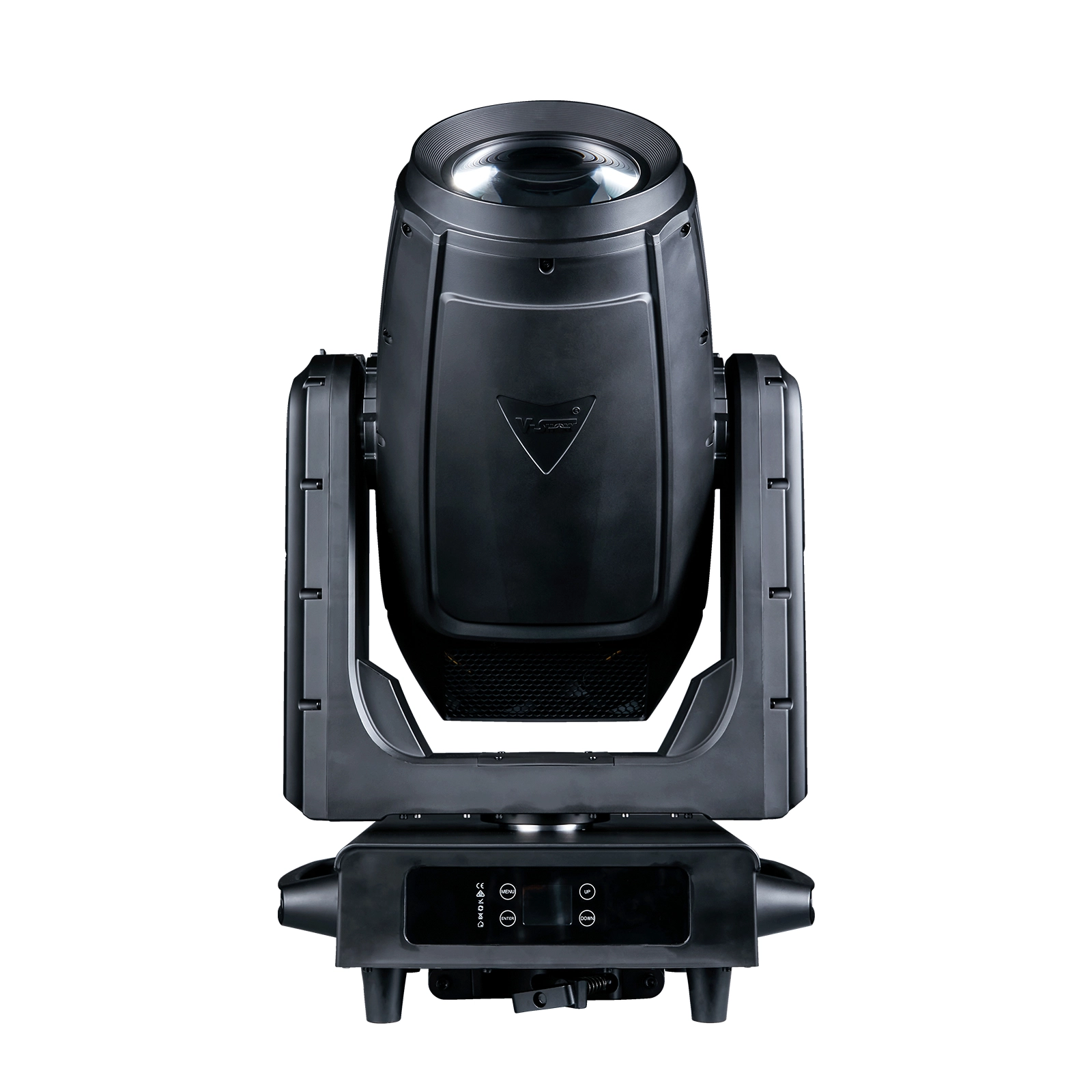

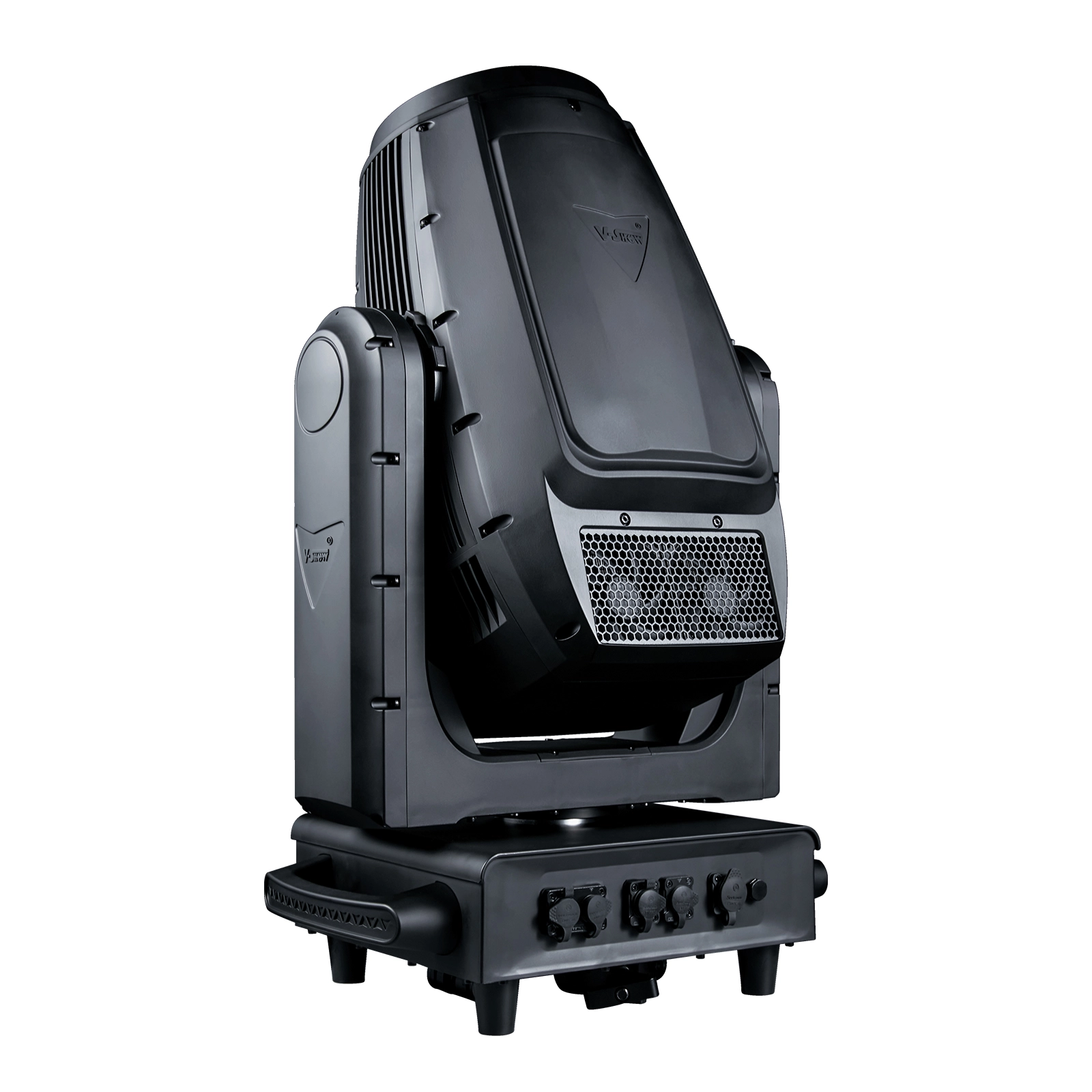

VSHOW S600 1000W LED Waterproof Moving Head Cutting Light | Beam Spot Wash 4in1 Professional Stage Moving Head LED With CMY,CTO,CRI Plate
The light set light beam, spot, wash and cutting functions in one, pure color, uniform spot, color plate, glass gobo plate, CTO, CRI plate are schott materiallt, , Plug in CMY color system, Provides rich color saturation and clear seamless color transitions. LED adopts energy-saving and environment-friendly 1000W monochrome LED light engine, which can produce extremely high light output white light, color temperature of 7500K, CRIRA≥90, and zoom range 6°- 50,The cutting system consists of 4 gratings, which can be rotated ± 60°, giving designers unlimited spot creativity. Two high brightness atomizing pieces of new materials can be respectively inserted and superimposed,All day use, waterproof rating IP65
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Function description
Parameters
|
Input Voltage |
100-240V, 50/60Hz
|
Output Voltage |
V1:48V 18.75A(light source)
V2:24V4.2A(a main board)
|
|
Power supply |
1200W
|
Light source |
1000W Module LED Engine
|
|
Power consumption |
1050W
|
Color temperature |
7500K |
|

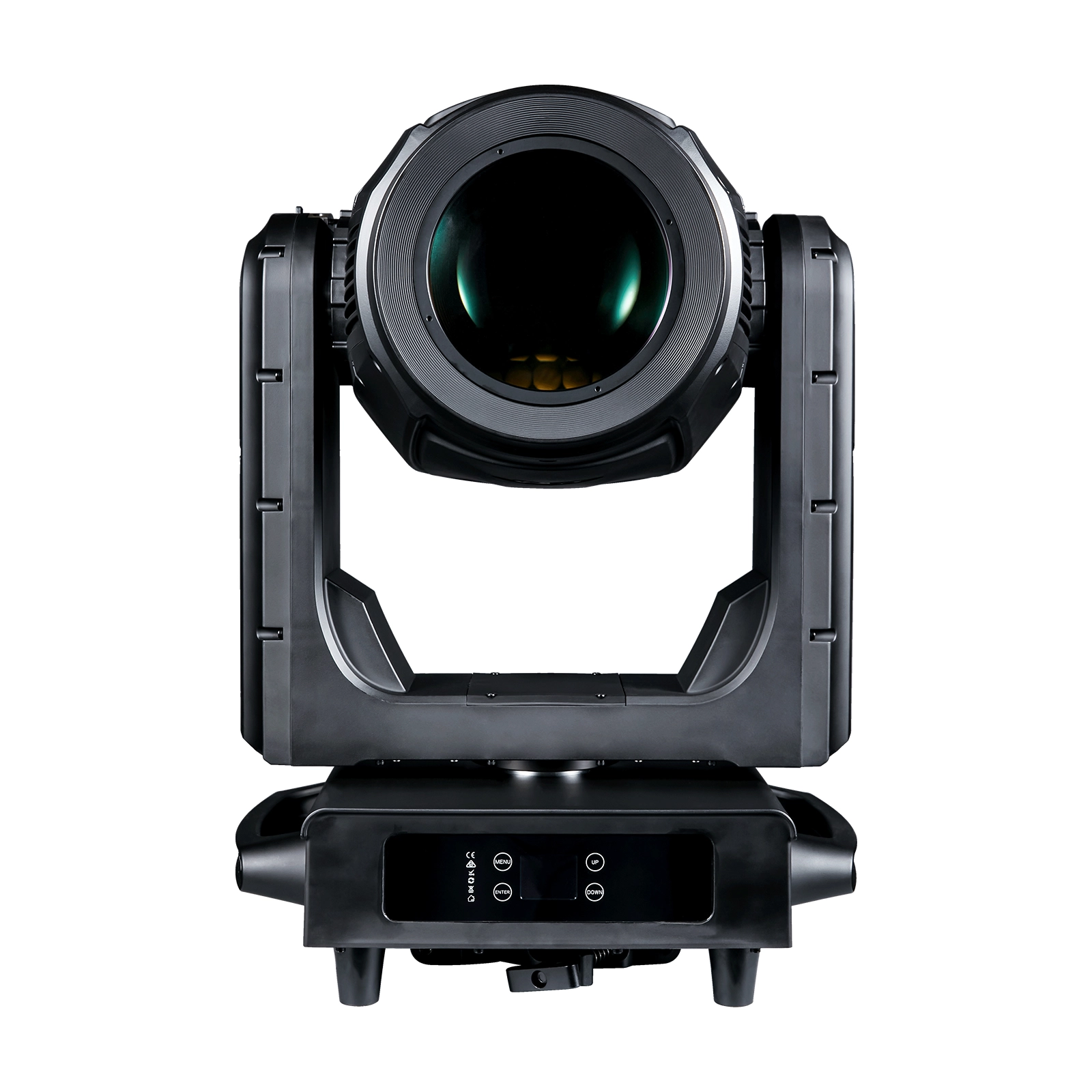

Diamter of optic lens |
120mm |
Zoom angle |
5-50° |
| CRI |
Standard color rendering index Ra ≥ 70 High color rendering index Ra ≥ 90 |
Lifetime |
≥20,000Hours
|
|
CMY |
Linear CMY color mixing |
CTO |
Linear CTO color temperature adjustment (3000K-7000K) |
|
Color wheel |
1 color wheel, 6 fixed colors+CRI color that can be rotated in both directions |
Fixed Gobo |
1 fixed gobo ,9 fixed gobo |
|
Rotation Gobo |

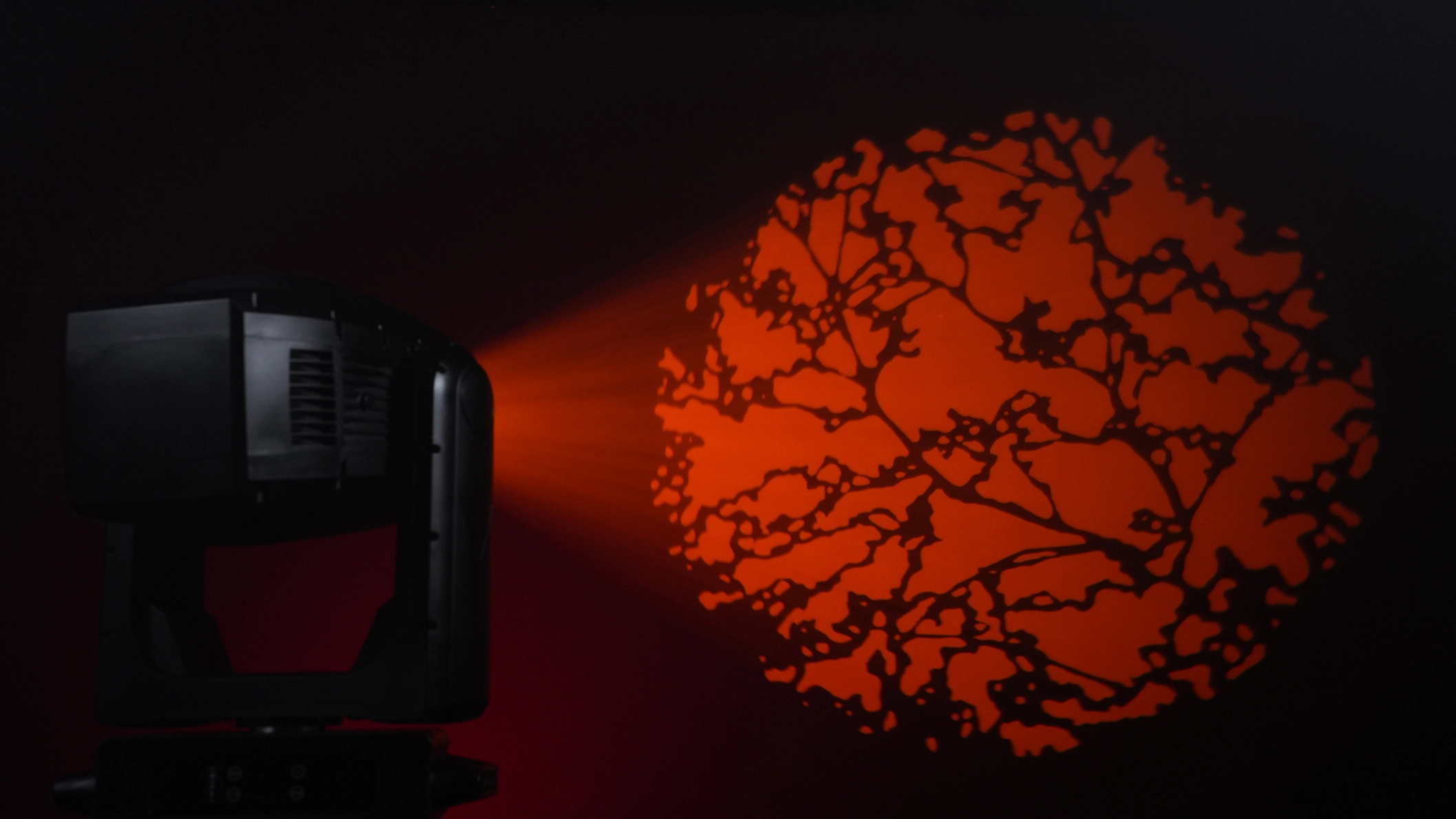

1 rotating gobo , 7 Rotation Gobo, patterns can be replaced |
Animation gobo |
imitating water patterns and flame effects, dynamic disc rotatable |
|
Cutting system |
4 grating to achieve fast and smooth cutting, each grating cutting direction and Angle can be independently controlled; The entire cutting module can be rotated 120° |
Prism |
4-prism,4-sided straight mirror, both capable of bi-directional rotation Two independent frost tablets (Mild and moderate) can be used in combination |
| Dimming | 0-100% 16bit smooth dimming | Dimming frequency |
Adjustable refresh frequency, HD camera shooting without flicker |
|
Control panel |
LCD touch screen with backlight |
Operate mode |
DMX512, master/slave |
|
P/T |
16 bit precision scanning, no deviation |
Protection Grade | IP65 |
|
Signal socket |

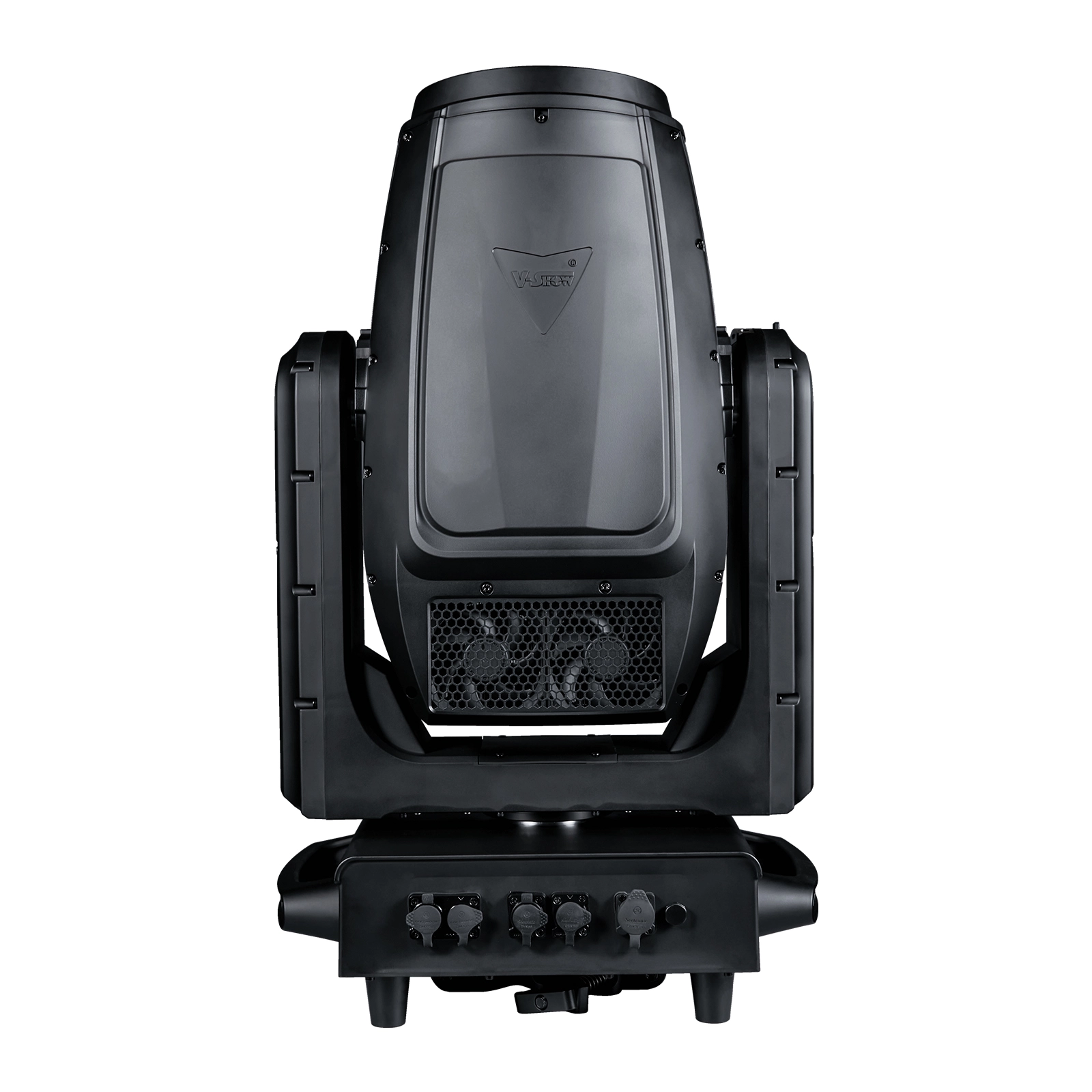

Waterproof 3-pin XLR or 5-pin XLR socket and RJ45
|
DMX Channel |
22/30/31/39/40CH
|
| Net Weight | 38kg |
Gross Weight |
45kg
|
|
Fixture size |
442x308x730mm
|
Package size |
Details & Features

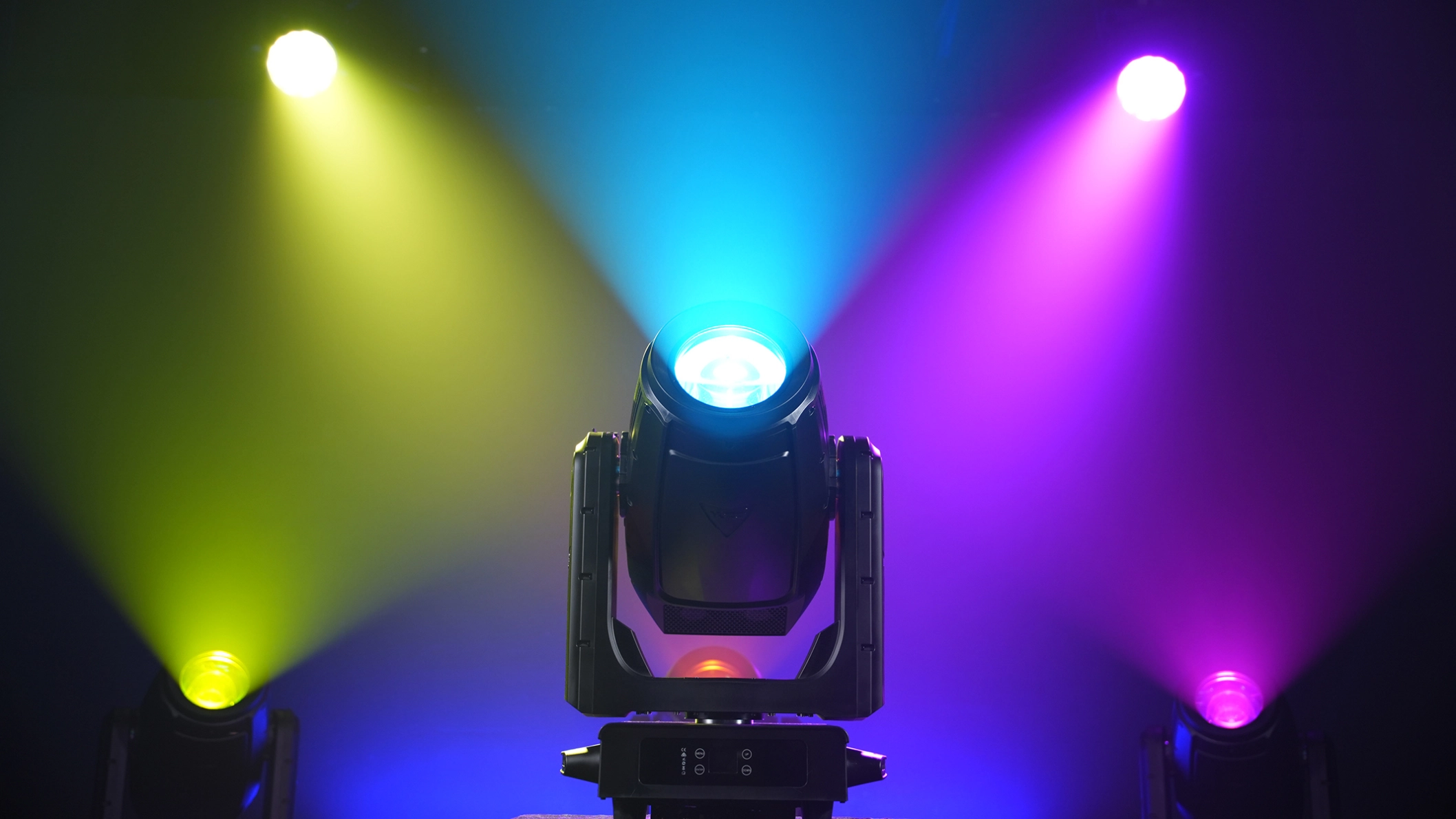

Excellent color mixing effect
