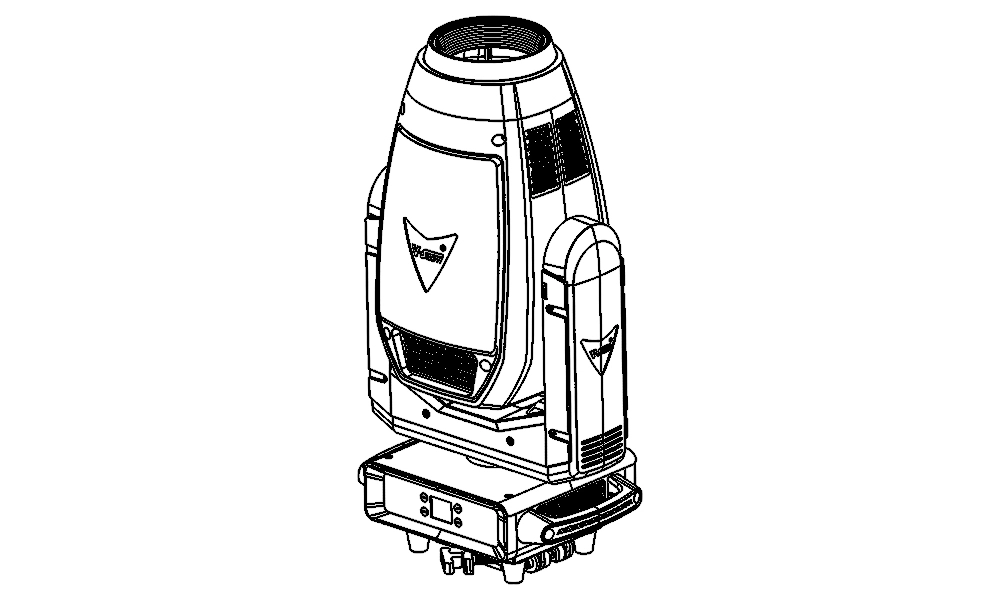

VSHOW Moving Head Led Light S711 Powerful 600w Led Module Engine Profile

S711 set light beam, spot, wash, and cutting functions in one. Pure color, uniform spot, color plate, glass gobo plate, CTO, and CRI plate are Schott materials with a small appearance, light weight, a small and delicate base, help reduce the weight of the lamp, a linear CMY color mixing system that provides rich color saturation and clear seamless color transitions.
Brand Name
VSHOW
Input Voltage
100-240V, 50/60Hz
Output Voltage
V1: 48V, 12.5A(Master board+LED driver) V2: 24V, 7.0A(cooling fan+Display)
Power consumption
680W
Power supply
800W
Light source
Powerful 600W LED module engine(21-24V,8A)
Place of Original
Guangdong, China

Return Tips   After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection   Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

S711 set light beam, spot, wash and cutting functions in one, pure color, uniform spot,color plate, glass gobo plate,CTO,CRI plate are schott materiall, small appearance, light weight, its base is small and delicate, help reduce the weight of the lamp, linear CMY color mixing system, Provides rich color saturation and clear seamless color transitions. LED adopt senergy-saving and environment-friendly 600W monochrome LED light engine,which can produce extremely high light output white light, color temperature of 8000K, light fluxof light source up to 34,000lm.



Parameters

Input Voltage

100-240V, 50/60Hz

Output Voltage

V1: 48V,12.5A(Master board+LED driver),V2: 24V,7.0A(cooling fan+Display)

Power consumption

680W

Power supply

800W

Light source

Powerful 600W LED module engine(21-24V,8A)

Net weight

27kg

Focus

Motorized focus

Color temperature

8500K, standard mode Ra>70, High CRI mode Ra>90

Lumen

Total output up to 35,000lm

Diamter of optic lens

120mm

Zoom angle

3-55°

Color wheel

1 color wheel with 5 colors

Static gobo wheel

1 static gobo wheel with 8 gobos

Rotating gobo wheel

1 rotating gobo wheel with 7 gobos,convenient replacement

Prisms

4 facet prism can rotate in both direction

CMY

 Linear CMY color mixing

CTO

Variable CTO 2700K-8500K

4x Framing shutters

Fast,smooth & precise motion,each shutter blade position and angle of each shutter

Frost

Frost filters to create and improve the wash effect,they can be used independently and overlayed

Combined Optic lens

120mm diameter advanced optical system to ensure image quality ,clear and sharp

Dimmer

Motorized smooth dimming & linear Iris from 0-100%,flicker free management

DMX Channel

25/29/34CH

Operate mode

DMX512, RDM,self-propelled, master/slave
