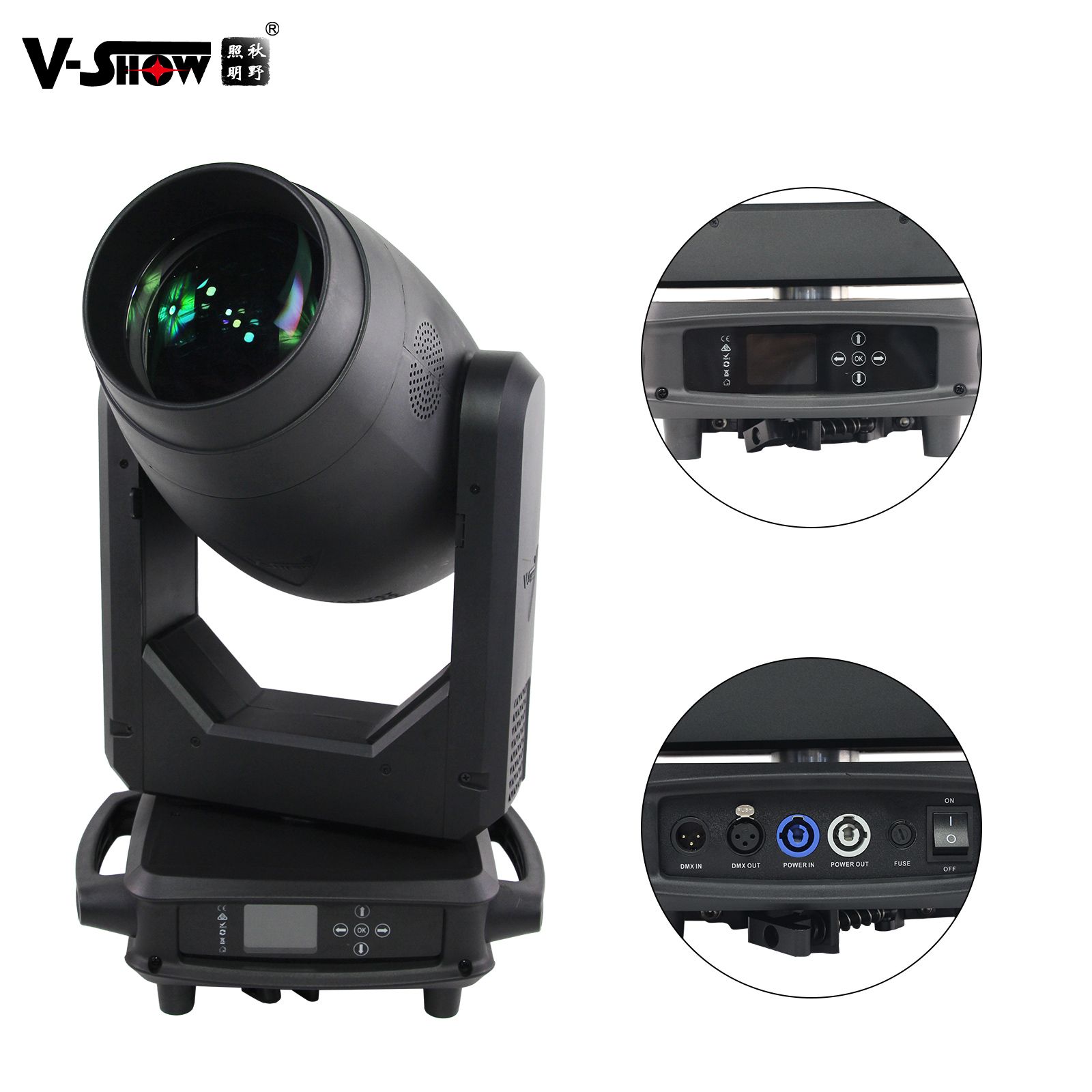

T912 V-SHOW T912 380W PHILIPS MSD LAMP HYBIRD MOVING HEAD LIGHT

Product Parameters:

Input Voltage: 100-240V, 50/60Hz

Output Voltage: V1:36V2A(Master board), V2:12V4A(cooling fan) ,

V3:380V1A(lamp)

Power consumption: 520 W

Power supply: 600W

Light source: PHILIPS MSD Silver 380/2 LL (4000 hours)

Color temperature: 7800K

CRI：80

Diameter of optic lens: 128mm

Beam angle: 2°-50°

Color wheel: 15 colors on 3 wheels 2 CTO Filters

CMY colour mixing

Static gobo: 18 gobos plus 1 white circle

Rotation Gobo: 9 Gobo plus 1 white circle

Frost : with smooth wash effect

Prism: Equipped with 8 prism, and 4 rows prism, the two prisms

can be stacked and rotated in both directions

DMX Channel: 31CH

Operate mode: DMX512, self-propelled, master/slave, RDM

Linear focusing system

Double strobe motor Outstanding strobe effect with variable speed

0-100% smooth dimming

Control panel: LCD Touchscreen

Overheating self-energy protection bulbs, extending lamp life

X-axis rotation angle: 540°

Y-axis rotation angle: 270°

Three phase motor with SY Brand

XY axis magnetic coding positioning is more accurate

Power Outlet: Power Connector Input/Output

Signal Outlet: standard 3 Pin XLR socket(can customized 5 pin XLR socket)

Installation: 2x fast lock (folding clamp can optional)

Fixture size: 338x256x588mm

Net weight: 17KG

Features:

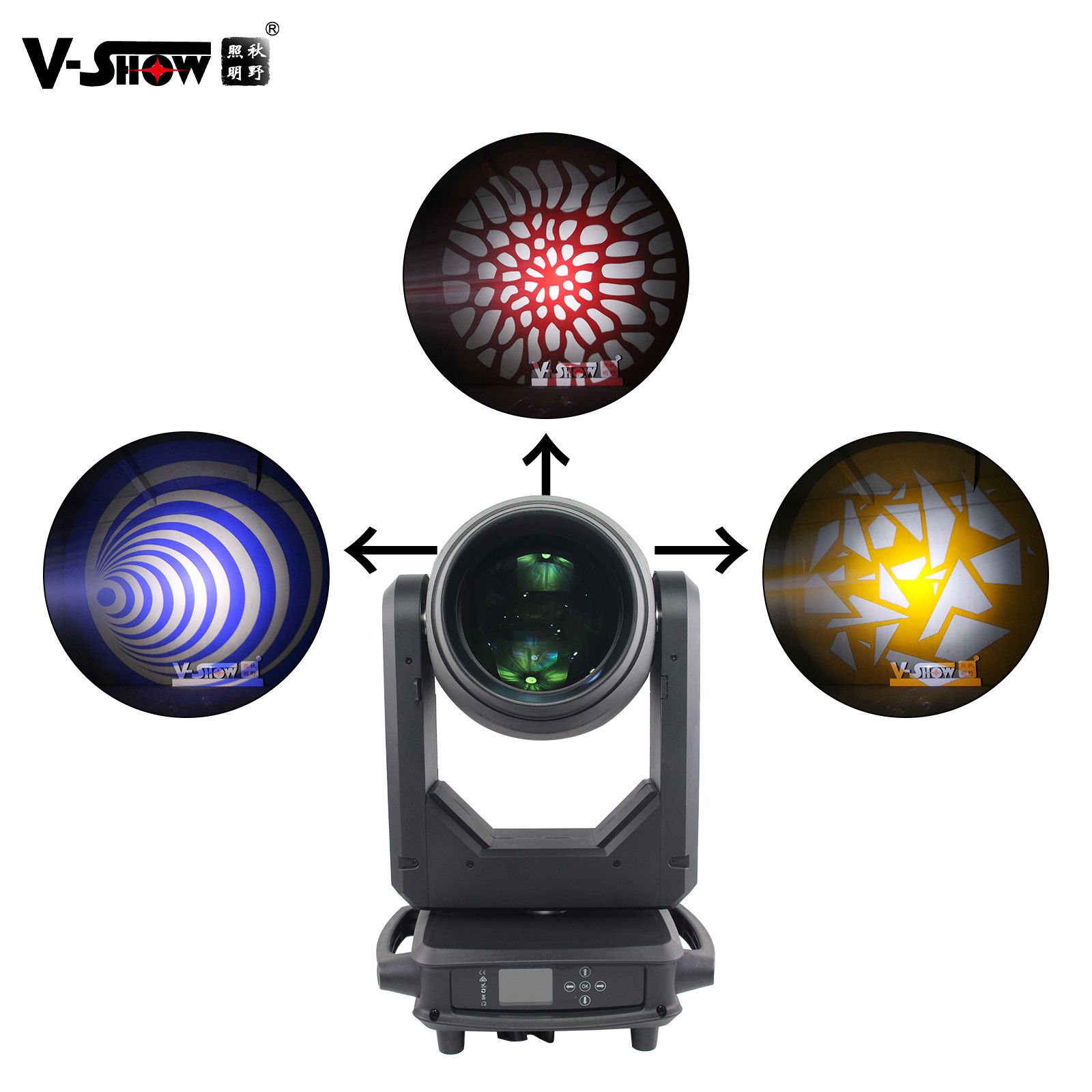

fixture integrate light beams, gobo, and wash. Adopting the Philips Long Life

Light Source - Philips MSD Silver 380W/2, with a lifespan of 4000 hours and a

color temperature of up to 7800K CRI80, the beam mode has a sharp sense of

sharpness and strong visual impact. The gobo mode light spot is clear anduniform, and the wash mode is soft. Coupled with linear CMY colors, it

achieves infinite color change. The rich colors and patterns provide excellent

color macro and dynamic effects, equipped withTwo prisms (6and8) effect,

Create more rich and colorful stage visual effects, not only with a compact

appearance, but also with a fashionable and lightweight design, suitable for

various occasions. The shell is made of high-temperature resistant and

flame-retardant nylon material
