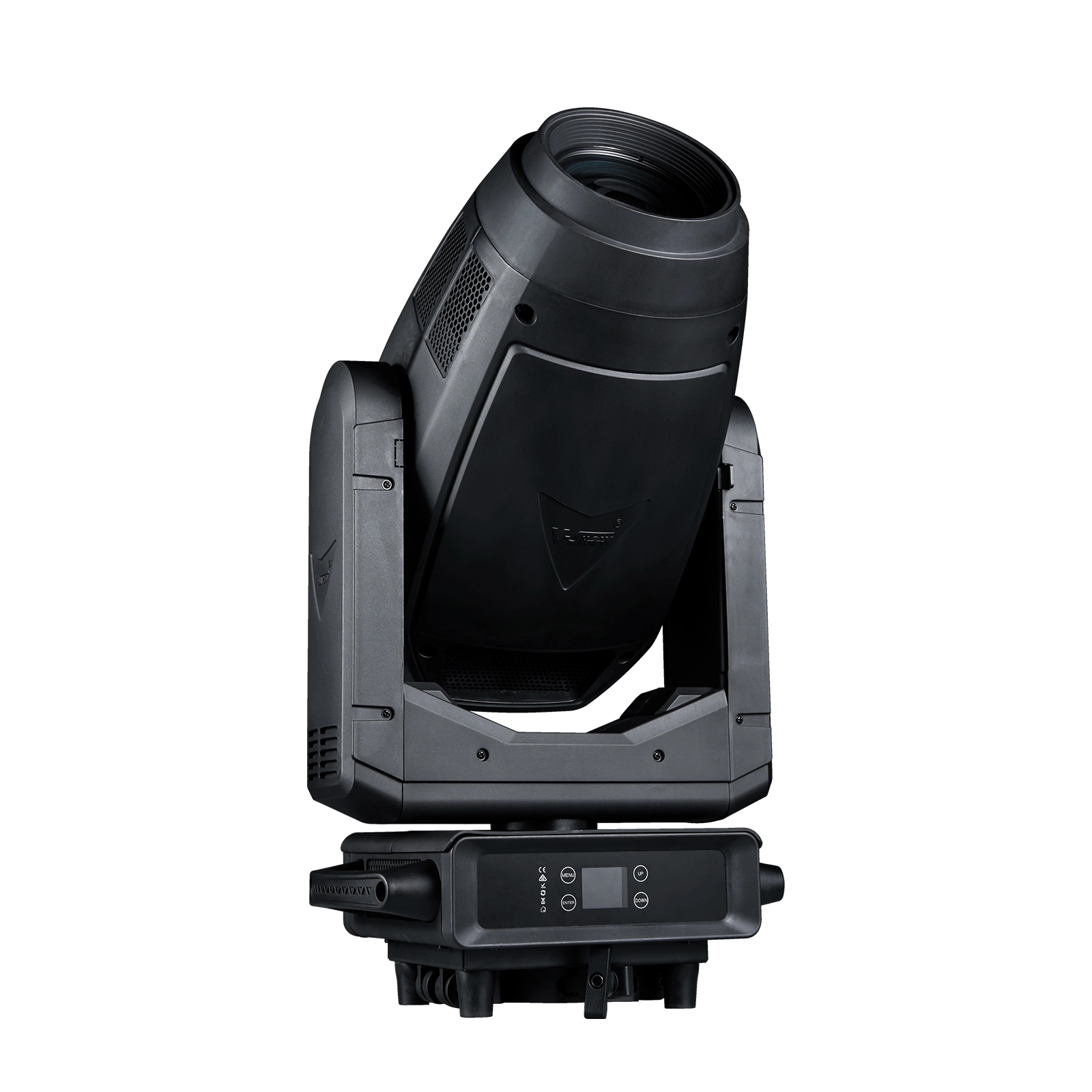

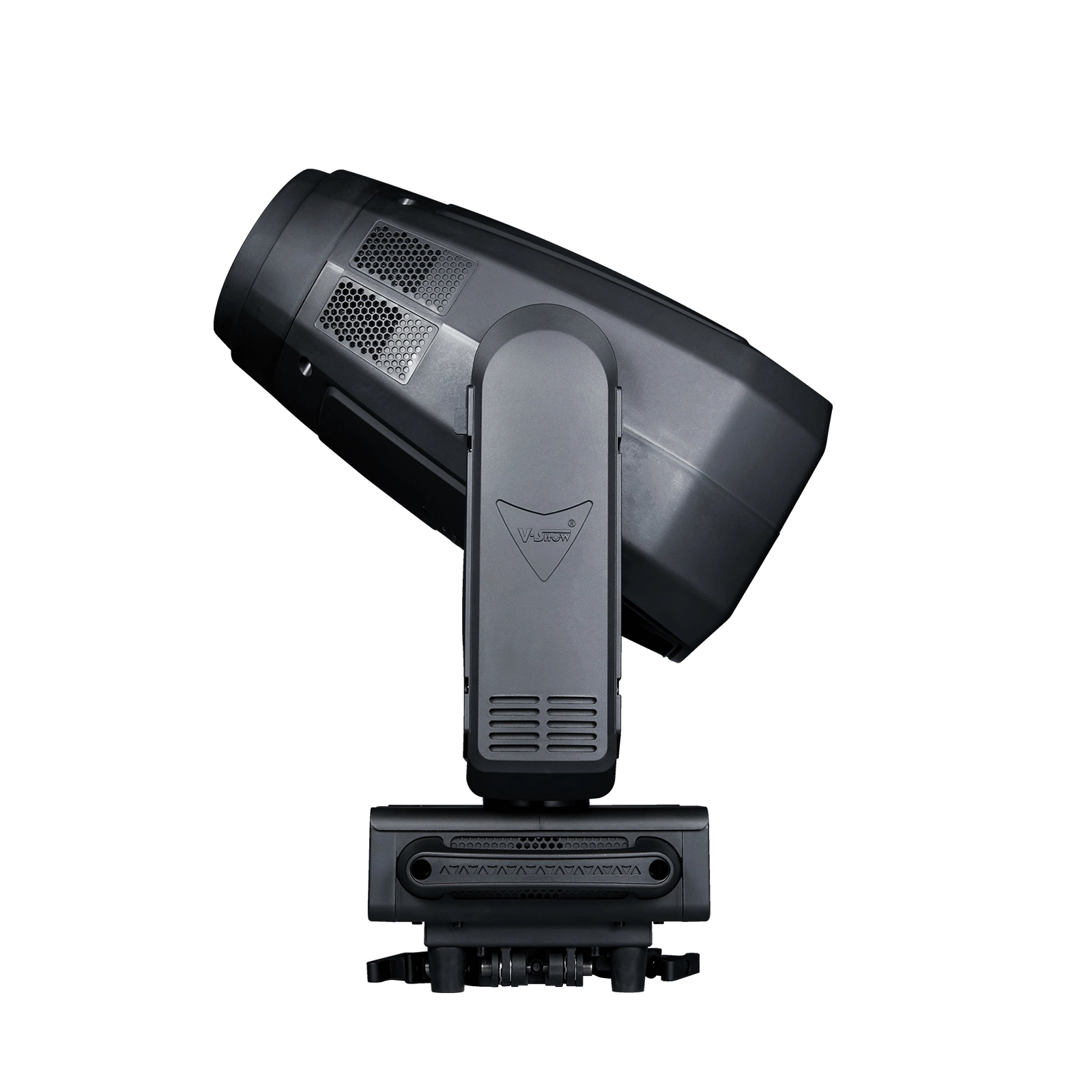

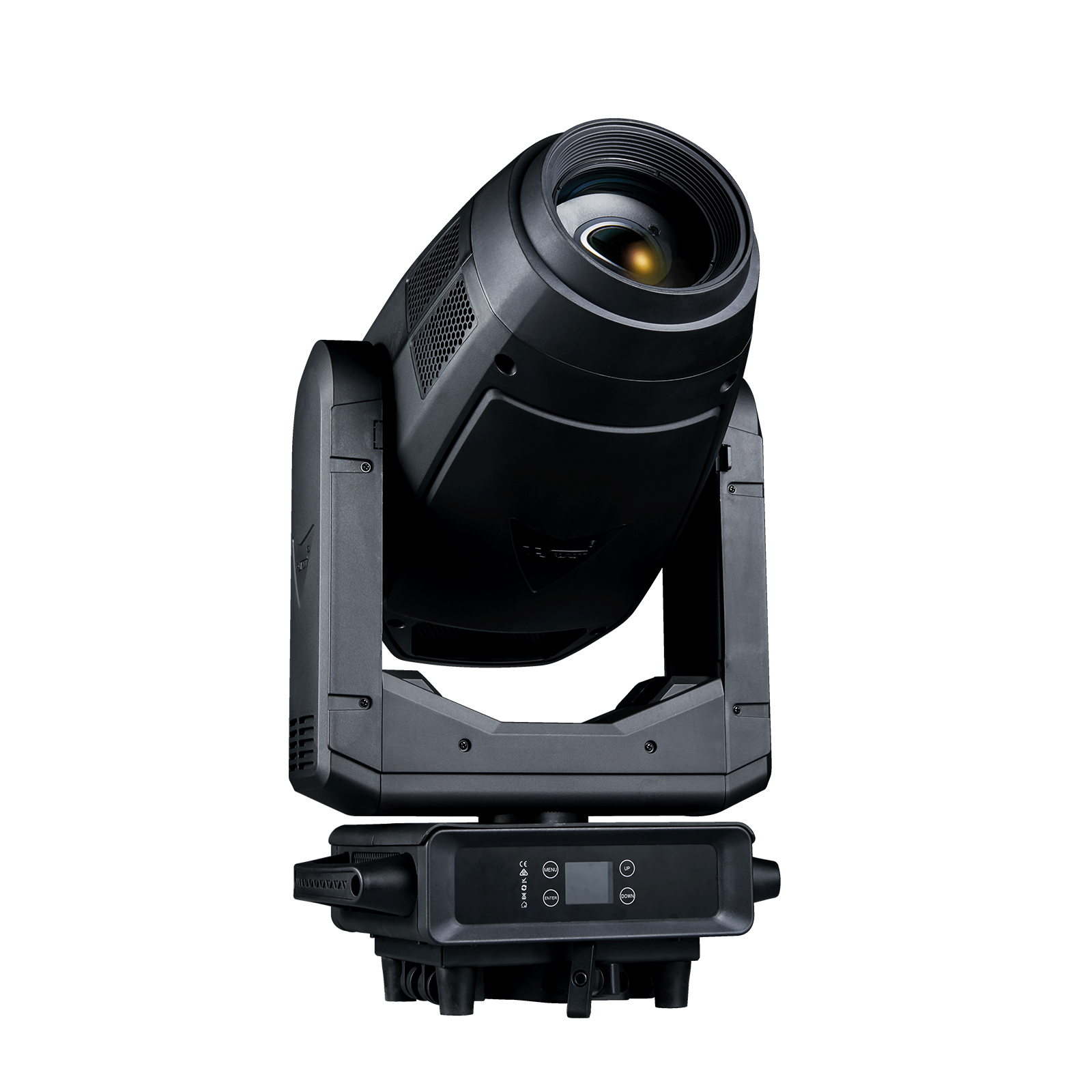

VSHOW S710 800W Image Profile BSWF 4 in 1 moving head stage lighting

fixture set light beam, spot, wash and cutting functions in one, pure color, uniform spot, color plate, glass gobo plate, CTO, CRI plate are schott materiall, small appearance, light weight, its base is small and delicate, help reduce the weight of the lamp, linear CMY color mixing system, Provides rich color saturation and clear seamless color transitions. LED adopts energy-saving and environment-friendly 800W monochrome LED light engine, which can produce extremely high light output white light, color temperature of 7500K, The 120mm diameter high quality optical lens produces a very uniform spot, CRIRA≥90, and zoom range 3°- 55,The cutting system consists of 4 gratings, which can be rotated ± 60°, giving designers unlimited spot creativity. Two high brightness atomizing pieces of new materials can be respectively inserted and superimposed. With 14° prism, achieve rich prism effect, standard 3-pin XLR or 5-pin XLR socket and RJ45 with fast loading and unloading fast lock light hook, 16BIT dimming, a variety of dimming mode switching options,High refresh rate, no flicker under high-definition camera, intelligent fan temperature control, switching to multi fan mode

Brand Name
VSHOW
Input Voltage
100-240V
Output Voltage
V1:48V 18.75A(light source), V2:24V4.2A(a main board)
Power consumption
820W
Power supply
1000W
Light source
800W Module LED Engine
Place of Original
Guangdong, China

Return Tips   After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection   Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

fixture set light beam, spot, wash and cutting functions in one, pure color, uniform spot, color plate, glass gobo plate, CTO, CRI plate are schott materiall, small appearance, light weight, its base is small and delicate, help reduce the weight of the lamp, linear CMY color mixing system, Provides rich color saturation and clear seamless color transitions. LED adopts energy-saving and environment-friendly 800W monochrome LED light engine, which can produce extremely high light output white light, color temperature of 7500K, The 120mm diameter high quality optical lens produces a very uniform spot, CRIRA≥90, and zoom range 3°- 55,The cutting system consists of 4 gratings, which can be rotated ± 60°, giving designers unlimited spot creativity. Two high brightness atomizing pieces of new materials can be respectively inserted and superimposed. With 14° prism, achieve rich prism effect, standard 3-pin XLR or 5-pin XLR socket and RJ45 with fast loading and unloading fast lock light hook, 16BIT dimming, a variety of dimming mode switching options,High refresh rate, no flicker under high-definition camera, intelligent fan temperature control, switching to multi fan mode



Parameters

Input Voltage

100-240V, 50/60Hz

Output Voltage

V1:48V 18.75A(light source), V2:24V4.2A(a main board)


Power supply

1000W

Light source

800W Module LED Engine

Power consumption

820W

Color temperature

7500K Linear CTO color temperature adjustment (3000K-7000K)
Standard color rendering index Ra ≥ 70
High color rendering index Ra ≥ 90

Diamter of optic lens

120mm

Zoom angle

3-55°

Lifetime

≥20,000Hours

Rotation Gobo

1 rotating gobo , 7 Rotation Gobo, patterns can be replaced
Animation gobo, imitating water patterns and flame effects, dynamic disc
rotatable

Control panel

LCD touch screen with backlight
Built in lithium battery for easy menu set up even without plug in

Signal socket

standard 3-pin XLR or 5-pin XLR socket and RJ45
Standard with 50MM folding fixture

Fixture size

376x265x722.5mm

Net weight

28KG

DMX Channel

27/29/36CH

Operate mode

DMX512, master/slave, RDM,Art-Net ,SACN
Electronic autofocus

Details & Features

7
1
6
4

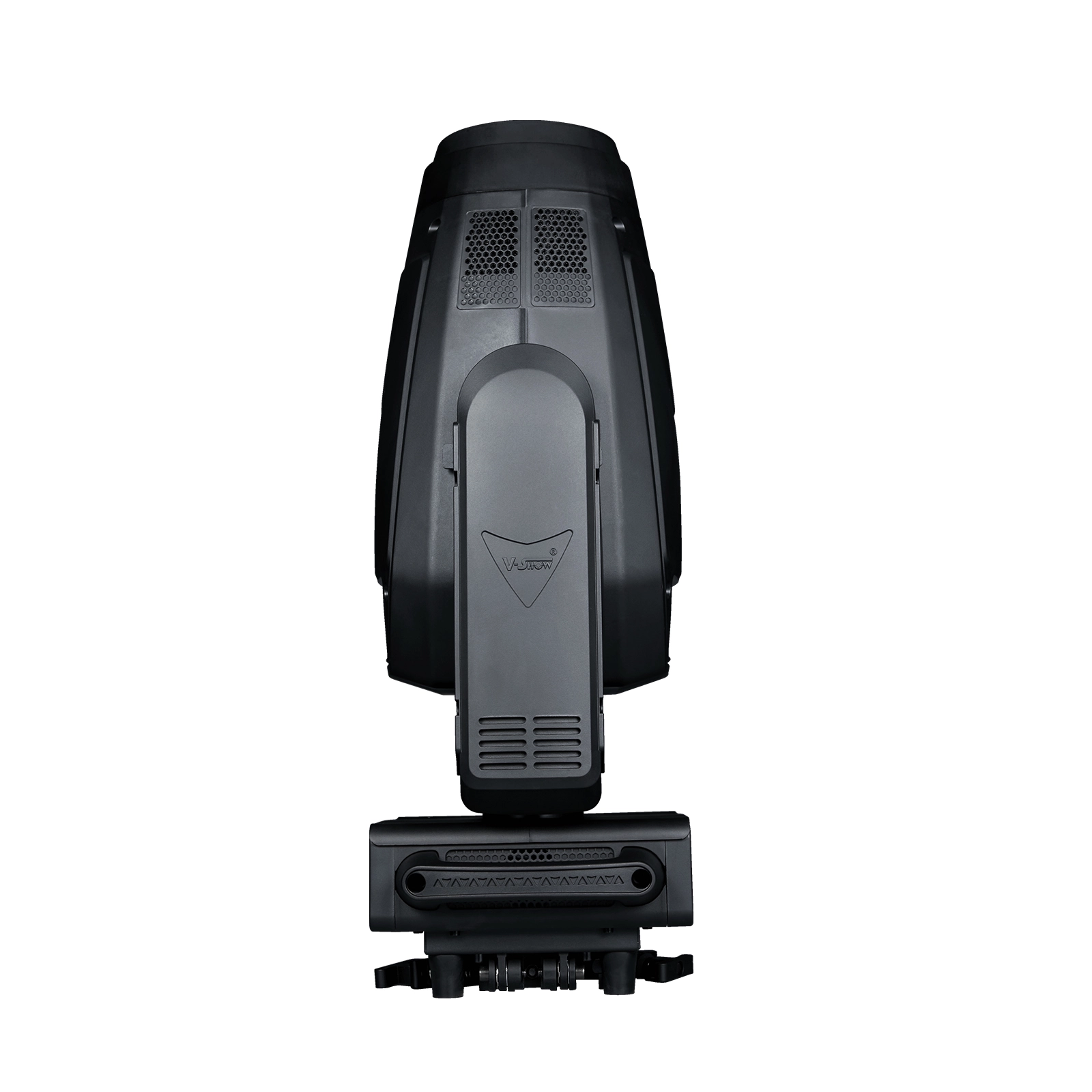

3
2

Excellent color mixing effect

效果图 (9)
效果图 (11)
效果图 (13)
效果图 (14)
效果图 (38)
效果图 (25)
效果图 (4)

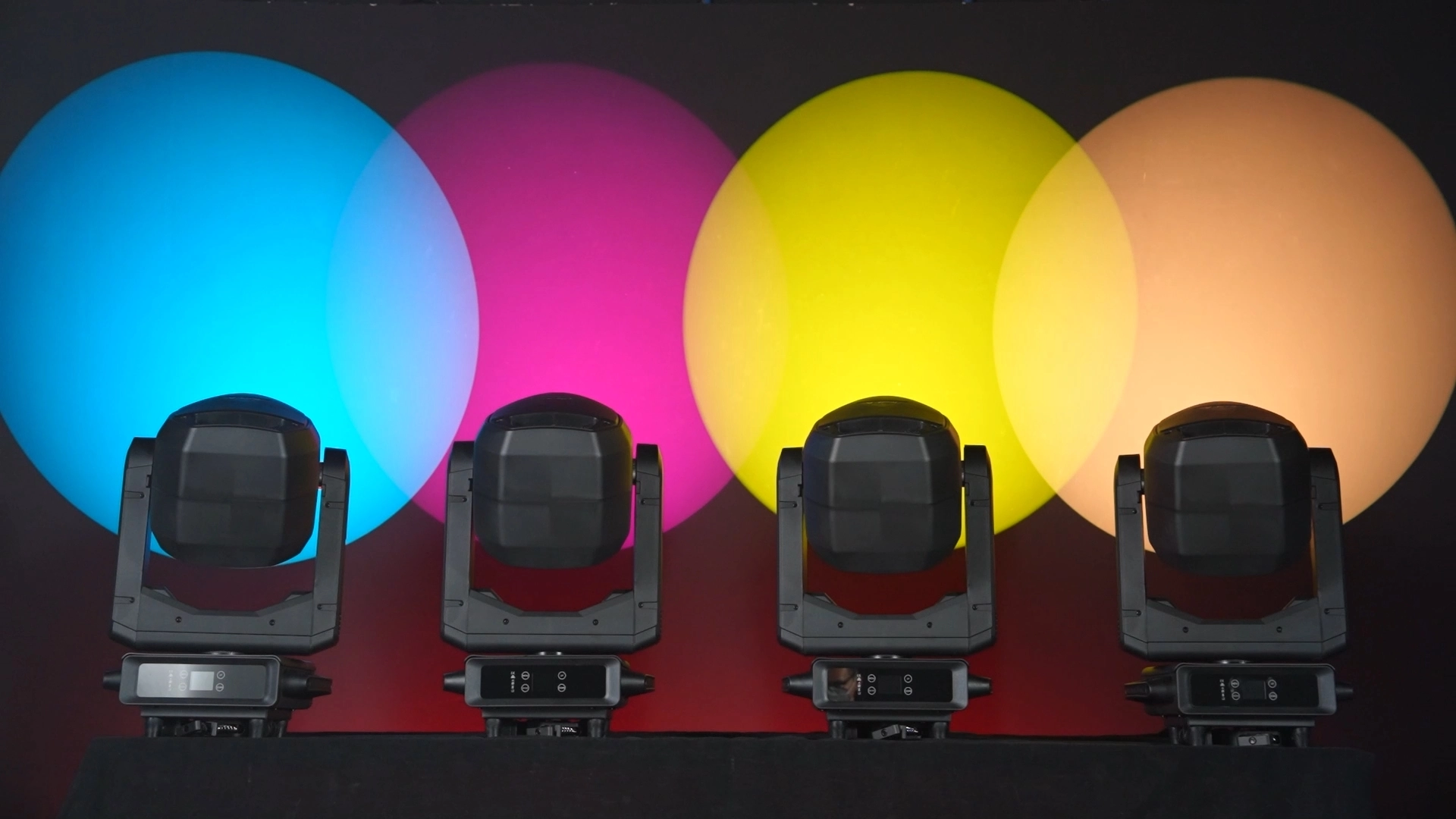

效果图 (35)
