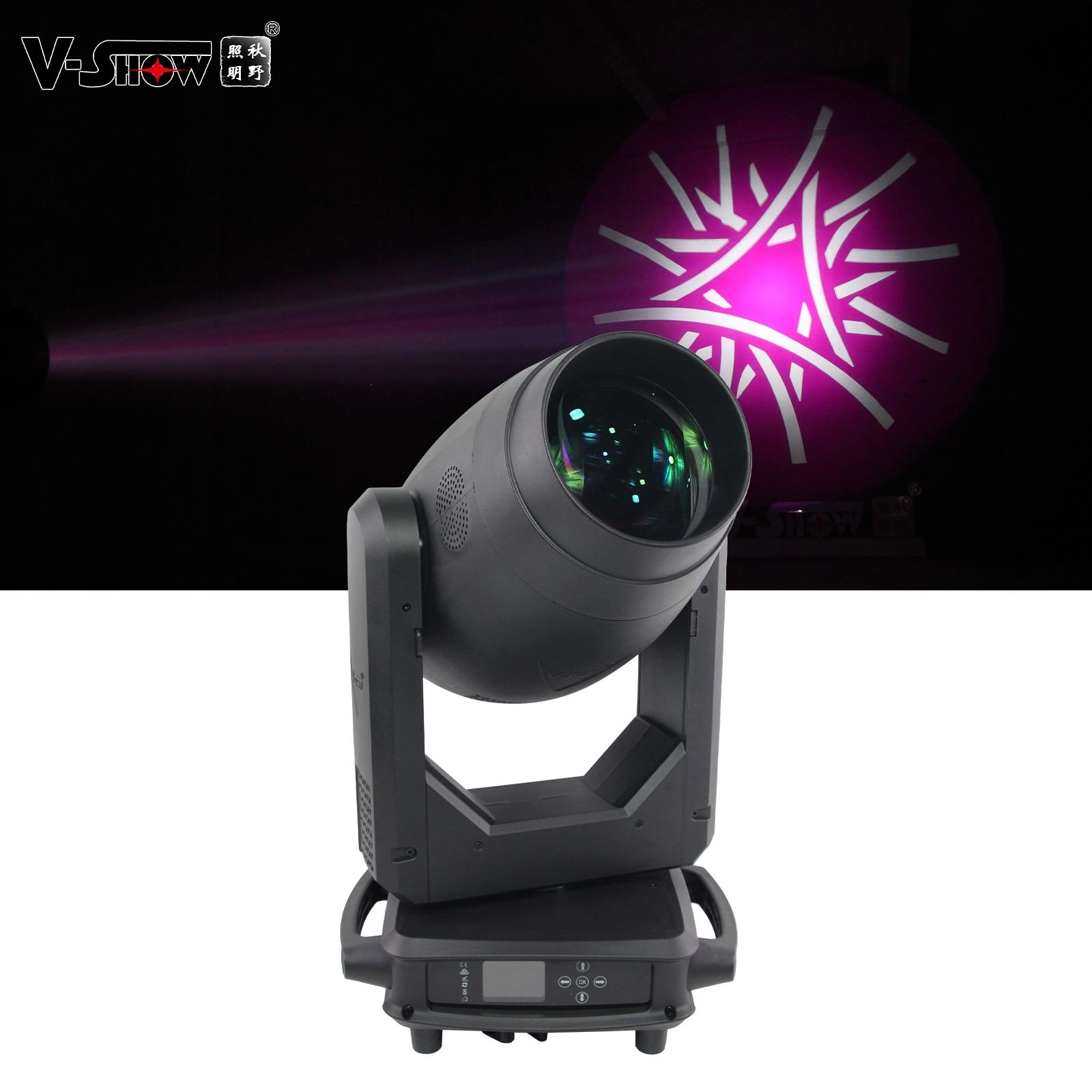

VSHOW S711 Buddha—Profile Moving Head Light

Lamp technical parameters

Input Voltage: 100-240V, 50/60Hz

Output Voltage: V1:48V (light source), V2:24V (main board)

Power consumption: 600 W

Power supply: 800W

Light source: 600W Module LED Engine

Lifetime:≥20,000Hours

Color temperature: 8500K

Linear CTO color temperature adjustment (2700K–7000K)

Standard color rendering index Ra ≥ 70

High color rendering index Ra ≥ 90

Diameter of optic lens: 120mm

Beam angle: 5°–55°

Linear CMY color mixing system

Color wheel: 1 color wheel, 5 fixed colors that can be rotated in both directions

 Fixed Gobo : 1 fixed gobo, 8 fixed gobo

Rotation Gobo: 1 rotating gobo , 7 rotating Gobo, patterns can be replaced

Prism: 4 prisms that can be rotated in both directions (prism angle 14 °)

Two independent frost tablets (Mild and moderate) can be used in combination

Cutting system: 4 gratings to achieve fast and smooth cutting, each grating

Cutting direction and Angle can be independently controlled; The entire cutting

module can be rotated 90°

0–100% 16-bit smooth dimming (four dimming modes)

Adjustable refresh frequency, HD camera shooting without flicker

More strobe effects, variable speed

DMX Channel: 35/39/34CH

Operate mode: DMX512, master/slave, RDM (Art-Net Optional)

Electronic autofocus

Outstanding strobe effect with variable speed

Control panel: LCD touch screen, touch buttons with backlight

Intelligent protection of overheating temperature

Built-in lithium battery, no power can also operate the menu Settings

X-axis rotation angle: 540°

Y-axis rotation angle: 270°

P/T: 16-bit precision scanning, no deviation

XY-axis magnetic coding positioning is more accurate

Three-phase motor with SY Brand

Signal Outlet: standard 3-pin XLR/5-pin XLR socket (customizable ART-NET)

Standard with a 50mm folding fixture

Fixture size: 376x265x723mm

 Net weight: 27 kg

Features:

S711 set light beam, spot, wash, and cutting functions in one, pure color, uniform spot, color plate, glass gobo plate, CTO, and CRI plate are Schott material, small appearance, light weight, its base is small and delicate, help reduce the weight of the lamp, linear CMY color mixing system, provides rich color saturation and clear seamless color transitions. LED adopts an energy-saving and environment-friendly 600W monochrome LED light engine, which can produce extremely high light output (white light), a color temperature of 8000K, and a light flux of up to 34,000 lm. The 120mm diameter high-quality optical lens   produces a very uniform spot, CRIRA≥90, and zoom range 5°–55°. The cutting system consists of 4 gratings, which can be rotated ± 45°, giving designers unlimited spot creativity. Two high-brightness atomizing pieces of new materials can be respectively inserted and superimposed. With a 14° prism, achieve a rich prism effect and adapt to a 3 pin/5 pin XLR interface. ATR-NET can be customized, standard with fast loading and unloading, fast lock light hook, 16-bit dimming, a variety of dimming mode switching options,High refresh rate, no flicker under the high-definition camera, intelligent fan temperature control, switching to multi-fan mode.

Effect wheel：

Size:
