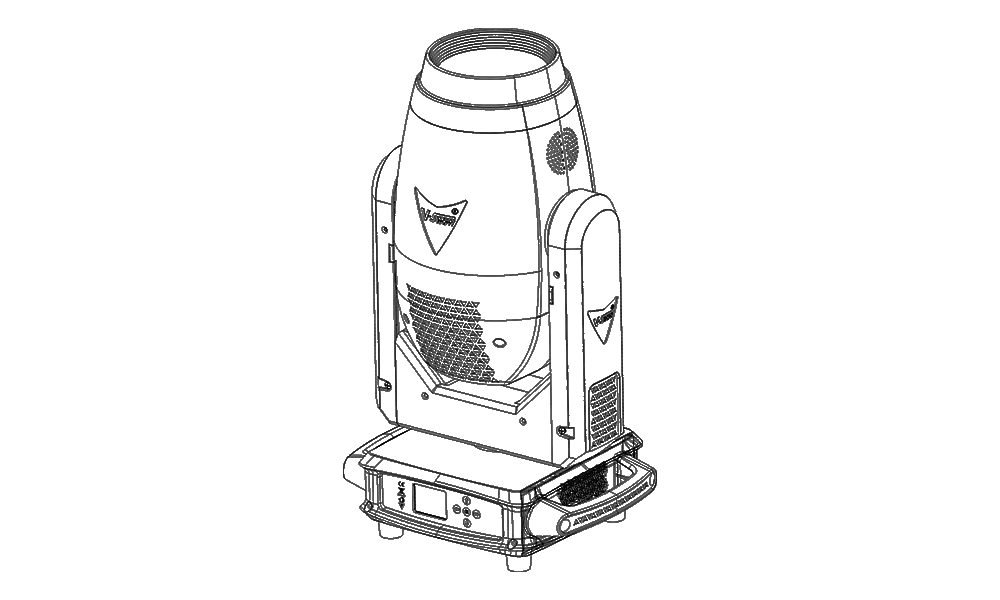

VSHOW Hybrid Moving Head Light T912 380W Philips MSD Lamp

Introducing the VSHOW T912 Hybrid Moving Head Light, a professional lighting solution for stages, DJs, and events. This powerful fixture boasts a 380W Philips MSD lamp for exceptional brightness and a long lifespan of over 4,000 hours.

Brand Name

VSHOW

Input Voltage

100-240V, 50/60Hz

Power consumption

520 W

Power supply

600W

Light source

PHILIPS MSD Silver 380/2 LL (4000 hours)

Place of Original

Guangdong, China

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

The T912 3in1 moving head light, equipped with Philips light source, integrates beam, pattern, and coloring. The linear CMY color mixing system provides rich and saturated light colors, while the XY-axis operation ensures swift and stable performance with a mature and stable design.

With the advantages of cost-effectiveness and overall stability, it not only balances performance requirements and pricing but also offers superior product selection solutions. It stands out as a high-cost performance lighting choice for entertainment venues, nightclubs, bars, hotel banquets, wedding halls, and commercial performances.

Parameters

Input Voltage	100-240V, 50/60Hz	Output Voltage	V1:36V2A(Master board) V2:12V4A(cooling fan) V3:380V1A(lamp)
Power supply	600W	Light source	PHILIPS MSD Silver 380/2 LL
Power consumption	520W	Color temperature	7800K
Diamter of optic lens	128mm	Zoom angle	2-50°
CMY	Linear CMY color mixing	Color Wheel	15 colors on 3 wheels 2 CTO Filters
Static gobo	18 gobos plus 1 white circle	Rotation Gobo	9 Gobo plus 1 white circle
Prism	Equipped with 8 prism, and 4 rows prism, the two prisms	Frost	with smooth wash effect
CRI	80	Lifetime	4000Hours
Control panel	LCD Touchscreen	Signal socket	Standard 3 Pin XLR socket(can customized 5 pin XLR socket)
DMX Channel	31CH	Operate mode	DMX512, self-propelled, master/slave, RDM
Net Weight	19kg	Gross Weight	21kg
Fixture size	338x256x588mm	Package size	733441cm/21kg (Carton) 704185cm 61KG (Flight case 2 in 1）

Details & Features

Excellent color mixing effect

• COLOR SYSTEM CMY colour mixing 15 colours on 3 wheels 2 CTO filters

• Prism: Equipped with 8 prism, and 4 rows prism, the two prisms can be stacked and rotated in both directions

• Double strobe motor Outstanding strobe effect with variable speed 0-100% smooth dimming

Download

T912 USER MANUAL

DOWNLOAD

T912 DWG

DOWNLOAD

T912 MA

DOWNLOAD

T912 D4

DOWNLOAD
