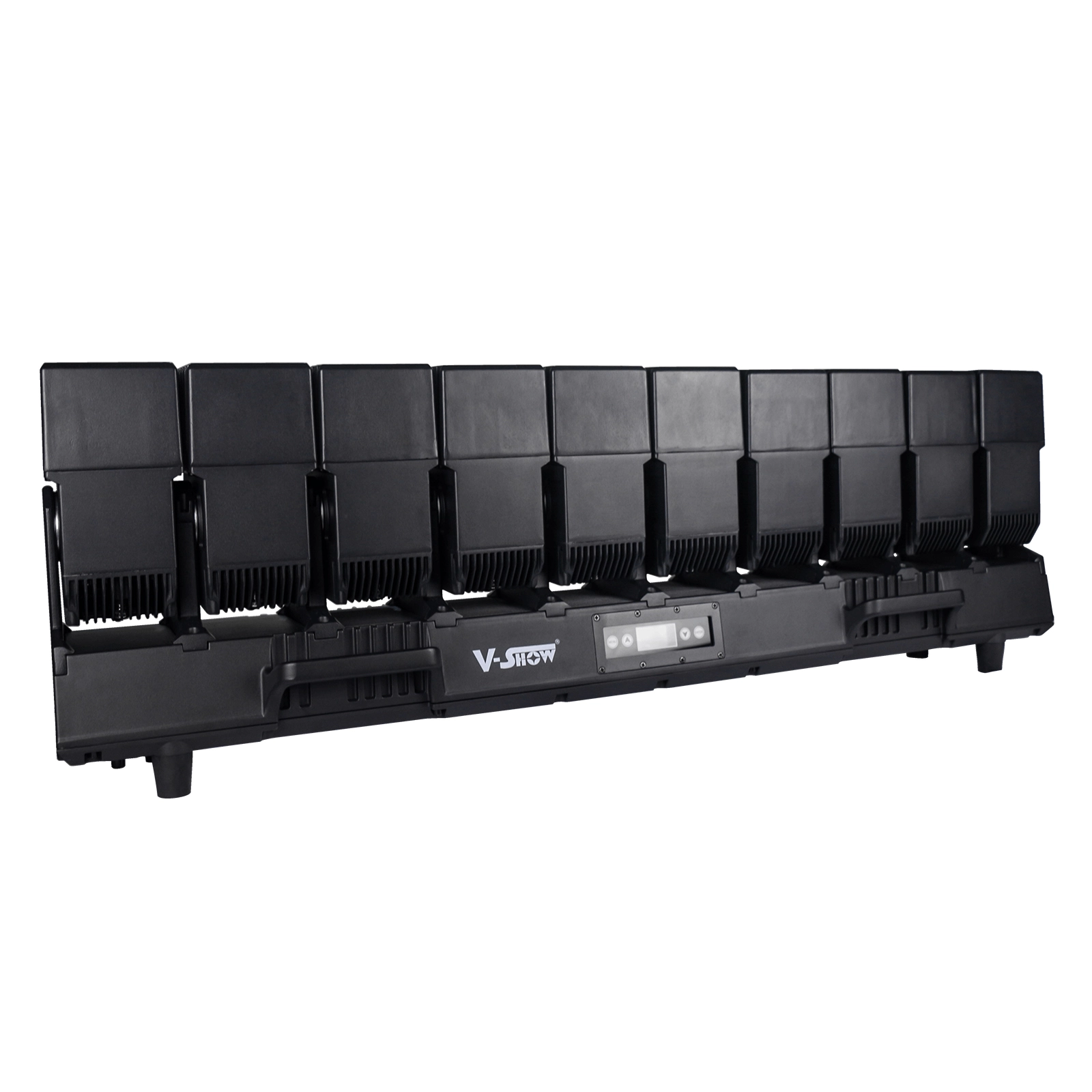

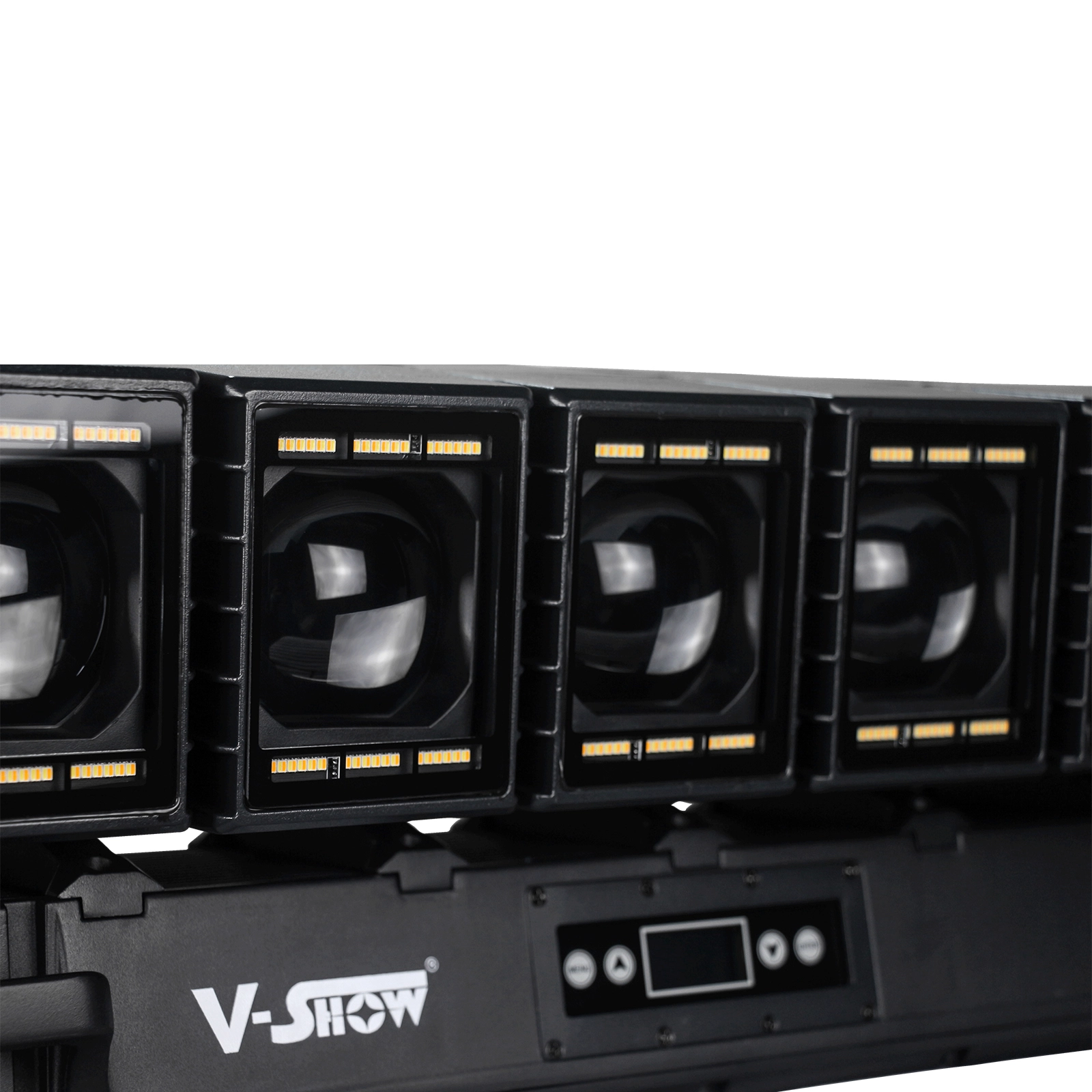

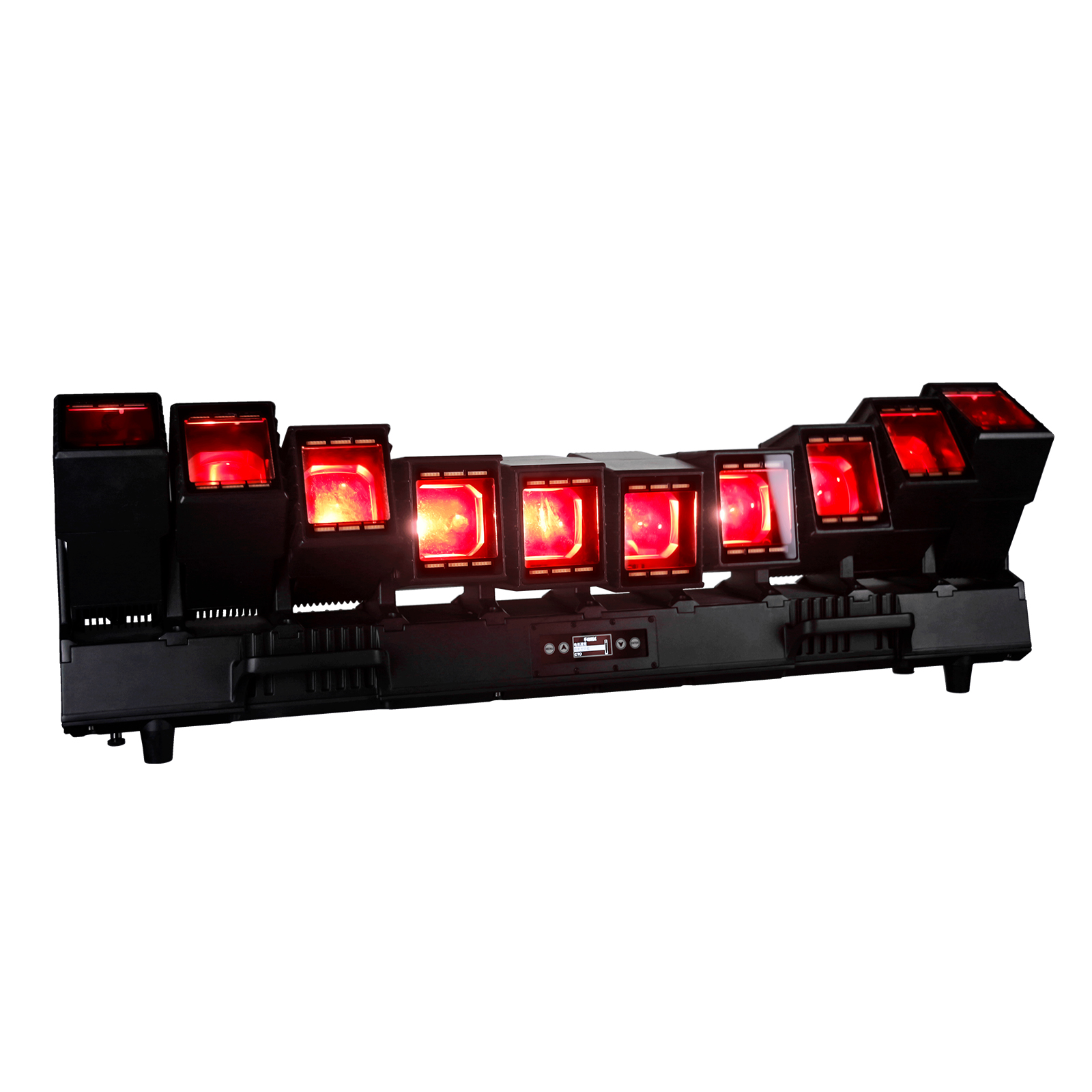

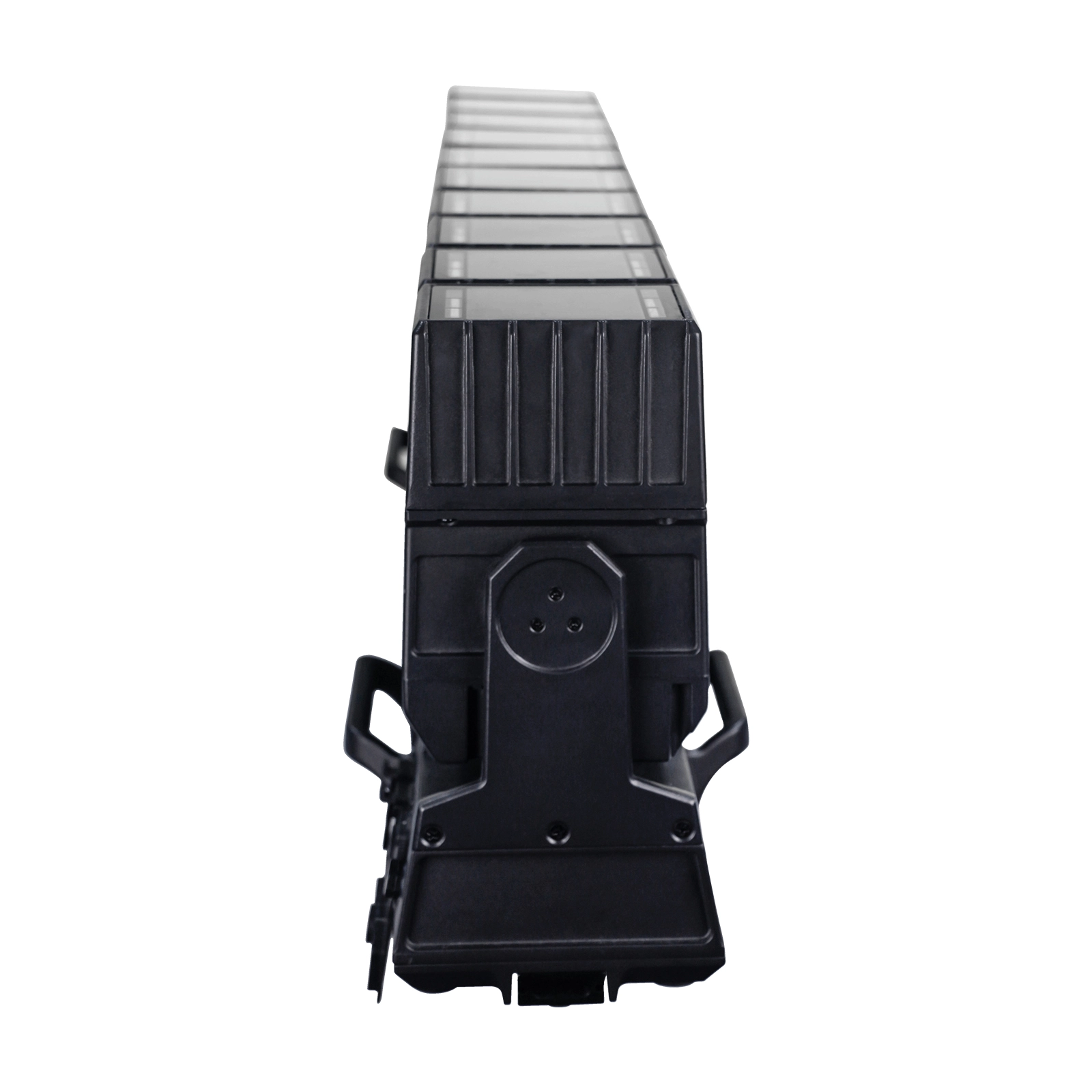

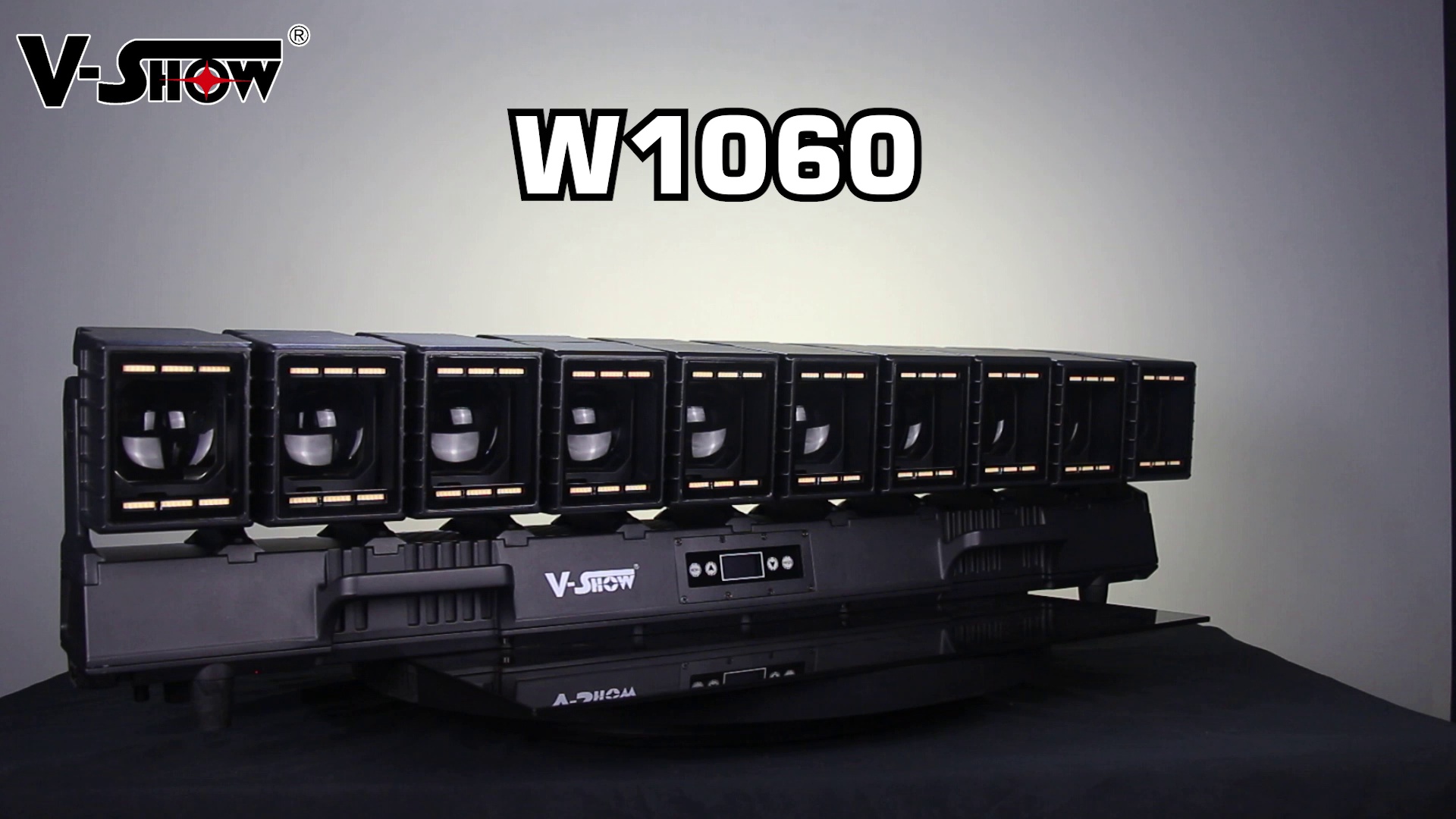

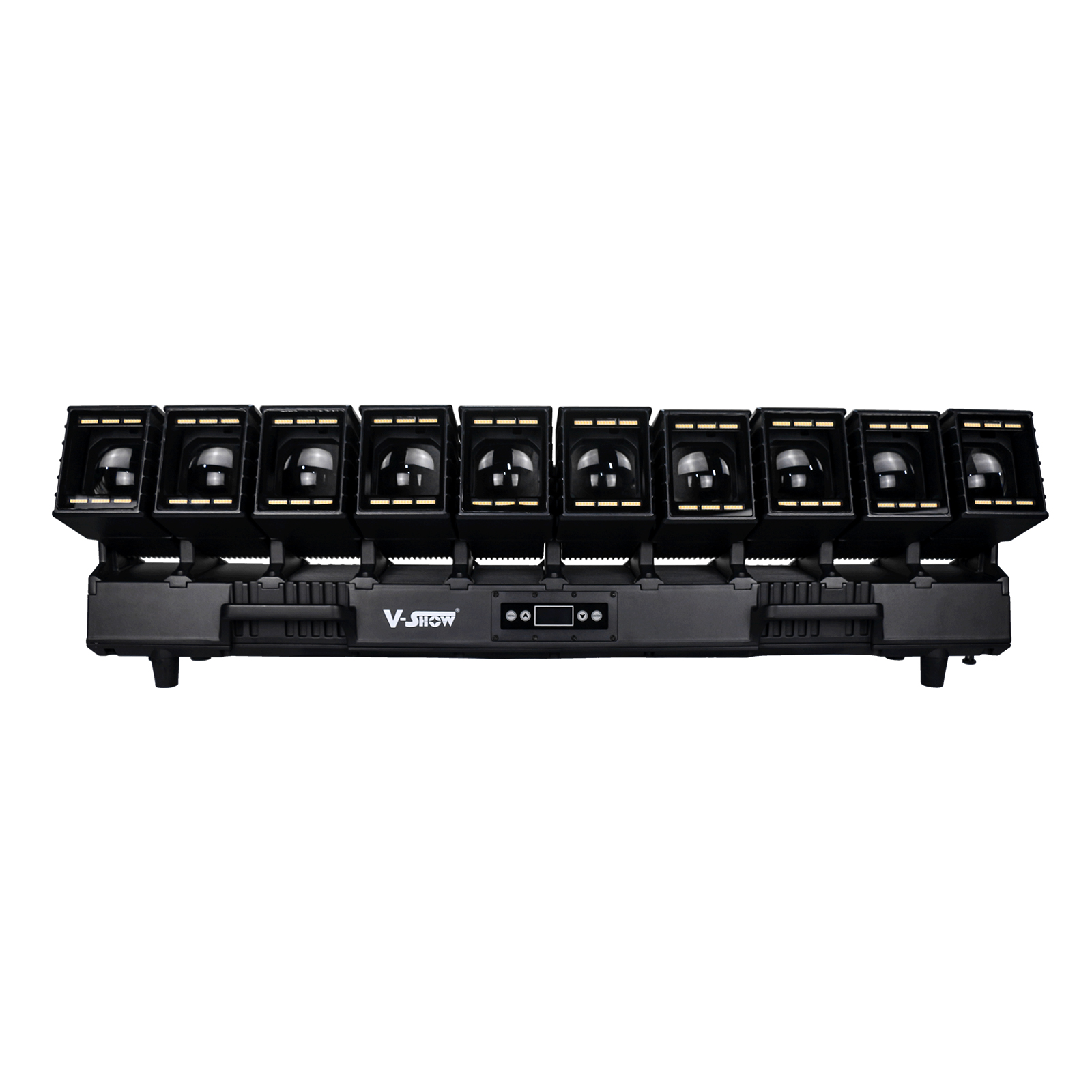

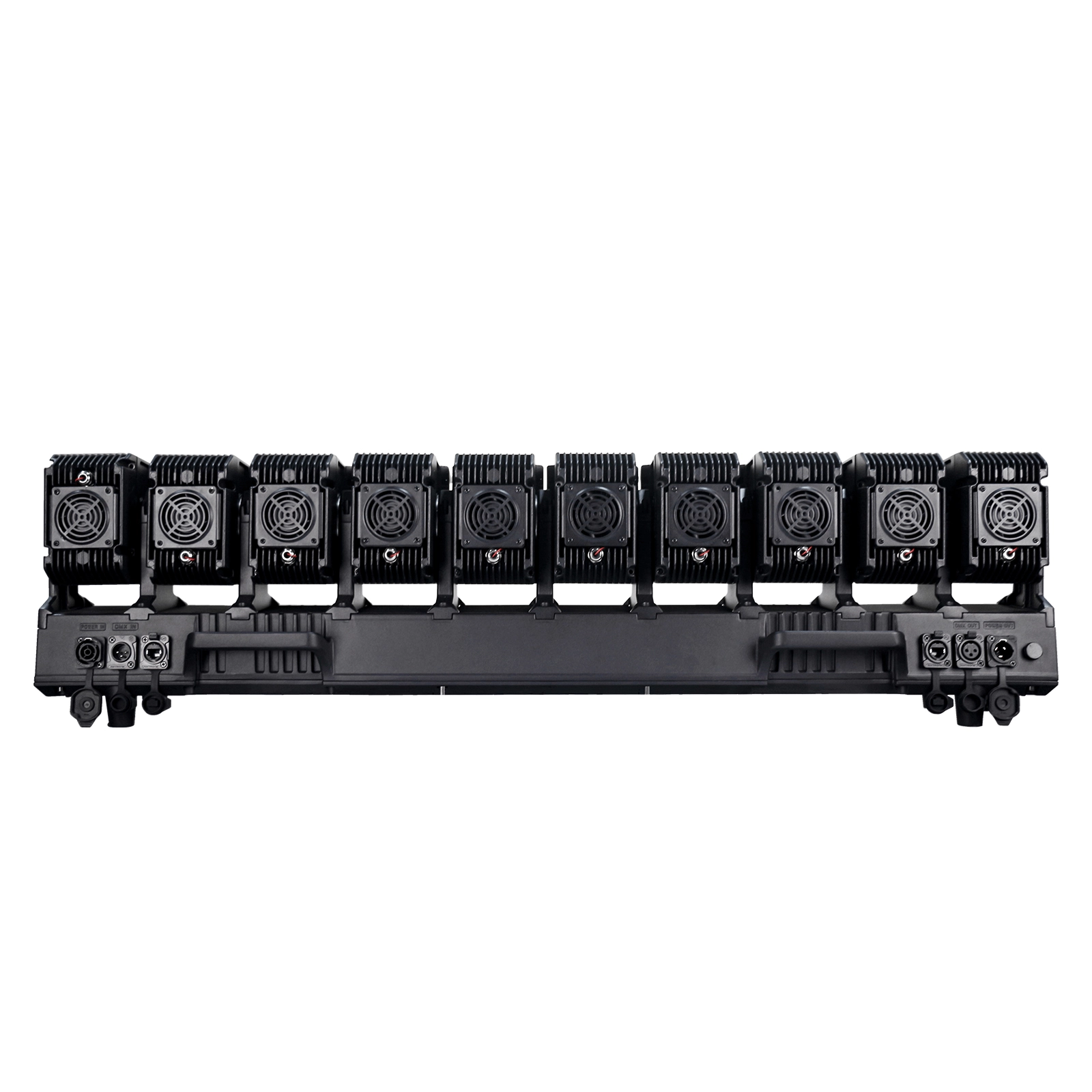

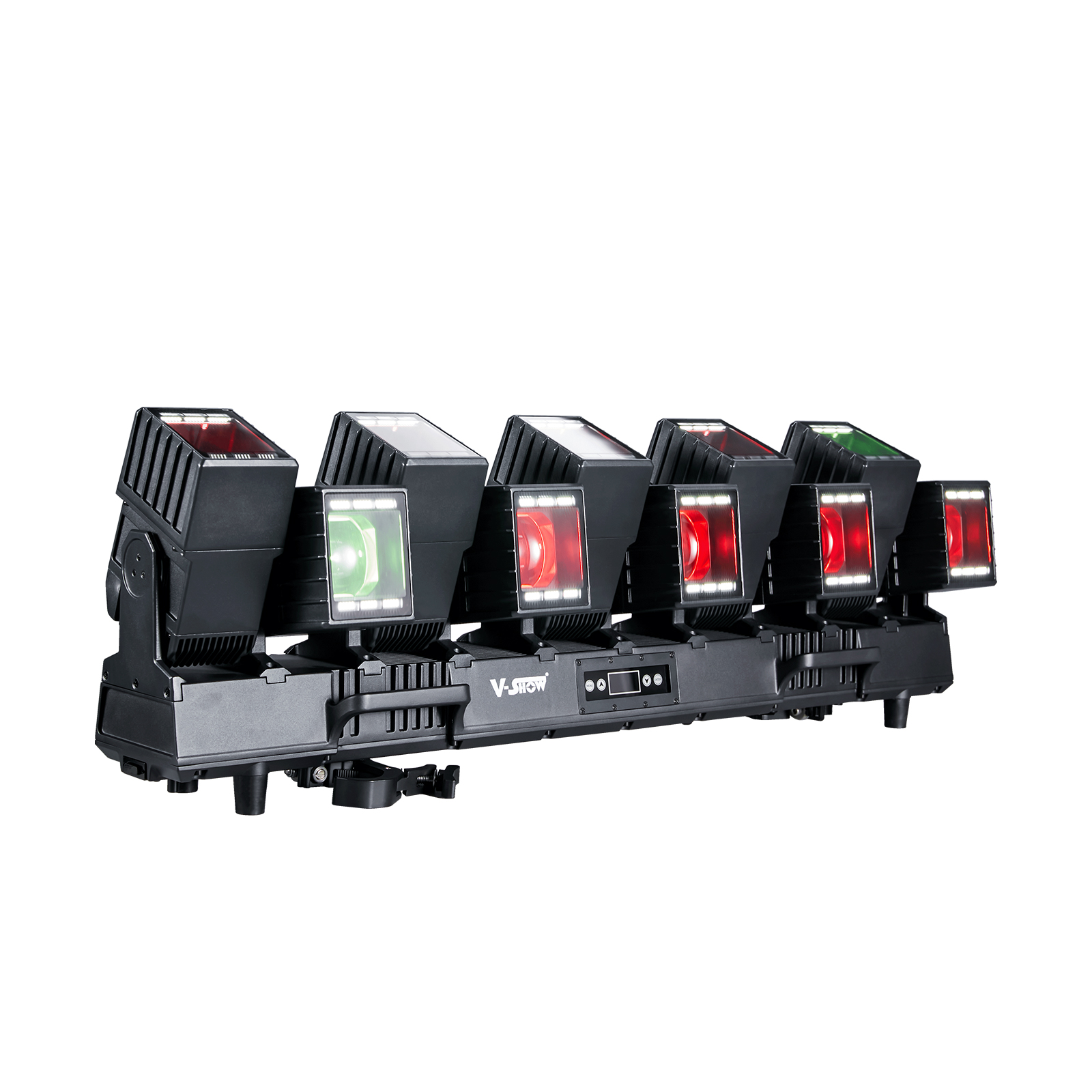

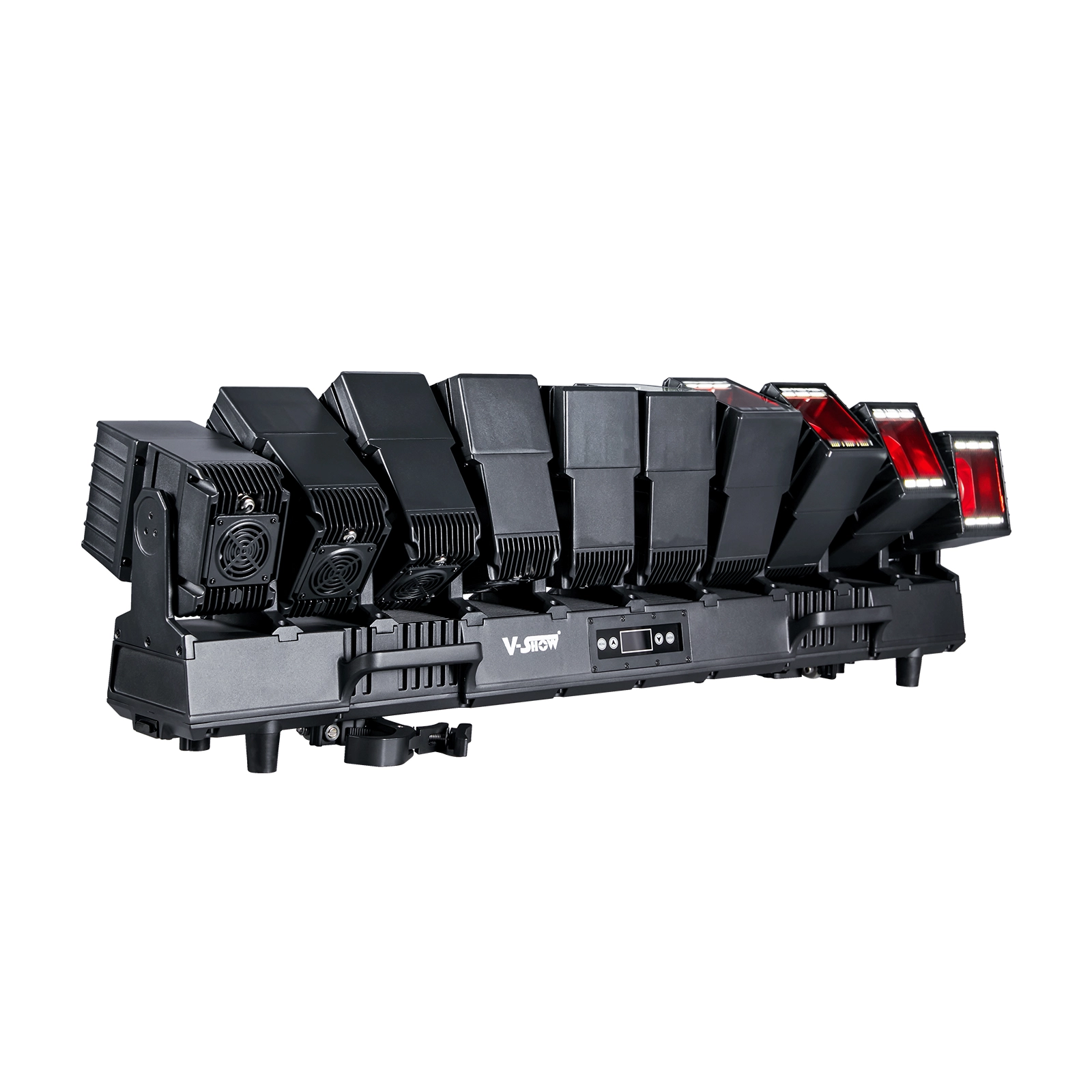

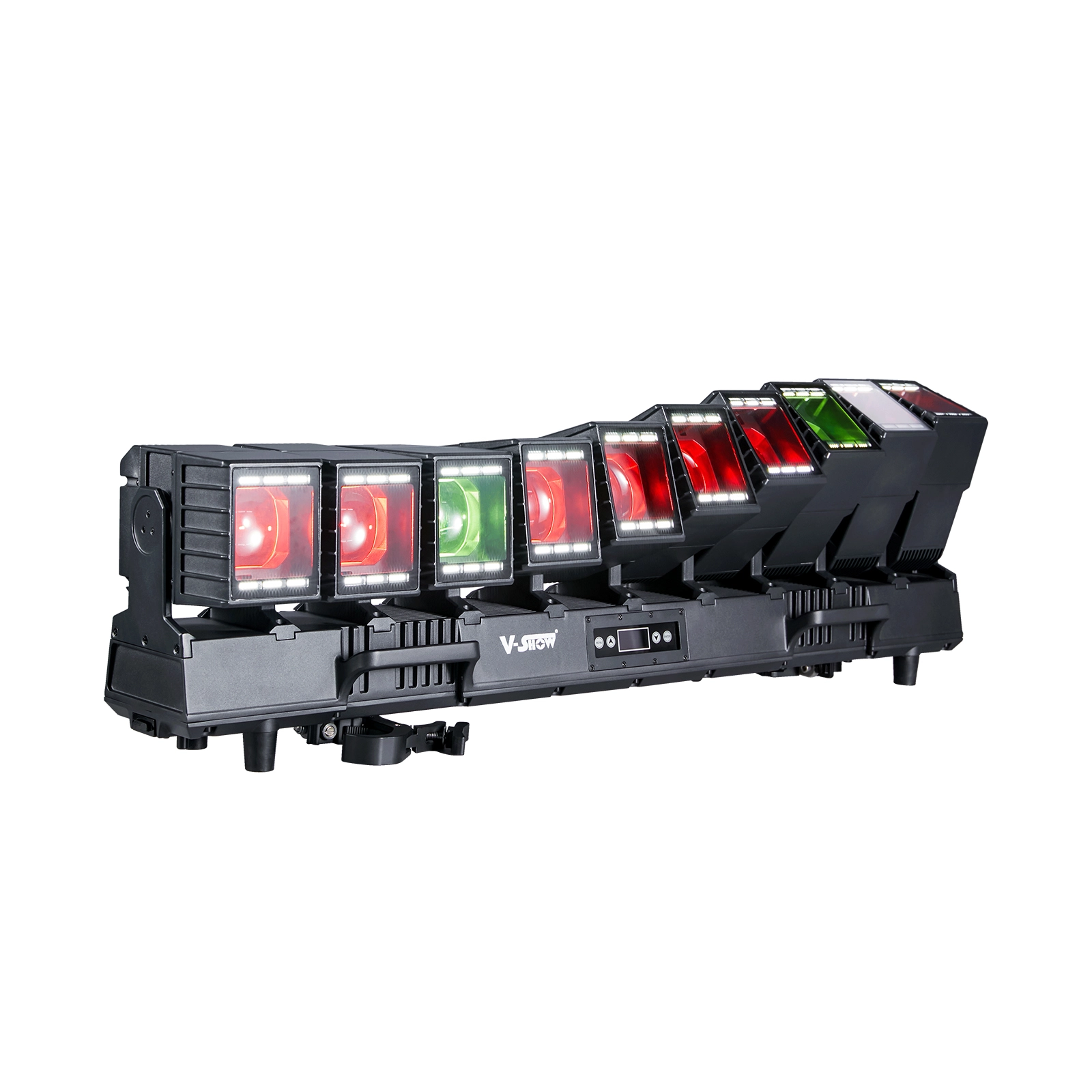

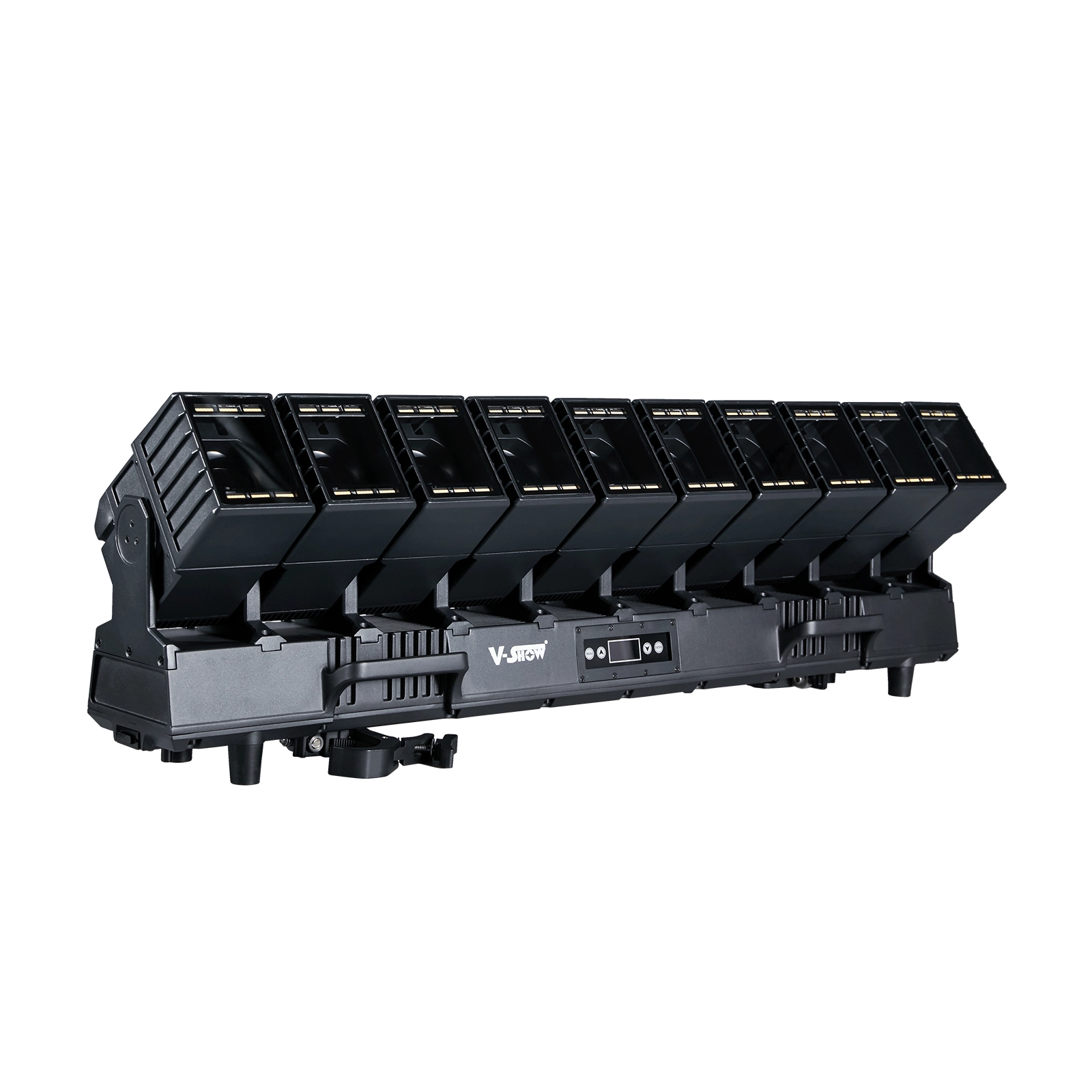

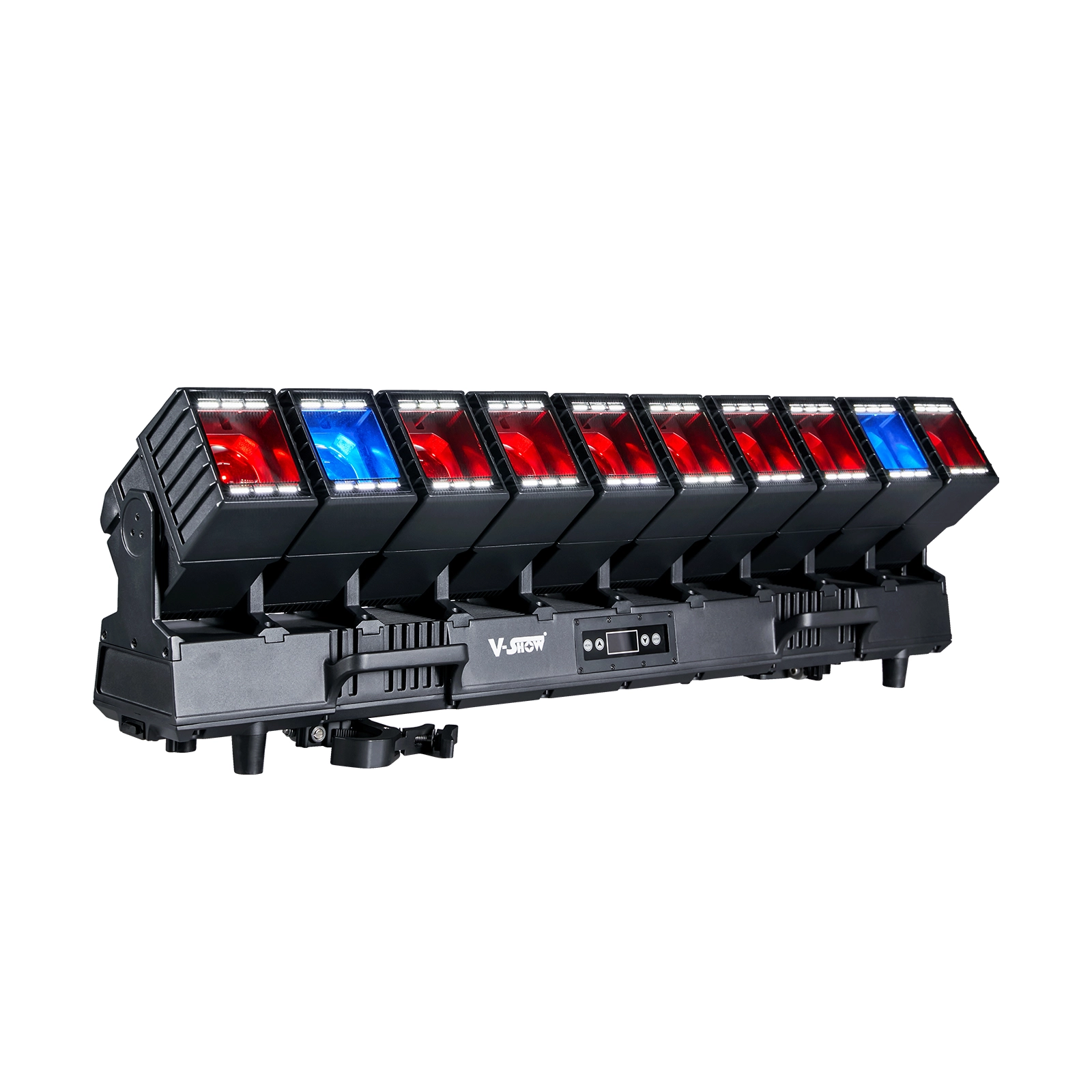

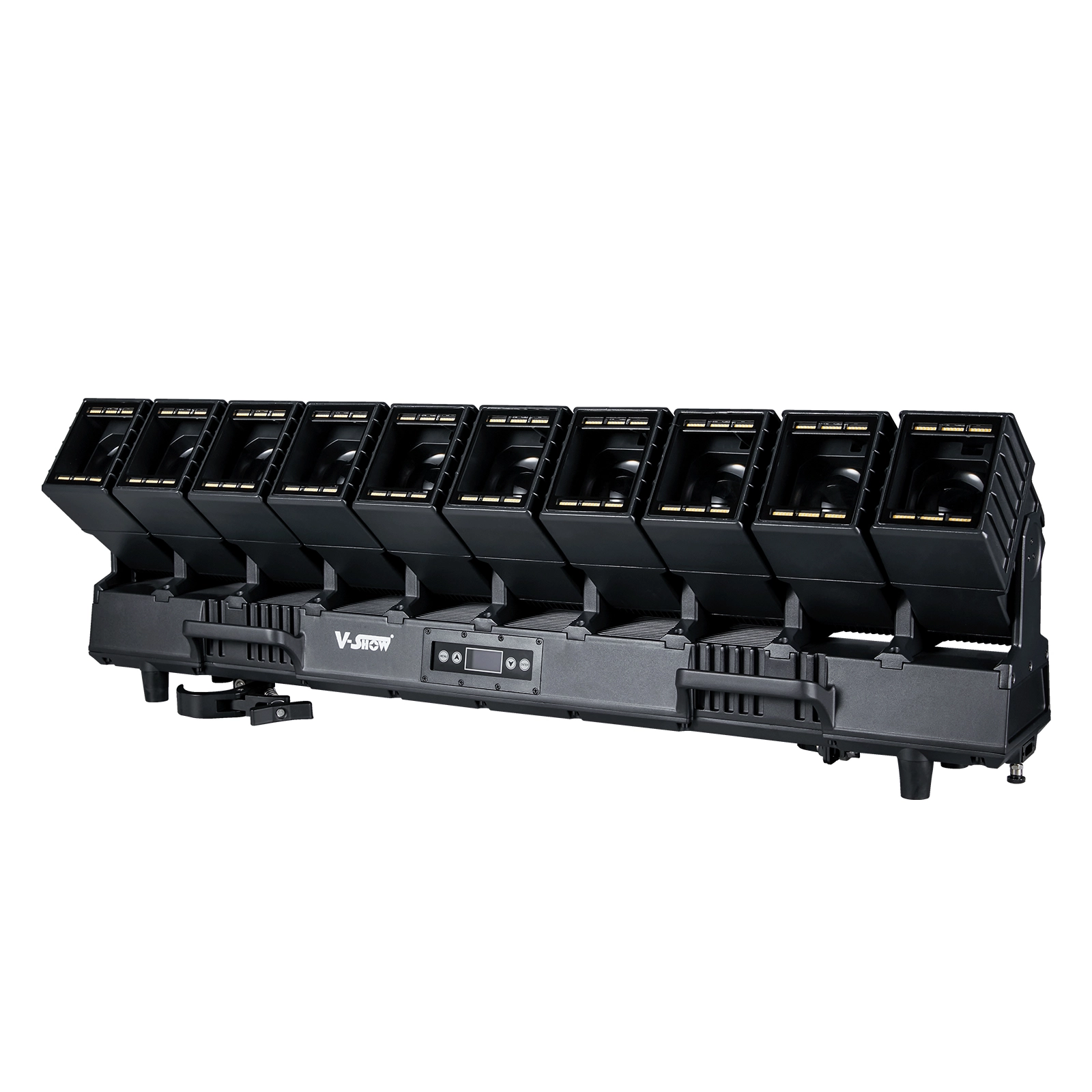

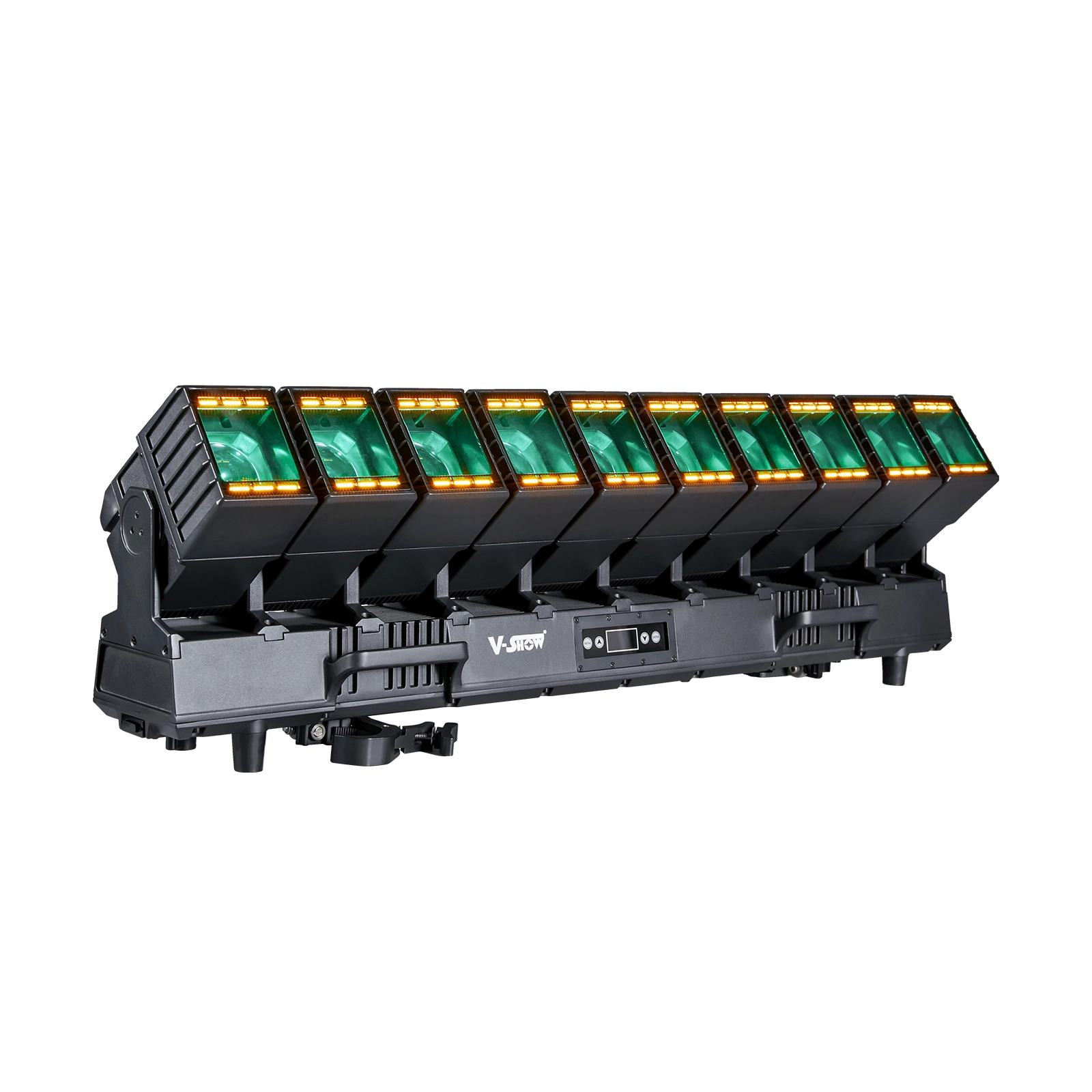

VSHOW W1060 Wave Line IP65 10pcs 60W RGBW 4in1 Moving bar zoom with strobe lines Moving Bar Zoom Effect Light with Strobe

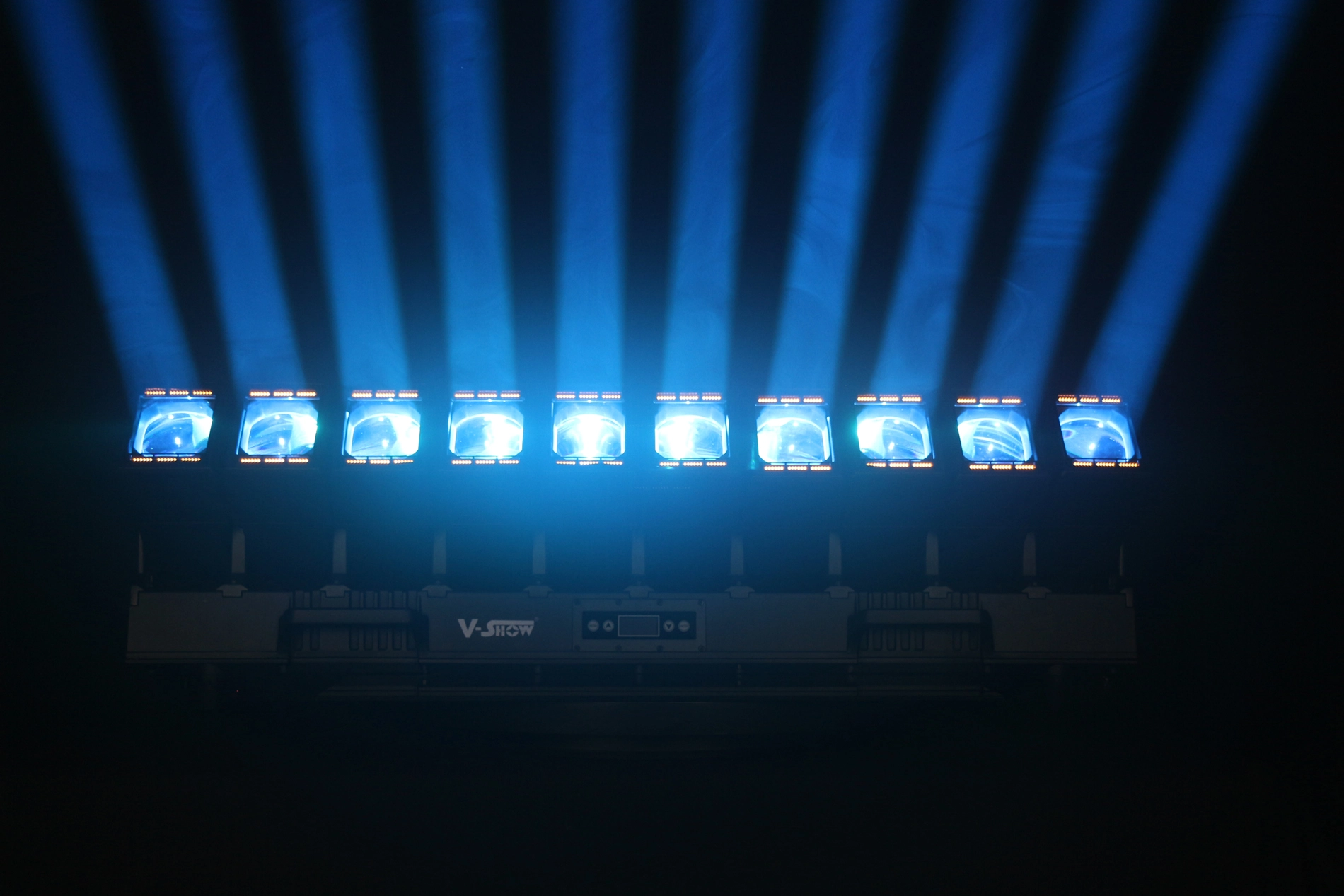

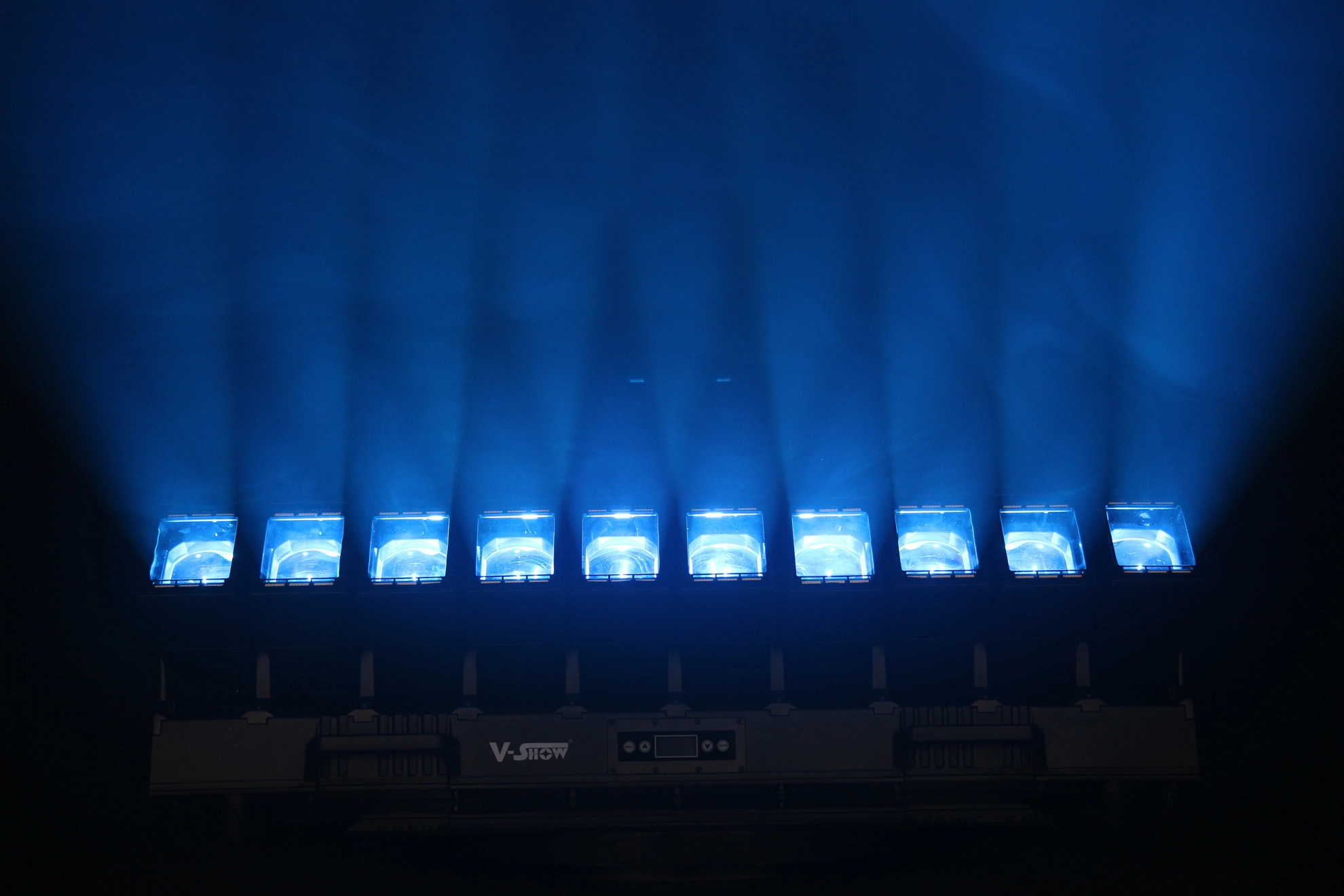

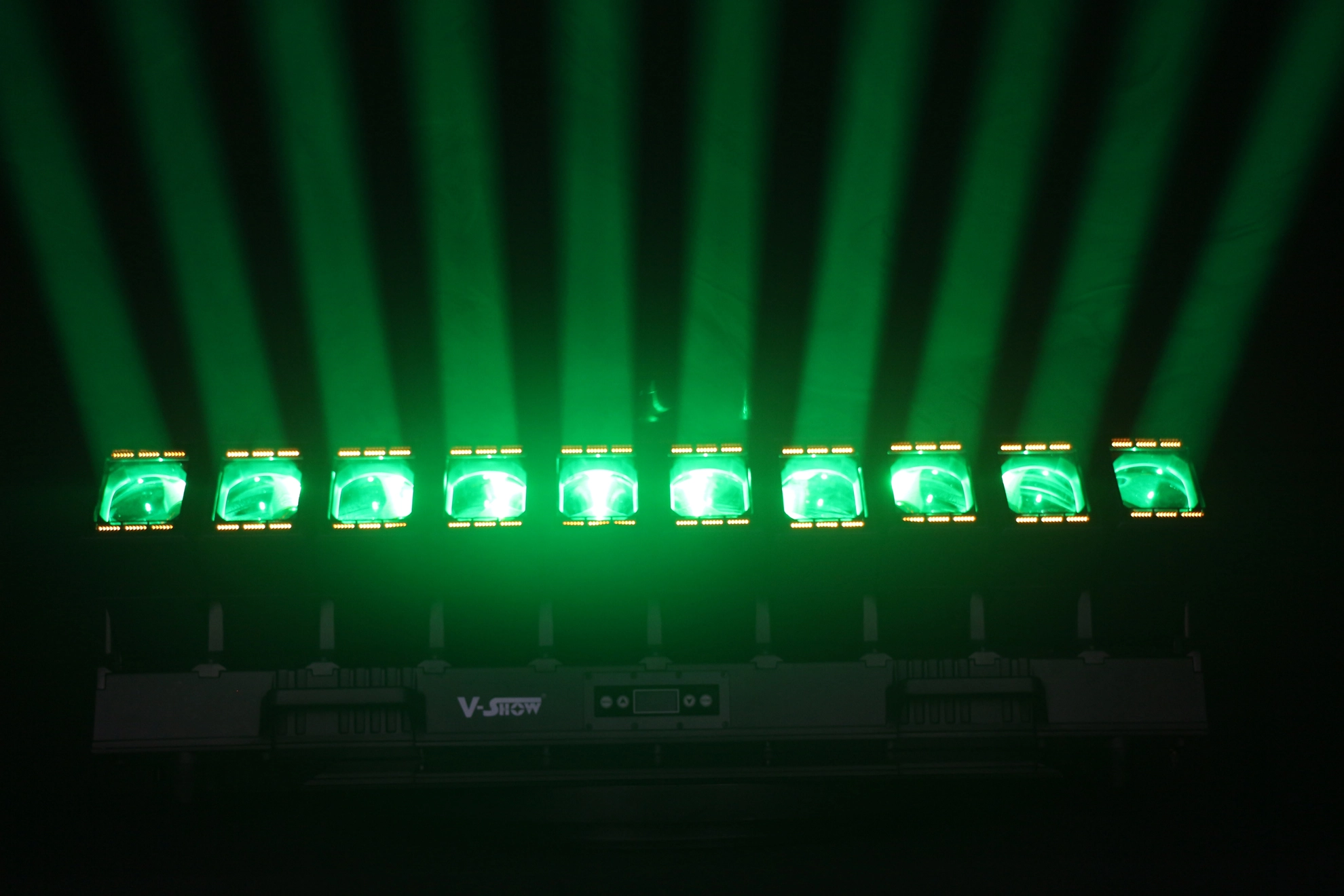

The VSHOW W1060 Wave Line IP65 is a high-performance moving bar featuring 10pcs 60W RGBW 4in1 LEDs. This durable moving bar zoom effect light with strobe delivers vibrant wave line effects, perfect for dynamic stage lighting. IP65 rated for reliable outdoor use.

Brand Name

VSHOW

Input Voltage

100-240V, 50/60Hz

Power consumption

900W

Power supply

1000W

Light source

10PCSx60W RGBW 4IN 1

Light source life

＞20000 hours

Place of Original

Guangdong,China

Size

1000x226x340mm

Signal Output

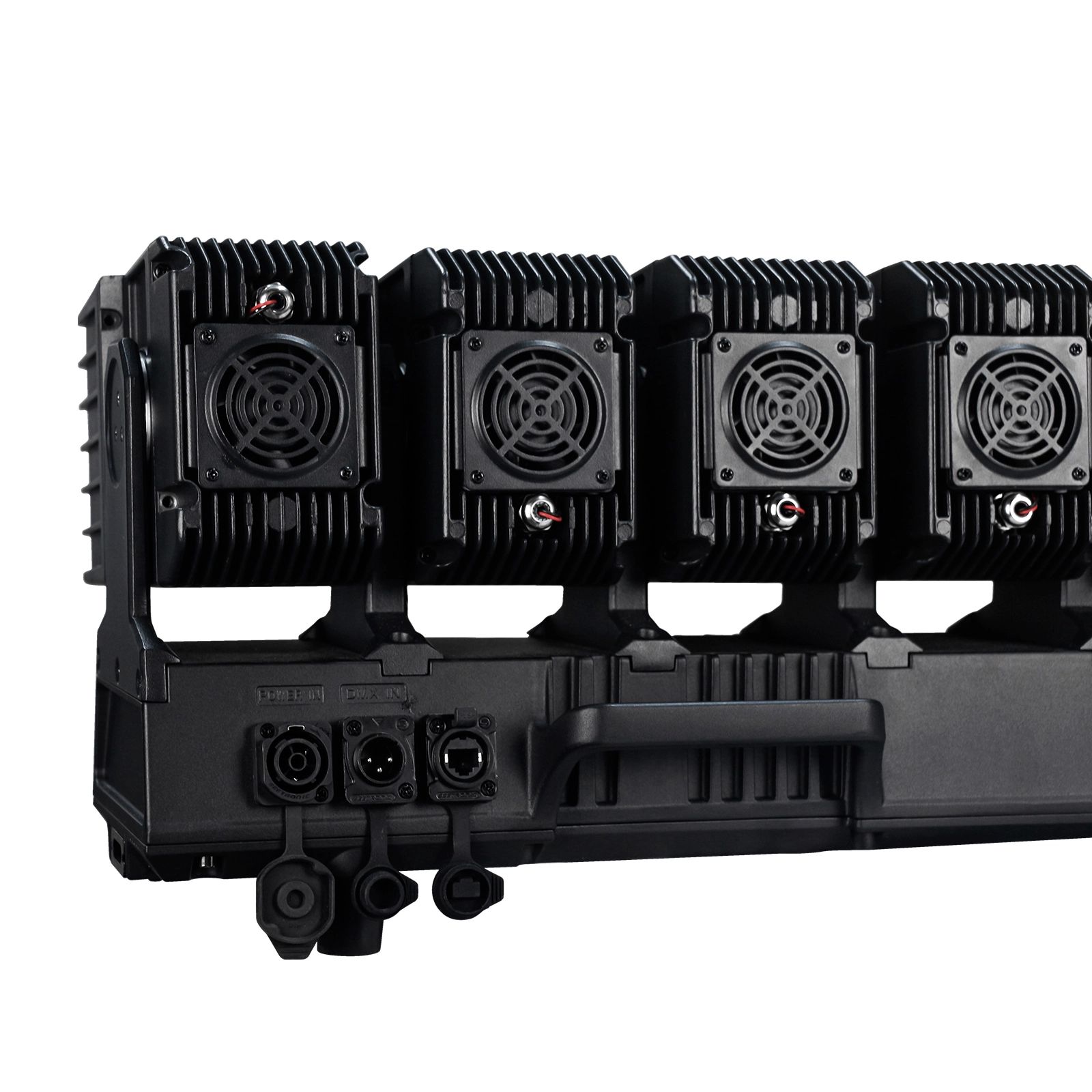

3-pin OR 5-pin and RJ45 waterproof XLR sockets

Control Mode

DMX512,Auto, master-slave/ RDM /Art-net/SACN

DMX channel

29/56/142/216/262/282 CH

Dimming mode

0-100% smooth linear dimming

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

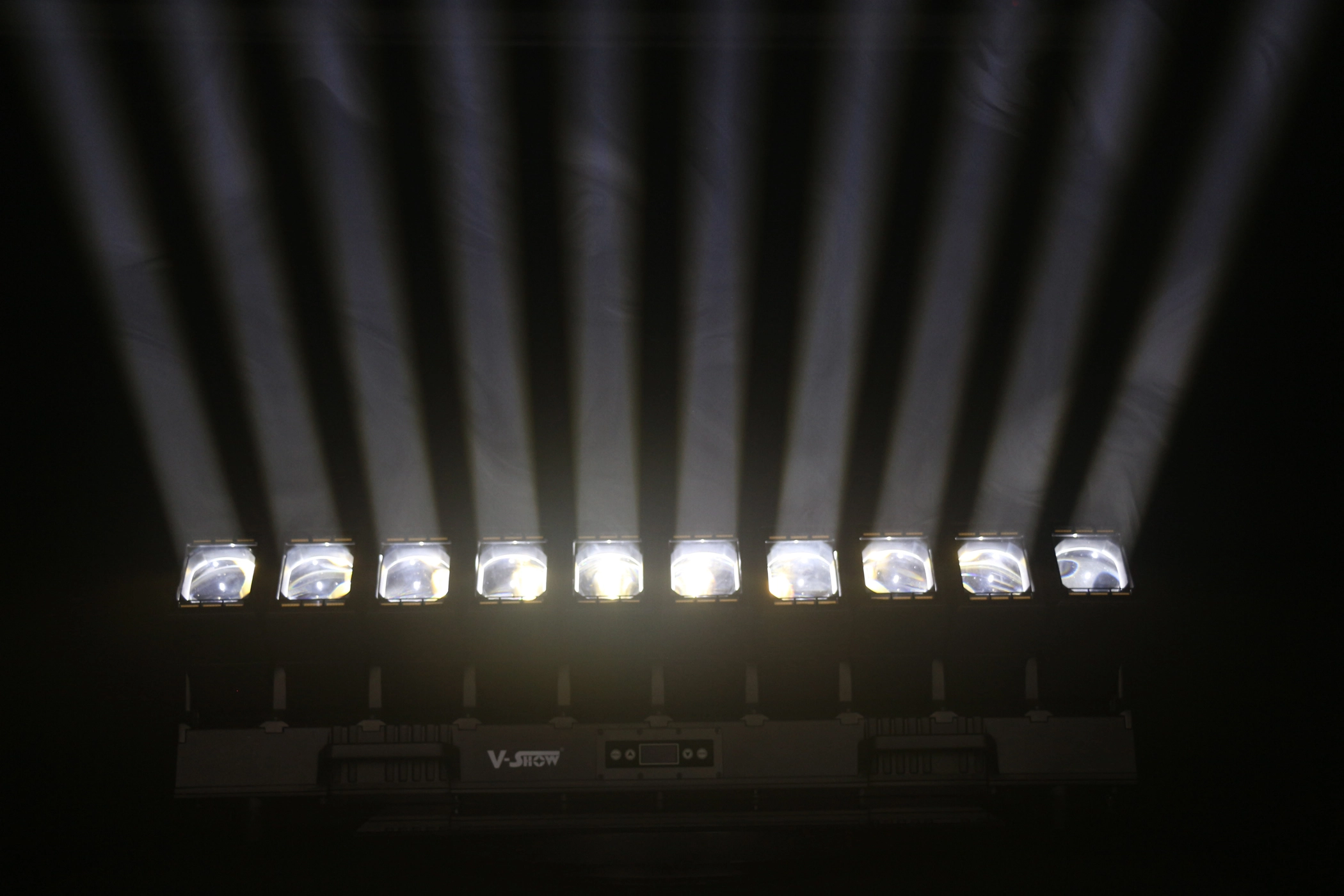

The VSHOW W1060 Wave Line IP65 is a high-performance moving bar featuring 10pcs 60W RGBW 4in1 LEDs. This durable moving bar zoom effect light with strobe delivers vibrant wave line effects, perfect for dynamic stage lighting. IP65 rated for reliable outdoor use.

The auxiliary light area uses LED light strips independently controlled by 12 areas on one side, which has the color mixing function.

Parameters

Input Voltage	100-240V, 50/60Hz	Light Source	10PCSx60W RGBW 4IN 1	LED lifespan	>20000 hours
Power supply	1000W	Zoom angle	4-40°	Dimming	0-100% smooth linear dimming
Strobe light	1-25HZ strong output flicker effect	DMX Channels	29/56/142/216/262/282 CH	Operate mode	DMX512,Auto, master-slave/ RDM /Art-net/SACN
Dimming curves	linear, square law, inverse square law, S-curve	Signal output	3-pin OR 5-pin and RJ45 waterproof XLR sockets	working enviroment	-40°-45°
Pixel matrix	Main light 17psc controlled separately	Pixel matrix	Main light 17psc controlled separately	Display	OLED display
Protection level	IP65	Net weight	30kg	Light size	1002x110x268mm

Details & Features

Music studio led lights

Led lights for music studio

Moving head party light

Moving light head

Rgb moving head light

Moving head bar light

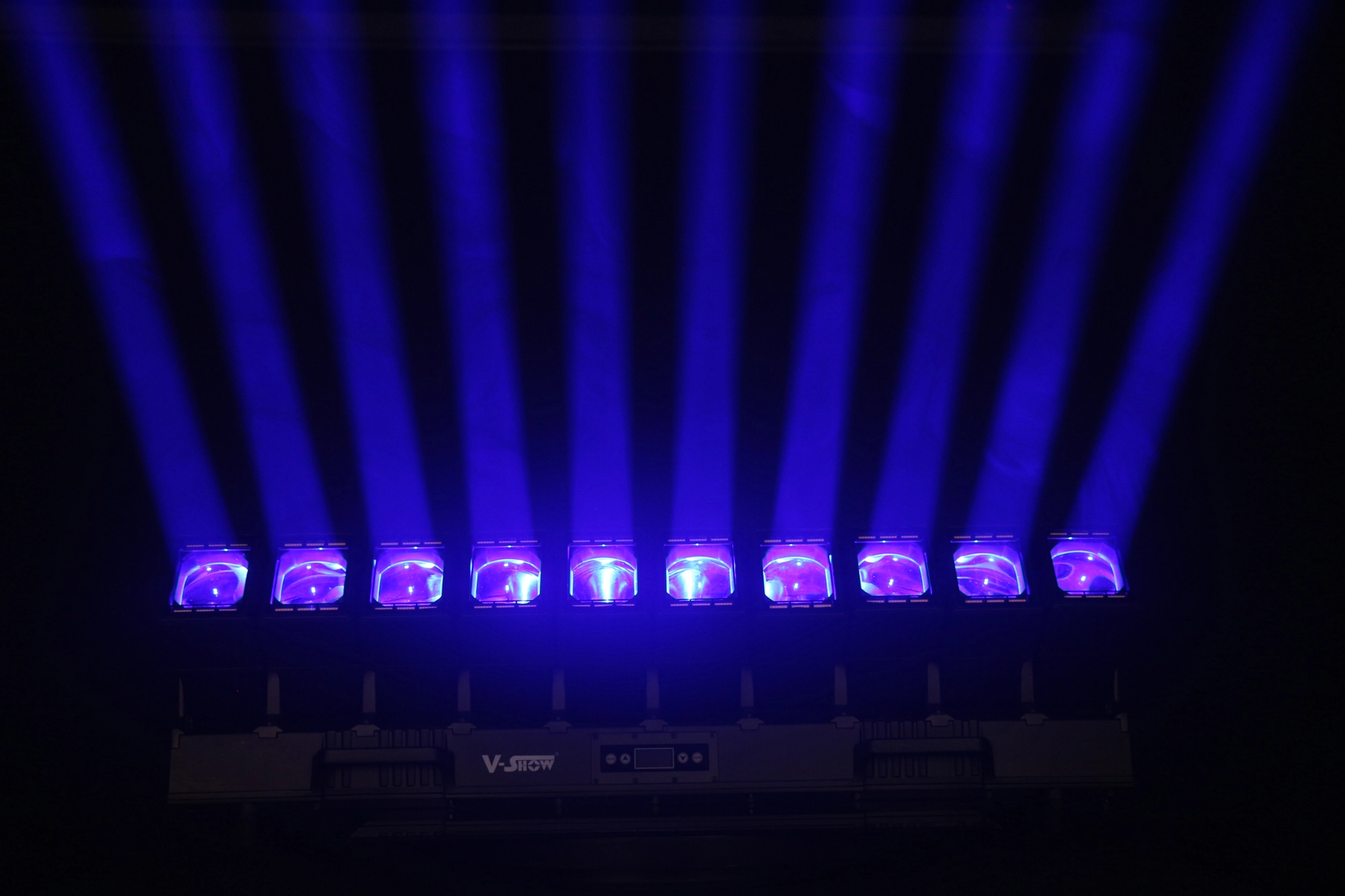

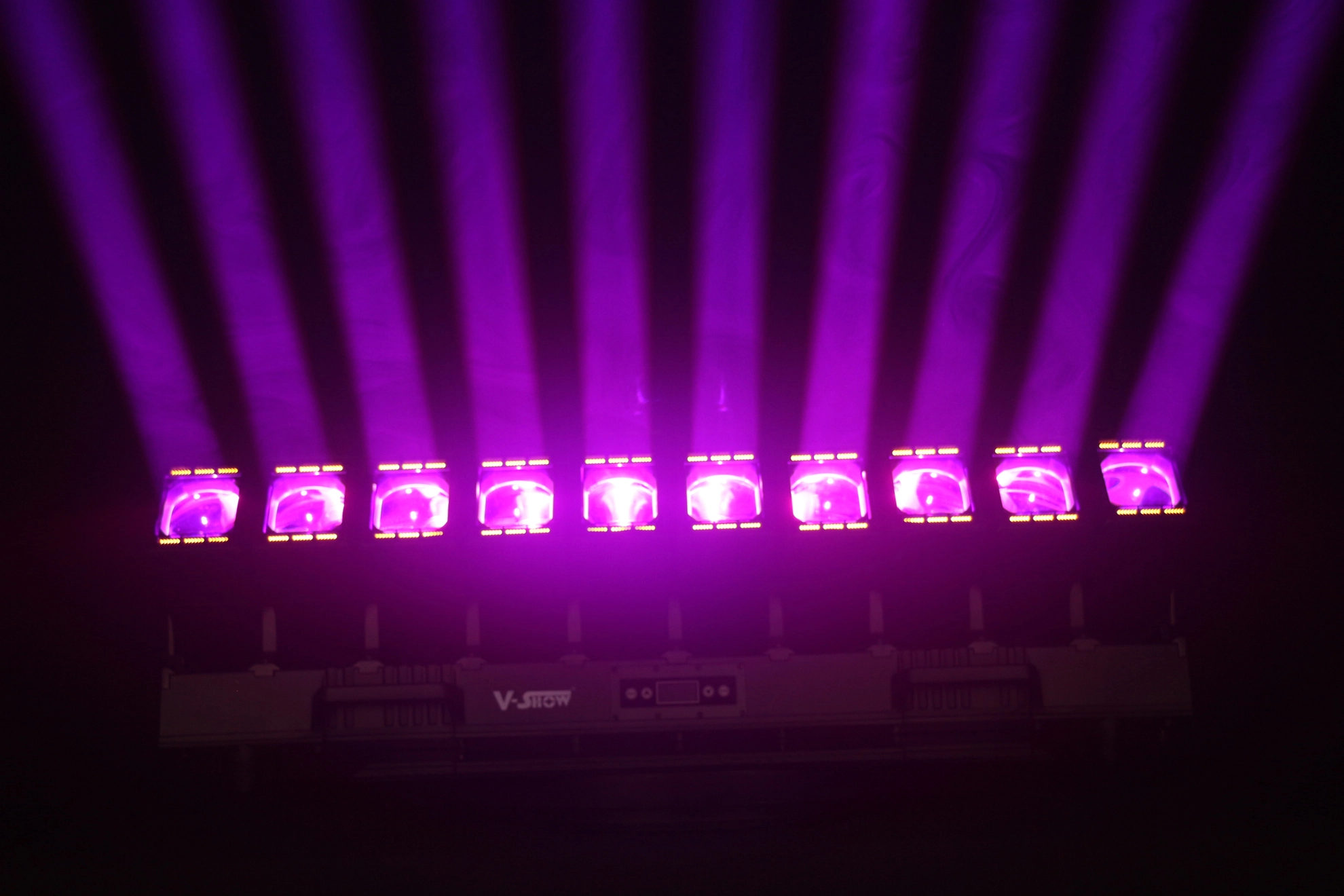

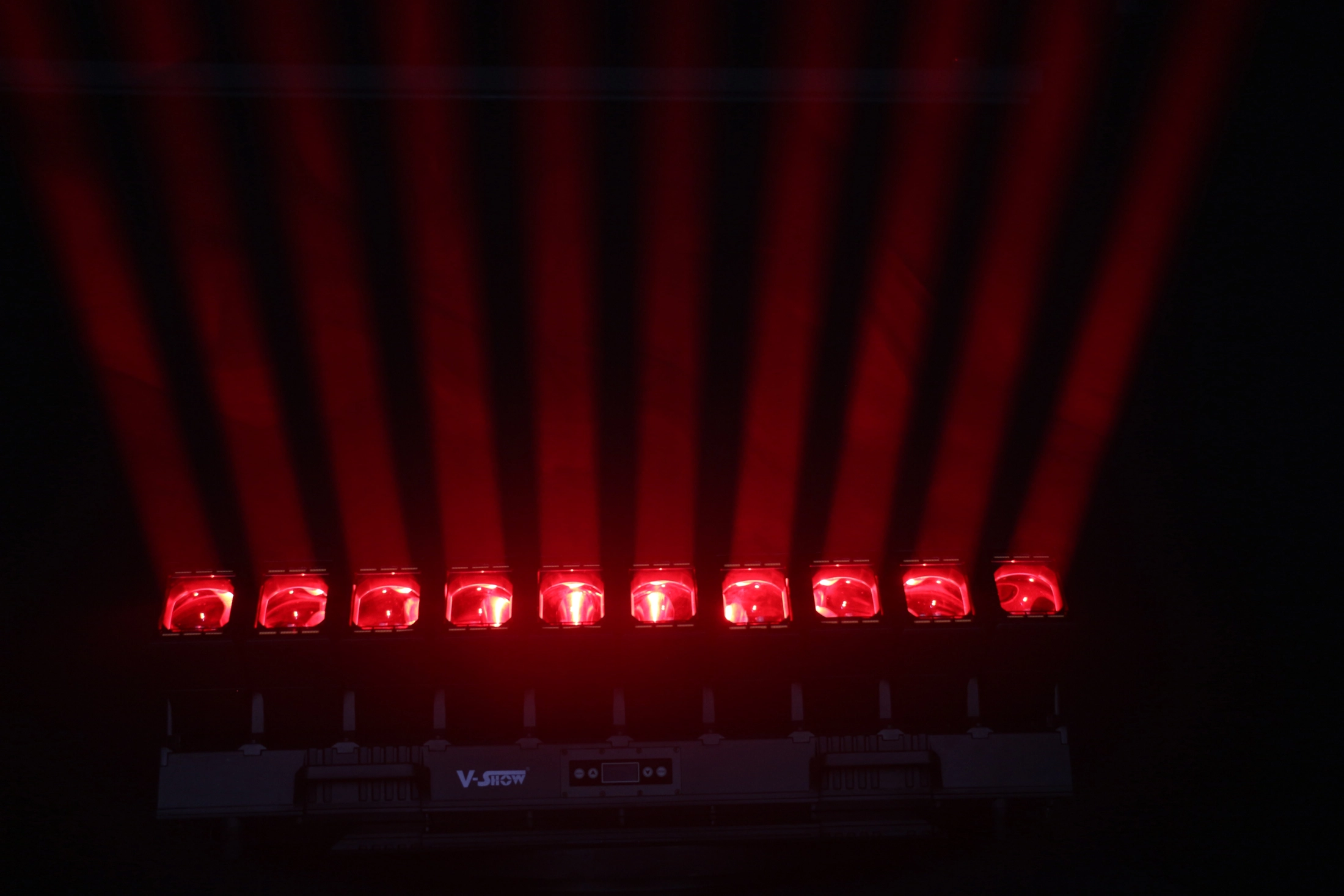

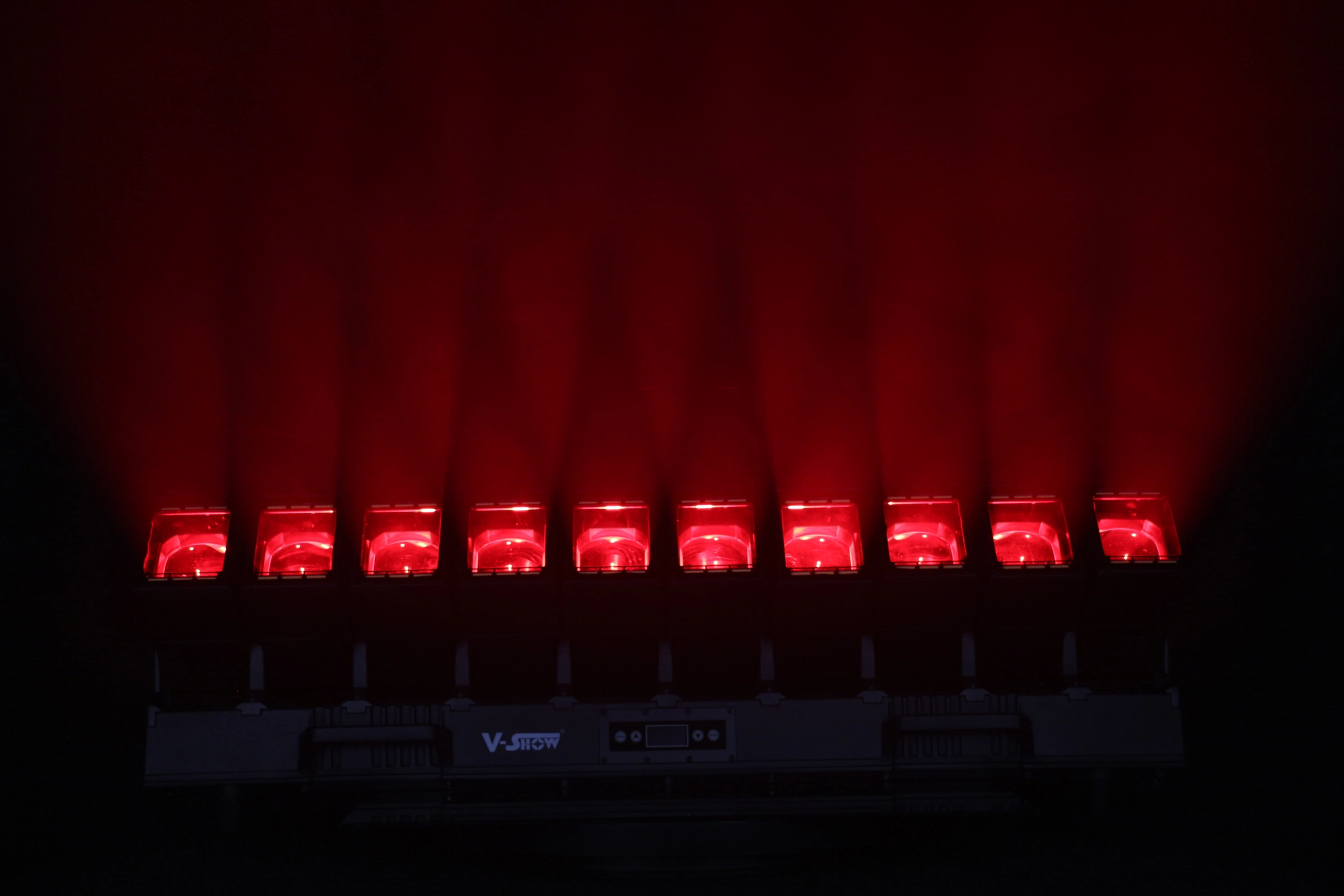

Excellent color mixing effect

Spot moving head light

Sharpy beam moving head light

Wash light moving head

Led lighting for studio

Studio lighting led

Studio led lights

Download

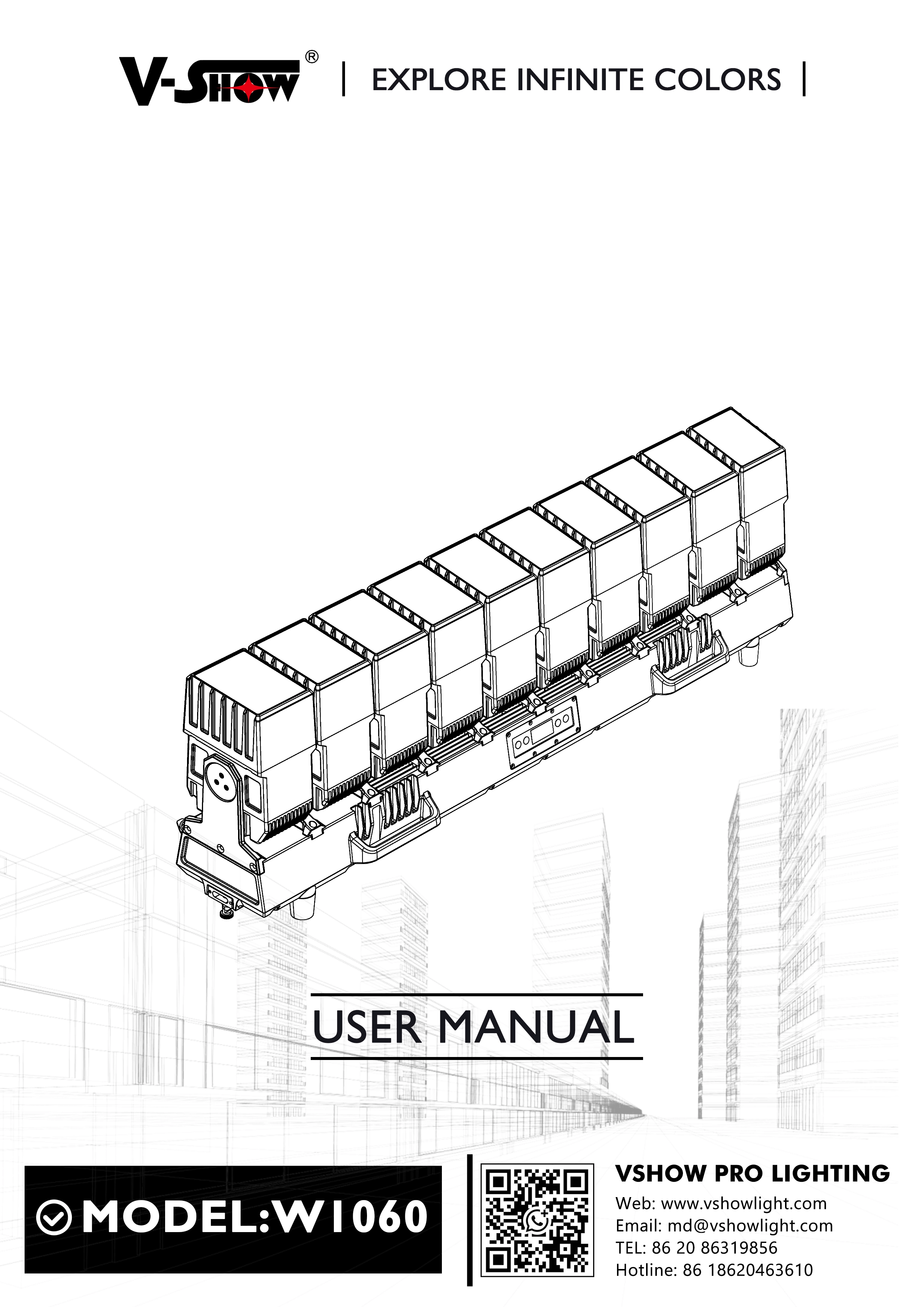

说明书

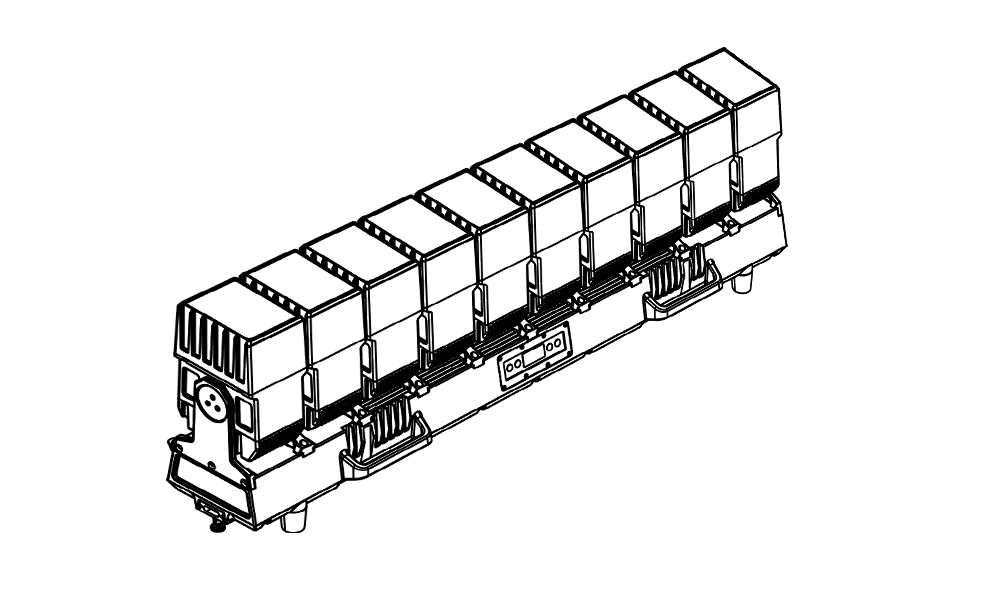

W1060

USER MANUAL

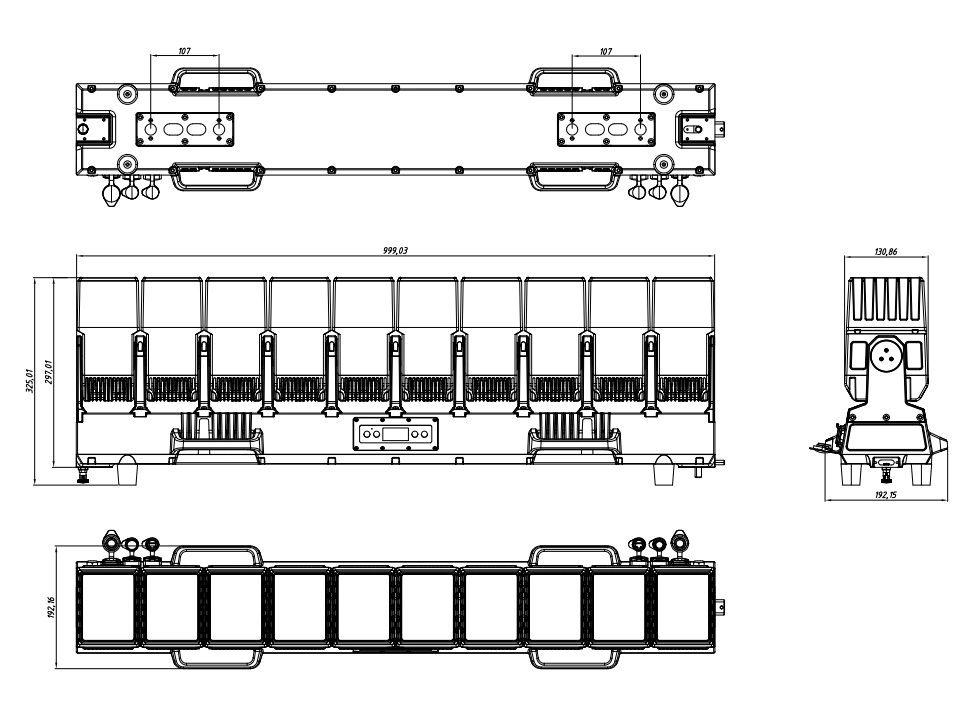

尺寸

Add Your Own Title Here

This is a paragraph. Click to edit and add your own text. Add any information you want to share with users. Change the font, size or scale to get the look you want.

压缩文件封面

DWG

Download

压缩文件封面

MA

Download

压缩文件封面

D4

Download
