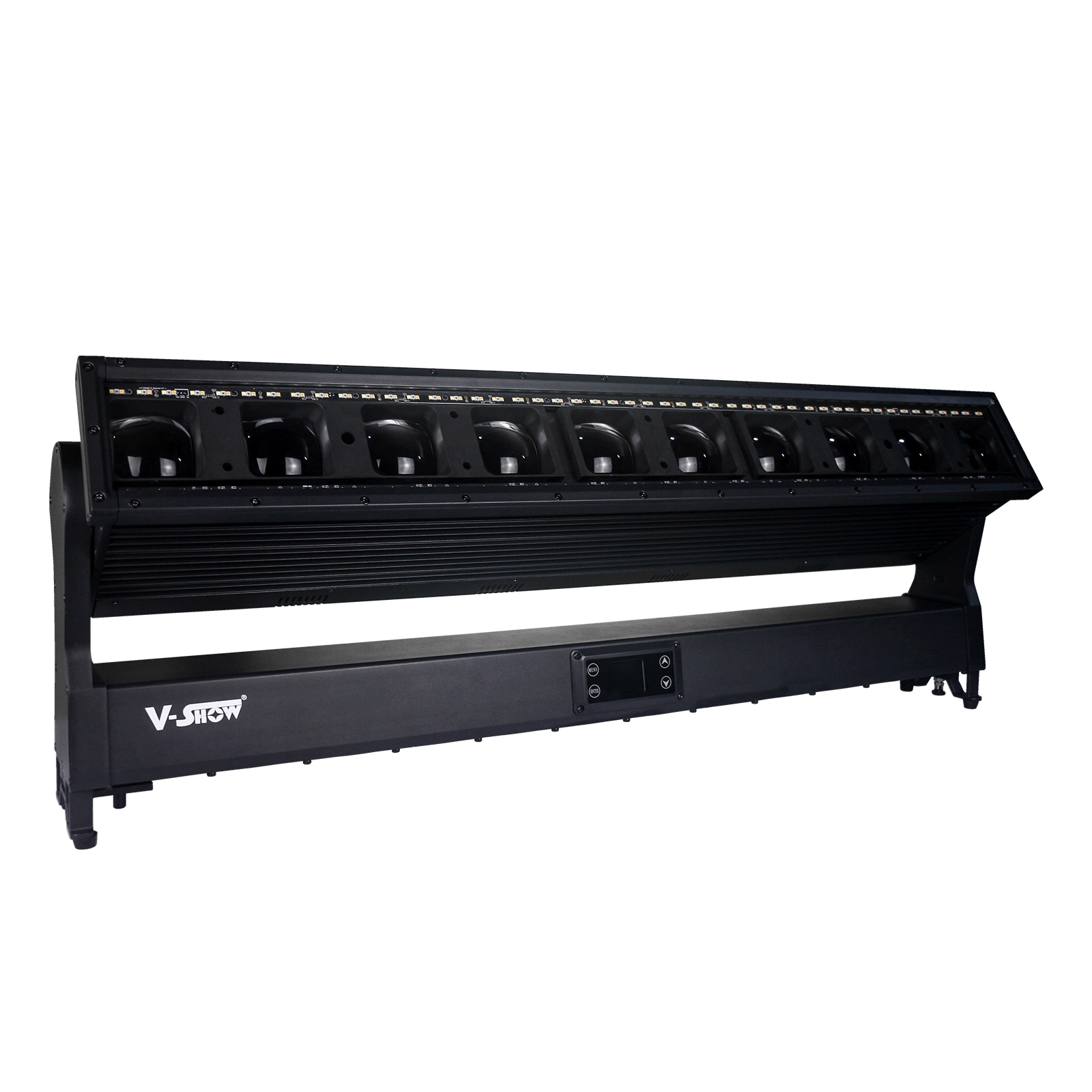

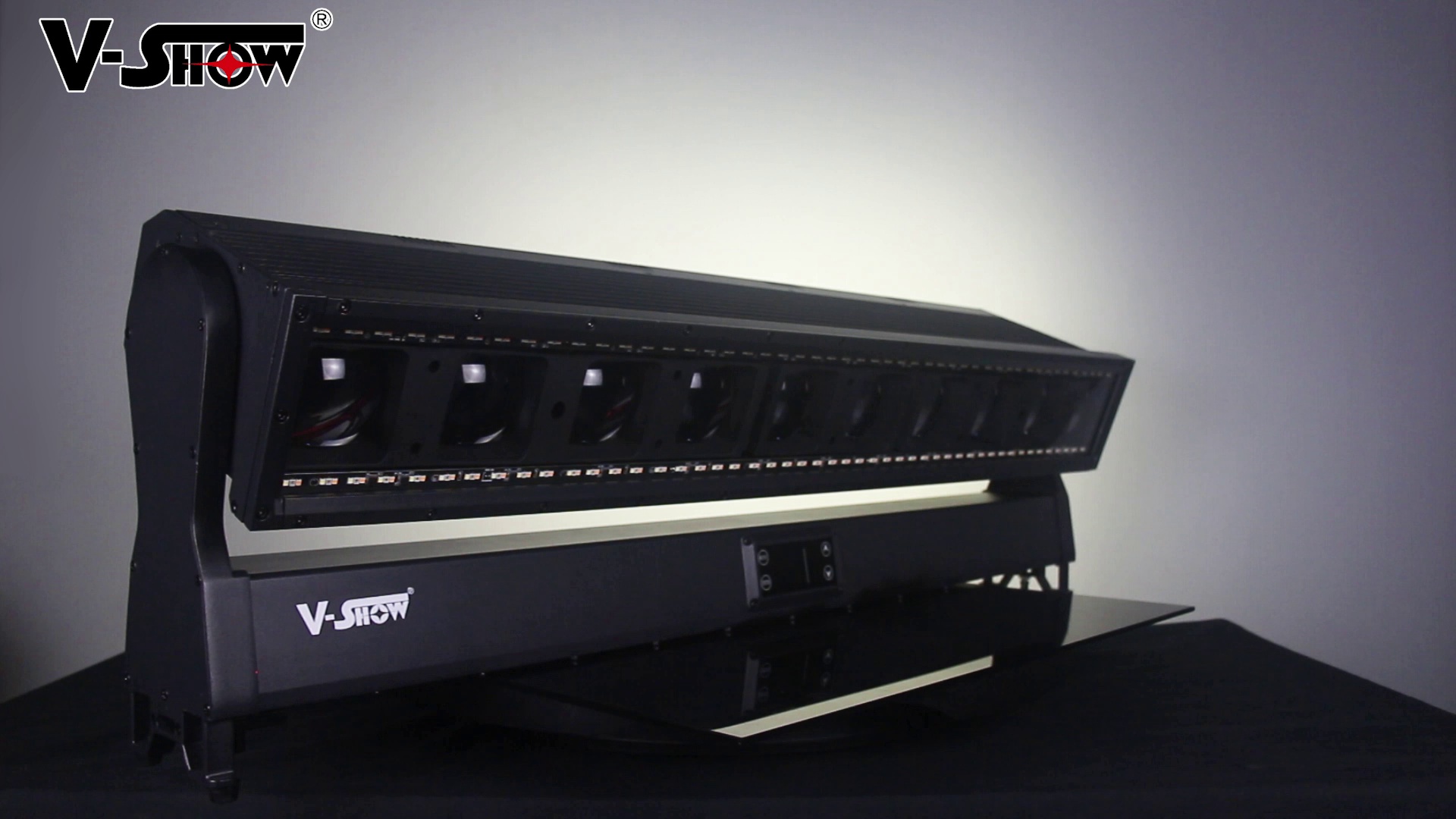

VSHOW B1060 Outdoor 10pcs 60W RGBW 4in1 Moving bar zoom with strobe line

The B1060 is a multi-functional effect lamp that integrates light beam, stroboscopic and dyeing effects. When multiple lamps are seamlessly spliced, the light beam emitted by the equidistant LED can cover a wide area, and it is sharp and clear. The auxiliary light area uses LED light strips independently controlled by 12 areas on one side, which has the color mixing function

Brand Name

VSHOW

Input Voltage

100-240V,50/60Hz

Power consumption

800W

Power supply

power connector input/output

Light source

10x60W RGBW LED

Light source life

＞20000 hours

Place of Original

Guangdong,China

Size

002x131x370mm

Signal Output

Three core or five core XLR head

Control Mode

DMX512, Auto、Sound, Master/Slave

Beam specs

5~46 °

DMX channel

17CH/27CH/99CH/108CH/168CH/170CH

Dimming mode

0-100% linear dimming

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

The B1060 is a multi-functional effect lamp that integrates light beam, stroboscopic and dyeing effects. When multiple lamps are seamlessly spliced, the light beam emitted by the equidistant LED can cover a wide area, and it is sharp and clear. The auxiliary light area uses LED light strips independently controlled by 12 areas on one side, which has the color mixing function

Parameters

Input Voltage	100-240V, 50/60Hz	Light source	10*60W RGBW LED 4IN 1
Power	800W	Auxiliary light	96X3W CW LED 96X3W WW LED 96X0.5W RGB LED
White temperature	6500K	Zoom angle	5-46°
Lifetime	≥20,000Hours	Strobe	1-25HZ strong output flicker effect
Pixel matrix	10 main lights can be controlled by a single point Auxiliary light cw/ww/rgb is independently controlled by 24 segments	Dimming	0-100% linear dimming

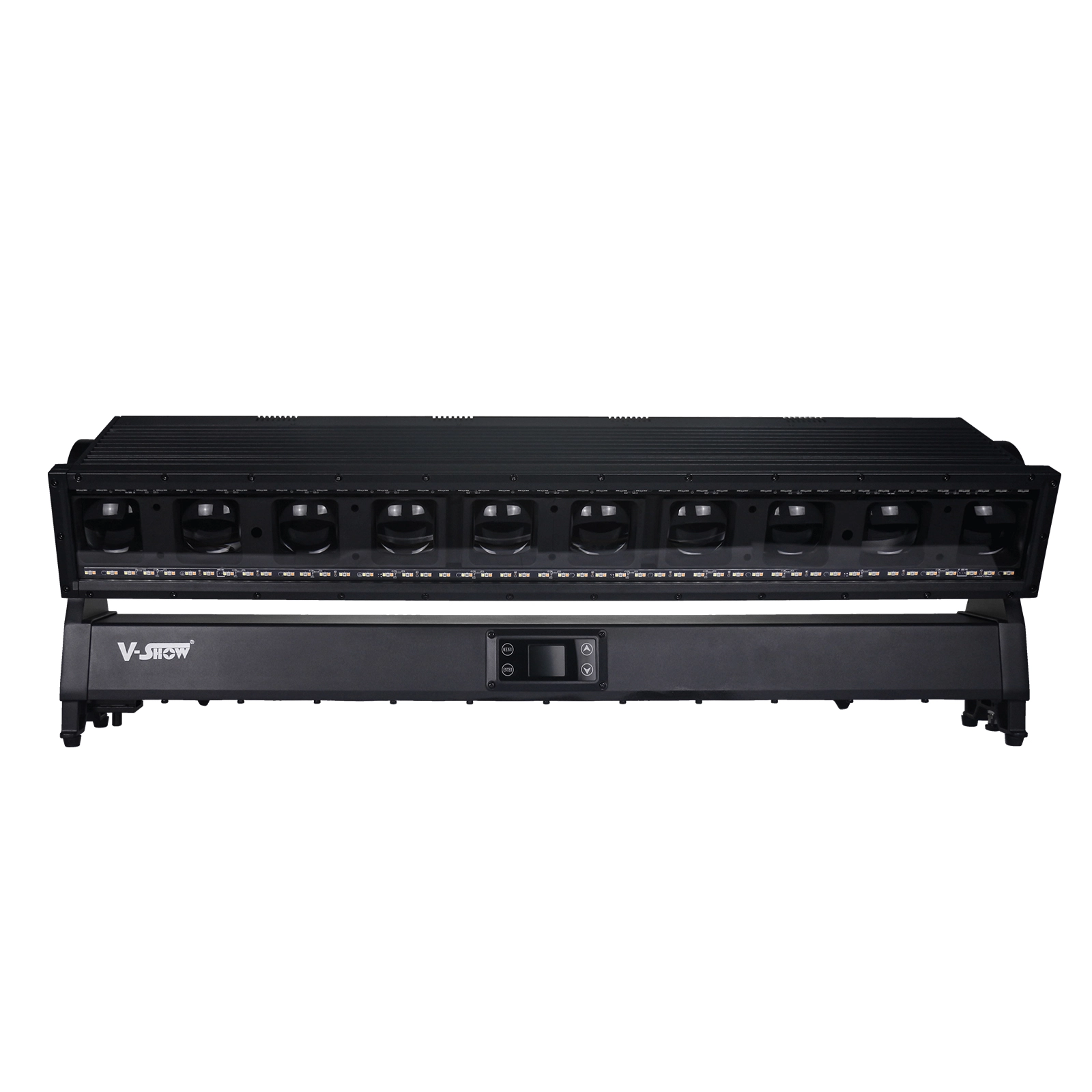

Control Panel	OLED display	Protection Grade	IP65

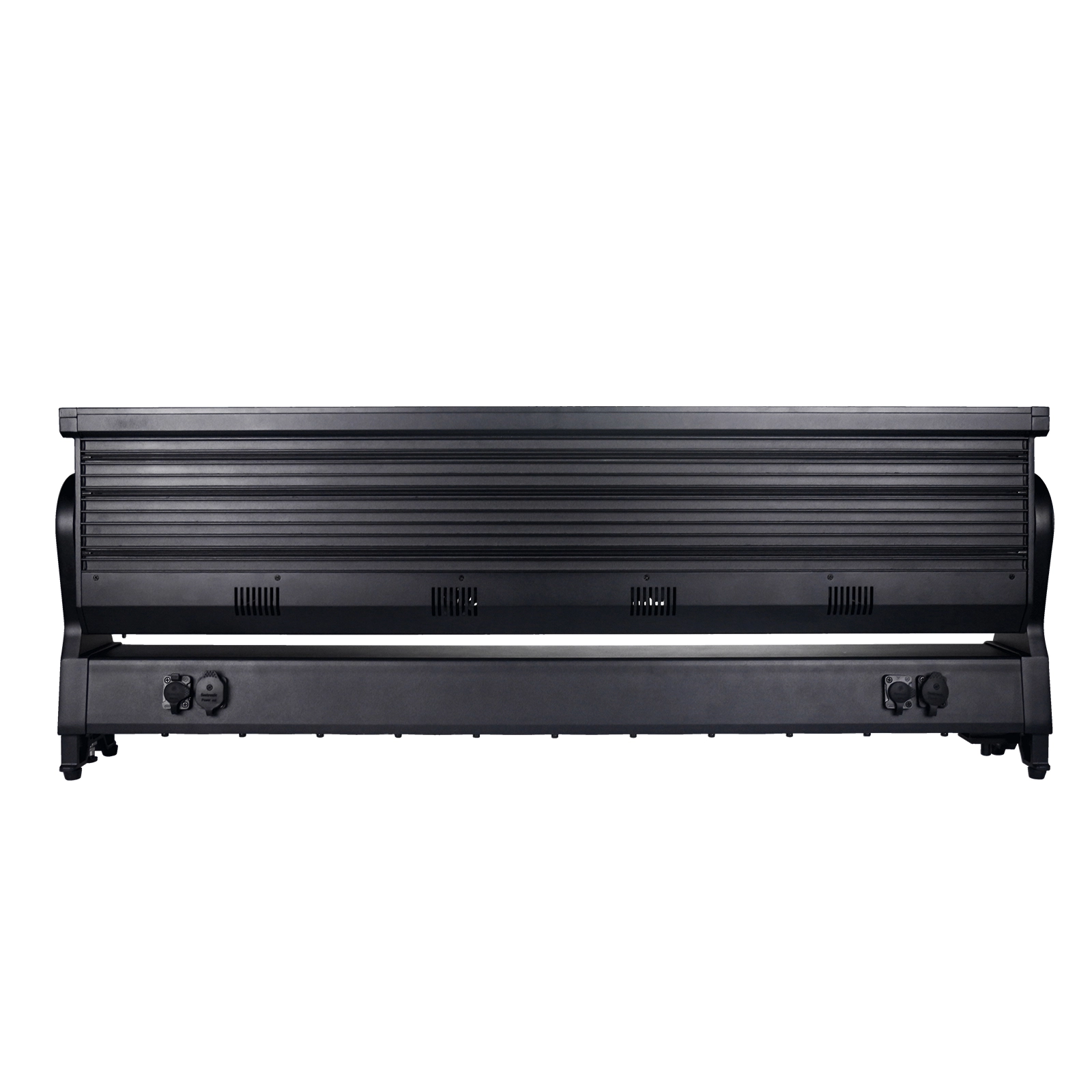

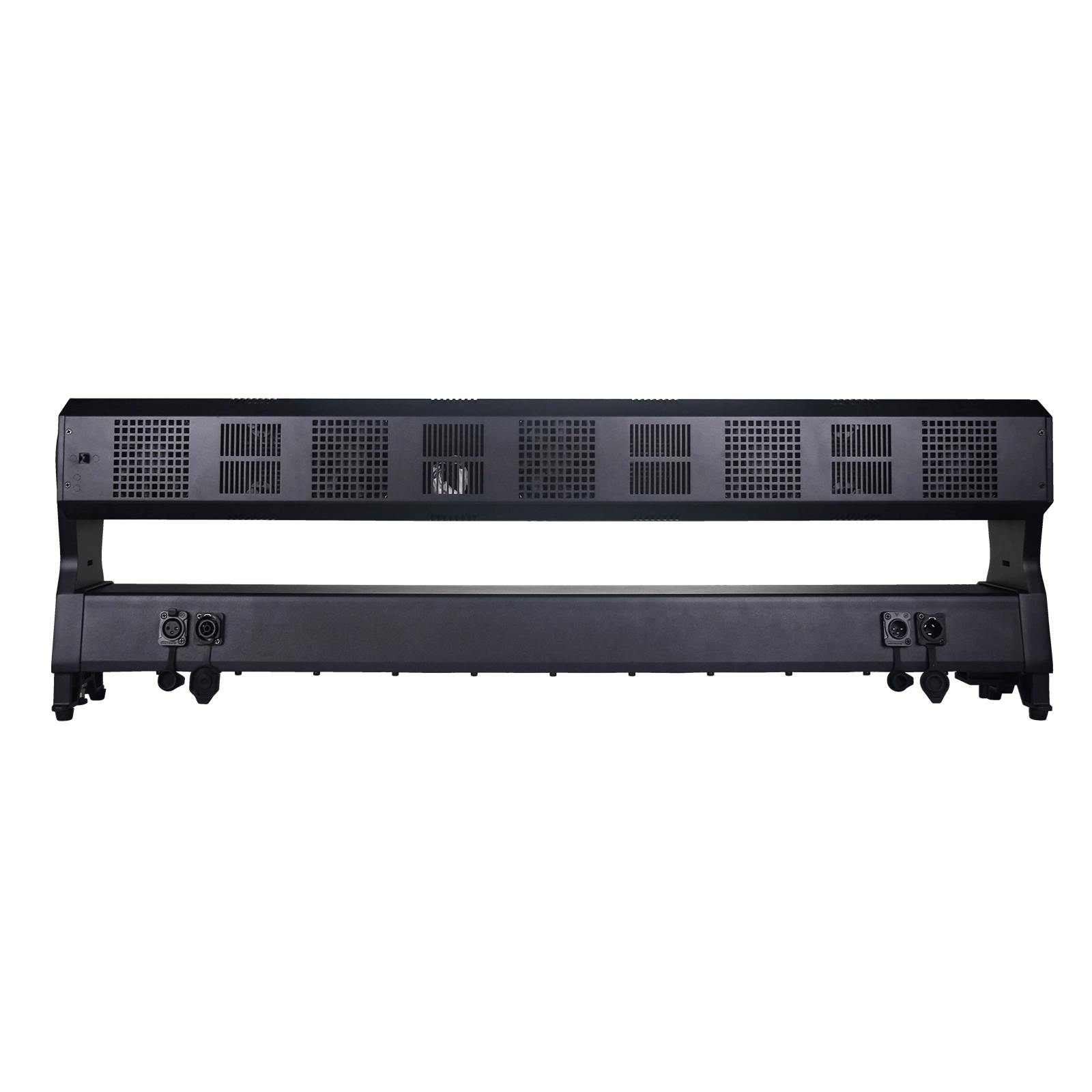

Power socket	Waterproof power connector input/output	Signal socket	Waterproof 3 PIN XLR /5PIN XLR socket
DMX Channel	17/27/99/108/168/170CH	Operate mode	DMX512, Auto,Sound, Master/Slave
Net Weight	25kg	Gross Weight	29kg
Fixture size	1002x131x370mm	Package size	1071937cm/ 29kg (Carton) 1113352cm/ 65kg (Flight case 2 in 1）

Details & Features

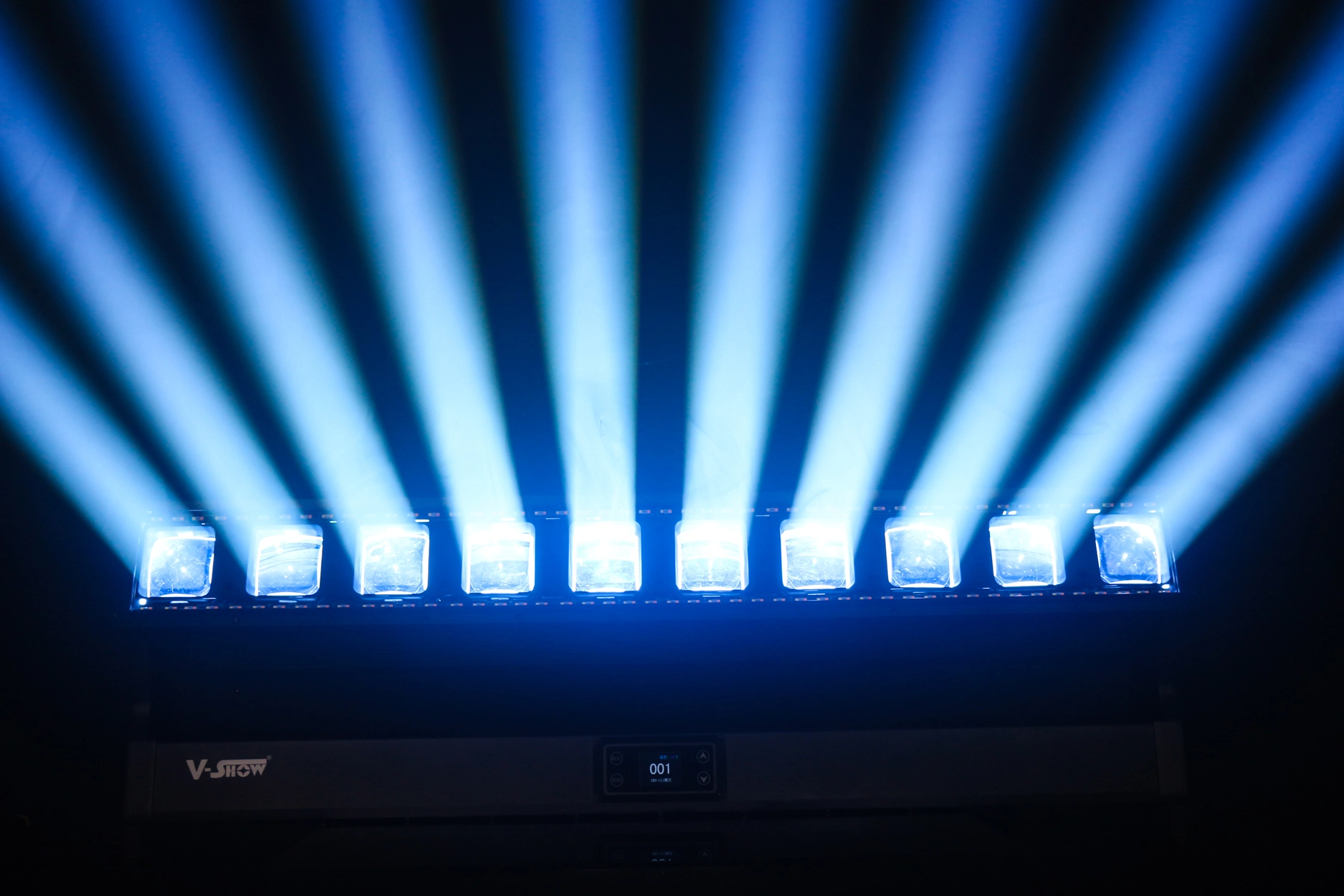

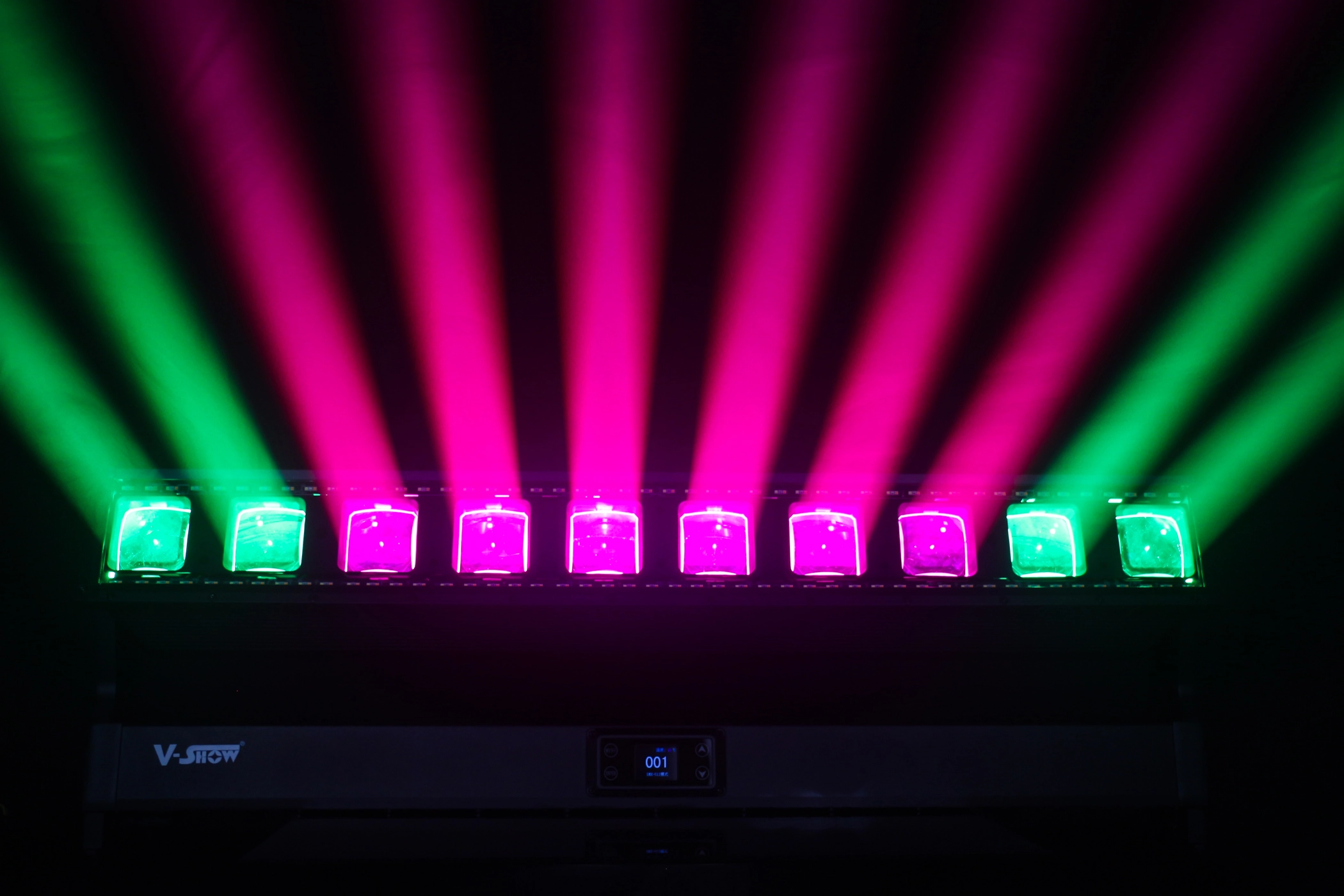

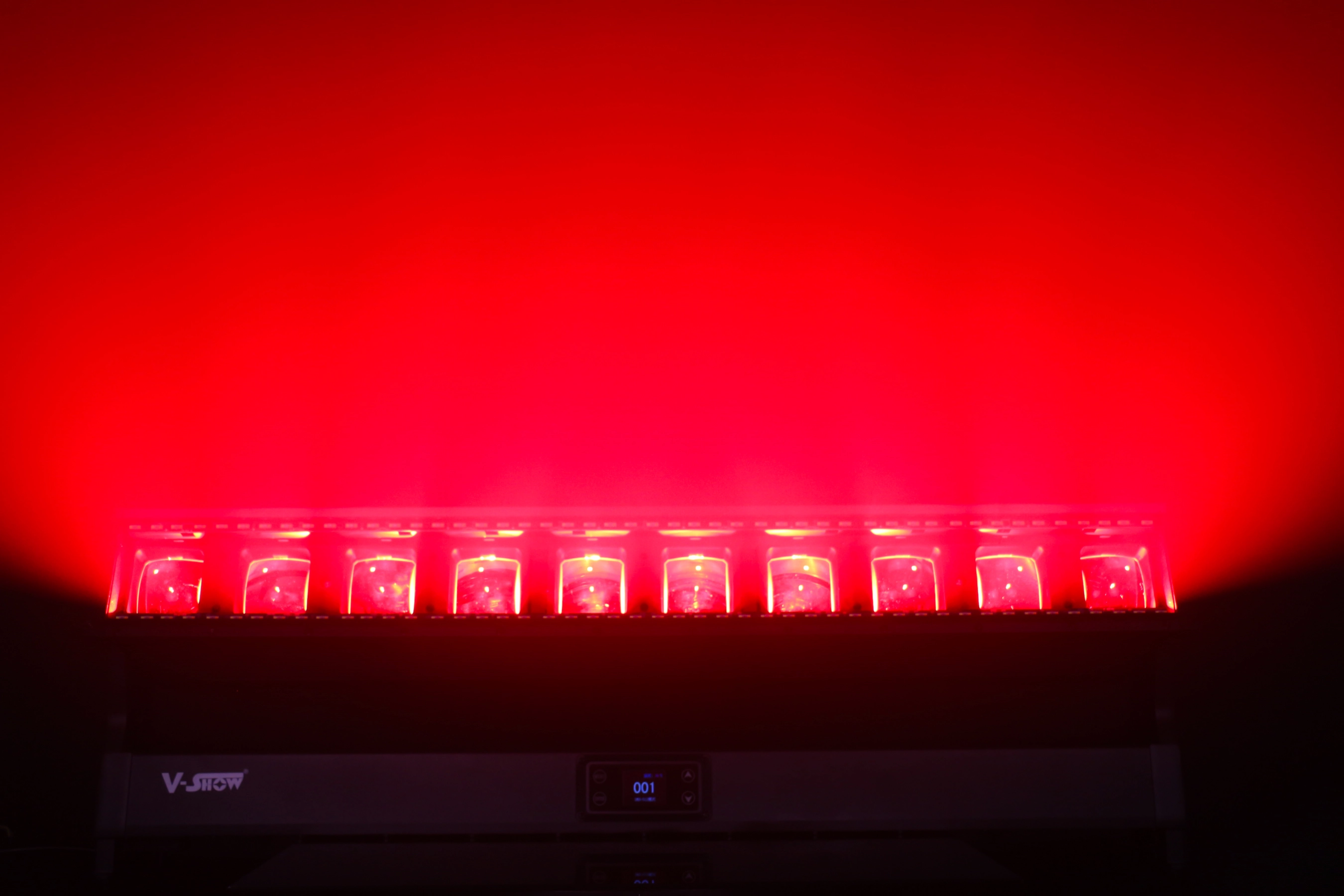

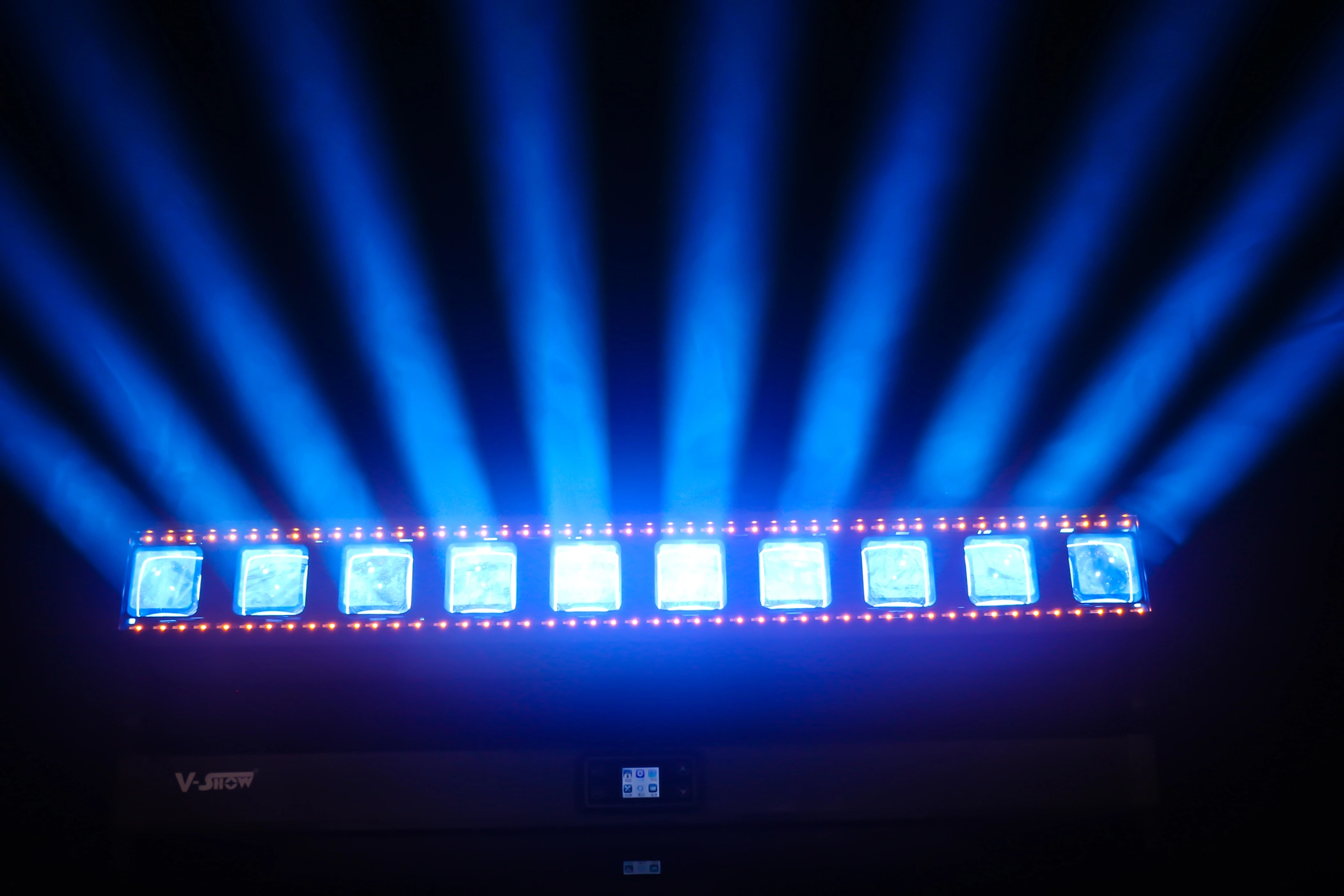

Excellent color mixing effect

• 10 main lights can be controlled by a single point

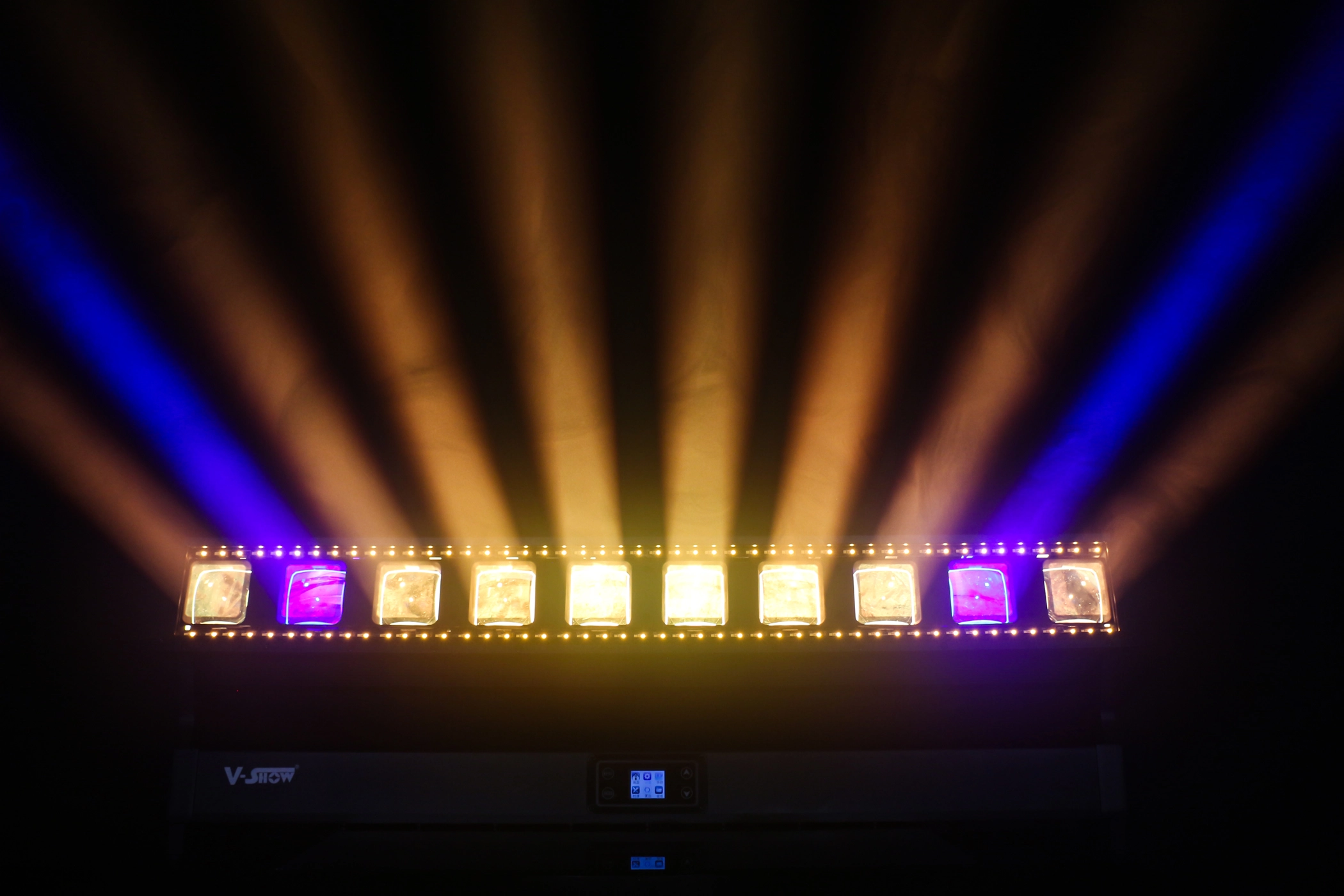

• Auxiliary light CW/WW/RGB is independently controlled by 24 segments

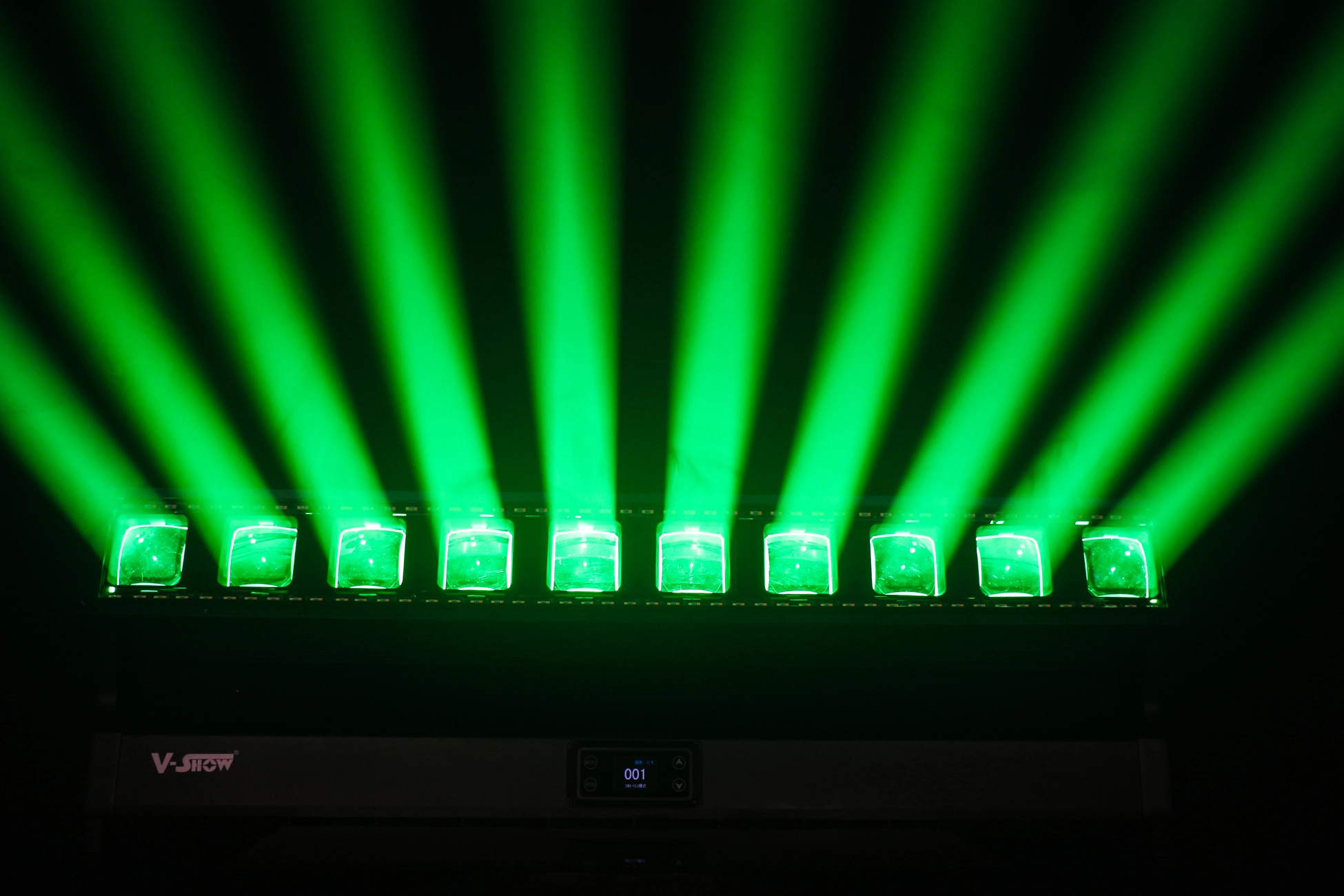

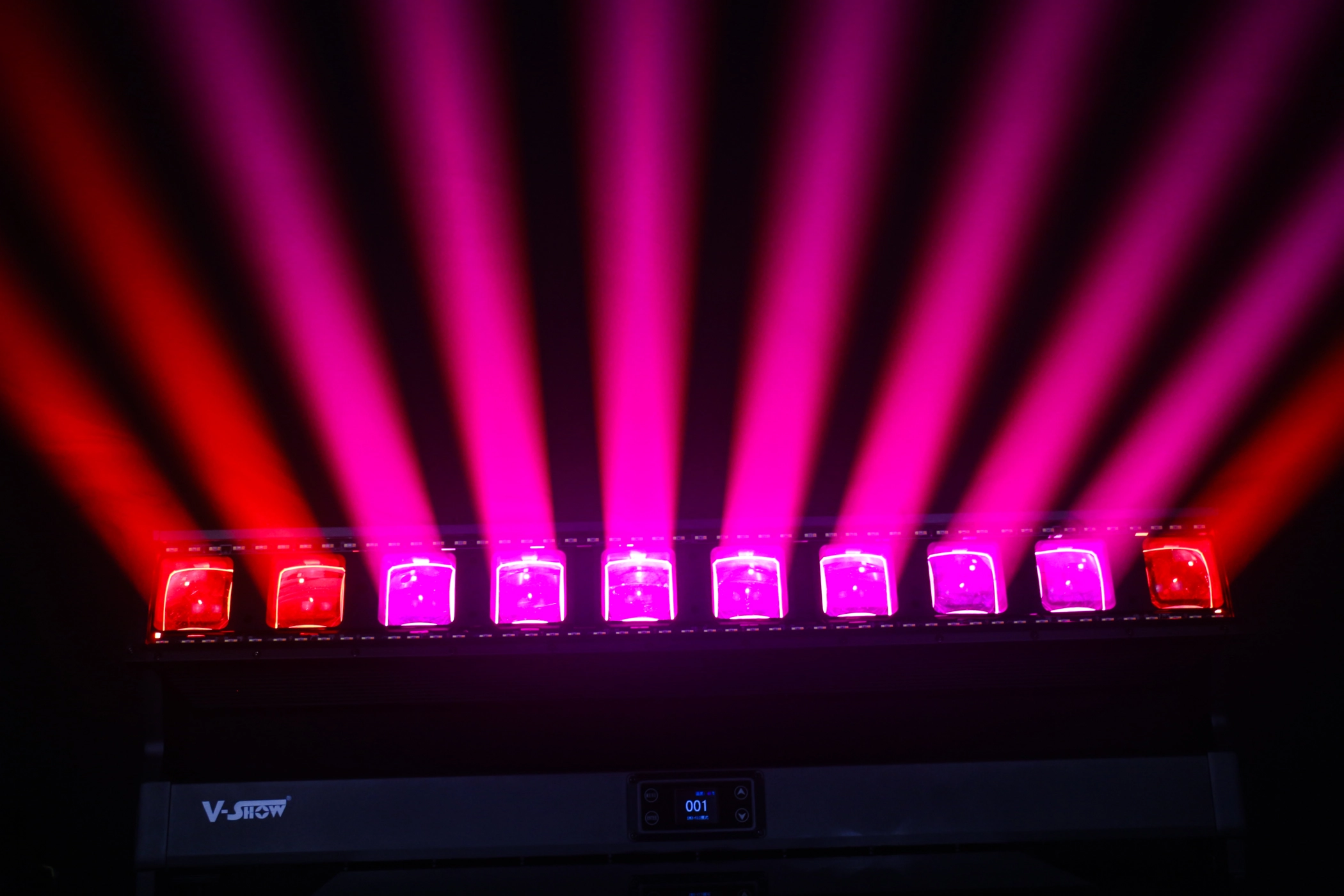

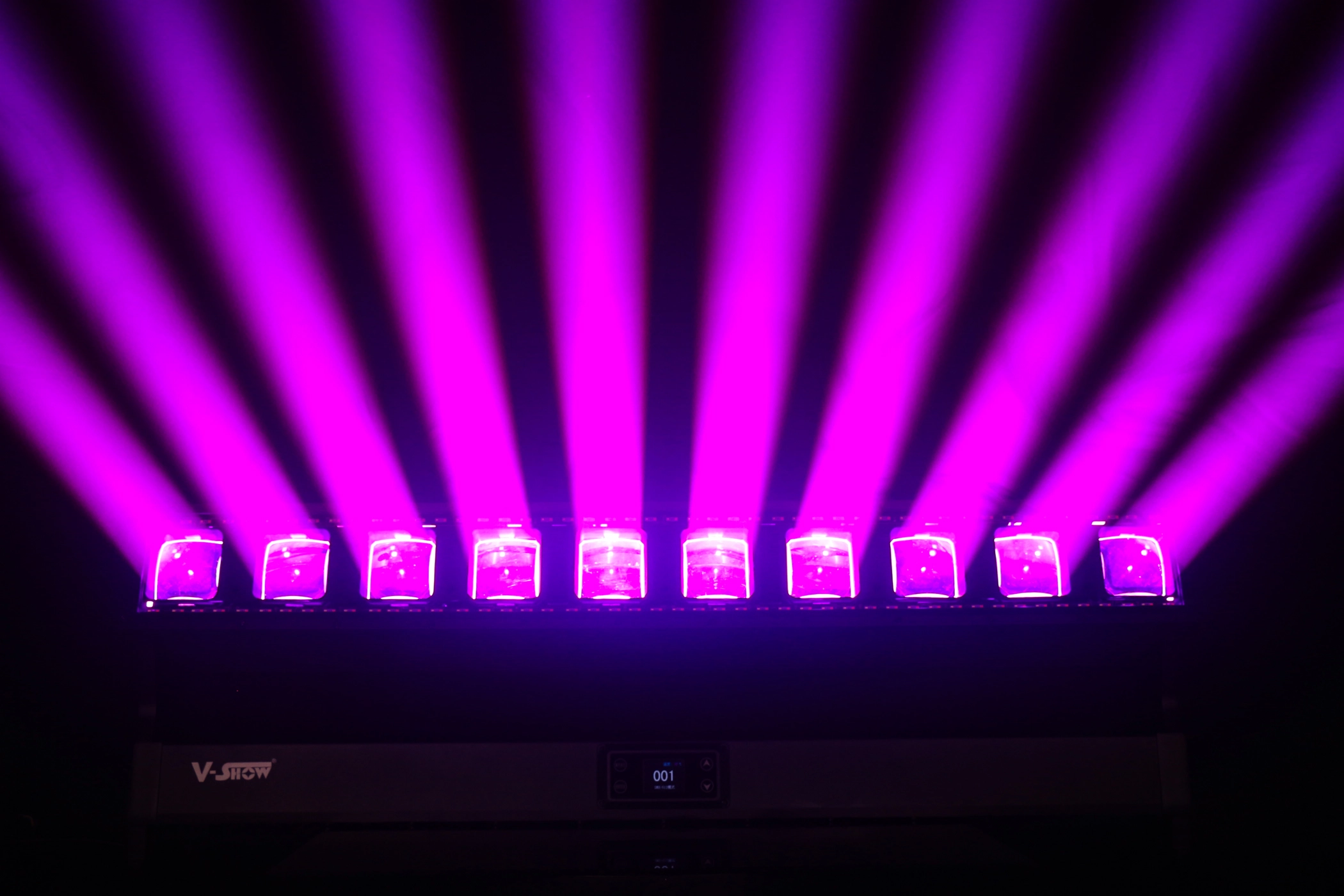

• Full and sharp beam with rich built-in effects

Download

B1060 USER MANUAL

DOWNLOAD

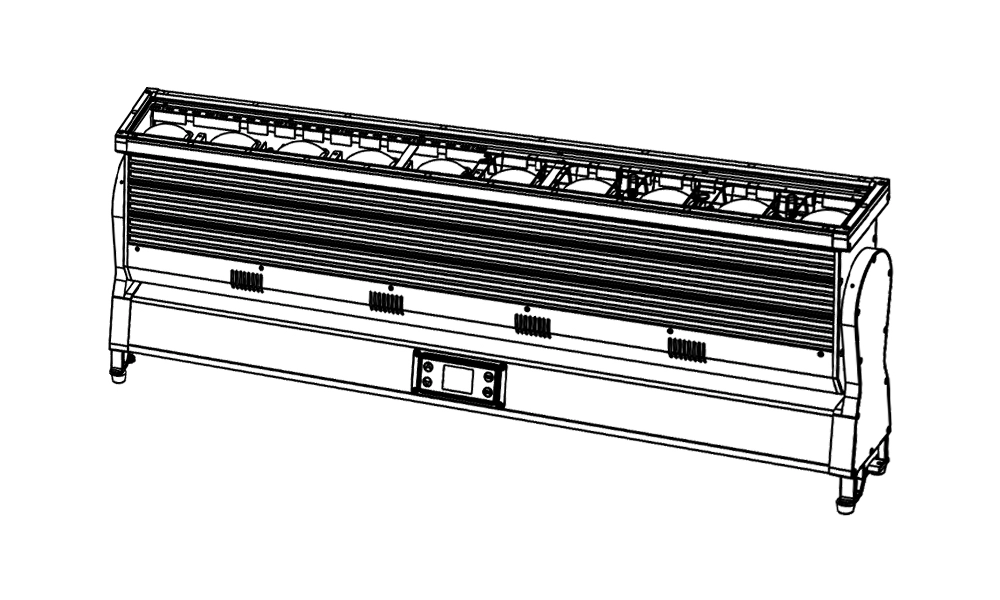

B1060 DWG

DOWNLOAD

B1060 MA

DOWNLOAD

B1060 D4

DOWNLOAD
