VSHOW S712 Kuan Hybrid CMY & CTO Beam Spot Wash 3in1 Moving Head Lights
Product Features:
1. Integrating beam, pattern, and dyeing functions to inspire more creativity
inspiration for you.
2. With linear CMY color mixing system and linear color temperature
adjustment of 8500-2800K .
3. 0-100% 16Bit smooth dimming,Four dimming curves .
4. Overheating self-energy protection can extending lamp life .
5. Three phase Motor with SY Brand ( XY axis magnetic coding positioning is
more accurate) .
6. two angle lens 6 ° and 35 ° can change the gobo size .
7. High quality LCD touch screen
8. Power in & Out connector,3 or 5pin XLR inout & output can optional
9. Folding clamp can optional
10. Housing material: PA6 Nylon( Solid,high temperature resistance up to 200 ° flame retardance)
Product Specification:
Input Voltage: 100-240V, 50/60Hz
Power consumption: 480W
Power supply: 600W
Light source: 450W module LED engine (21-24V,8A)
LED expected service life: 20000 hours
LED temperature: 8500K
Diameter of optic lens: 148mm
Beam angle: 3-40 °
Standard:70CRI
high :90CRI
DMX Channel: 29CH
Electric focusing system
Four dimming curves ： Linear,Square law,Inverse squared law,S curve
Operate mode: DMX512, Auto, master/slave, RDM
0-100% 16bit linear smooth dimming
Multiple speed strobe effects
CMY color macro function
Linear CMY colour mixing
Linear CTO color temperature adjustment: 8500K-2800K
Color wheel: 1 color wheel, 7fixed colors plus white
Static gobo: 12 gobos plus 1 white circle
Rotation Gobo: 7 Gobo plus 1 white circle
Prism: Equipped with 8 prism, and 6 rows prism, the two prisms
can be stacked and rotated in both
High brightness frost sheet: with smooth wash effect
Control panel: LCD Touch screen Overheating self-energy protection LED,
extending LED life
X-axis rotation angle: 540 °
Y-axis rotation angle: 270 °
Three phase motor with SY Brand
XY axis magnetic coding positioning is more accurate
Power Outlet: Power Connector Input/Output
Signal Line: 3-pin or 5-pin signal line
Installation: folding clamp
Fixture size: 338*254*621mm
Product Detail:
Product Size:
Product Effect :

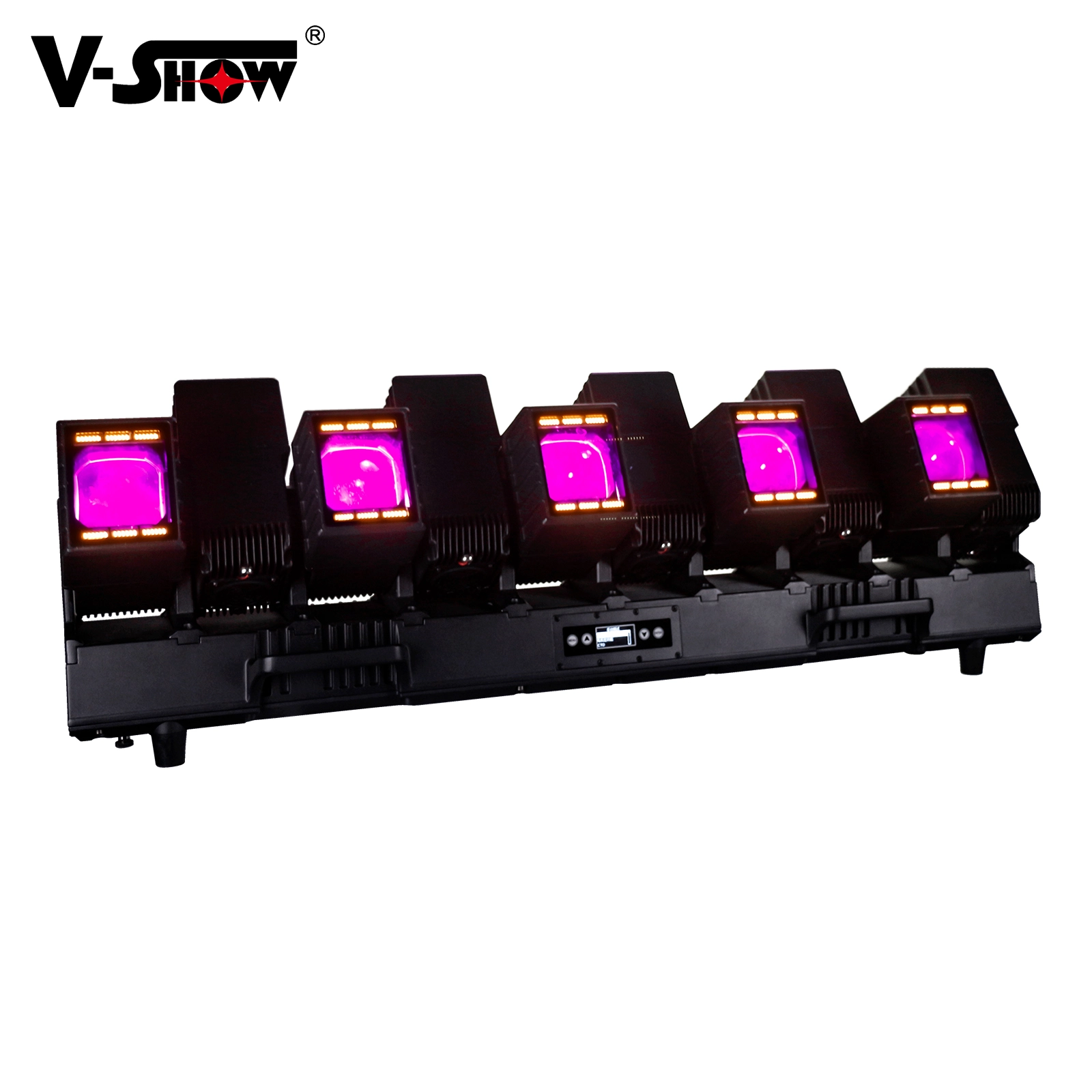

VSHOW W1060 IP65 Wave Line 10pcs 60W RGBW 4IN 1 LED bar Moving Head
