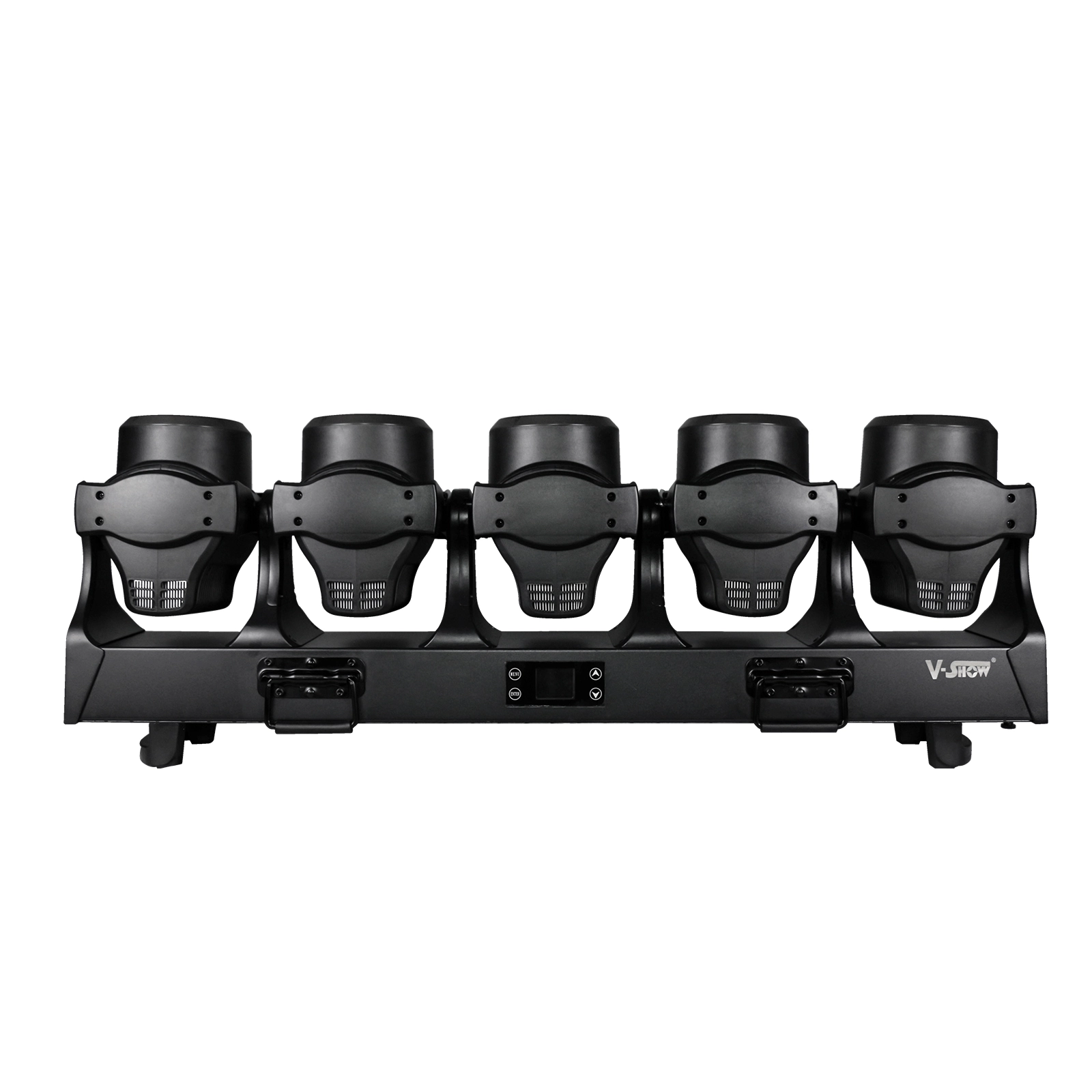

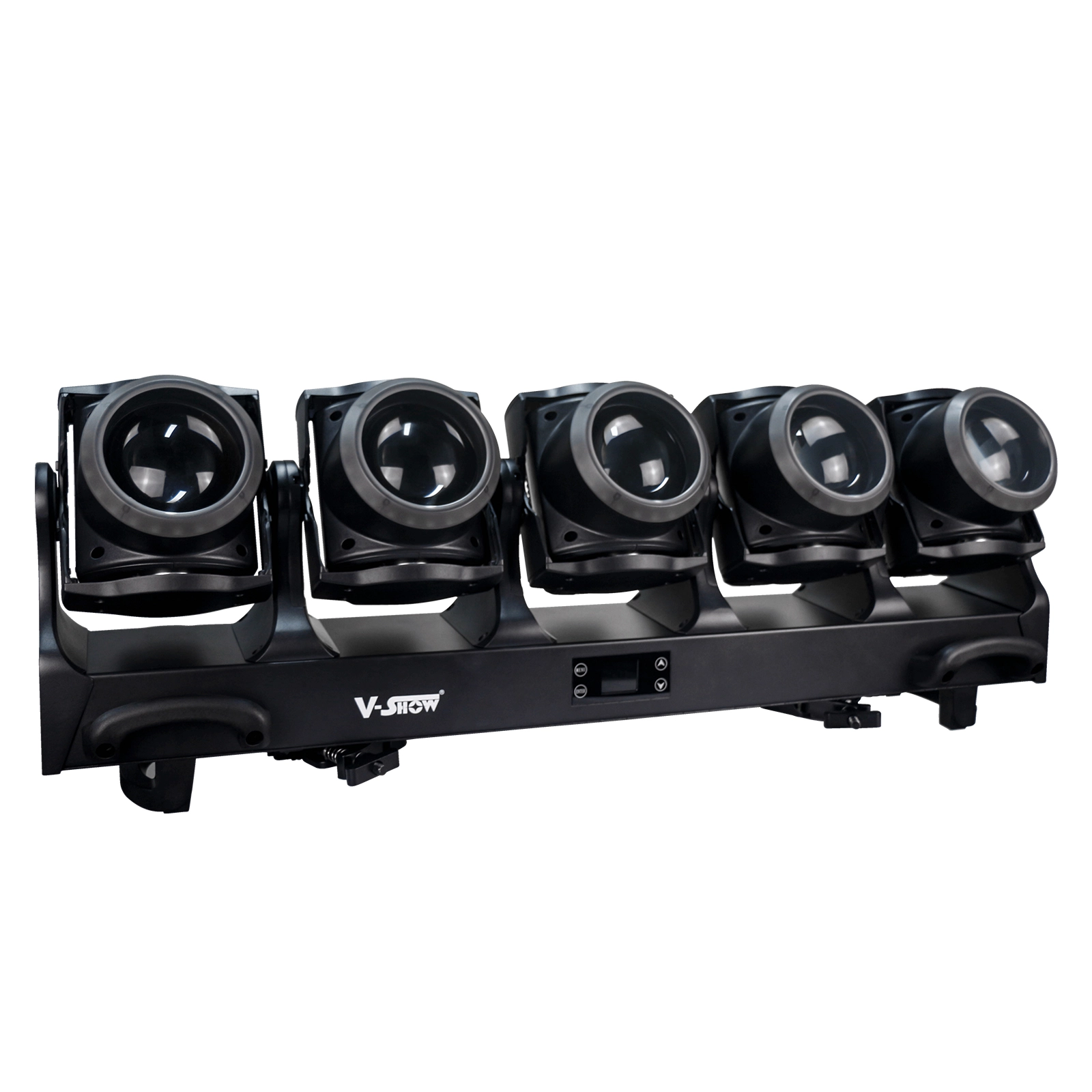

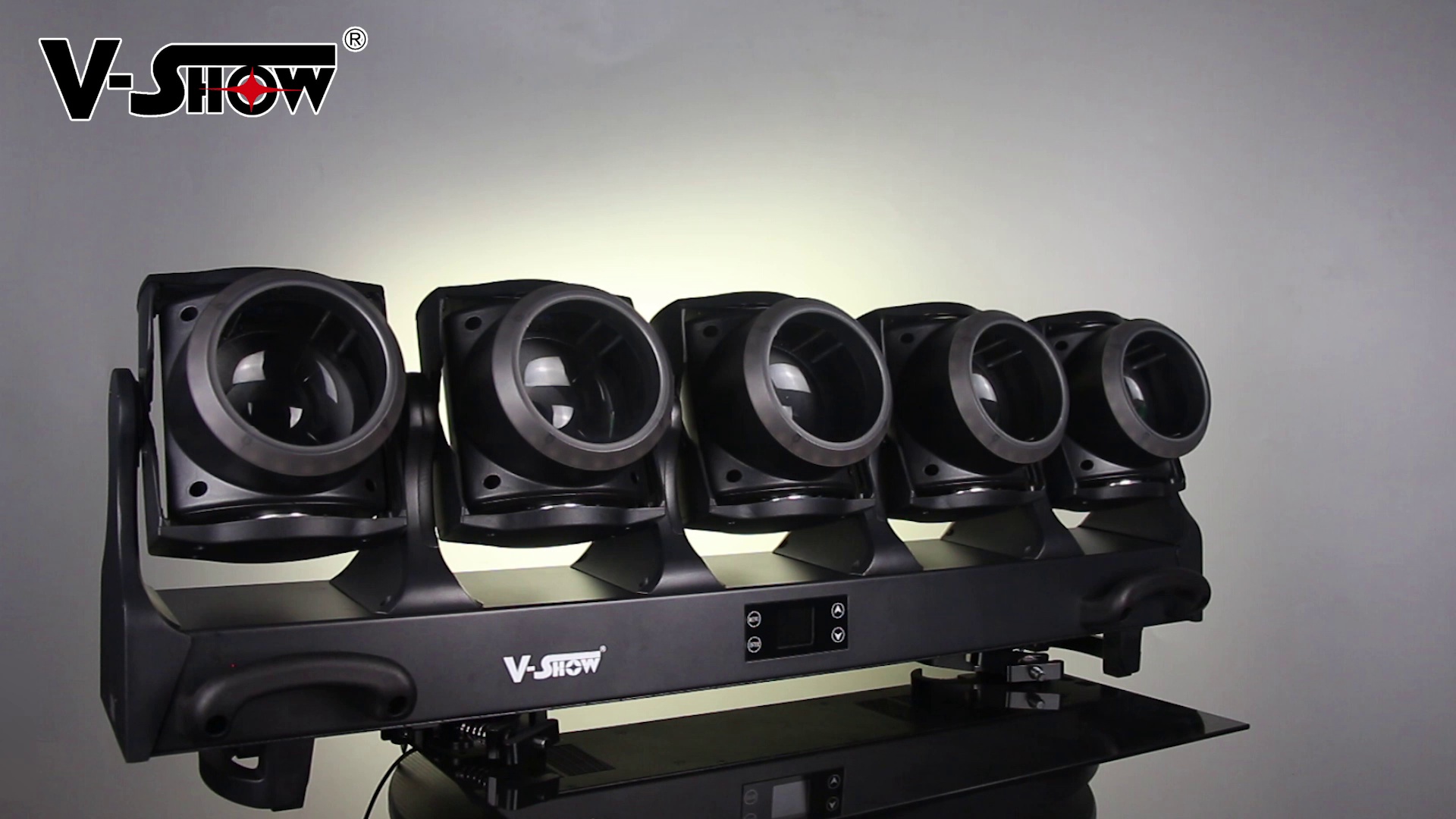

VSHOW TB5 5pcs 120W RGBL LED with 120pcs 0.5W RGB LED Ring

Discover the VSHOW TB5 5pcs 120W RGBL moving head light, featuring 120pcs 0.5W RGB LED Ring. This moving head wash delivers vibrant colors and dynamic effects, perfect for stage, events, and professional lighting setups. Elevate your show with VSHOW.

Brand Name

VSHOW

Input Voltage

AC100-240V, 50 / 60Hz

Light source

5*120W RGBL

Light source life

＞20000 hours

Place of Original

Guangdong,China

Size

1002x196x334mm

N.W

27.5KG

Signal Output

3 PIN/5 PIn DMX Input/OUTput

Control Mode

DMX512, Auto、Sound, Master/Slave

Beam specs

3-30°

Operate mode

DMX512 RDM

DMX Channels

41/71CH

Dimming mode

0-100%16bit linear dimming

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

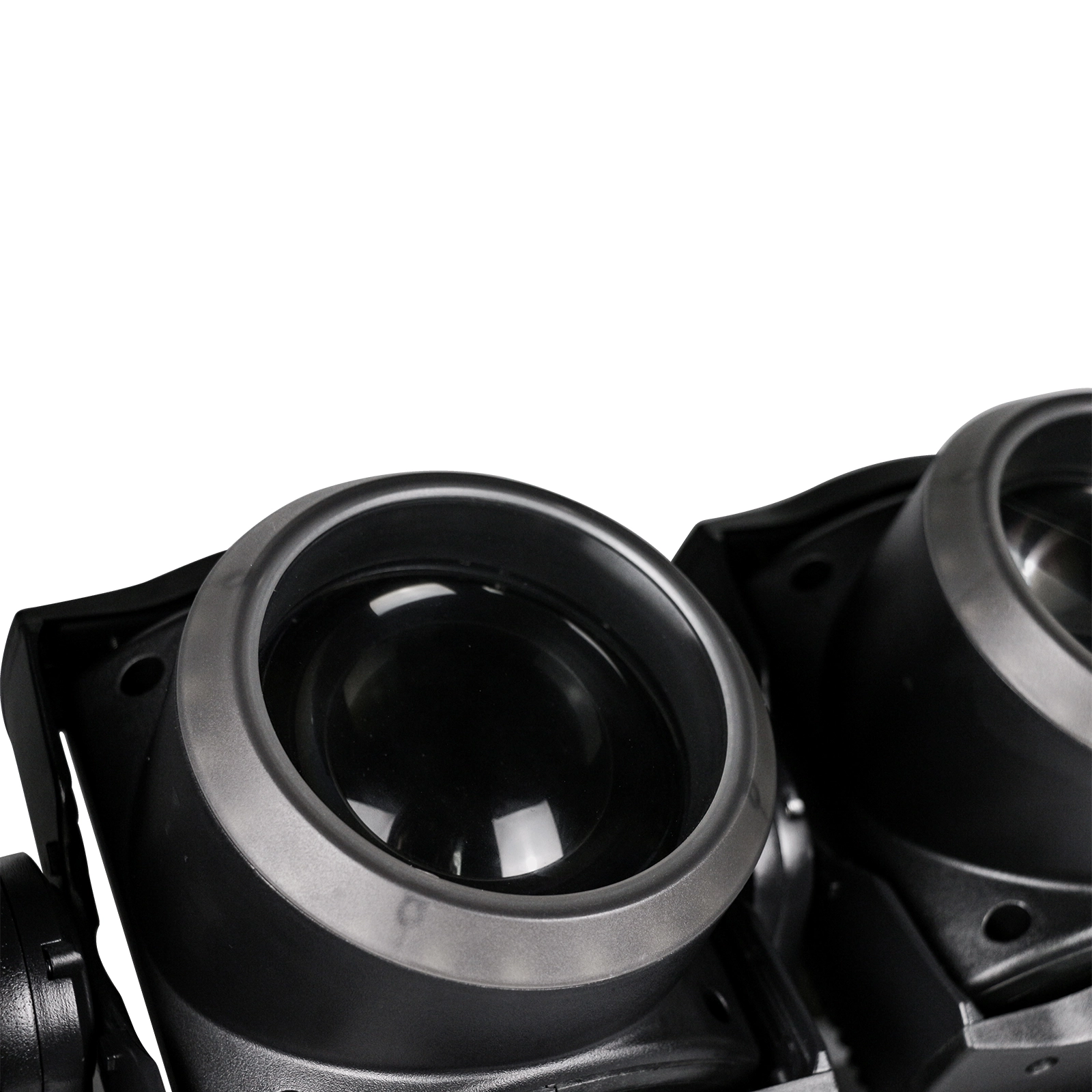

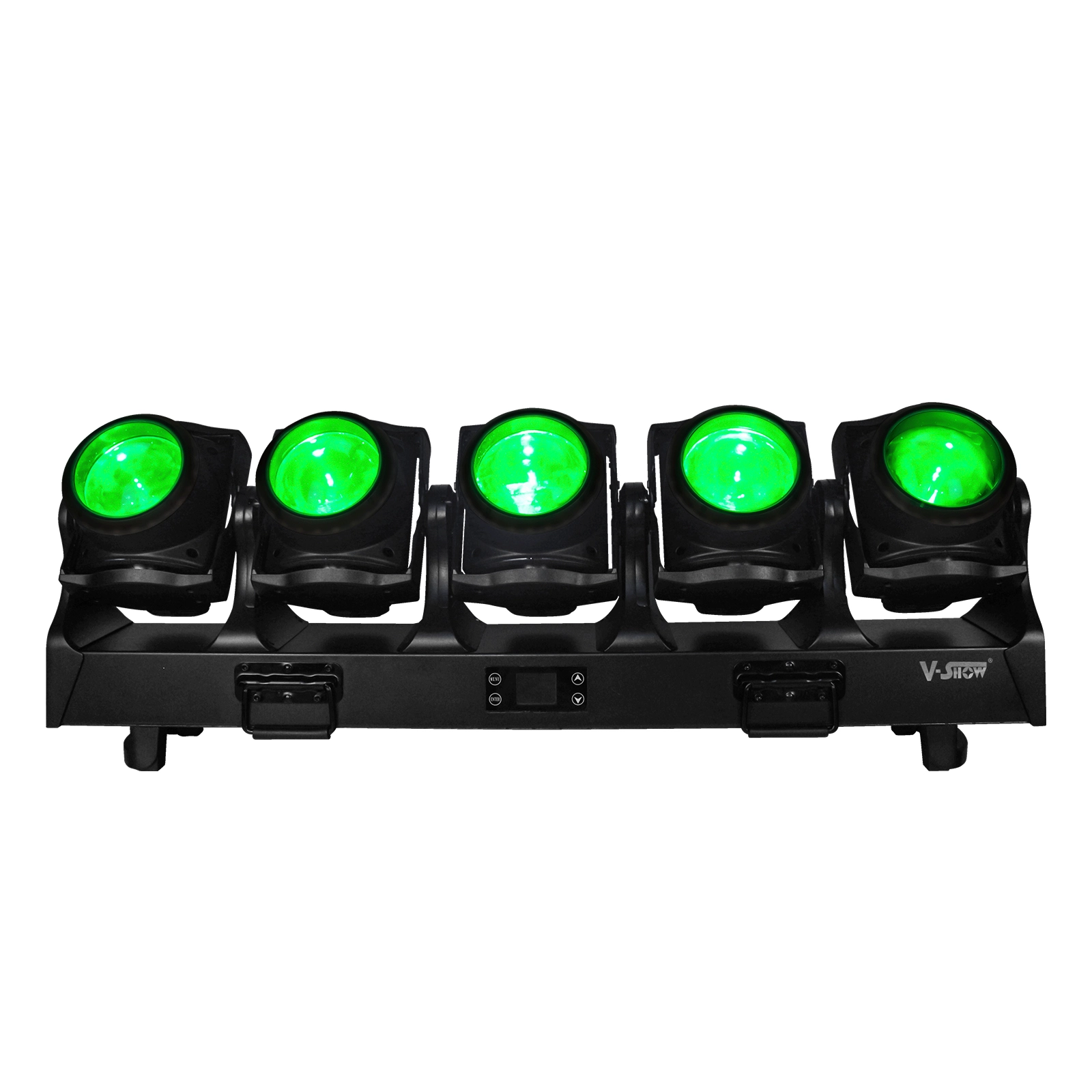

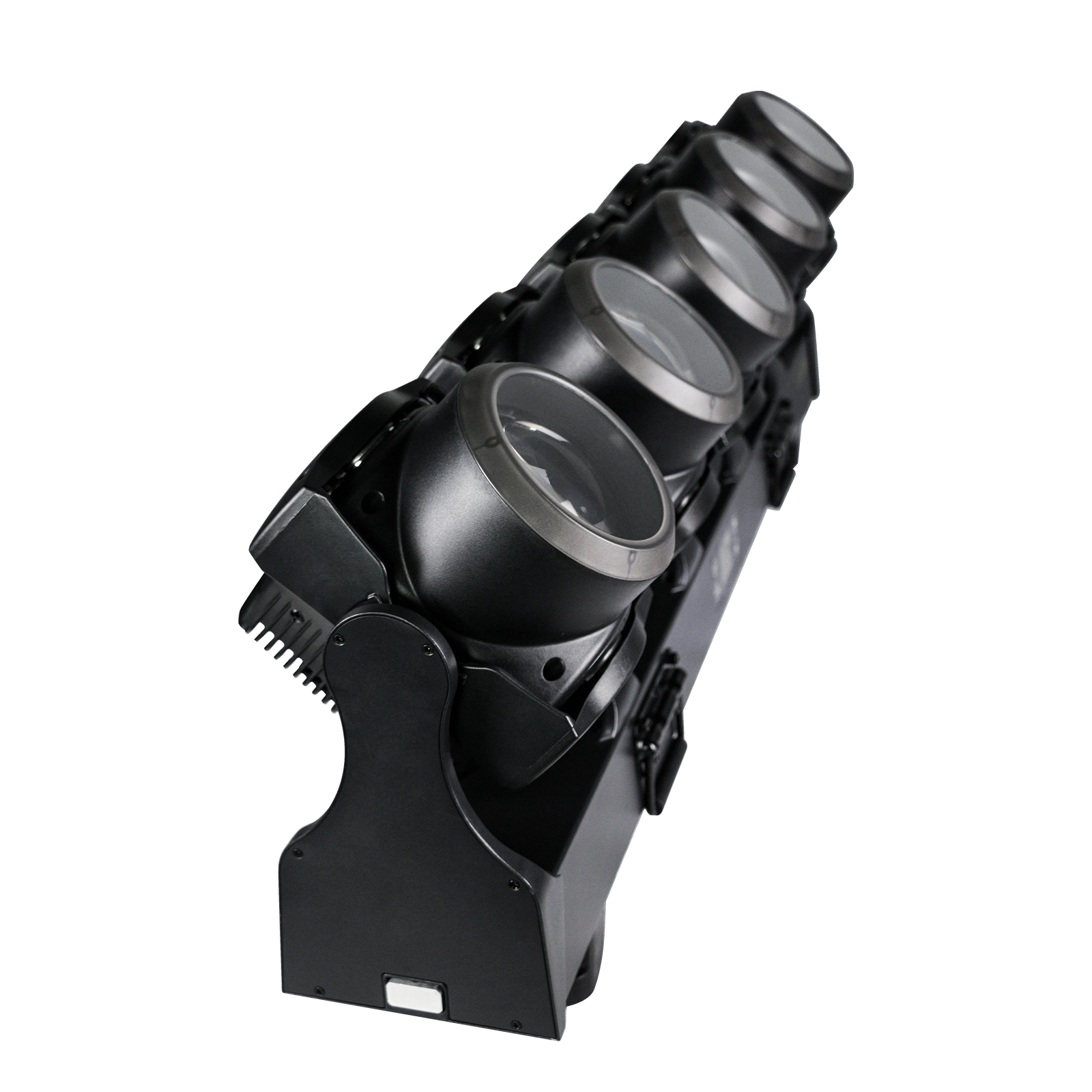

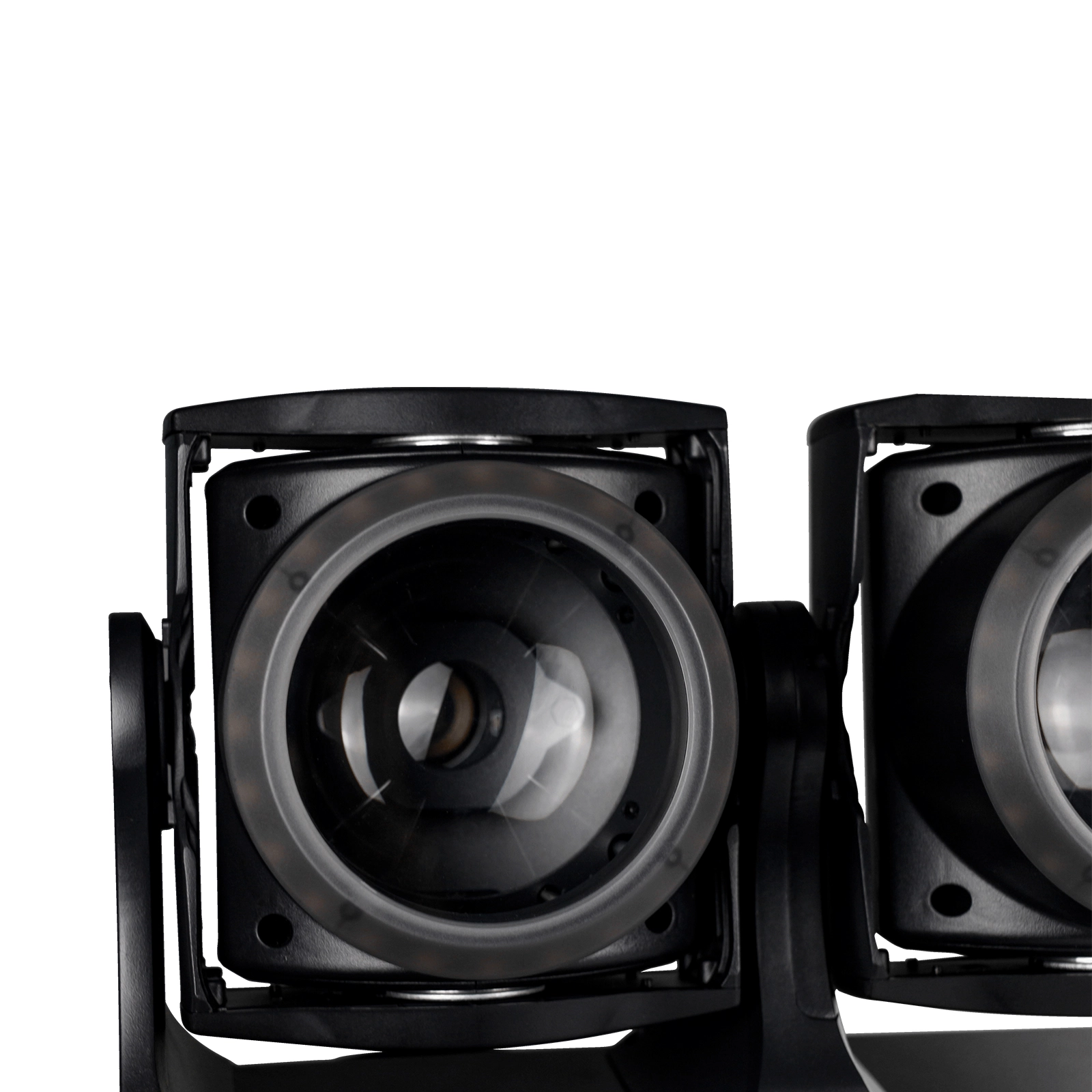

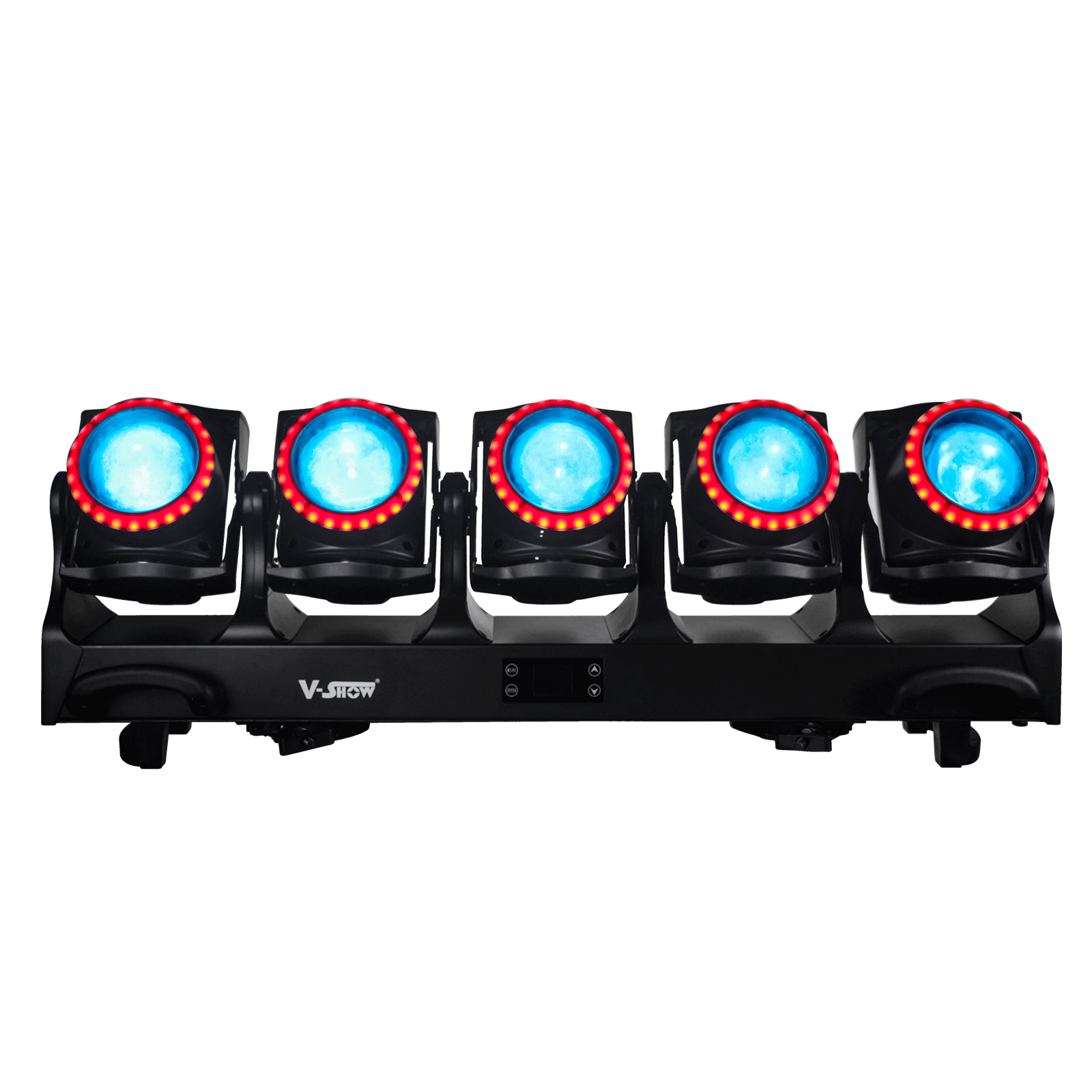

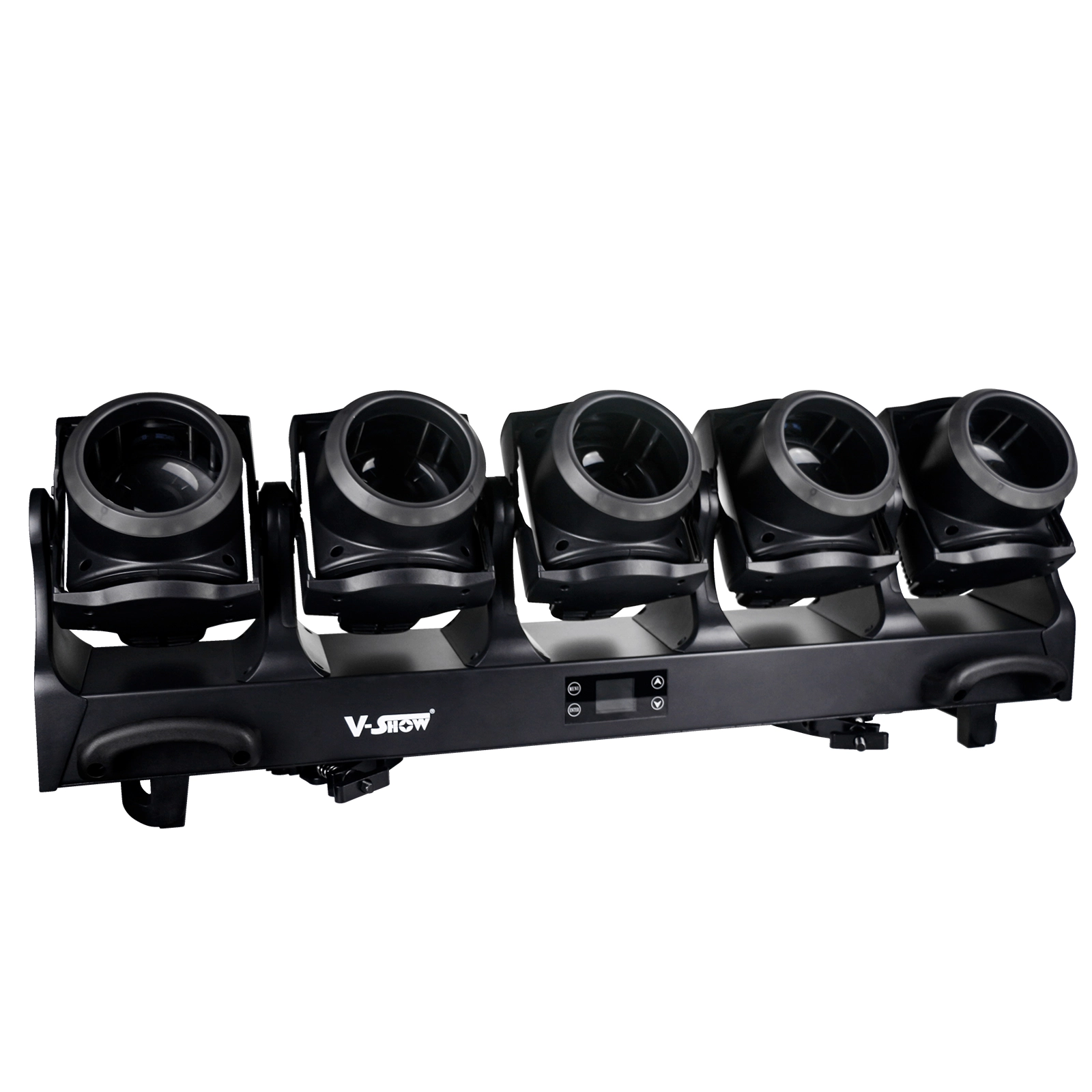

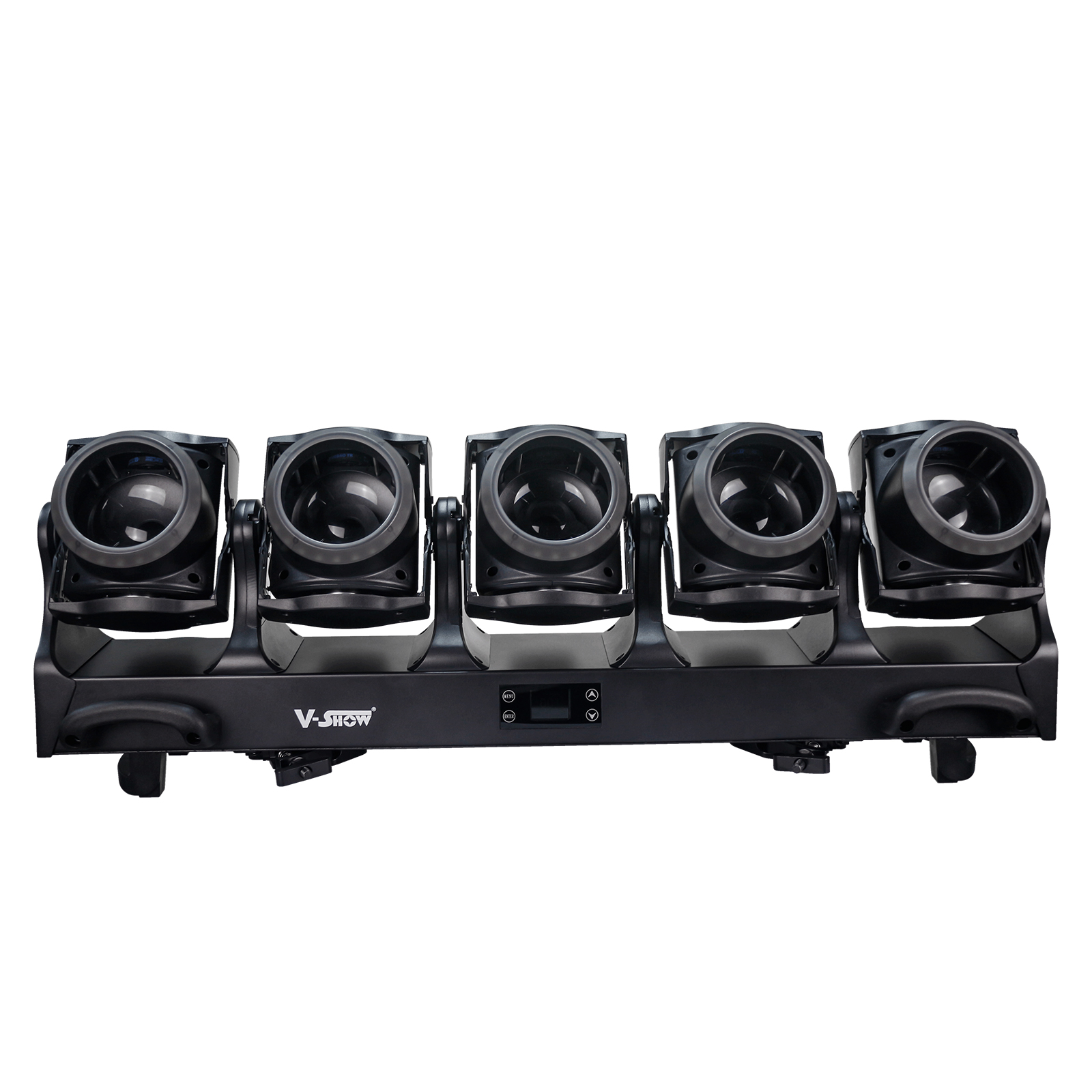

The fixture is equipped with 5 120W RGBL LEDs as its main light source, supplemented by an outer ring of 120 0.5W RGB LEDs. The fixture is equipped with five independently controlled LED heads, which independently control the XY axis and focusing of each LED, providing unlimited possibilities for artistic creation on stage. Quick focusing produces a sharp and saturated beam effect in beam mode, and a uniform and soft dyeing effect in dyeing mode Excellent color mixing function and color macro effect, multiple speed strobe effects, rich dynamic built-in effects of auxiliary lighting, 0-100% smooth dimming, multiple dimming curves and refresh rates, can be quickly spliced horizontally, ensuring consistent and equidistant spacing for each.

Parameters

Input Voltage	100-240V, 50/60Hz	Light source	5*120W RGBL
Power supply	840W	Auxiliary light	120X0.5W RGB LED
Color System	RGBL	Color temperature	2500-8000K
Pixel matrix	Five independently controlled LED heads	Dimming	0-100%16bit linear dimming
Lifetime	≥20,000Hours	Dimming modes	Quick dimming and standard dimming can be set
CRI	80	Strobe	Multiple strobe speed effects
Field angle	4-35°	Beam angle	3-30°

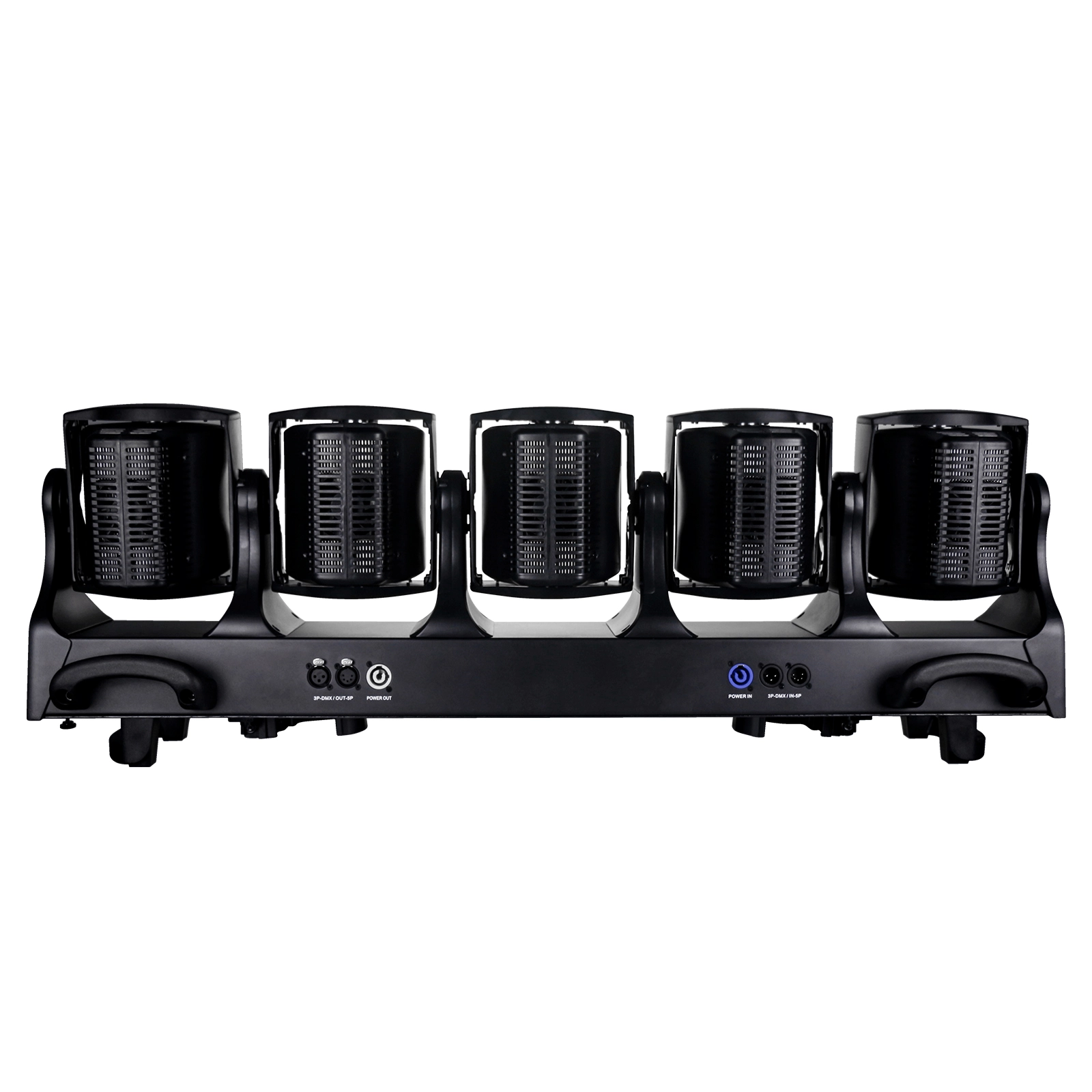

Control panel	LCD display	Signal socket	Standard 3 PIN XLR /5PIN XLR socket
DMX Channel	41/71CH	Operate mode	DMX512, Auto, master/slave, Voice control ,RDM
Net Weight	27.5kg	Gross Weight	33kg
Fixture size	1002x196x334mm	Package size	1094736cm/ 33kg (Carton) 1085664cm/ 93kg (Flight case 2 in 1）

Details & Features

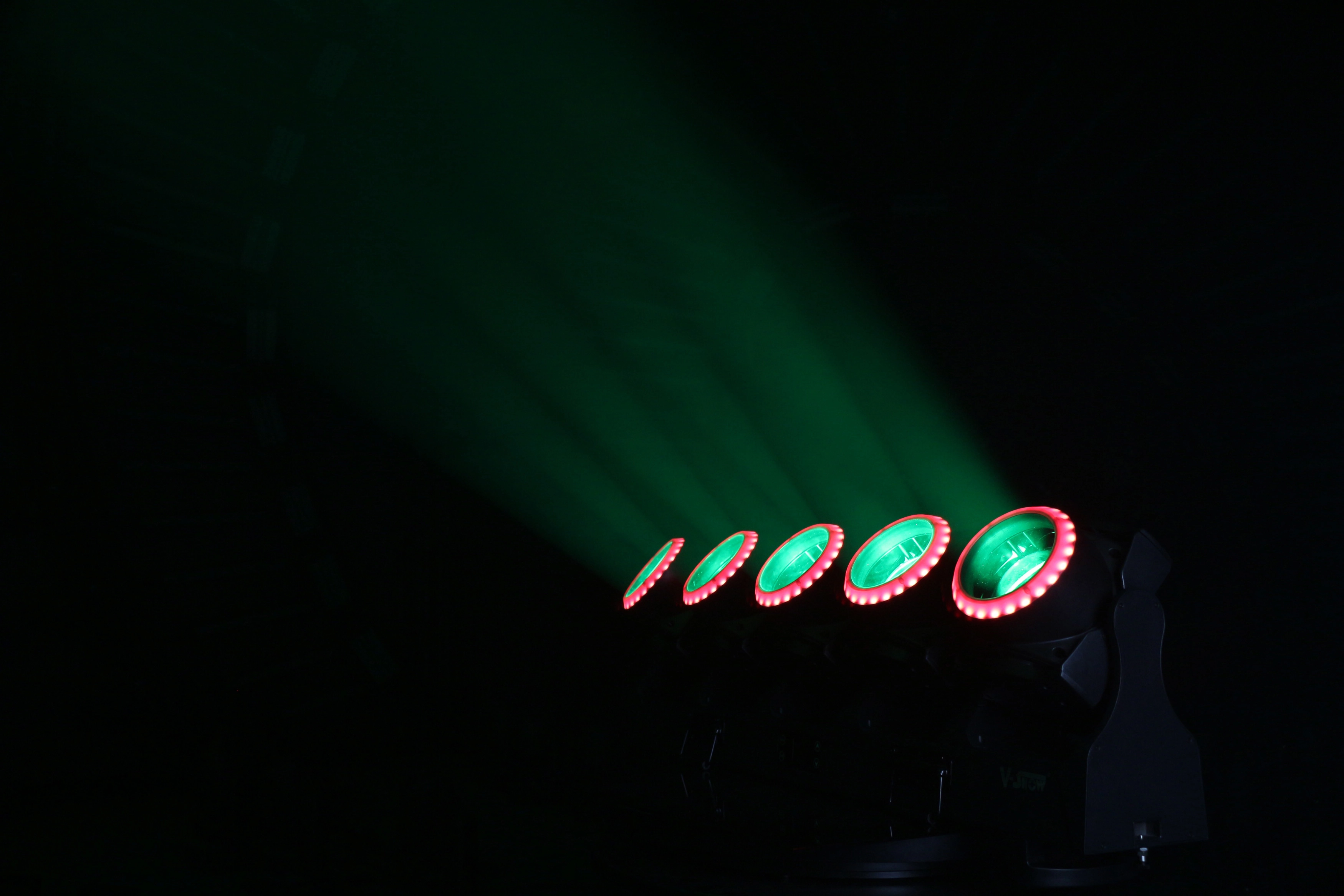

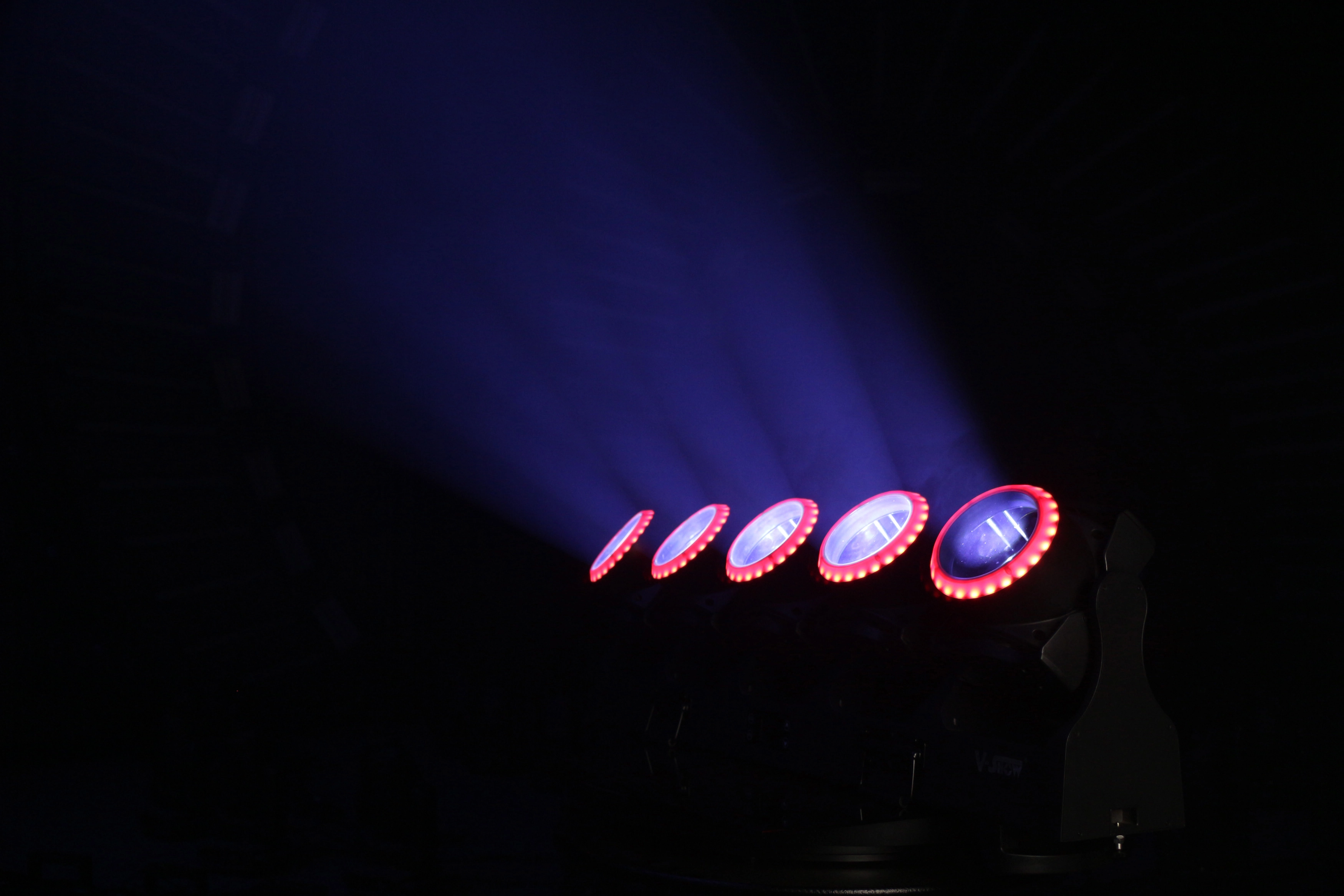

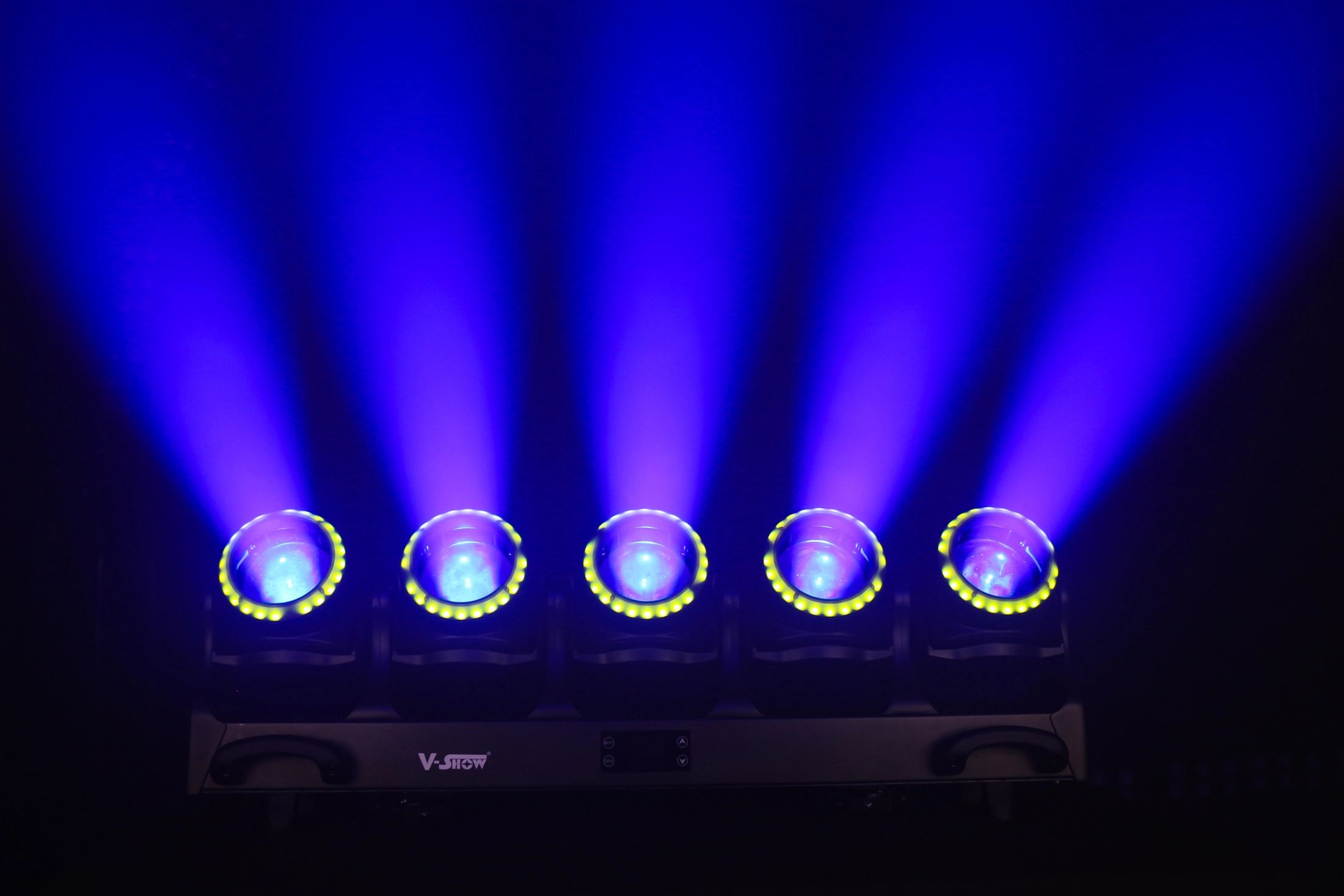

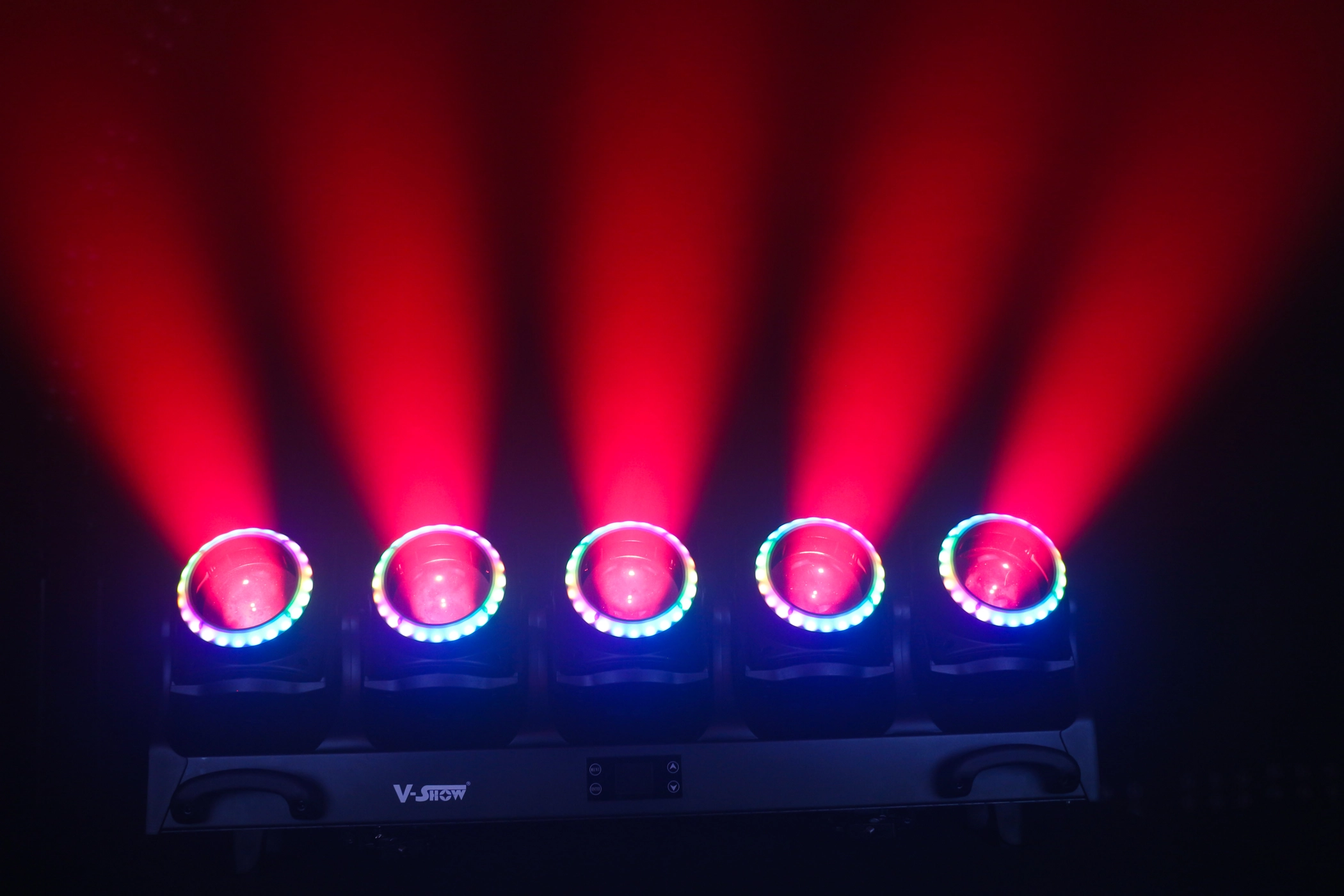

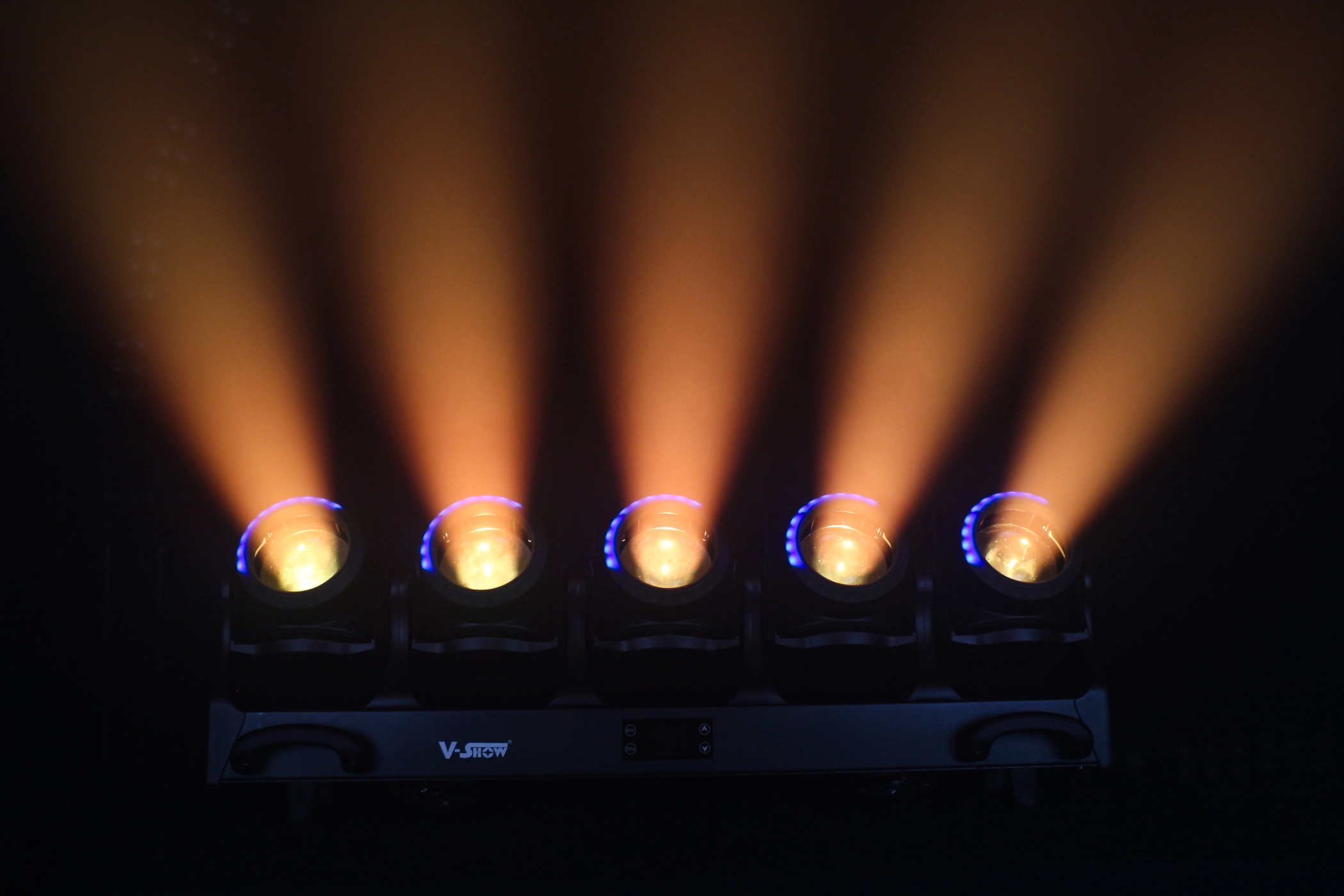

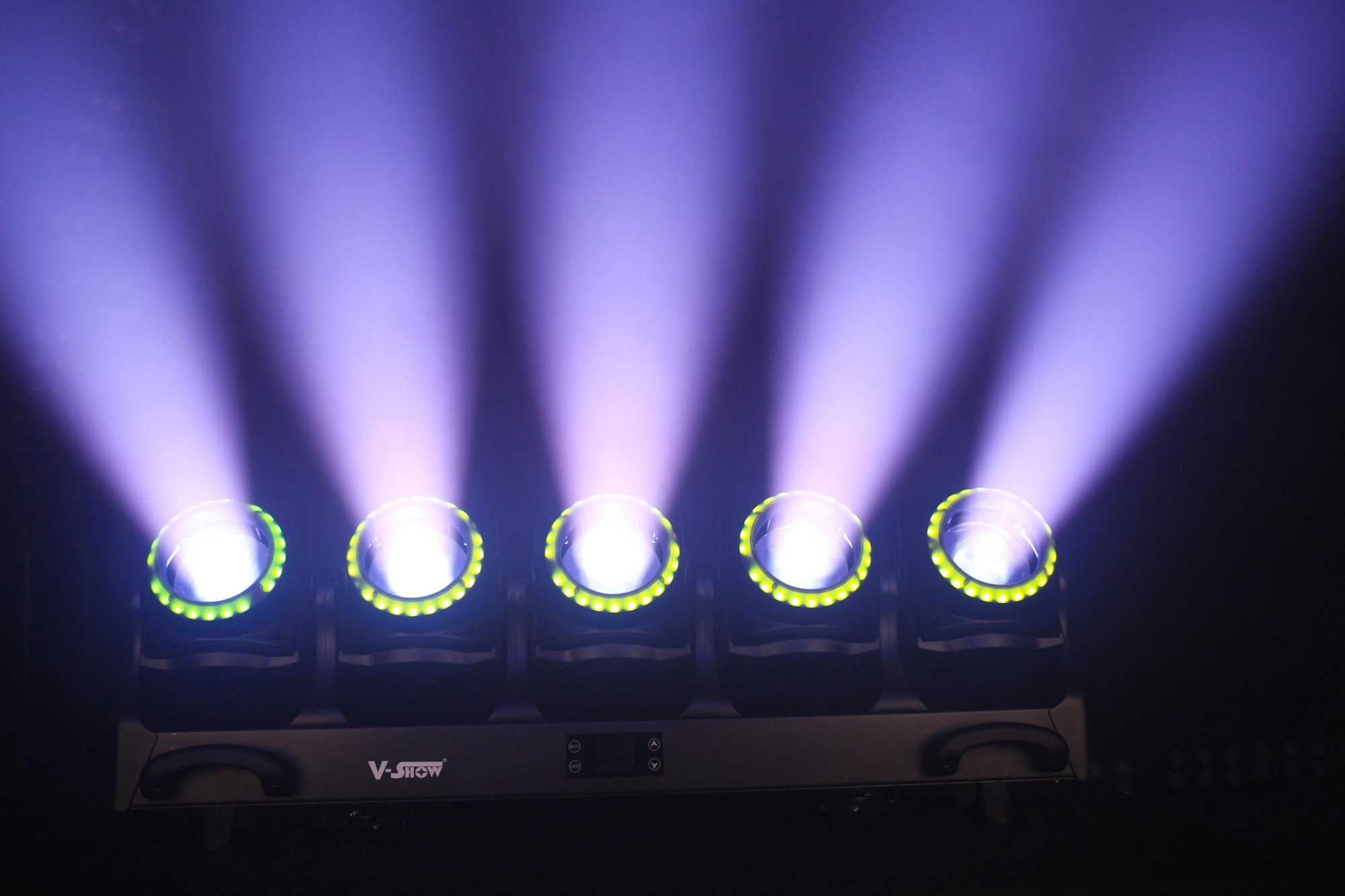

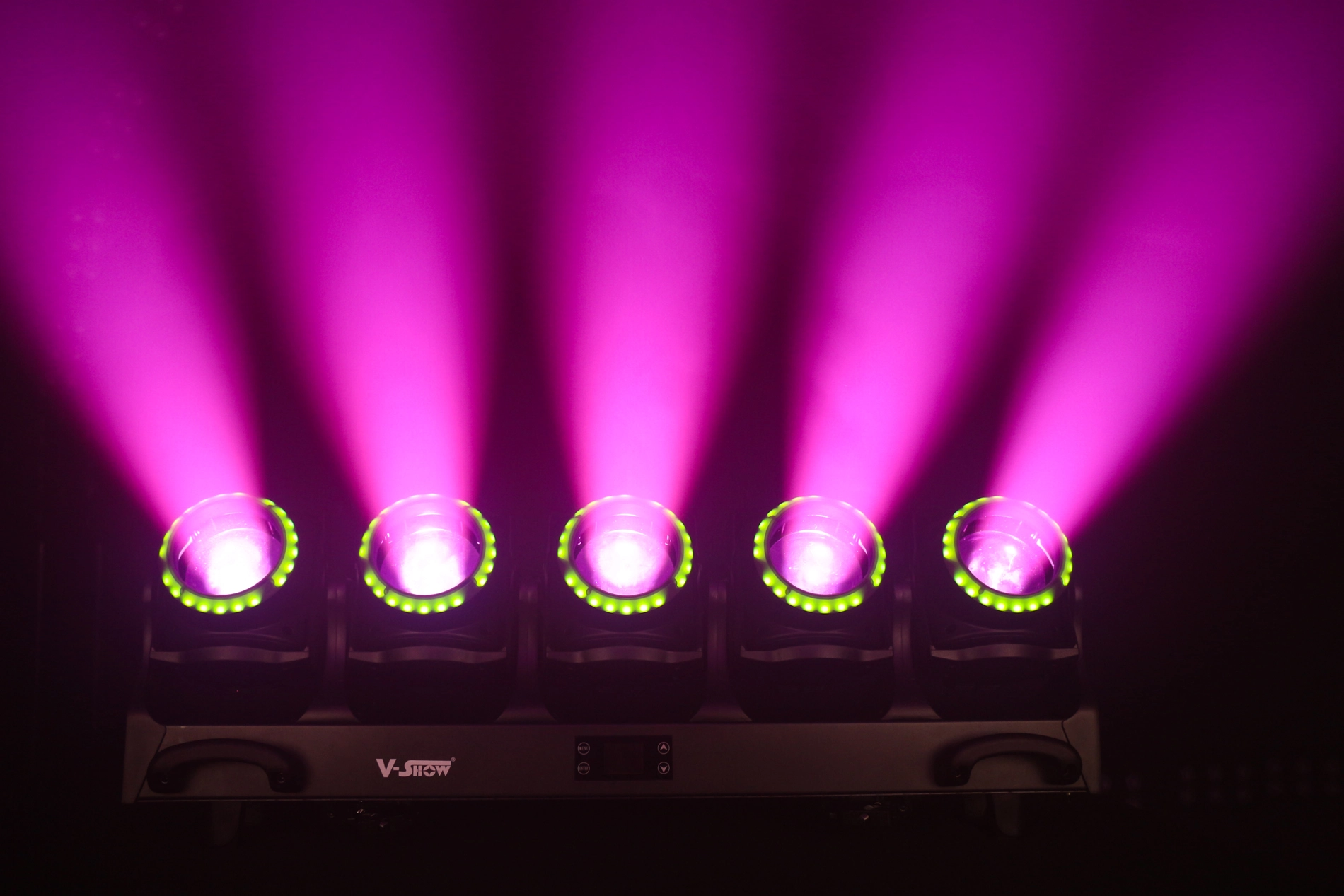

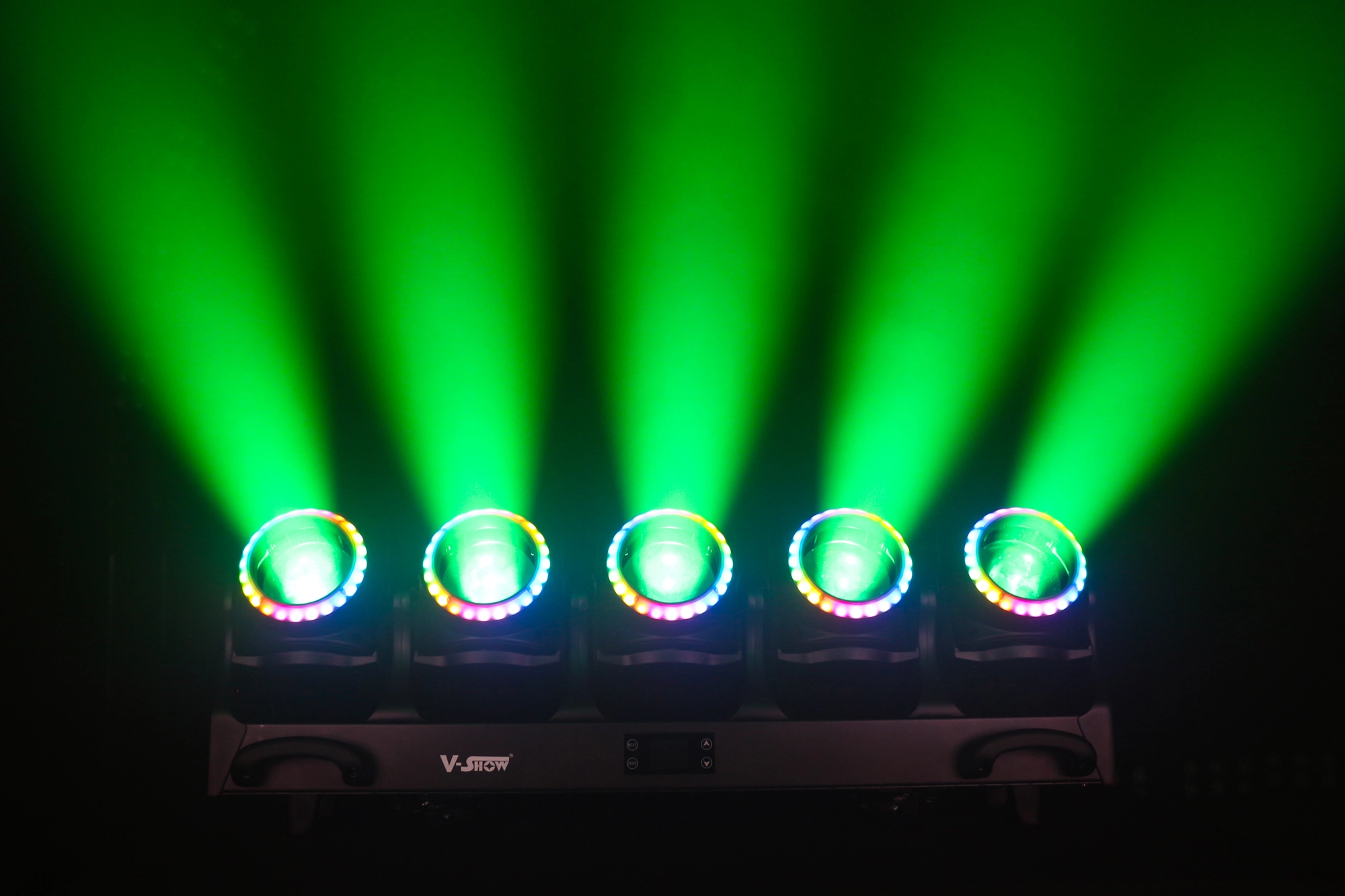

Excellent color mixing effect

• 10 main lights can be controlled by a single point

• Auxiliary light CW/WW/RGB is independently controlled by 24 segments

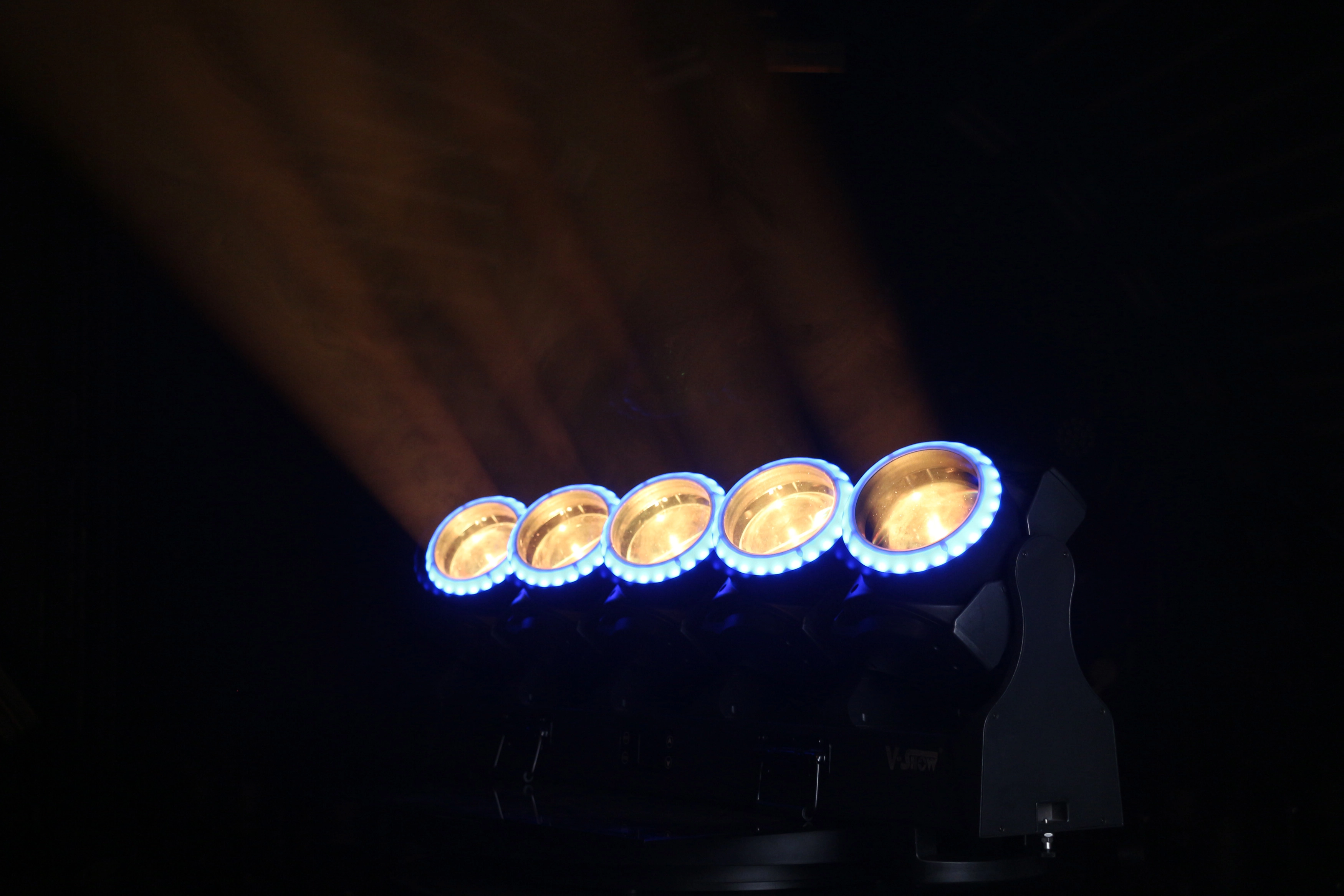

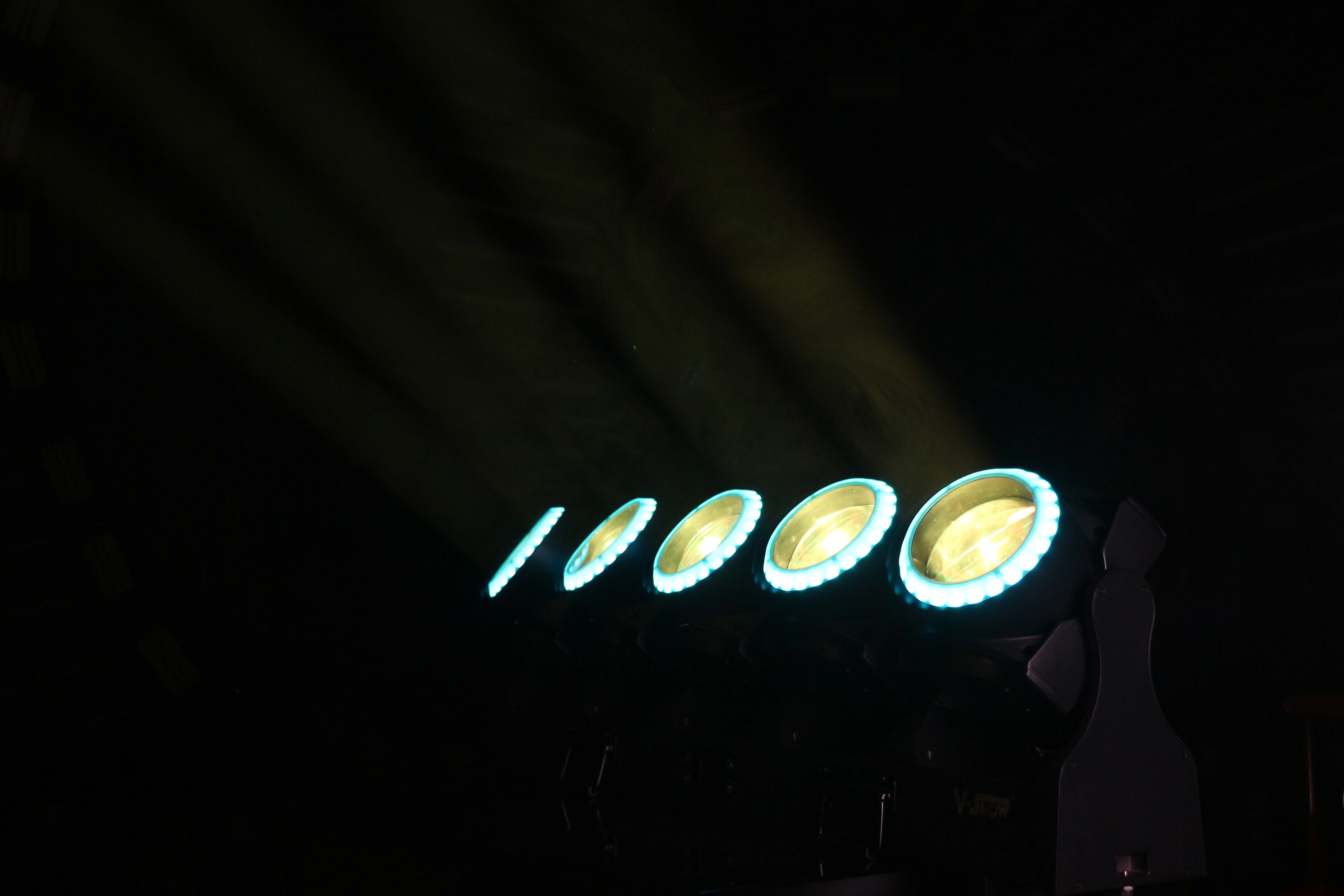

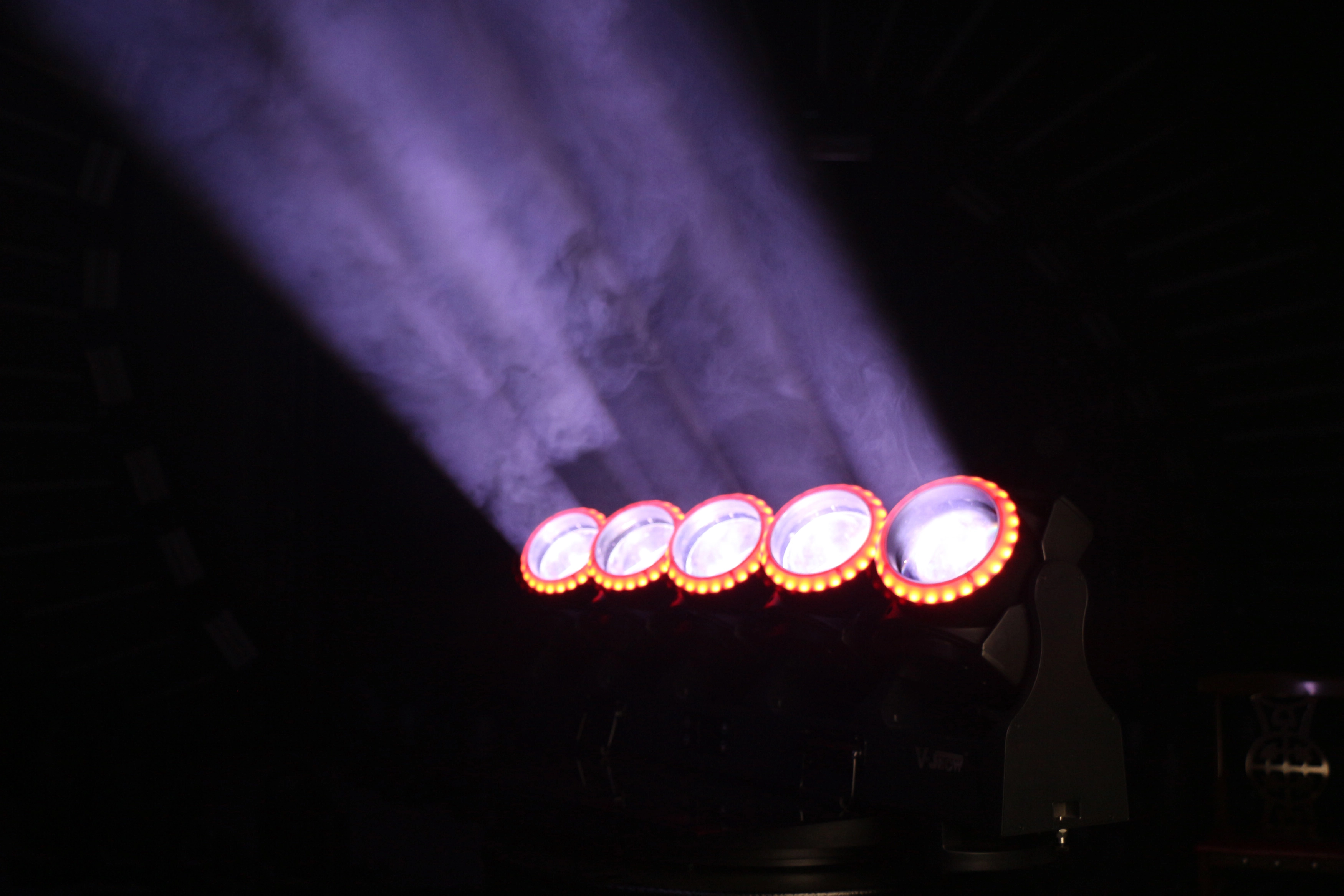

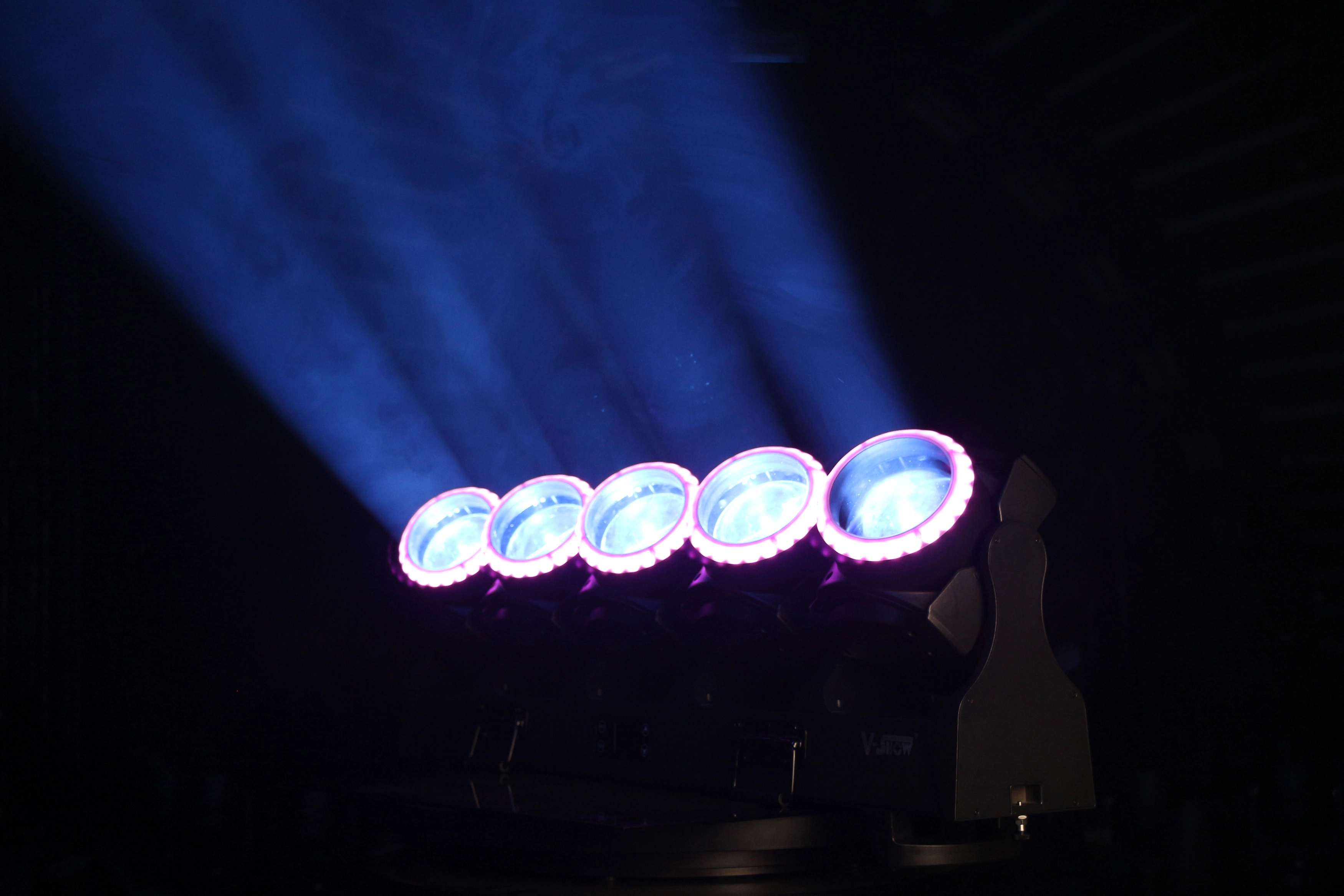

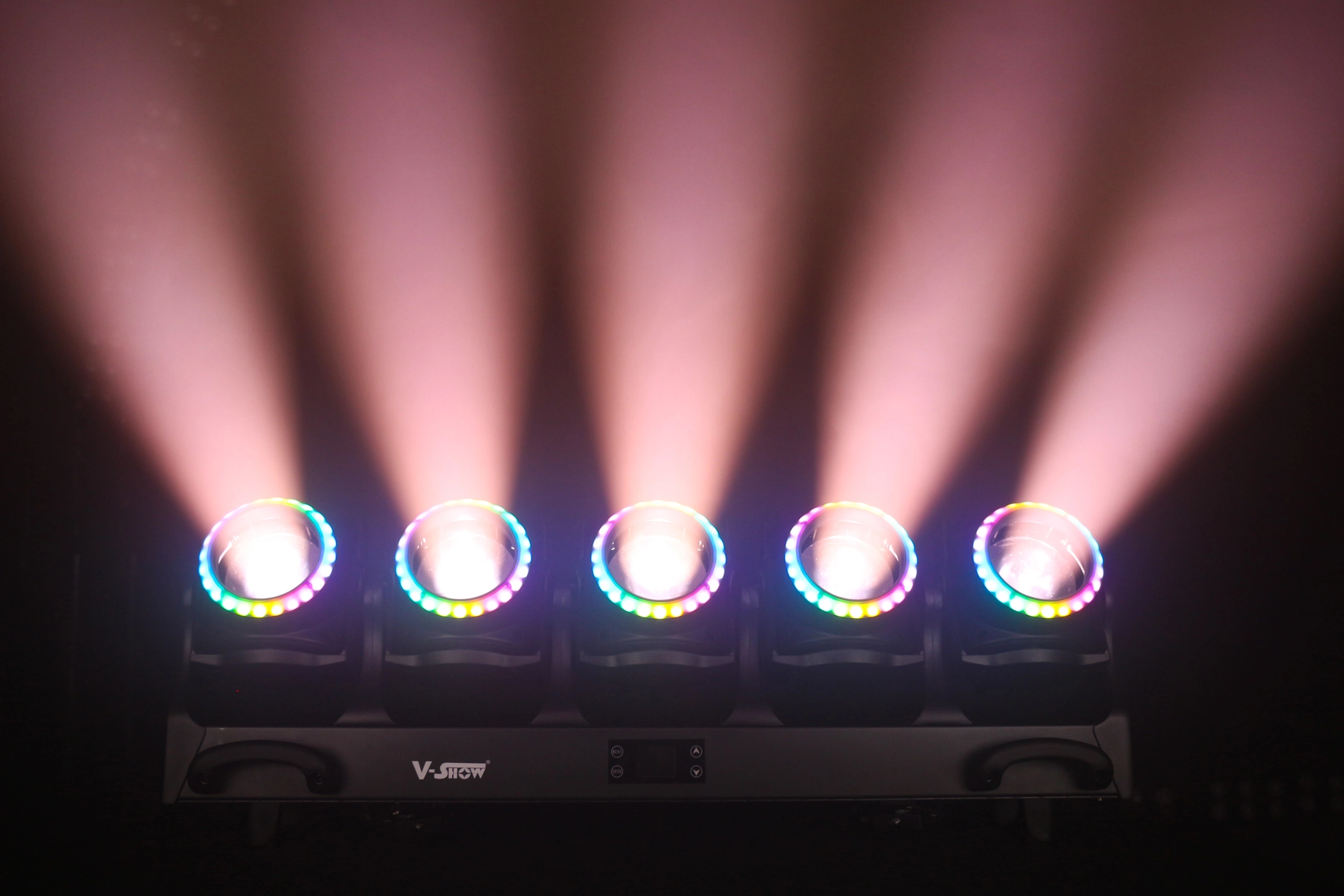

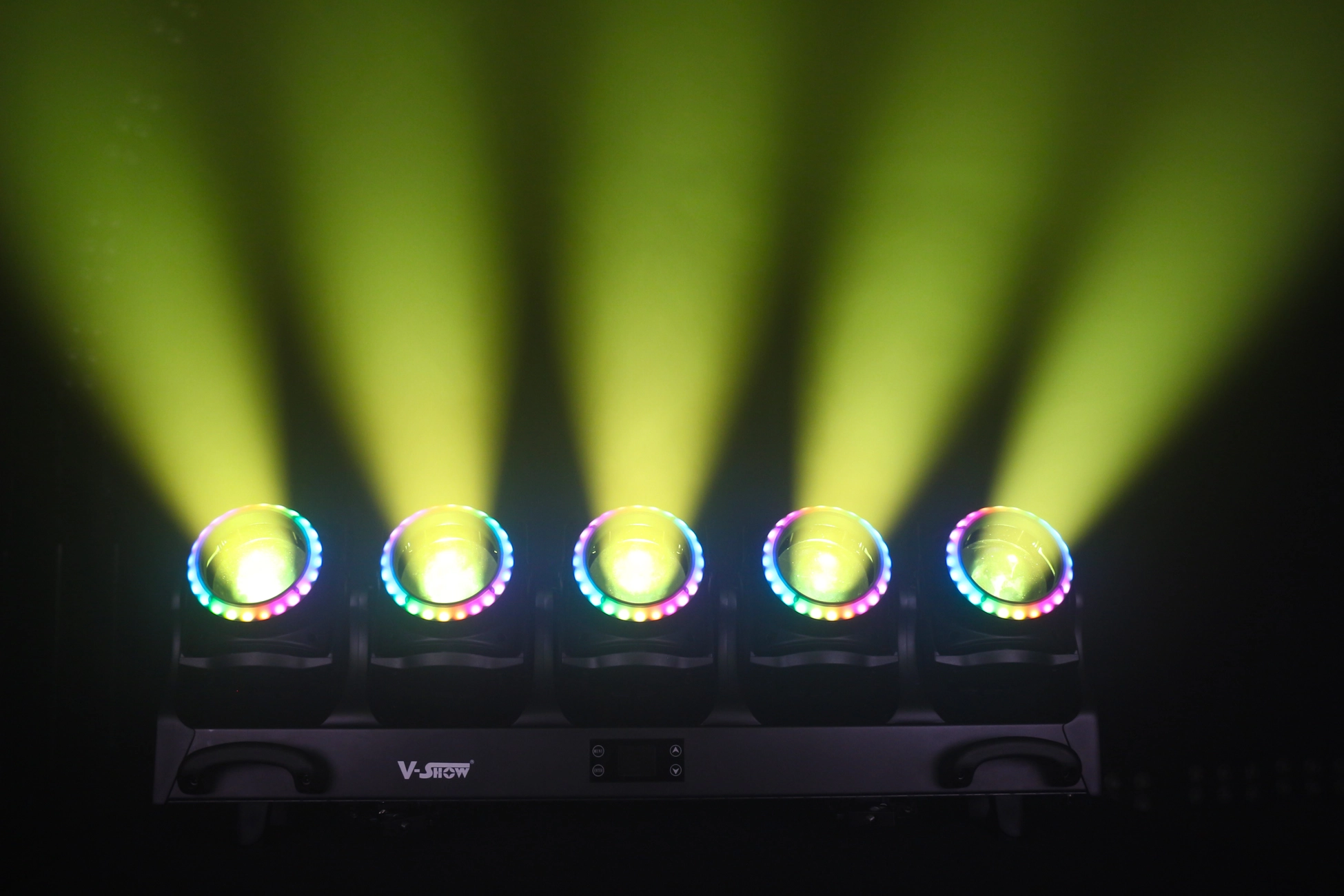

• Full and sharp beam with rich built-in effects

Download

TB5 USER MANUAL

DOWNLOAD

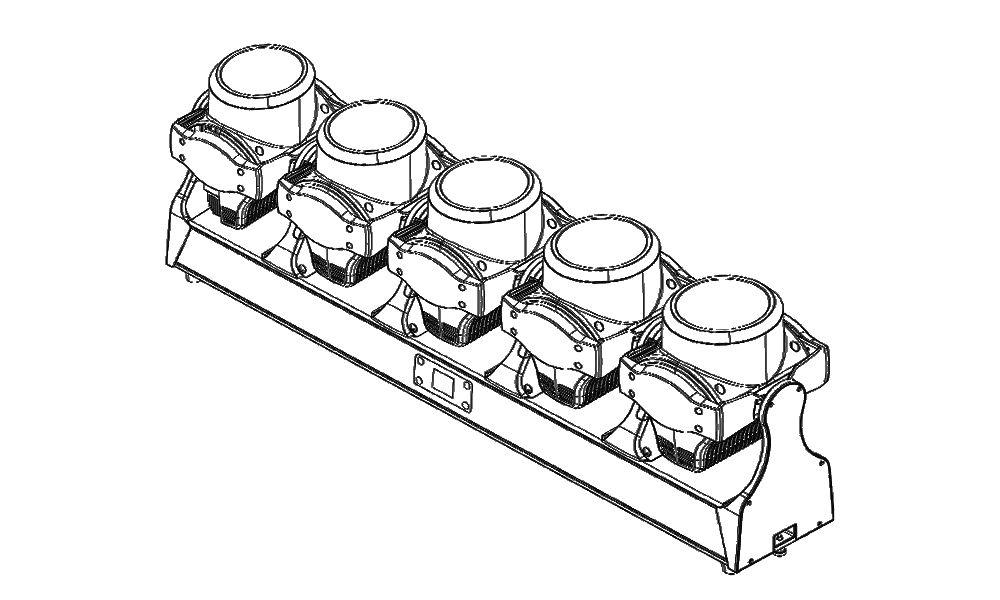

TB5 DWG
