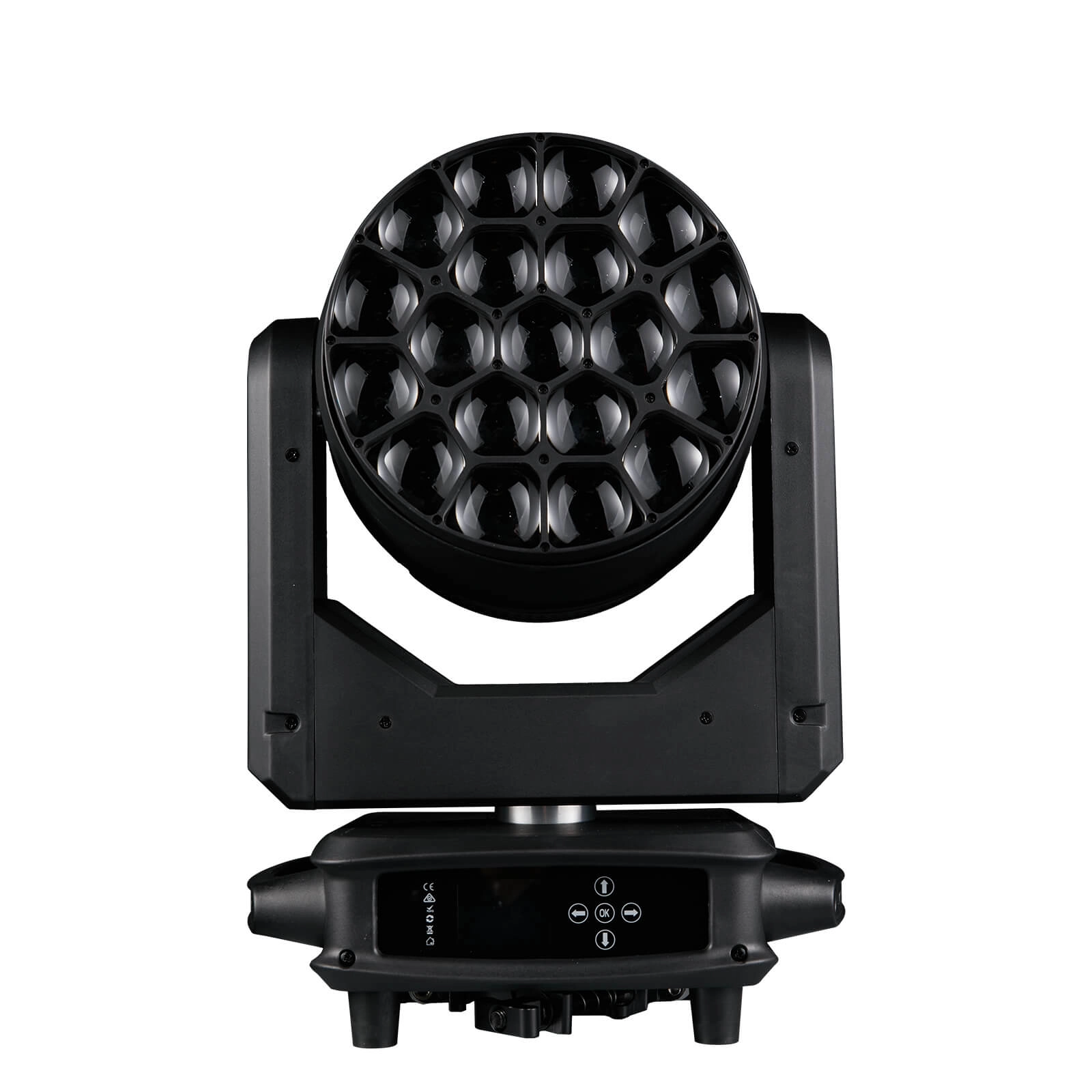

VSHOW Zoom Moving Head Light R1940L 19*40W RGBW 4in1

Introducing the VSHOW Zoom Moving Head Light R1940L! This powerhouse is composed of 19 40W RGBW 4-in-1 LEDs for stunning color mixing and effects. The zoom function allows you to adjust the beam size for wider washes or tighter spots. With its powerful output and flexible functionality, the R1940L is perfect for stages, discos, parties, and any event where you want to create a dynamic and immersive lighting experience.

Brand Name

VSHOW

Input Voltage

100-240V, 50/60Hz

Output Voltage

V1:36V(LED driver+ main board)

Power consumption

760W

Power supply

1000W

Light source

19*40W RGBW 4in1 LED

Place of Original

Guangdong, China

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

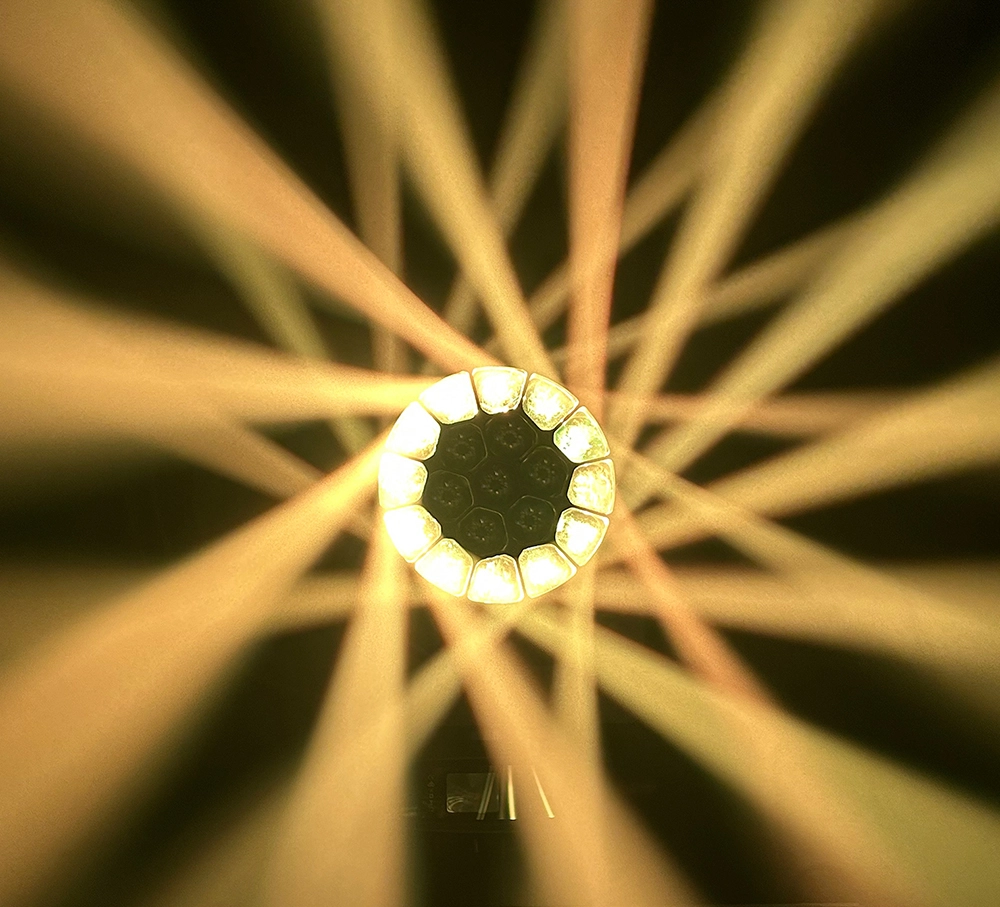

The R1940L is composed of 19 40W RGBW quad-color LEDs, delivering an outstanding color macro effect and effortlessly creating powerful beams to add dynamism to the stage. With various channel modes to choose from, it allows precise control of each LED bead through DMX and RDM, enabling light synchronization with music. Lighting designers can easily switch colors, angles, and lighting effects on the fly.

Featuring a linear focus system with a zoom angle ranging from 4-60°, along with multiple-speed strobe effects and smooth dimming from 0 to 100%, it can produce a variety of dynamic and mesmerizing lighting effects. The R1940L is a high-performance moving head light that integrates powerful beams, color blending, and peak focus functions. Equipped with a uniform color mixing system and a color correction system, it ensures consistent color output.

This versatile fixture is suitable for a wide range of stage applications, including concerts, TV studios, seminars, art exhibitions, and more. Designed specifically for professional lighting performances, the R1940L is a three-in-one moving head light that meets the diverse needs of different venues and applications.

Parameters

Input Voltage	100-240V, 50/60Hz	Output Voltage	V1:36V(LED driver+ main board)	Power consumption	760W
Power supply	1000W	Light source	19*40W RGBW 4in1 LED	Electronic dimmer	0～100%16bit linear
Linear CTO color temperature adjustment	2500-8000K	Beam angle	4-60°	DMX Channel	21/23/35/78/92/97/99 CH
Operate mode	DMX512, Auto, master/slave,Sound active, RDM	Fixture size	338255446mm

Details & Features

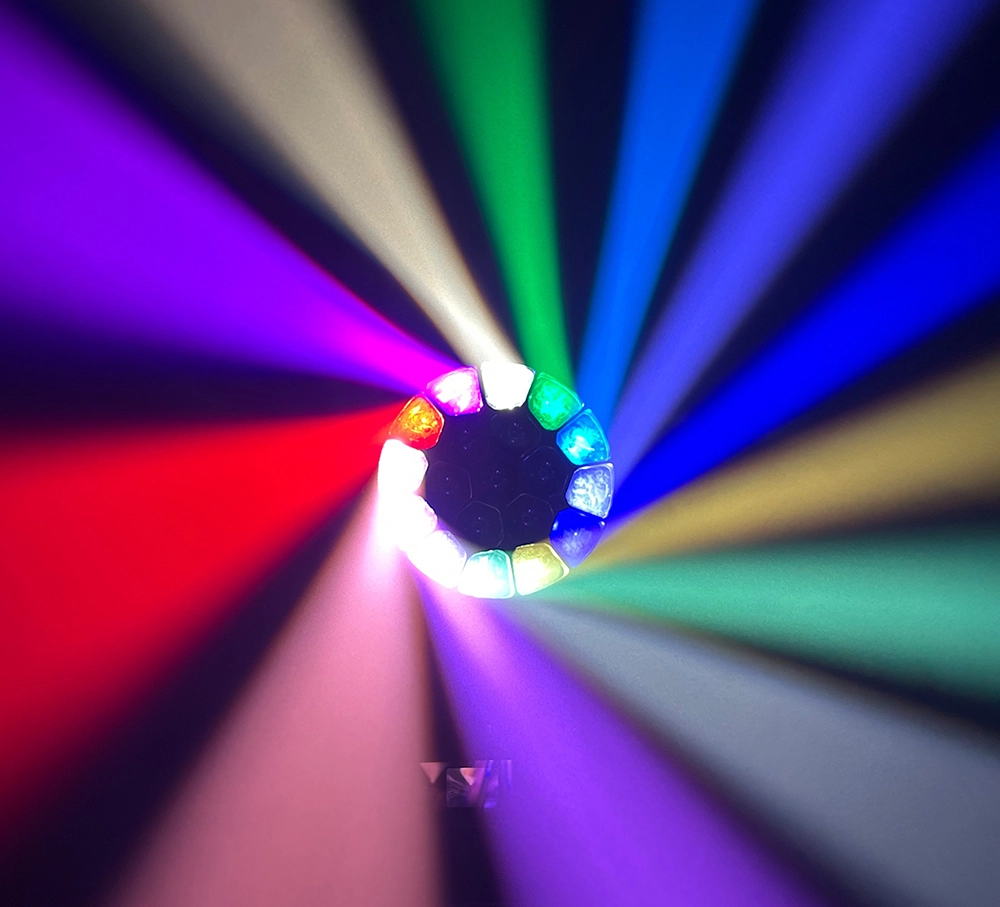

Excellent color mixing effect

• Four dimming curve functions

• Rich color gradient effects

• Rich and diverse dynamic effects

• Infinite color mixing

• Automatically calculate the address code of the next fixture

• Infinite honeycomb rotation, adjustable forward and backward speeds

• Encoding positioning is used for the XY axis

• Three phase silent motor fast and stable

• Fast operation speed and noiseless operation

• No flickering under high-definition camera

• Dust and oil resistant design

Blinder lights

Hybrid lighting

Moving led light

Entertainment lighting

Washlight

Beam moving head lights

Led mover lights

Moving lighting fixture

Download

R1940LPDF

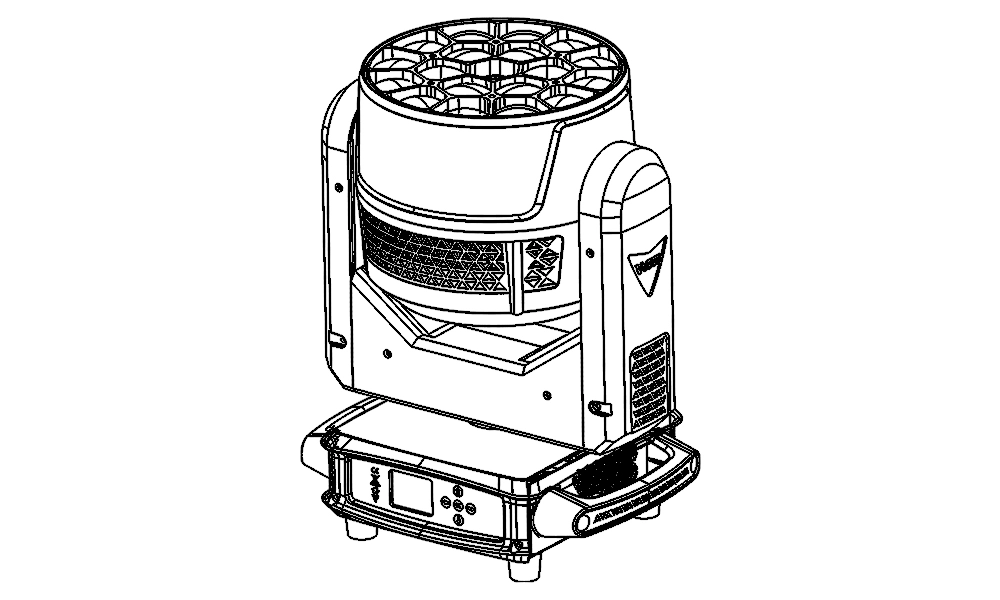

R1940L

USER MANUAL
