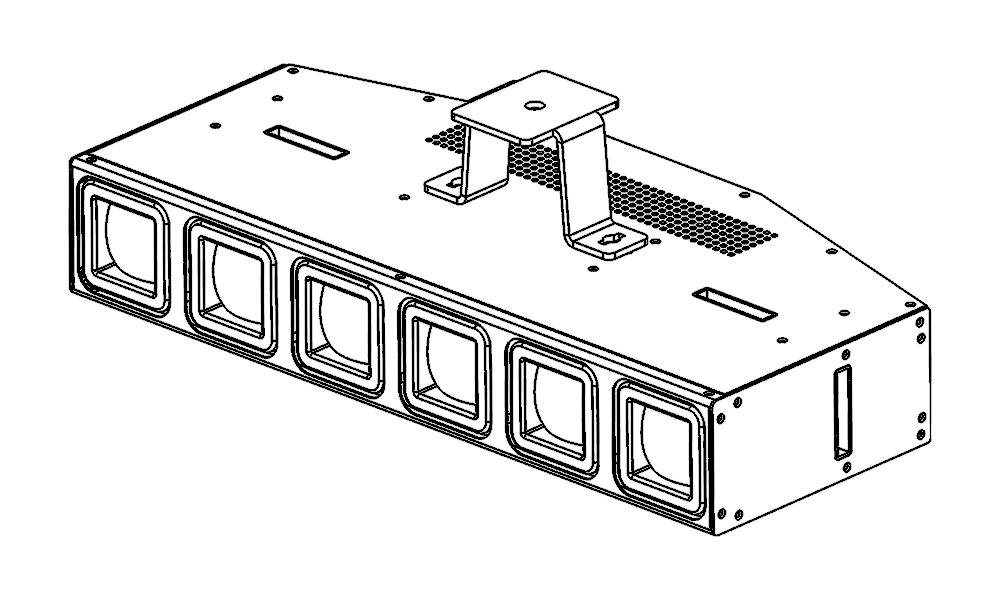

VSHOW Led Beam Wash Light GT640 6*40W RGBW 4IN1 Led Puzzle Matrix

The VSHOW GT640 Puzzle Matrix LED bar light creates dynamic lighting effects. Its 6x40W RGBW 4-in-1 LED matrix offers powerful beam, wash, and zoom functions for impactful stage lighting. integrates beam, coloring, pixel control, and independent focusing with a single lens. It can achieve full coverage of the stage by lighting.

Brand Name

VSHOW

Input Voltage

100-240V, 50/60Hz

Output Voltage

V1:36V(Motor board+LED driver), V2:12V(cooling fan+Display)

Power consumption

220W

Power supply

300W

Light source

6*40W RGBW 4IN1 LED

Light source life

20000+ hours

Place of Original

Guangdong, China

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

The GT640 integrates beam, coloring, pixel control, and independent focusing of a single lens. It can achieve full coverage of the stage by lighting.

6*40W RGBW/CMY (two LED color modes, can be switched by simply setting on the display screen) LED and single lens independent focusing design, can create vivid colors and excellent 3D dynamic effects, presenting dynamic screen walls and crowd walls.

The beam angle can be freely scaled, and the smaller the angle, the stronger the sharpness.

GT640 is very suitable as the main effect light for TV programs and the side front stage back effect light for large-scale events such as concerts and bars.

Parameters

Input Voltage	100-240V, 50/60Hz	Output Voltage	V1:36V(Motor board+LED driver)V2:12V(cooling fan+Display)	Power consumption	220W
Power supply	300W	Light source	6x40W RGBW 4IN1 LED	Light source life	20000+ hours
Dimmer	0-100%(16bit)Smooth dimming	Strobe	1-30Hz/S outstanding strobe effect with variable speed	Zoom angle	2-45°
Operate mode	Master/Slave,Auto,DMX512,RDM	DMX Channel	17/23/38CH	Four dimming modes	Linear, Square Law，Inv SQ Law，S Curve
Color mode	RGBW/CMY switching usage	Display	LCD display,Touch buttons	3-pin/5-pin512signal In/Out Power in/out
Fixture size	510.685302mm	N. W	7KG	G. W	9KG

Details & Features

DJ light

Lighting DJ

Moving head dj light

Wash lights

DJ lighting

DJ led lighting

Moving heads dj lights

DJ lights

Excellent color mixing effect

• Can adjust color temperature, Excellent color mixing effect

• Single point single control is possible to create rich effects

• Each motor can be independently controlled to achieve 3D stereoscopic effects

• The four directions can be seamlessly joined, and the spacing of each LED is the same

Dj lights

Led dj lights

Dj light

Dj light stand

Dj led lighting

Led dj light

Lights for dj

Dj lighting

Download

GT640PDF

GT640 Puzzle

USER MANUAL
