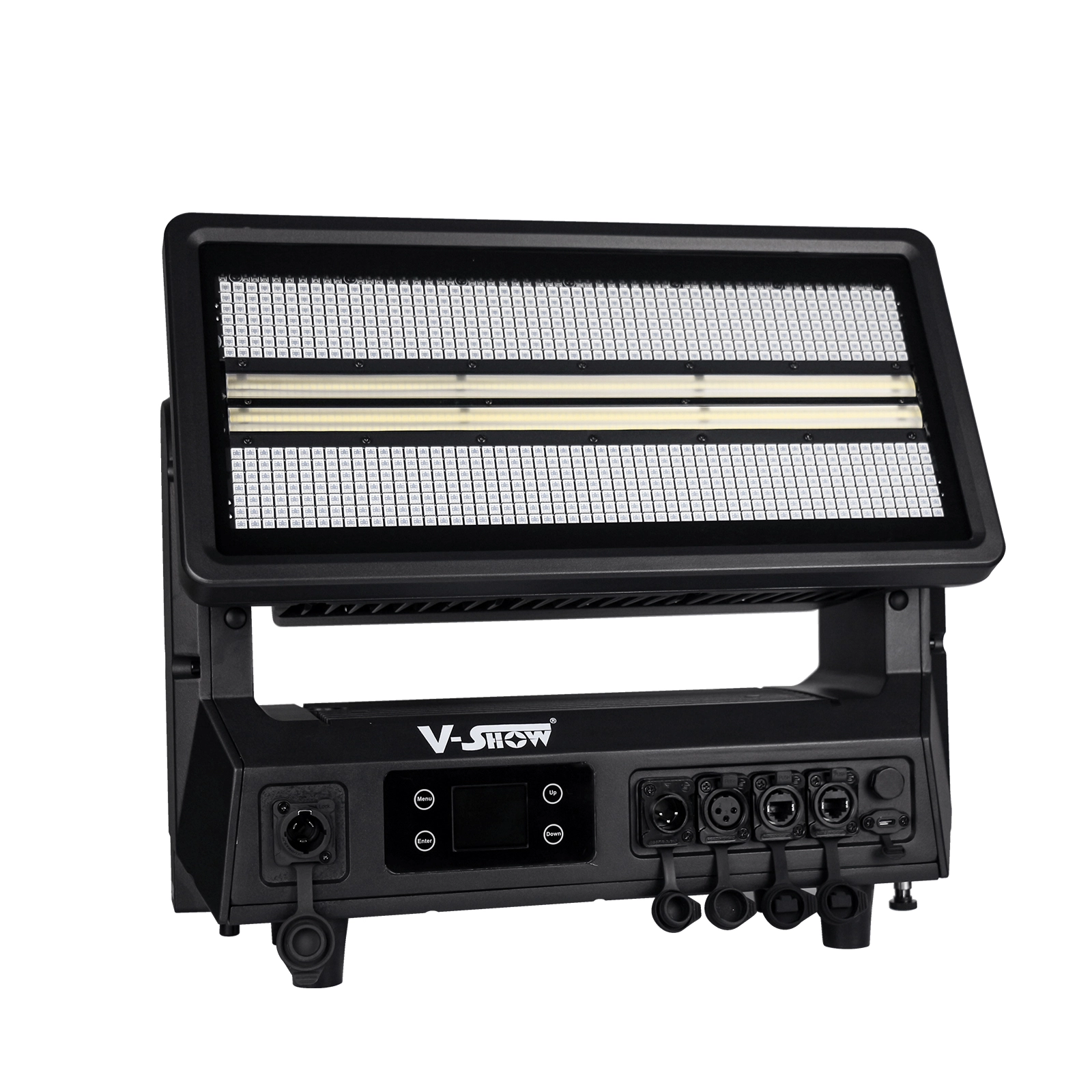

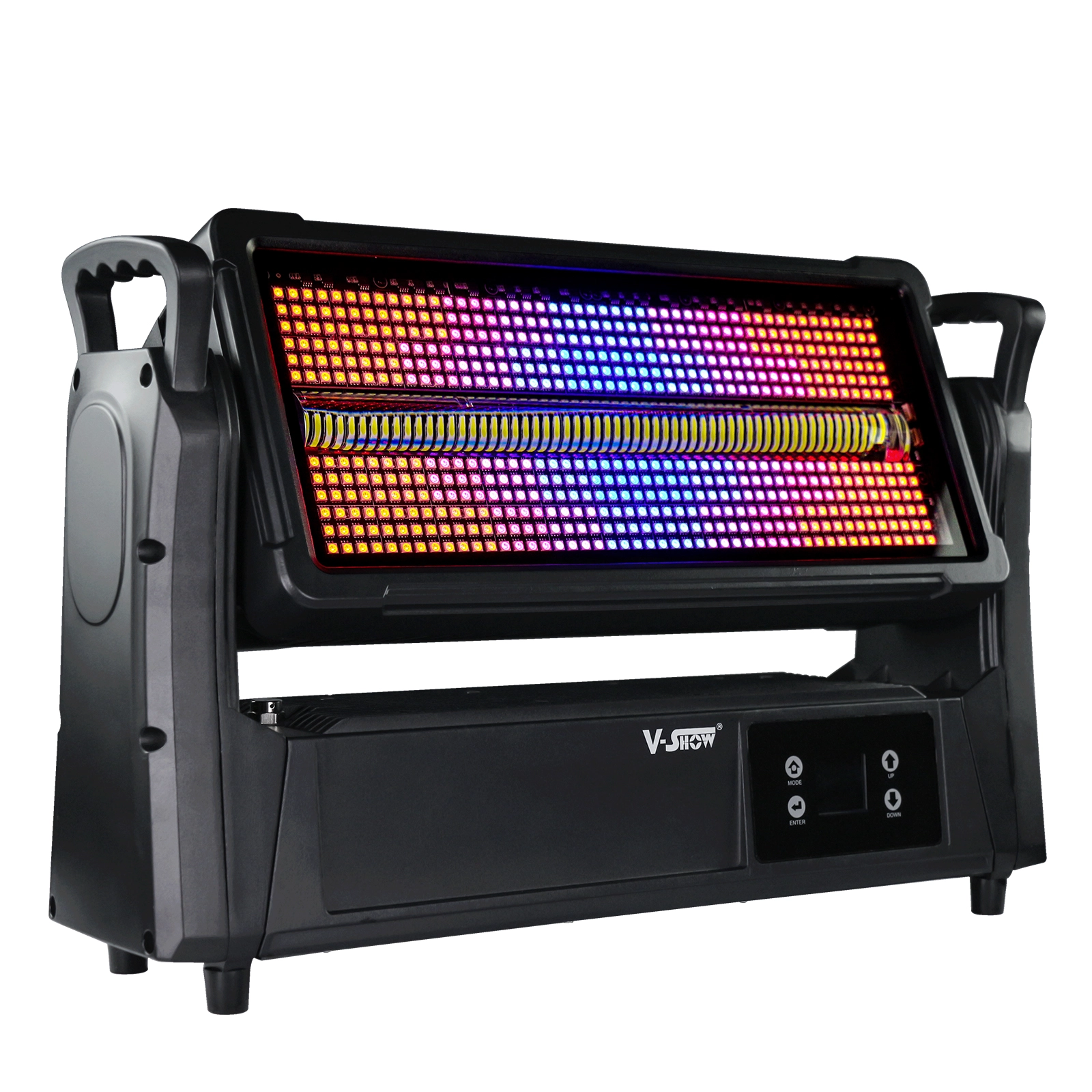

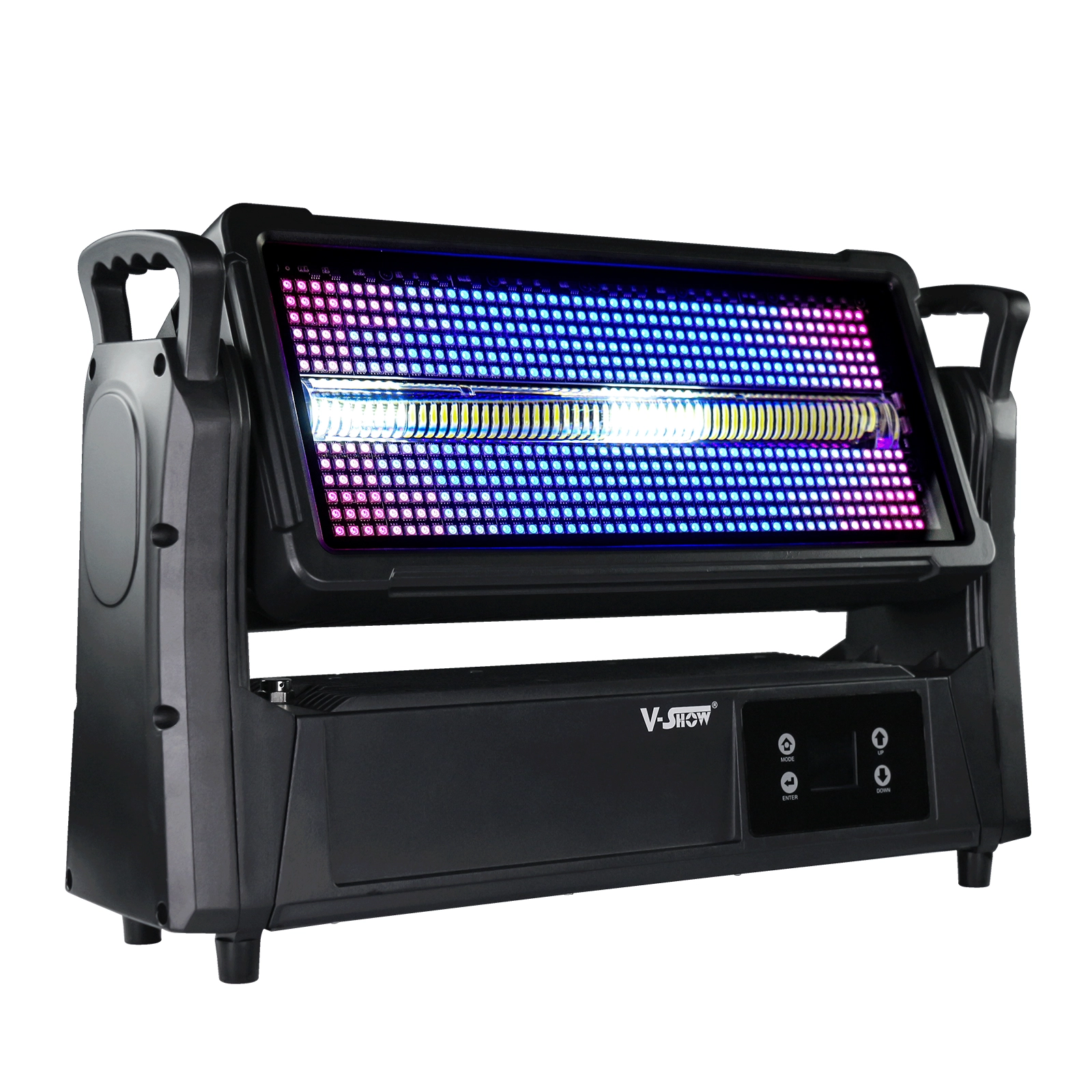

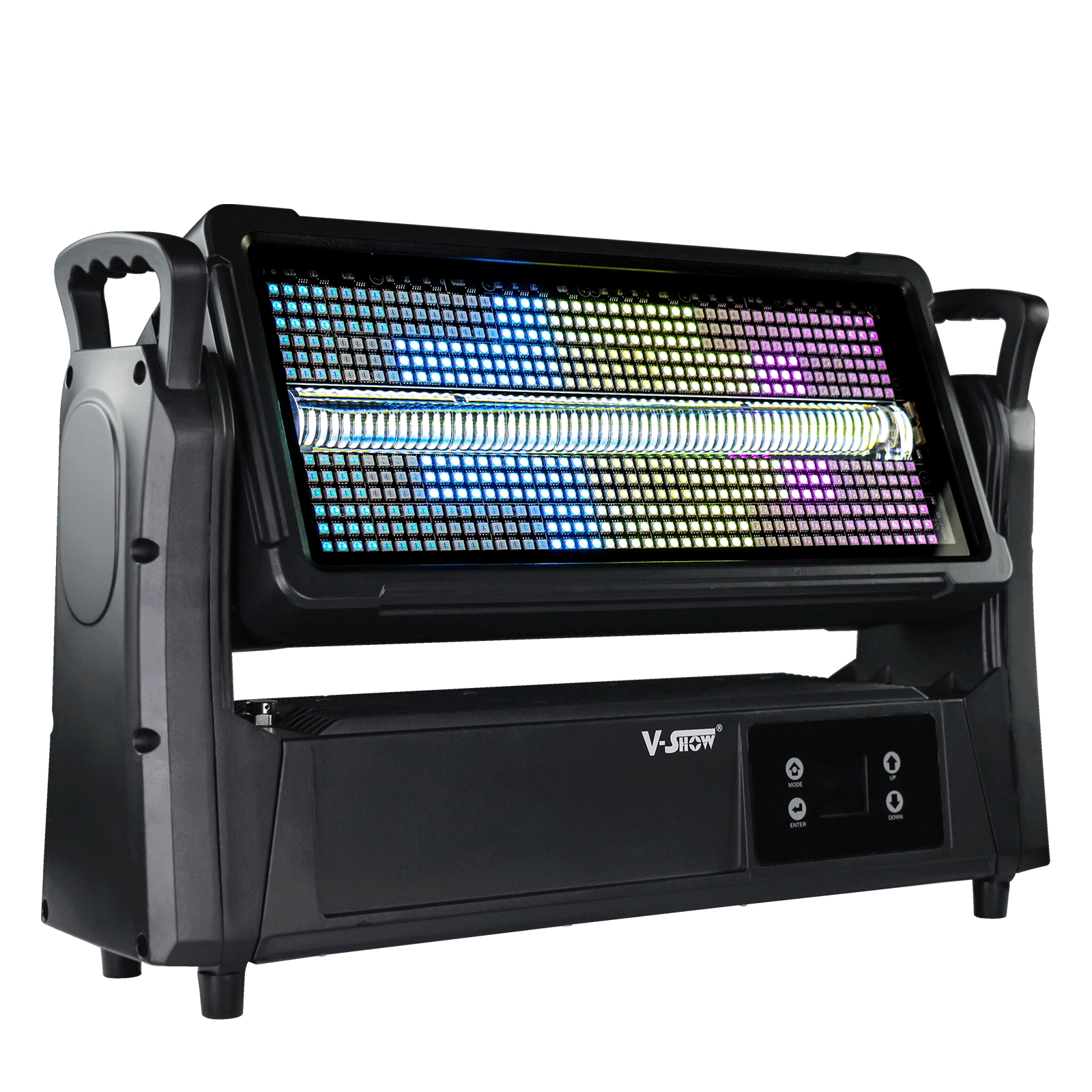

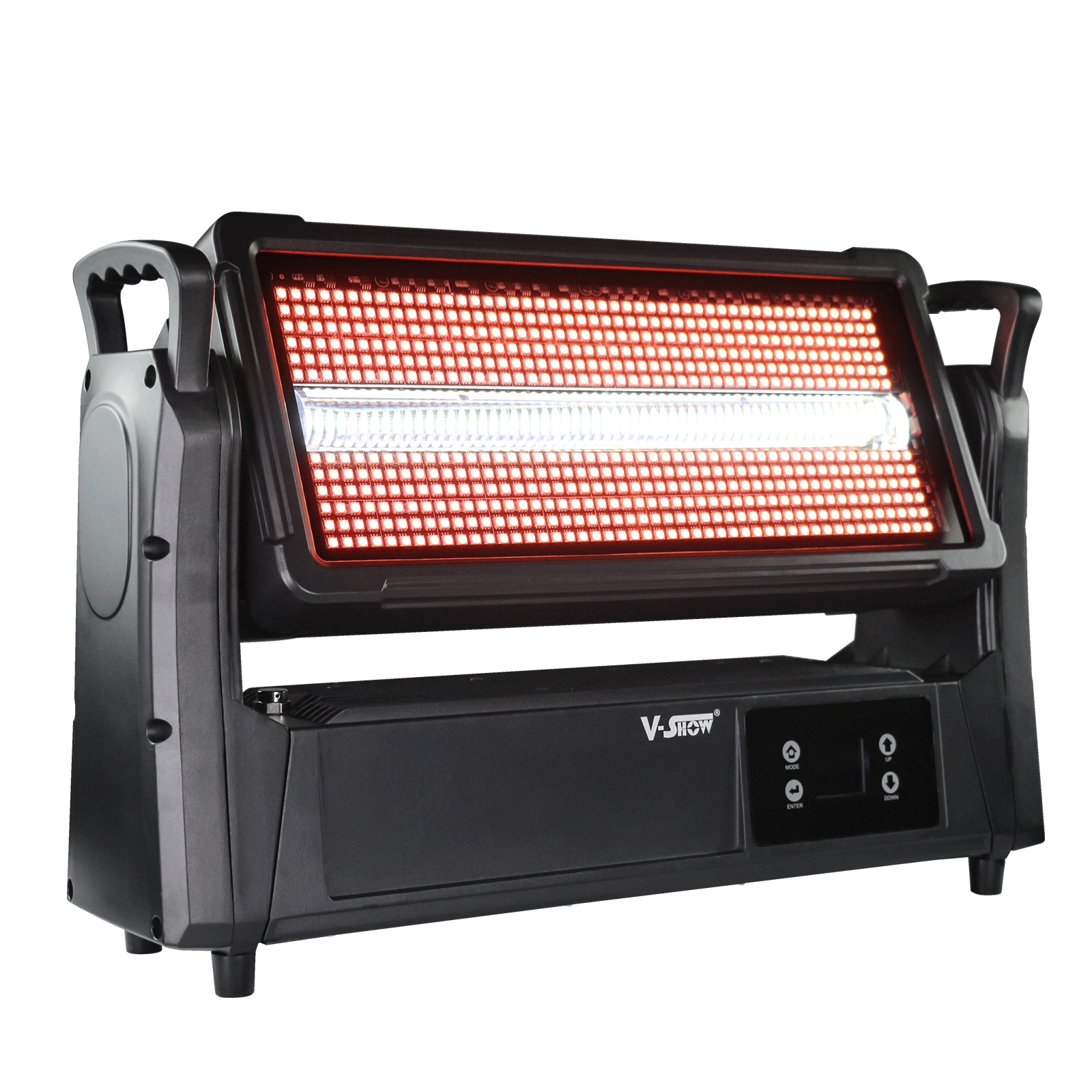

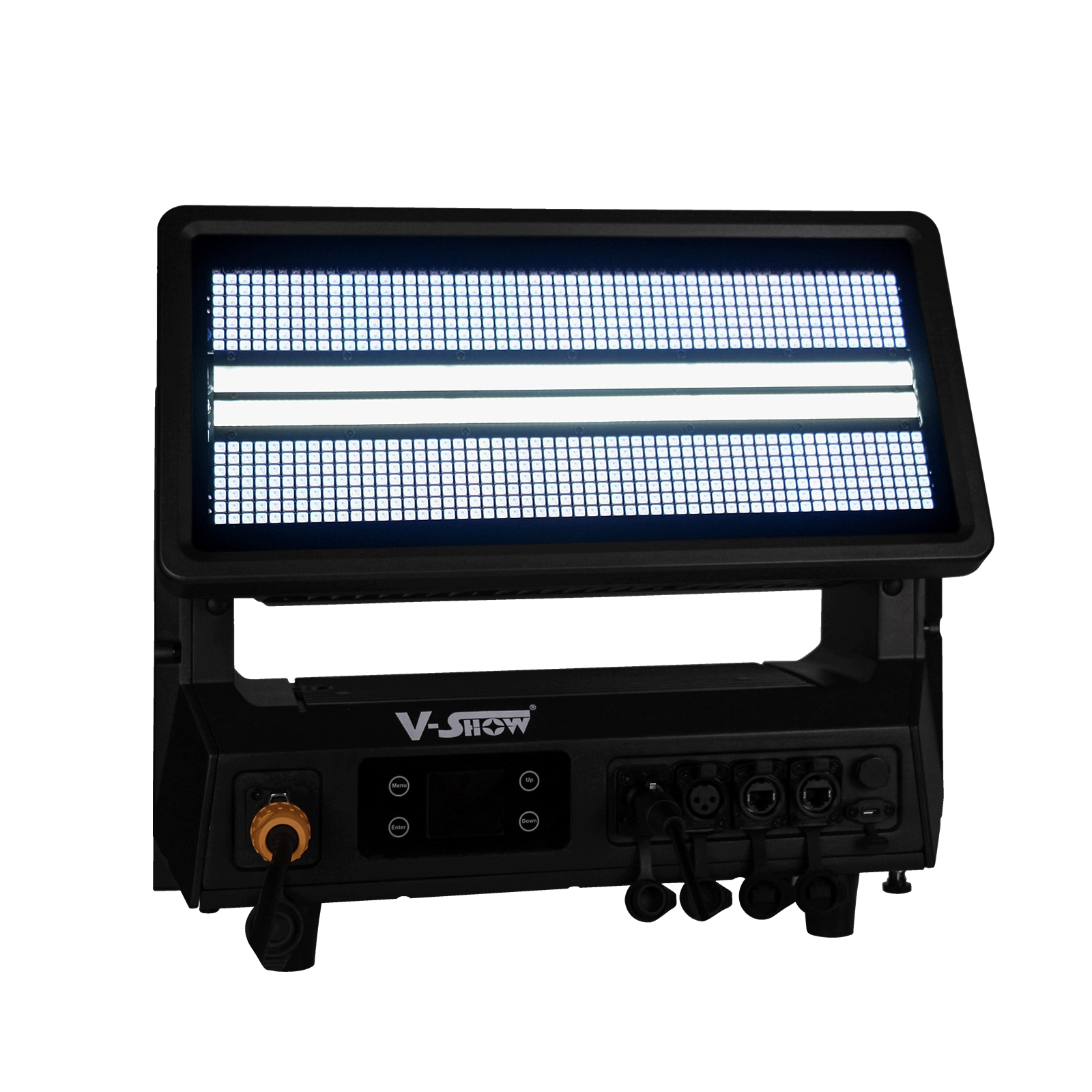

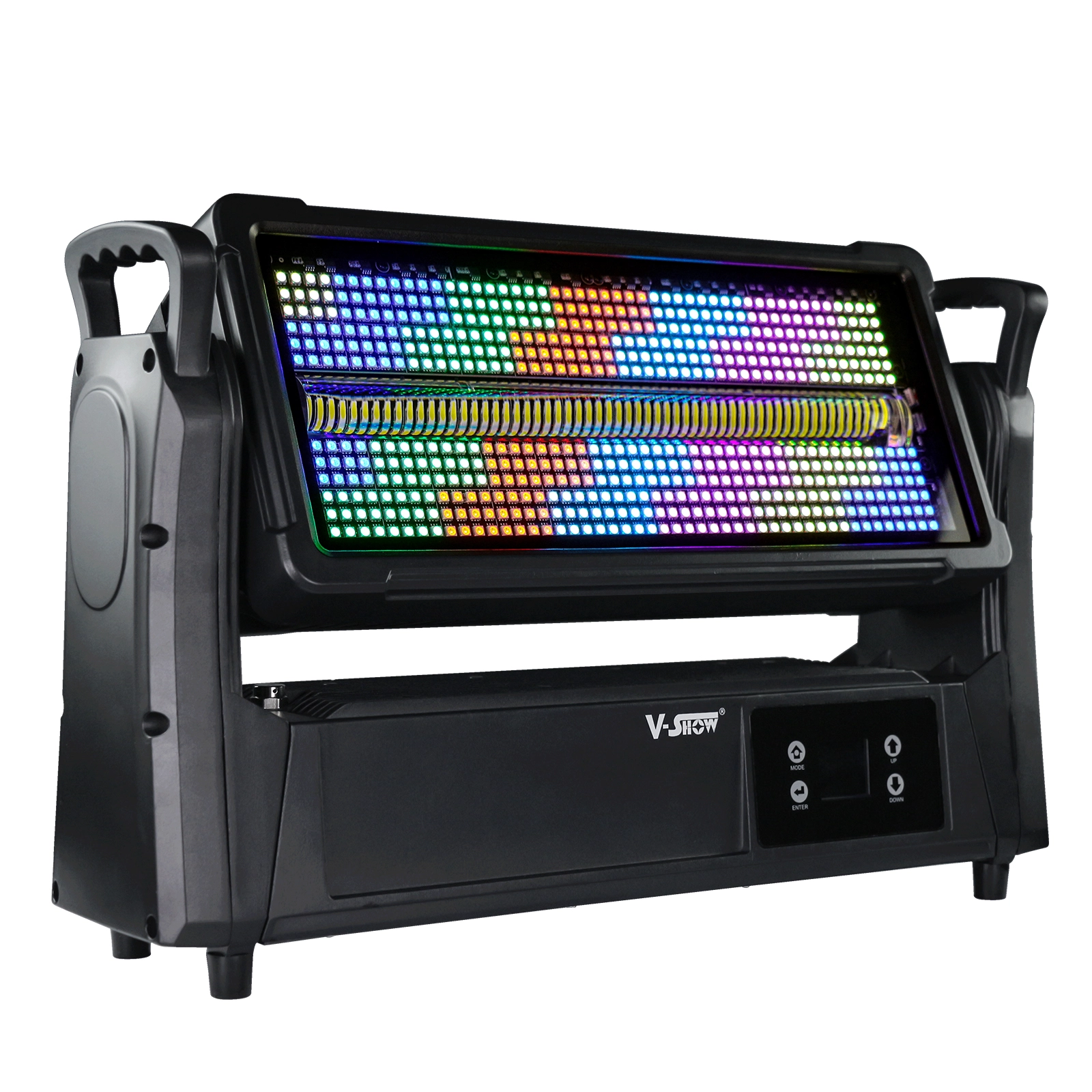

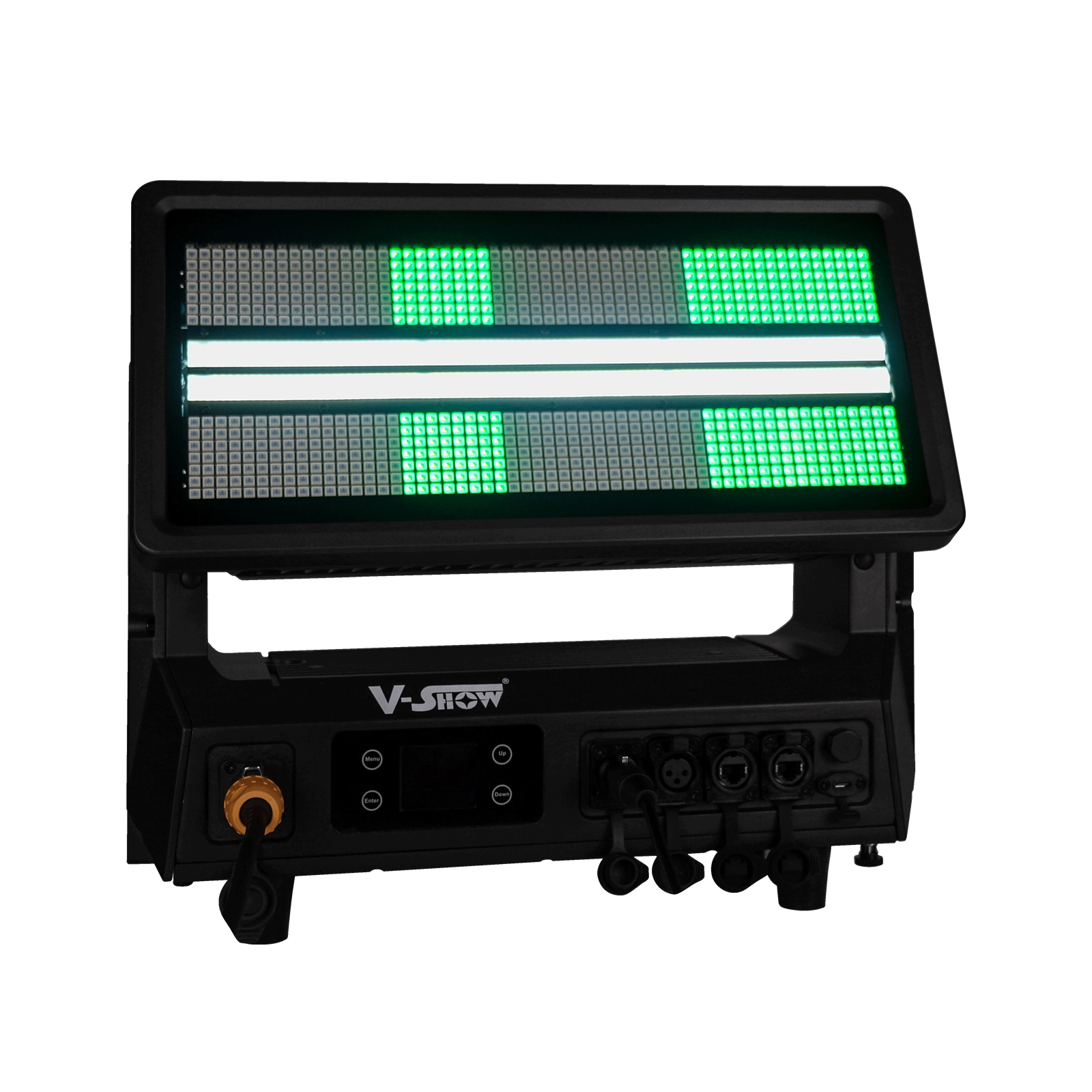

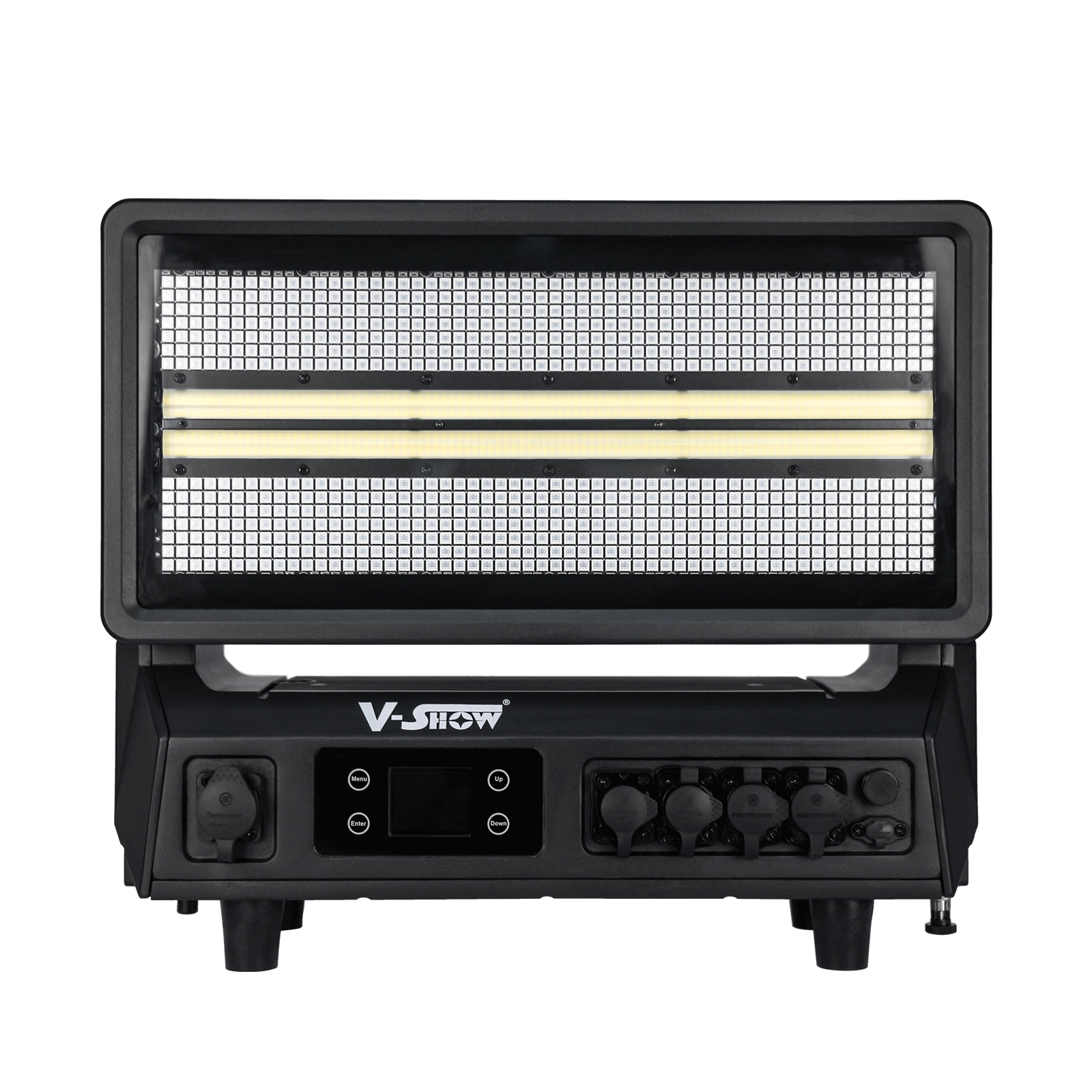

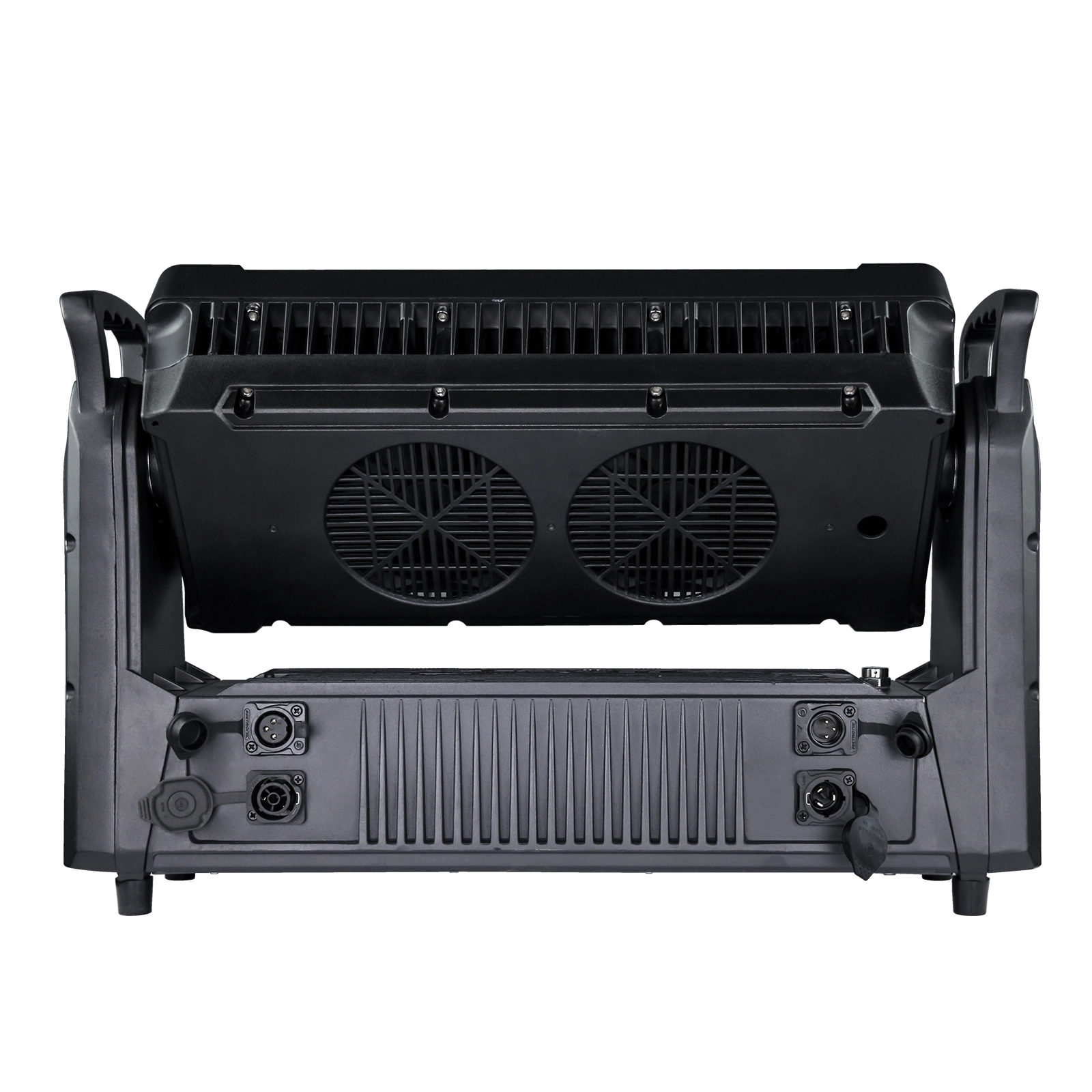

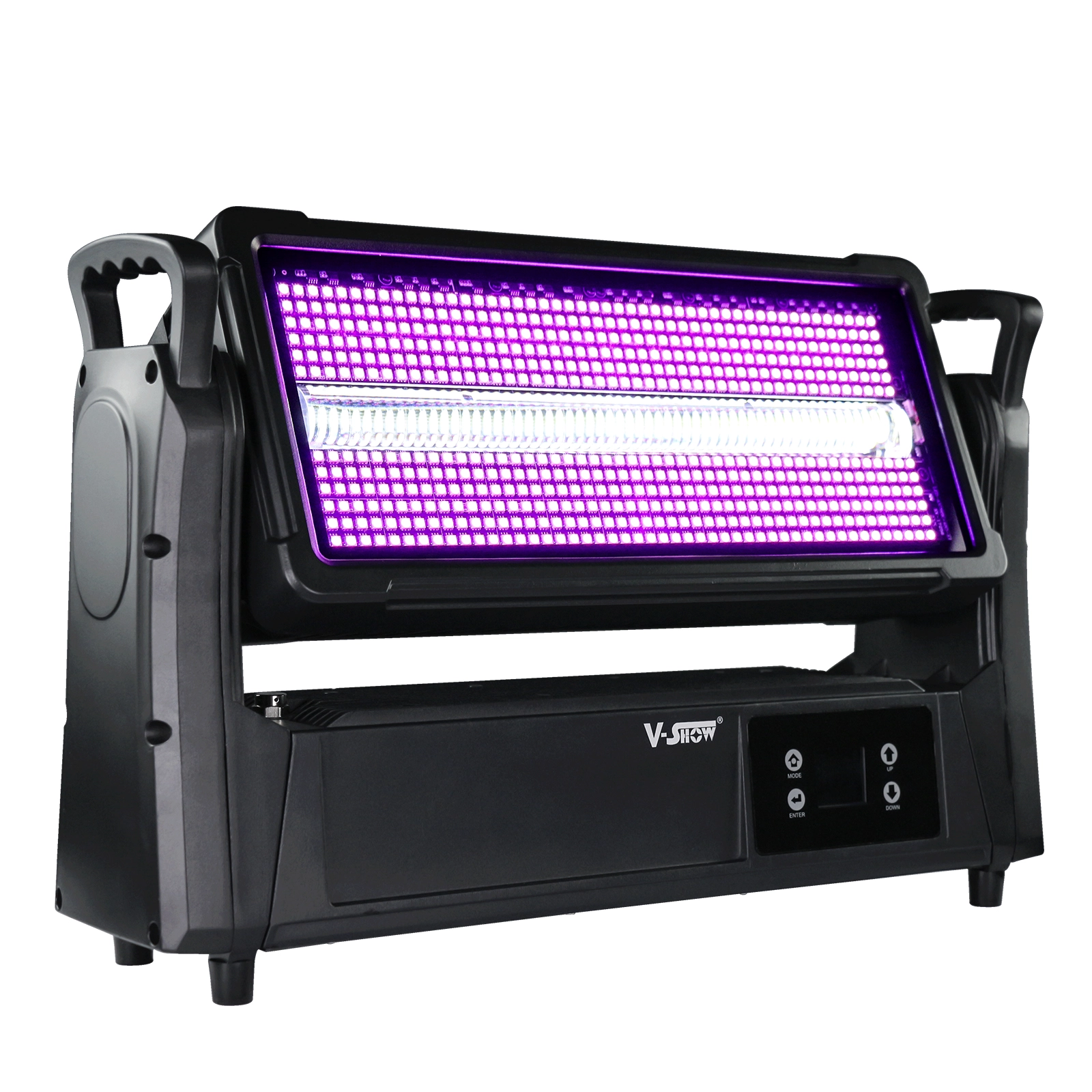

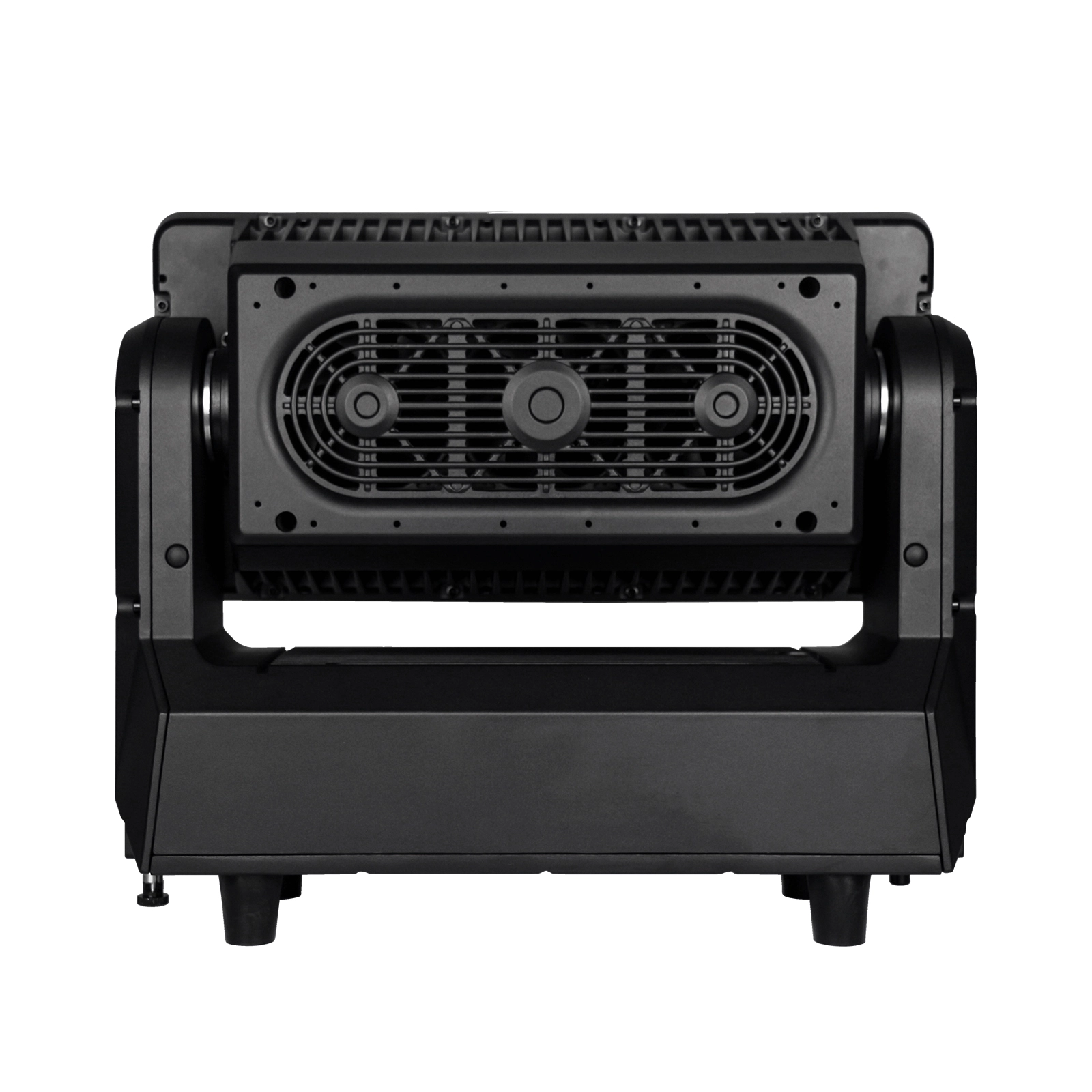

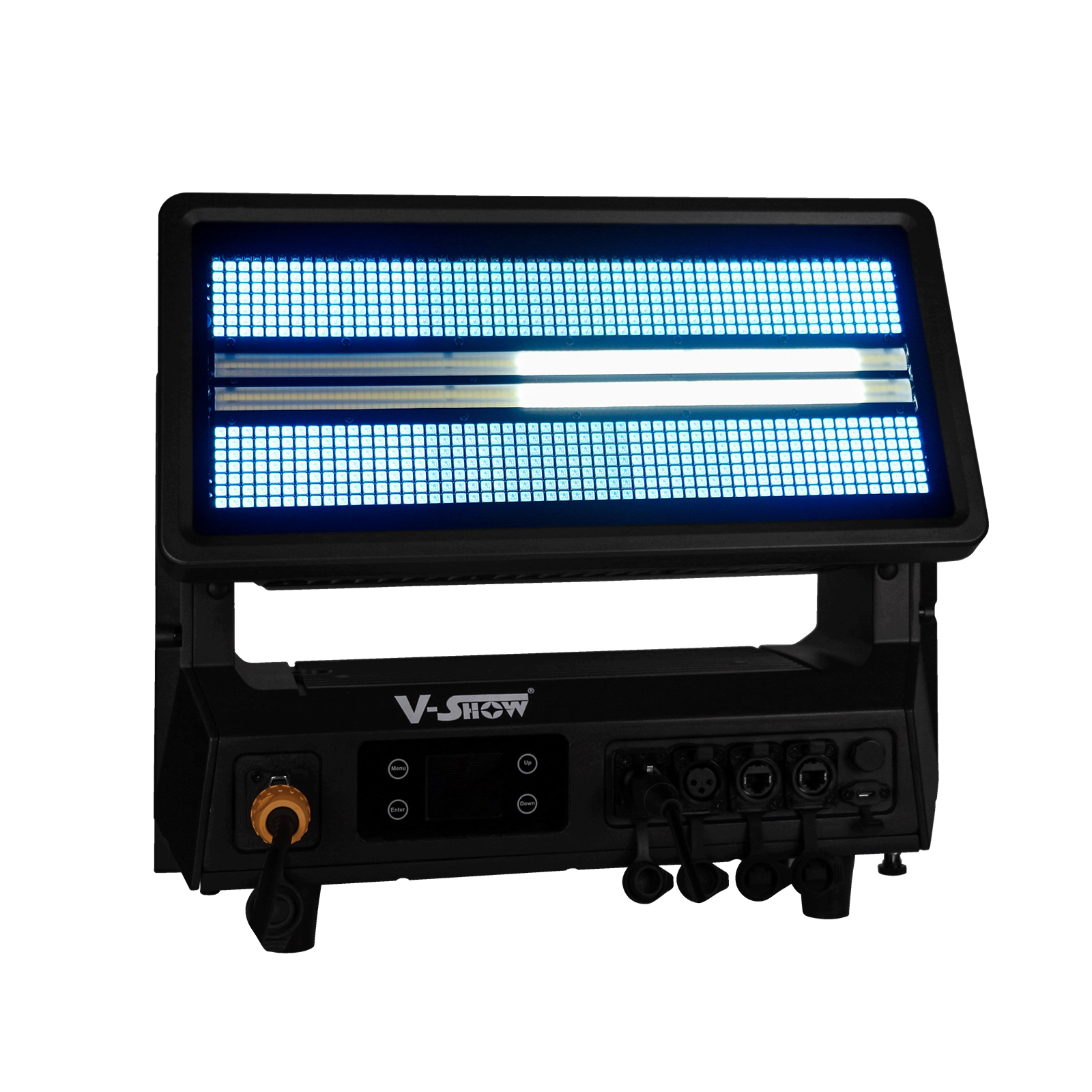

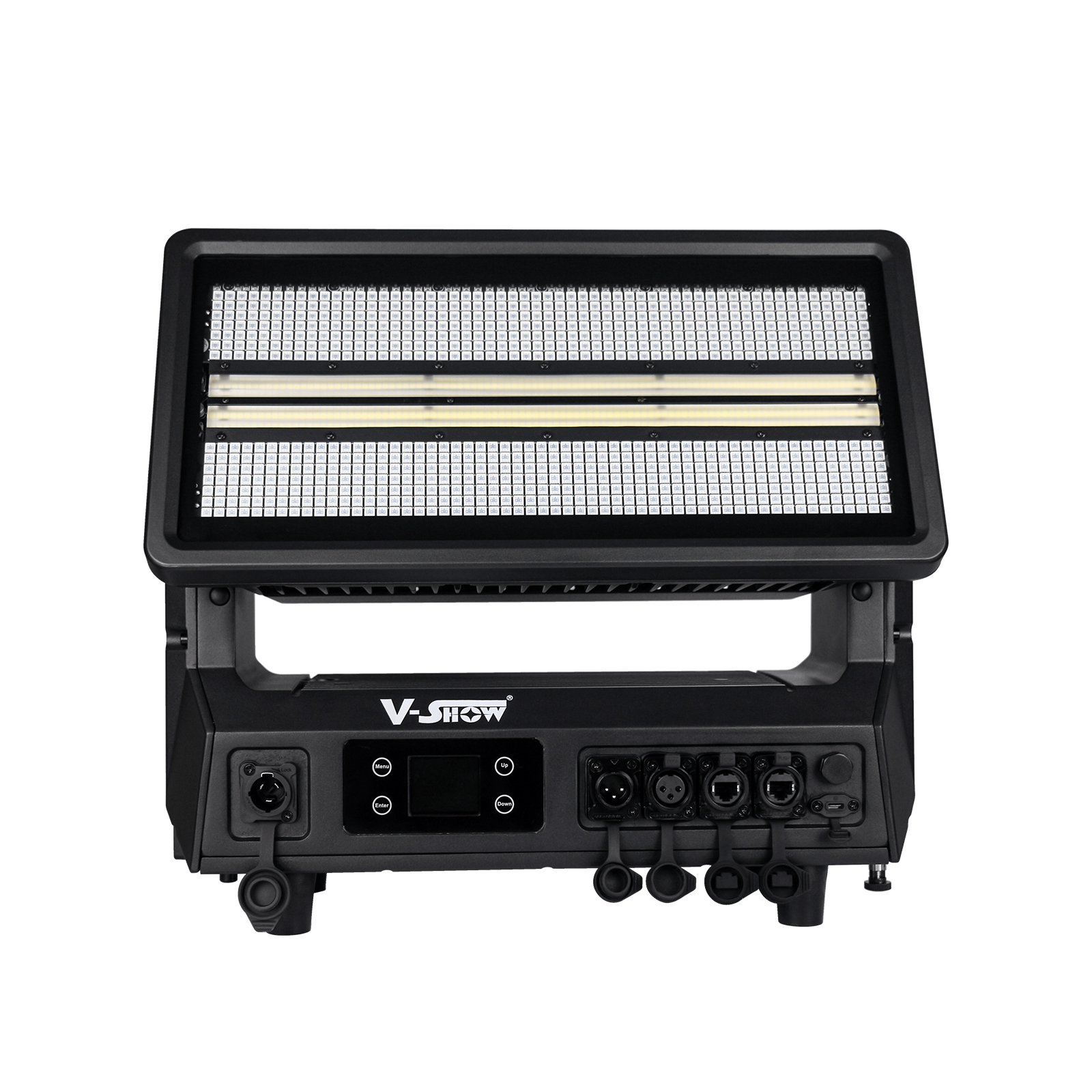

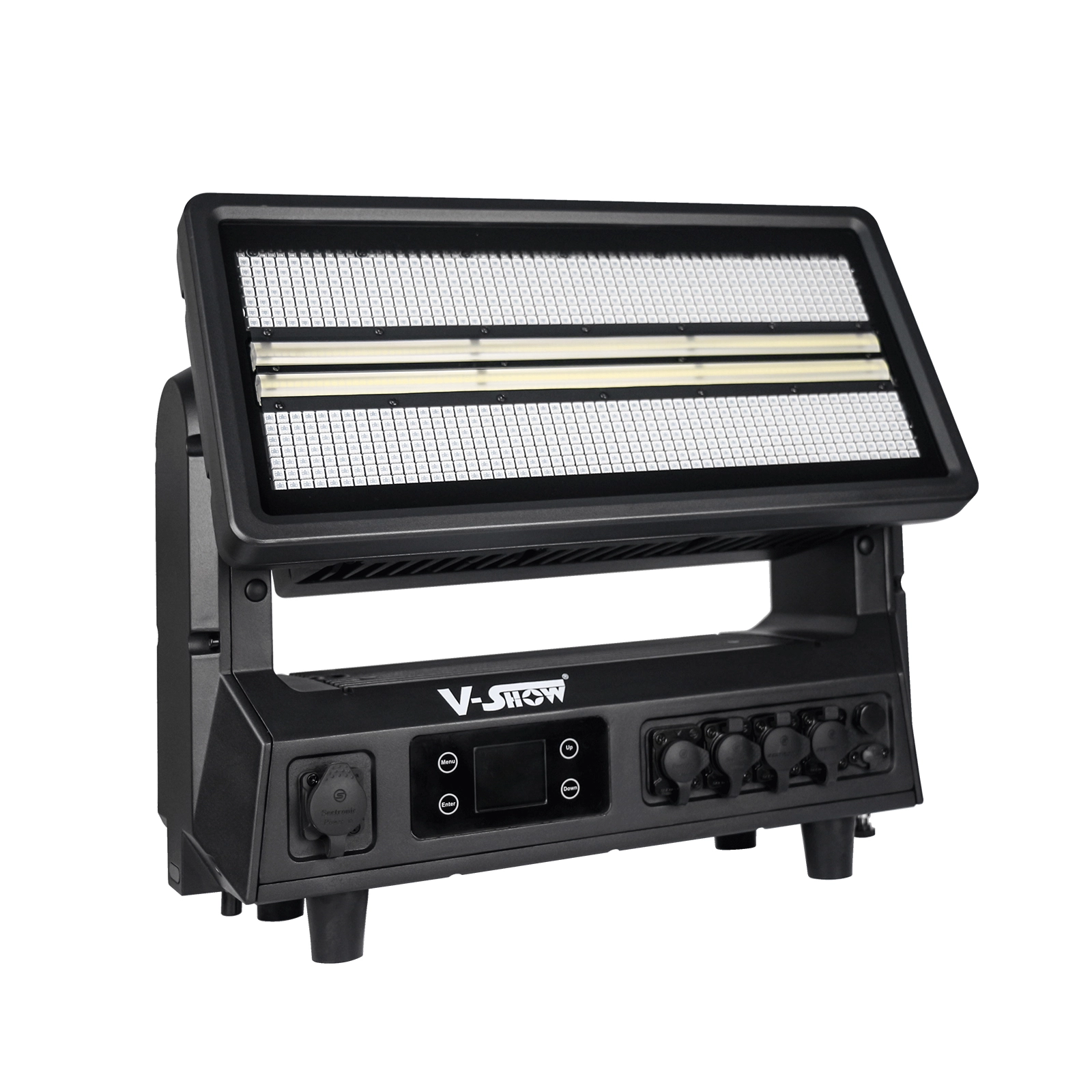

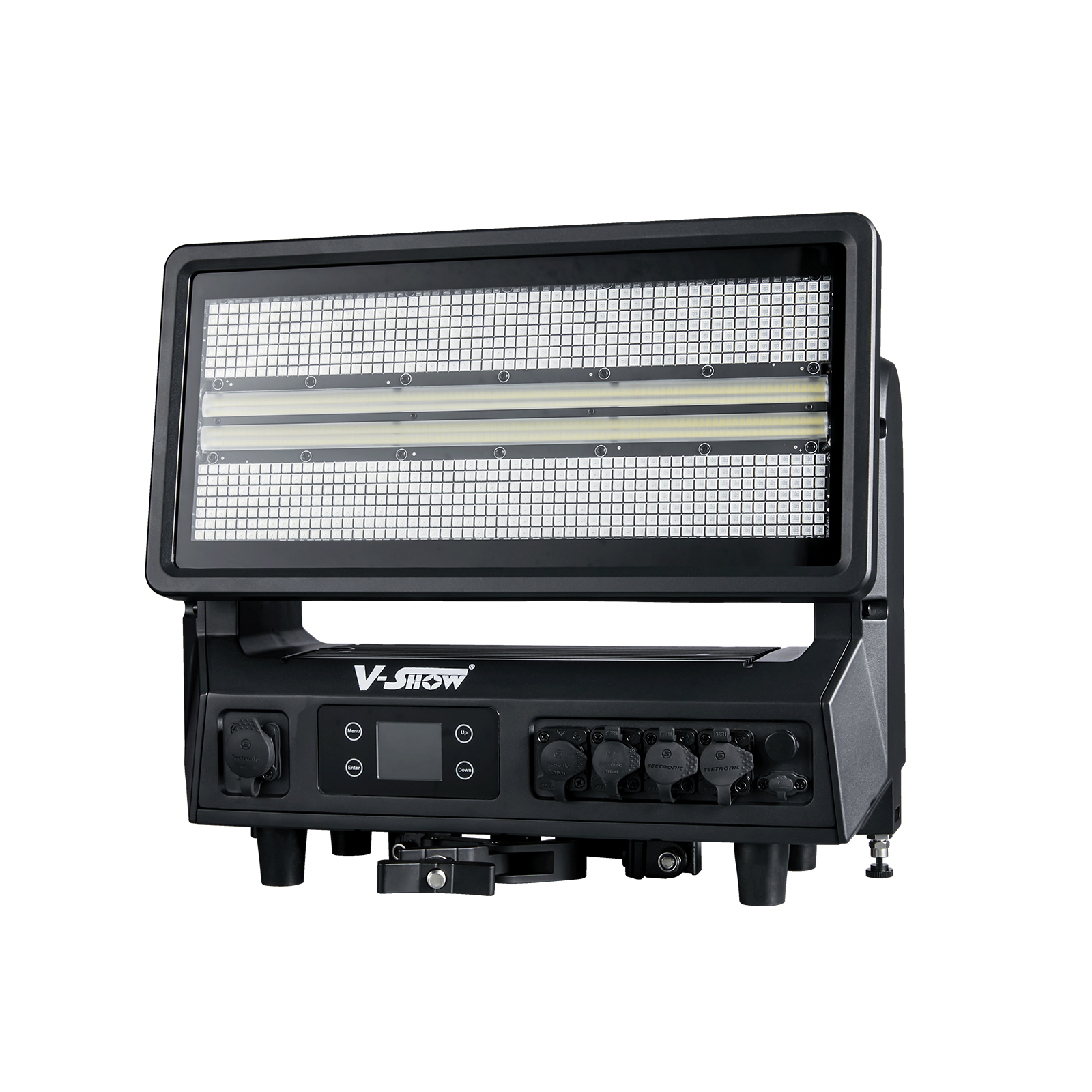

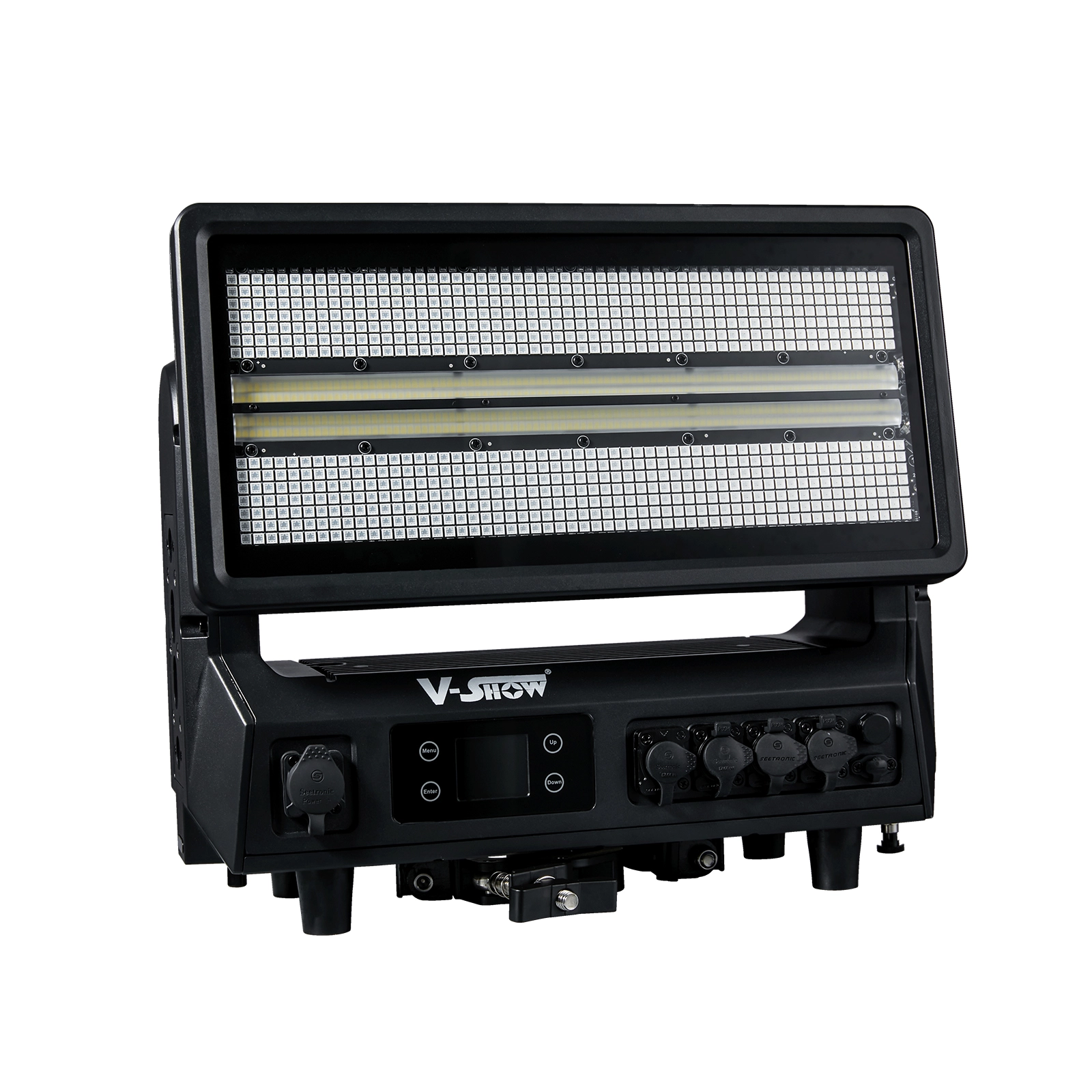

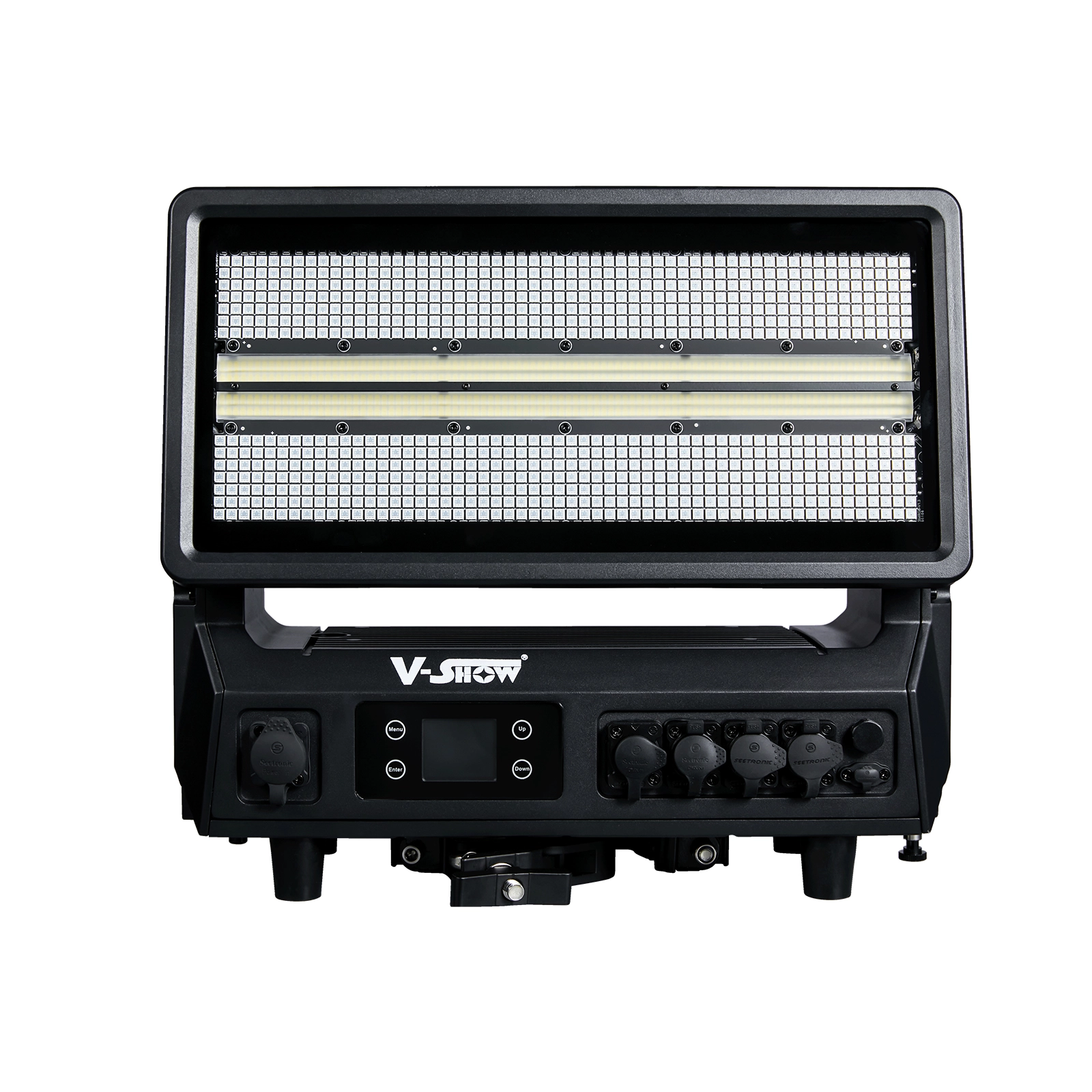

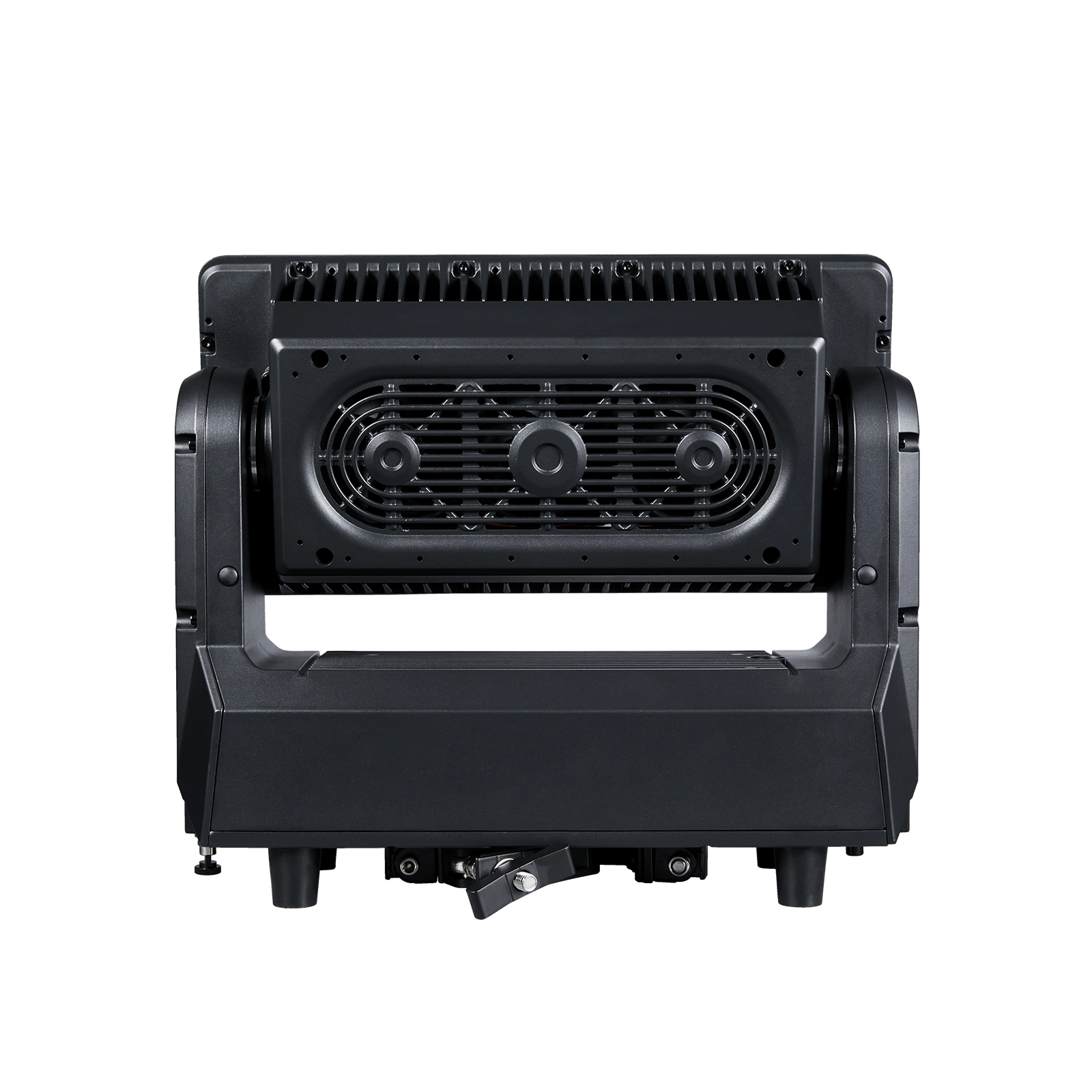

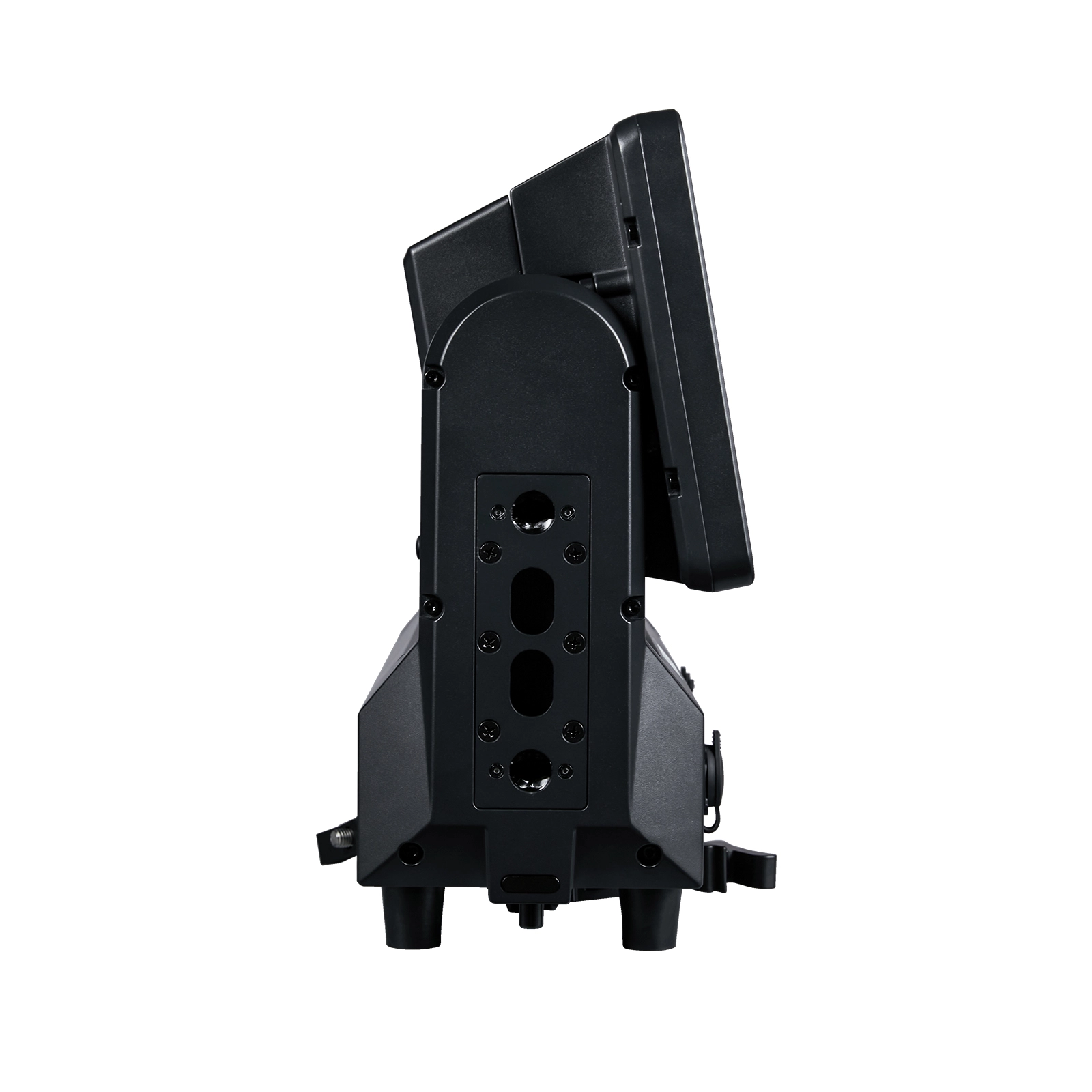

VSHOW V12 Outdoor Waterproof Moving Head LED Strobe Light IP65

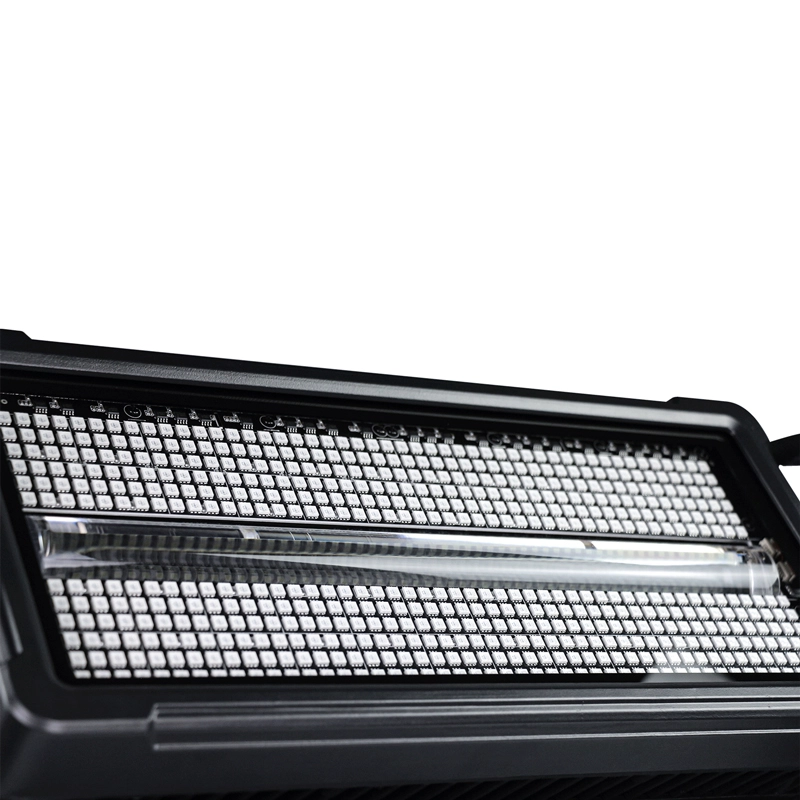

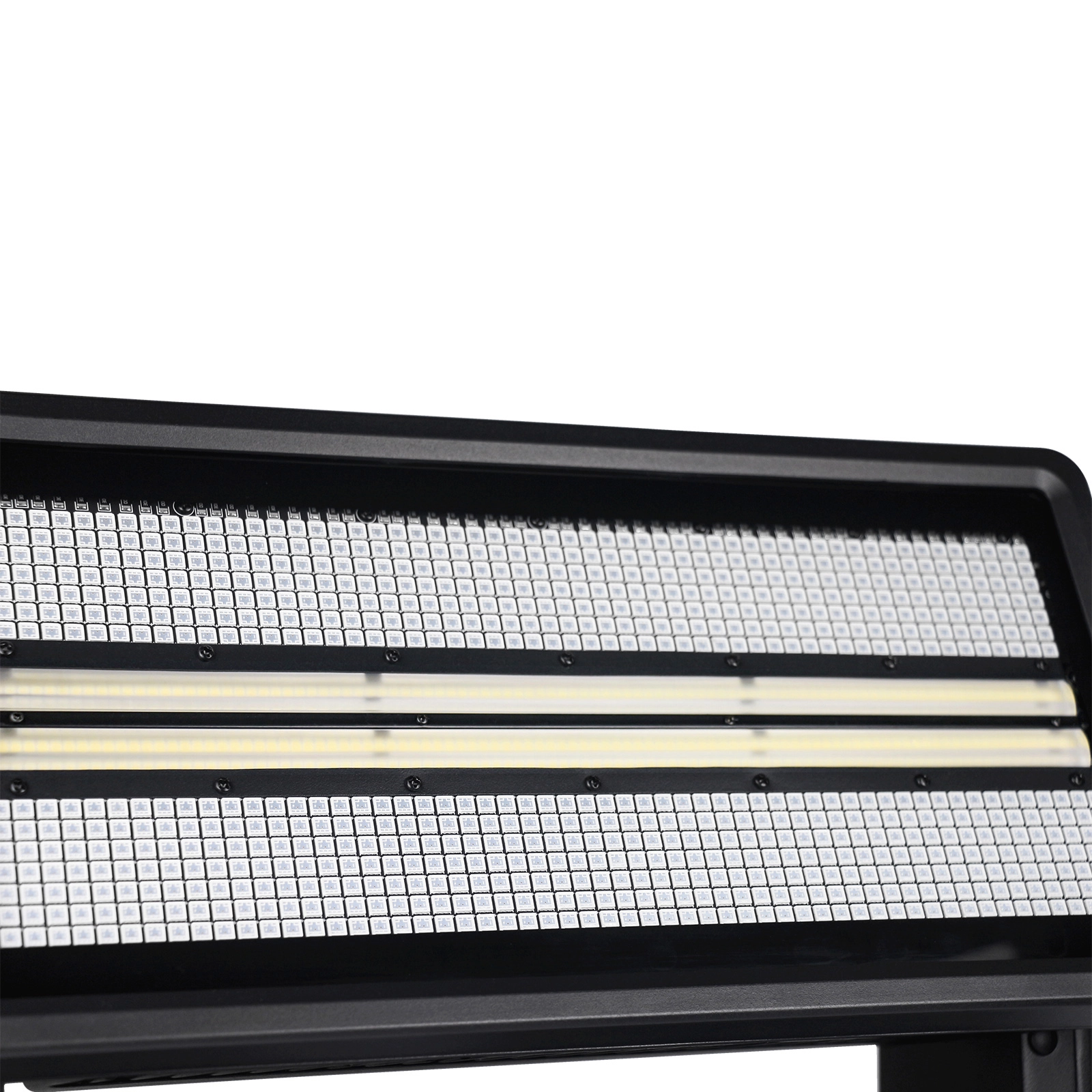

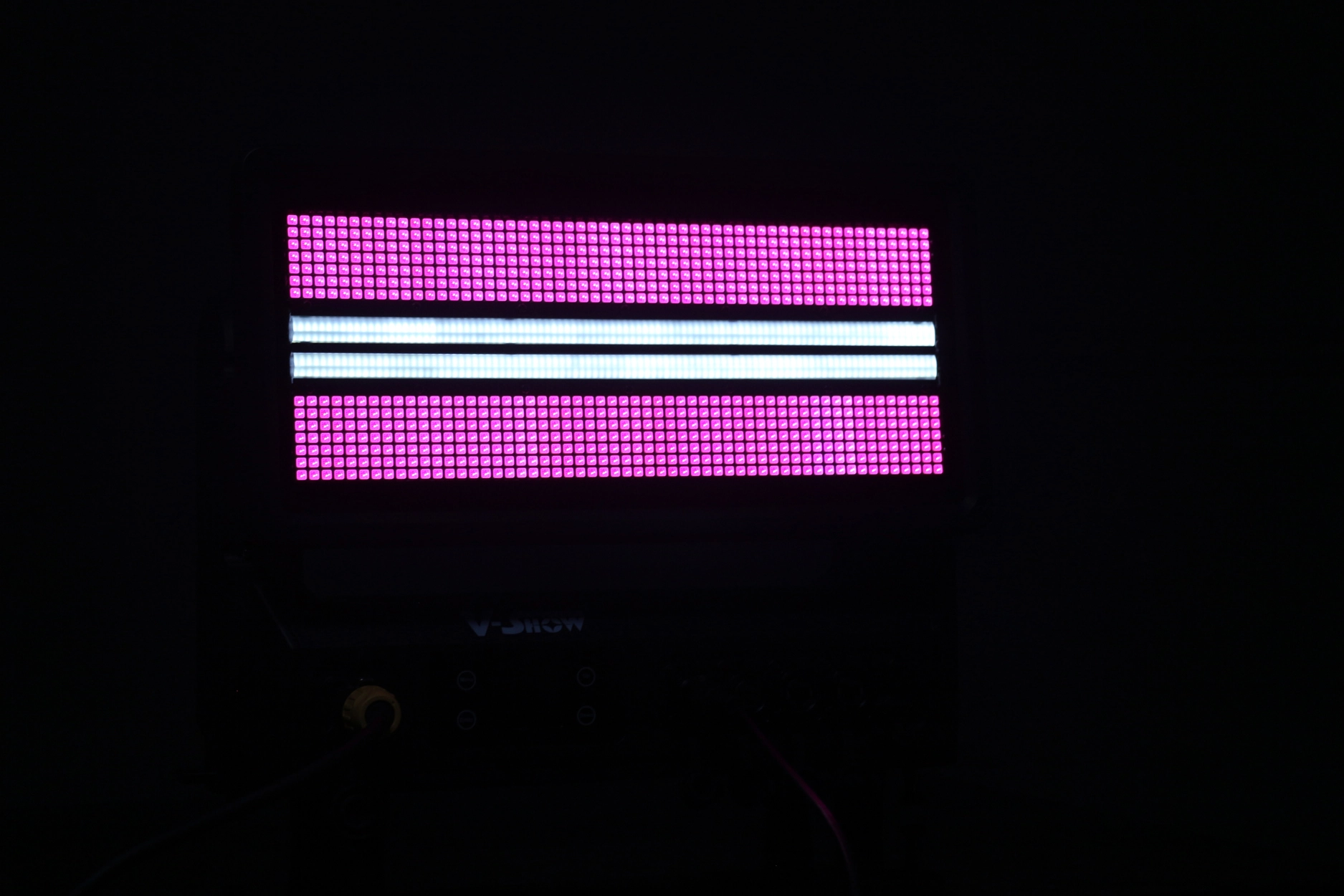

The lighting fixture includes two zone controls, Zone 1: using 784 1.5W RGB LEDs, 14 zones can be individually controlled, and each block contains 56 RGB LEDs. Zone 2: Using 392 2W CW LEDs, 28 zones can be individually controlled. The excellent and powerful strobe function can create a colorful and vibrant strobe rendering effect, and when the main LED and auxiliary LED work together, they do not affect each other. Built in splicing pins for quick machine splicing, , quickly create various dynamic colors and flicker effects, strong flickering colors covering vast areas and other powerful functions, greatly meeting user needs

Brand Name

VSHOW

Input Voltage

100-240V, 50/60Hz

Light source

768pcs 0.5W 5050 RGB LED 240pcs 2W 3030CW LED

Main LED

392PCSx2W LED

Backlight LED

784PCSX1.5W RGB 3IN1

Place of Original

Guangdong,China

DMX outputs

3pin waterproof XLR socket (optional with 5pin)

Control Mode

DMX512、 Auto,Sound control， master-slave/ RDM， ART-NET,SACN

Net Weight

11.5kg

LED life

>20000Hour

DMX Channels

8/11/24/30/47/74/97 channels

Dimming mode

0-100% smooth linear dimming

Strobe

1-25HZ strong output flicker effect

Dimming

0-100% smooth dimming

Main light

16pcs WW/CW LED zones can be controlled individually

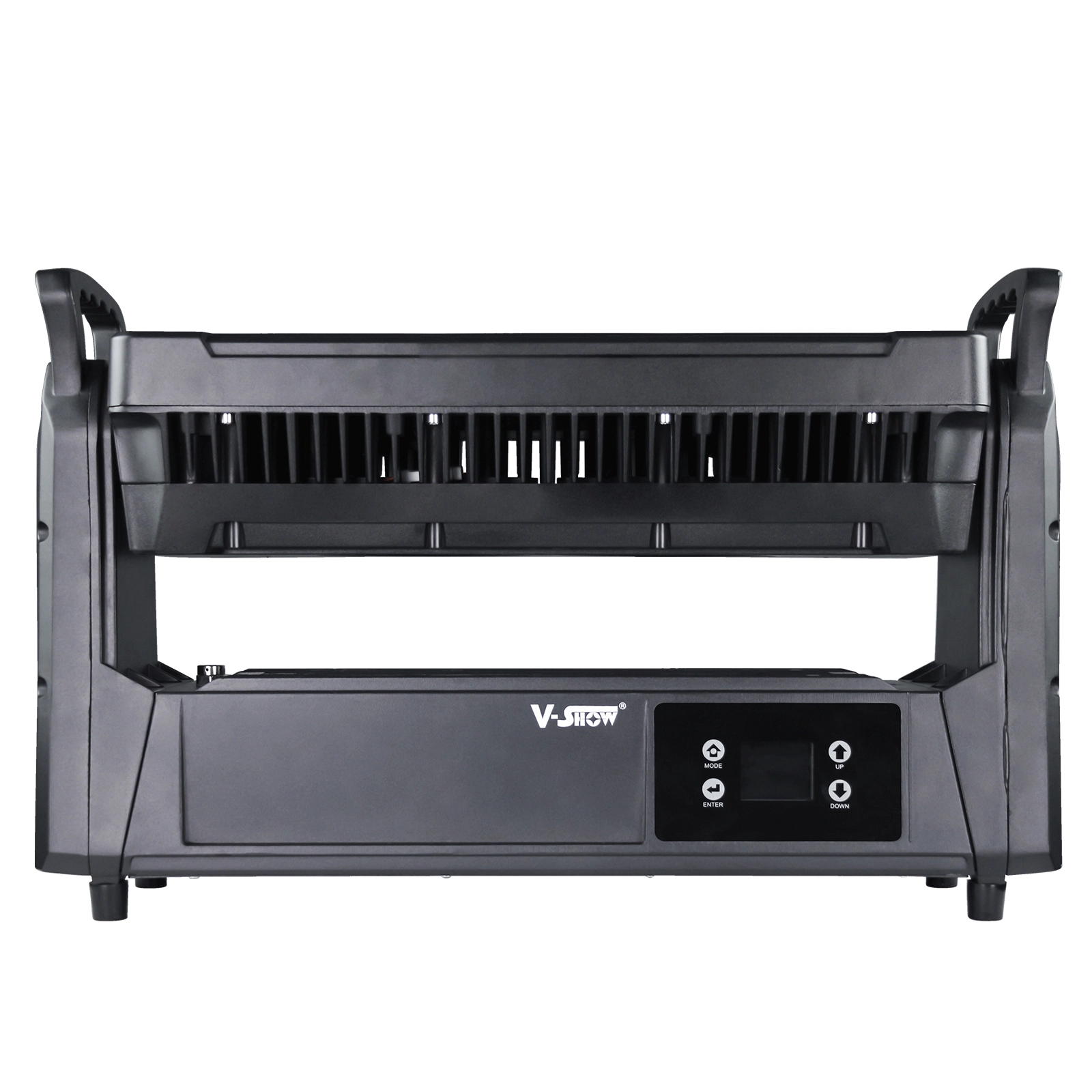

Display

LCD display

Signal input/output

3-pin OR 5-pin waterproof XLR sockets ,And RJ45Ethernet

Power socket

Waterproof power connector input

Protection Rating

IP65

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

The lighting fixture includes two zone controls, Zone 1: using 784 1.5W RGB LEDs, 14 zones can be individually controlled, and each block contains 56 RGB LEDs. Zone 2: Using 392 2W CW LEDs, 28 zones can be individually controlled. The excellent and powerful strobe function can create a colorful and vibrant strobe rendering effect, and when the main LED and auxiliary LED work together, they do not affect each other. Built in splicing pins for quick machine splicing, , quickly create various dynamic colors and flicker effects, strong flickering colors covering vast areas and other powerful functions, greatly meeting user needs

Parameters

Input Voltage	100-240V, 50/60Hz	Light source	392*2W LED
Power consumption	1400W	Auxiliary light	784*1.5W RGB 3IN1
Static	400W	Color temperature	WW:2000K CW:6000K
Strobe peak	1800W	Dimming	0-100% smooth linear dimming
Strobe	1-25HZ strong output flicker effect	Dimming frequency	8K/12K/16K/20K/24K/32K
Upgrade	Support USB update and upgrade	Dimming speed	Fast, Medium , slow , ultra slow
Lifetime	≥20,000Hours	Dimming curve	linear, square law, inverse square law, S-curve
Pixel matrix	RGB is divided into 14 segments and controlled separately (each segment contains 56 RGB LEDs) CW is controlled separately in 28 segments (each segment contains 14 CW LEDs)	Color System	Excellent Color Macro Effects Powerful color mixing effect Rich built-in macro effects

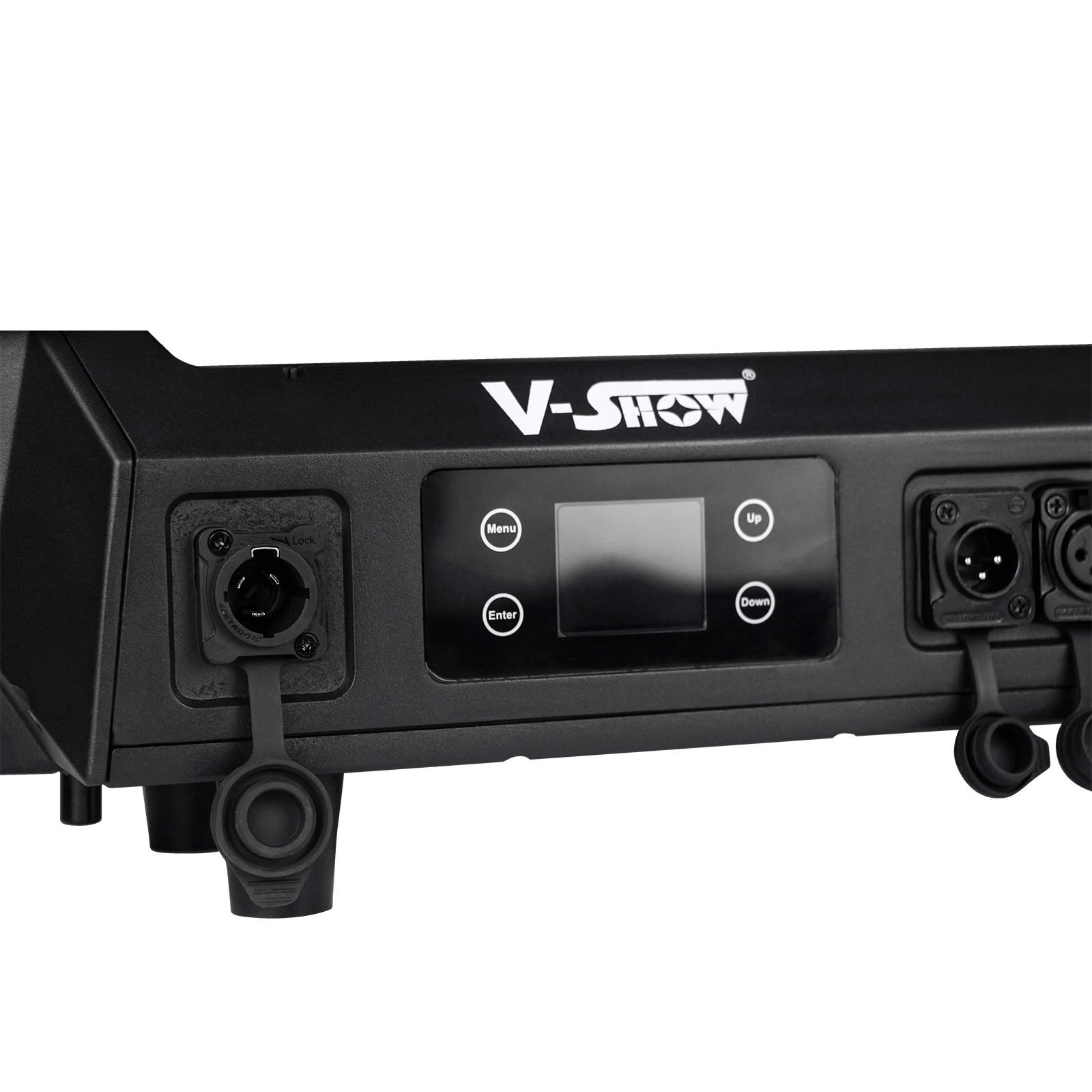

Control Panel	LCD display	Protection Grade	IP65

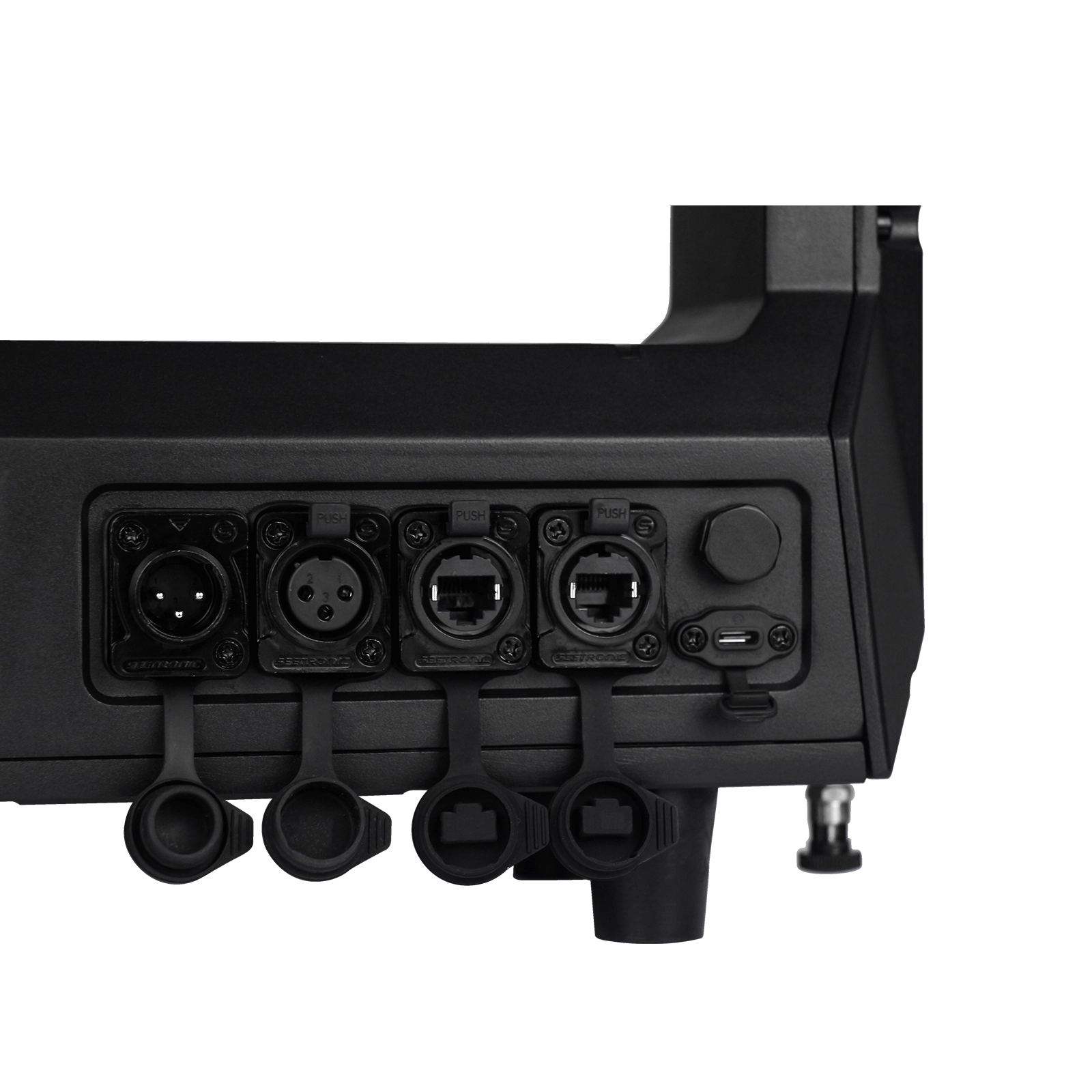

Power socket	Waterproof power connector input/output	Signal socket	Waterproof 3 PIN XLR /5PIN XLR socket and RJ45 Ethernet
DMX Channel	8/11/24/30/47/74/97CH	Operate mode	DMX512,Auto,Sound control,master-slave/ RDM,ART-NET,SACN
Net Weight	11.5kg	Gross Weight	14kg
Fixture size	406x202x335mm	Package size	1045459cm/ 83kg (Flight case 4 in 1）

Details & Features

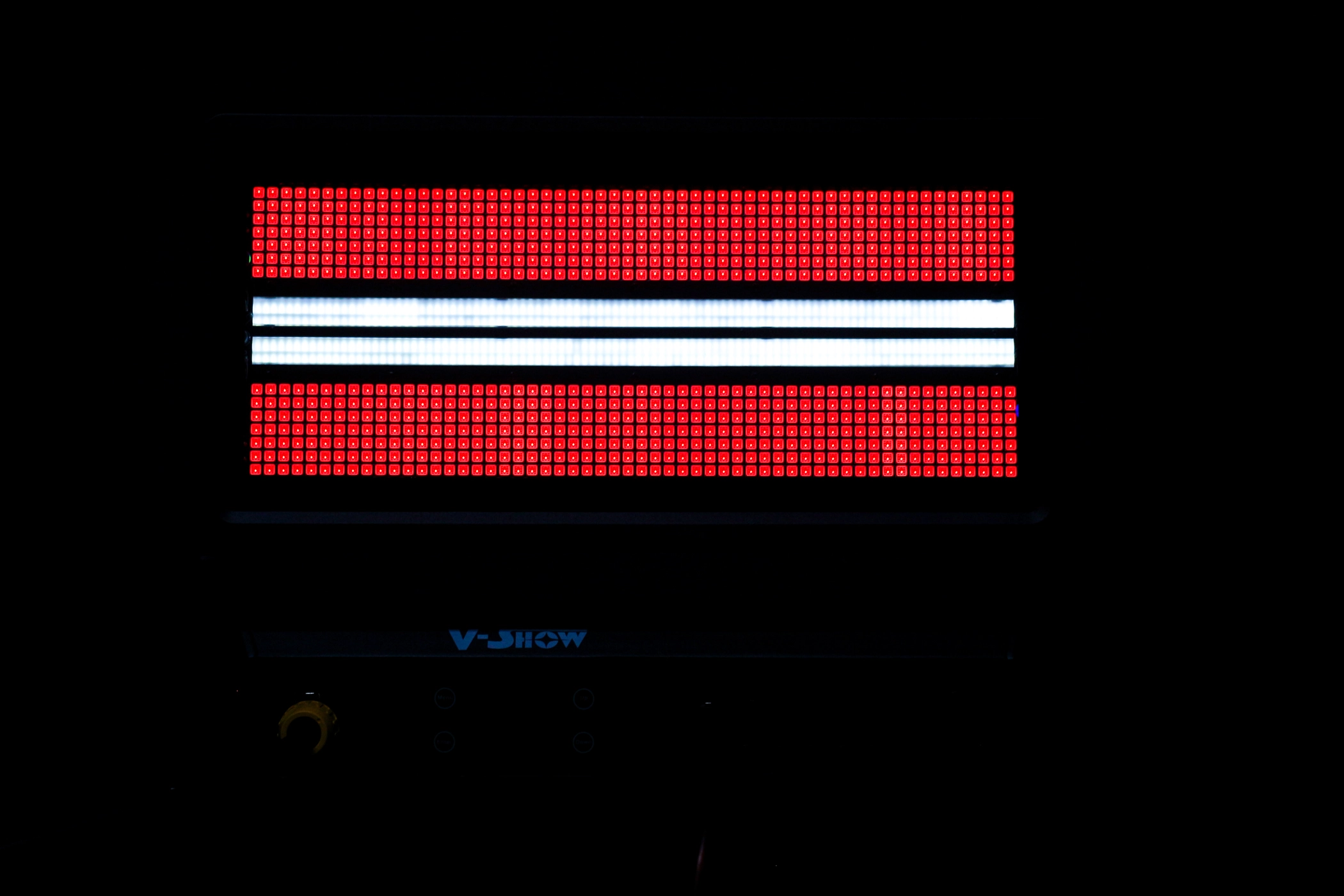

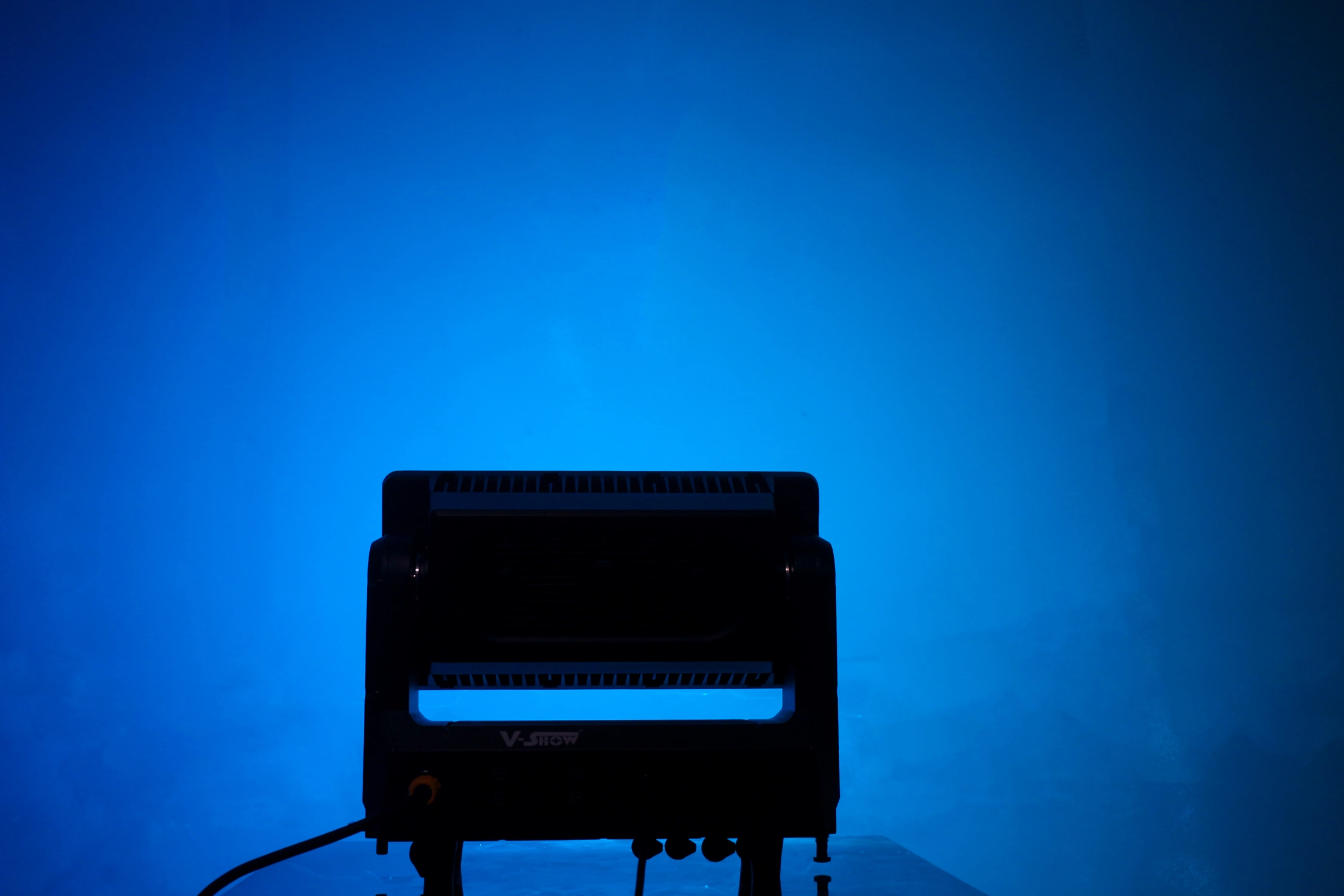

Excellent color mixing effect

• Color temperature adjustable 2500-10000K

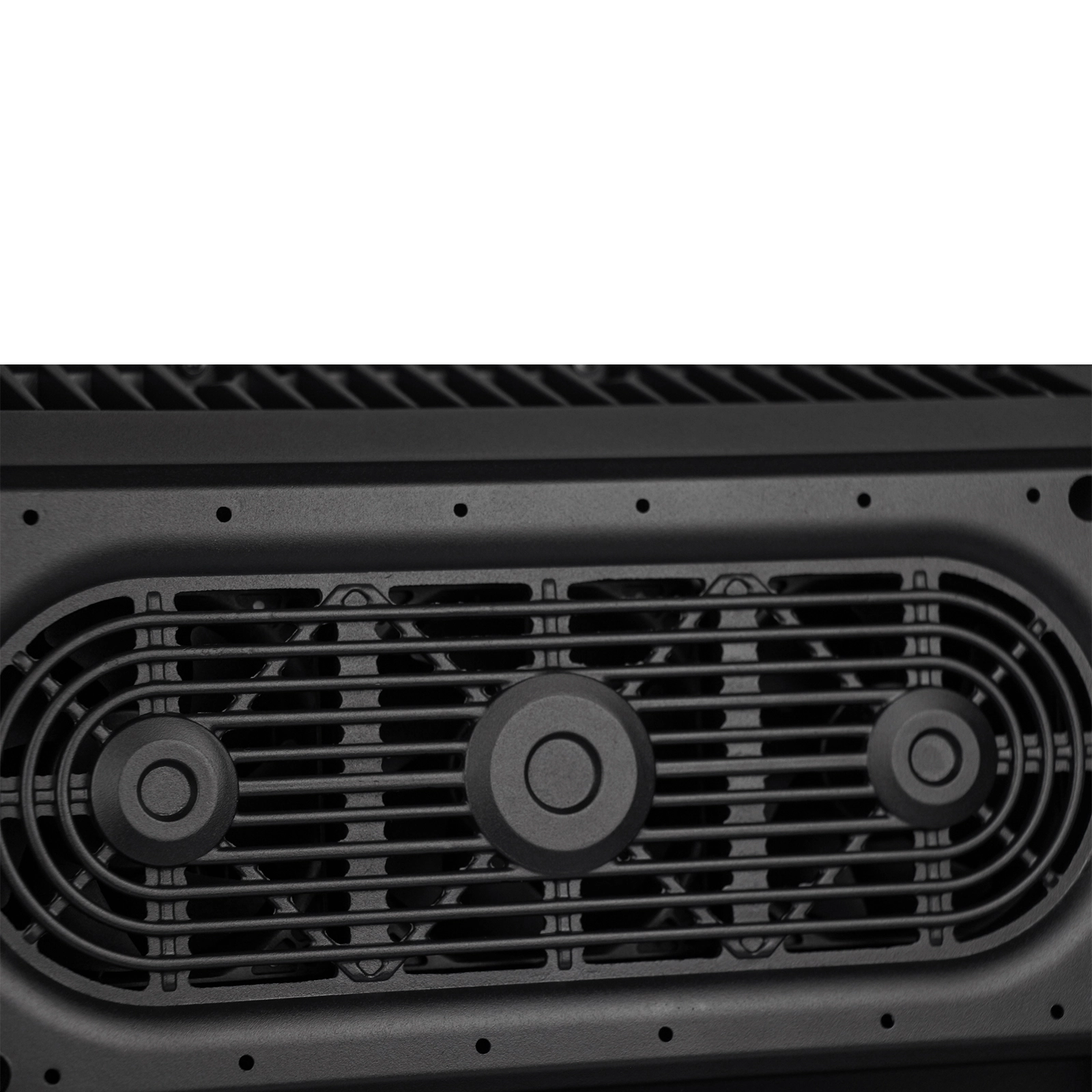

• Fan speed can be controlled on the console

Download

V12 USER MANUAL

DOWNLOAD

V12 DWG

DOWNLOAD

V12 MA

DOWNLOAD

V12 D4

DOWNLOAD

VSHOW TB5 5pcs 120W RGBL LED with 120pcs 0.5W RGB LED Ring

Discover the VSHOW TB5 5pcs 120W RGBL moving head light, featuring 120pcs 0.5W RGB LED Ring. This moving head wash delivers vibrant colors and dynamic effects, perfect for stage, events, and professional lighting setups. Elevate your show with VSHOW.

VSHOW TB5 5pcs 120W RGBL LED with 120pcs 0.5W RGB LED Ring

VSHOW B1060S 10pcs 60W RGBW 4in1 Moving bar zoom with strobe lines Colorful Moving Bar Zoom Effect Light with Strobe

The VSHOW B1060S is a powerful moving bar zoom light featuring 10pcs of 60W RGBW 4in1 LEDs. This versatile light fixture is perfect for creating stunning lighting effects in any event or venue. The moving bar zoom function allows for dynamic beam shaping and movement, while the strobe lines add an extra level of excitement to your lighting display. With its bright and vibrant colors, the VSHOW B1060S is sure to captivate your audience and enhance the overall atmosphere of your space. Whether you're a professional lighting designer or a venue owner looking to elevate your lighting setup, the VSHOW B1060S is a must-have addition to your equipment arsenal.

VSHOW B1060S 10pcs 60W RGBW 4in1 Moving bar zoom with strobe lines Colorful Moving Bar Zoom Effect Light with Strobe

VSHOW V7 RETROLINE 6*60W LED Retro LED Bar for Dynamic Lighting Effects

The VSHOW V7 RETROLINE 6*60W LED Retro LED Bar is the perfect solution for creating dynamic lighting effects in any professional setting. With six powerful 60W LED lights, this retro LED bar delivers stunning visuals that will captivate any audience. Whether you're looking to enhance a stage performance, create an immersive atmosphere in a nightclub, or add a touch of flair to a corporate event, the VSHOW V7 RETROLINE has you covered. Its sleek design and versatile functionality make it a must-have for any lighting designer or event planner. Elevate your next event with the VSHOW V7 RETROLINE 6*60W LED Retro LED Bar.

VSHOW V7 RETROLINE 6*60W LED Retro LED Bar for Dynamic Lighting Effects

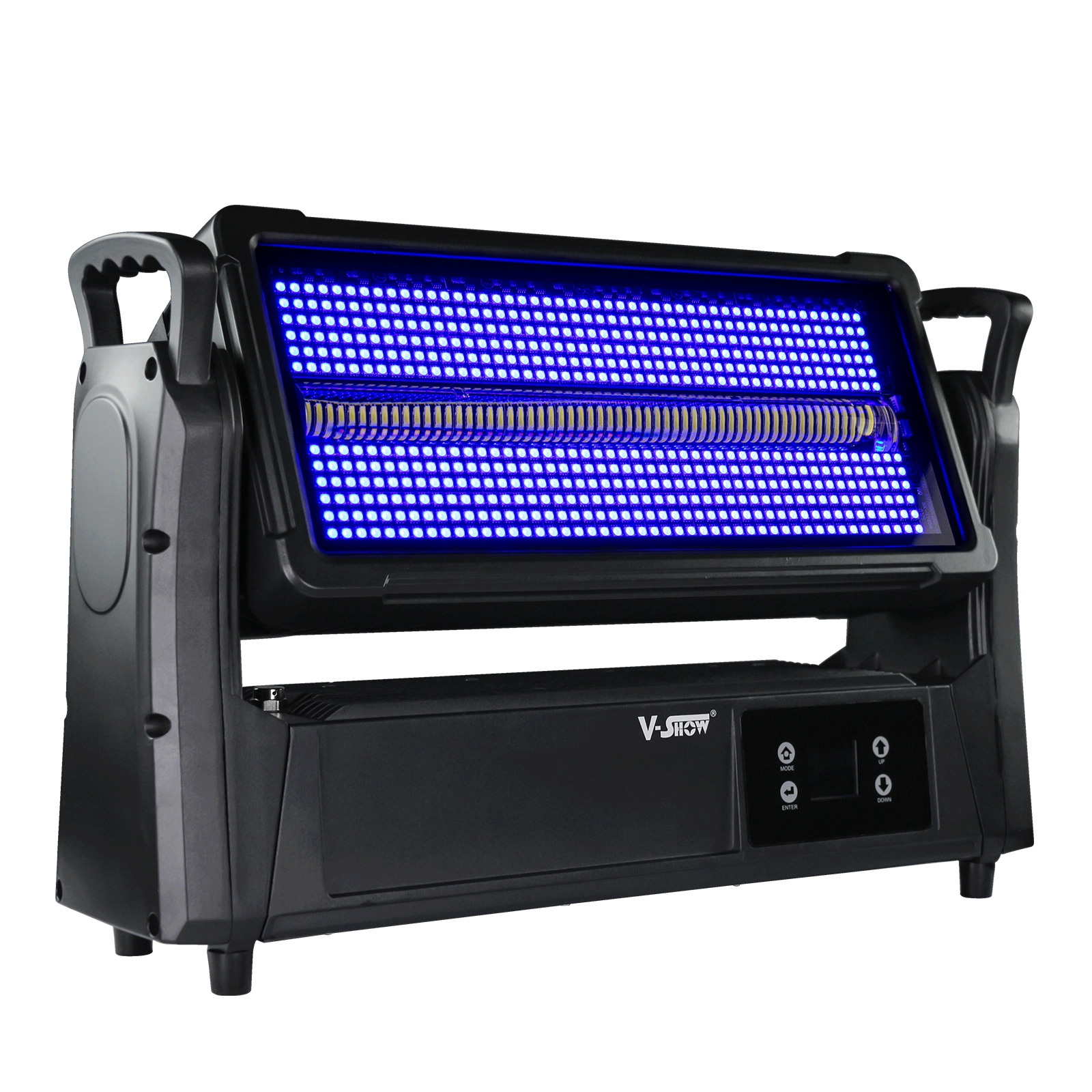

VSHOW V9 IP66 Outdoor Strobe light CW 2603W RGB 6500.5W for Club
