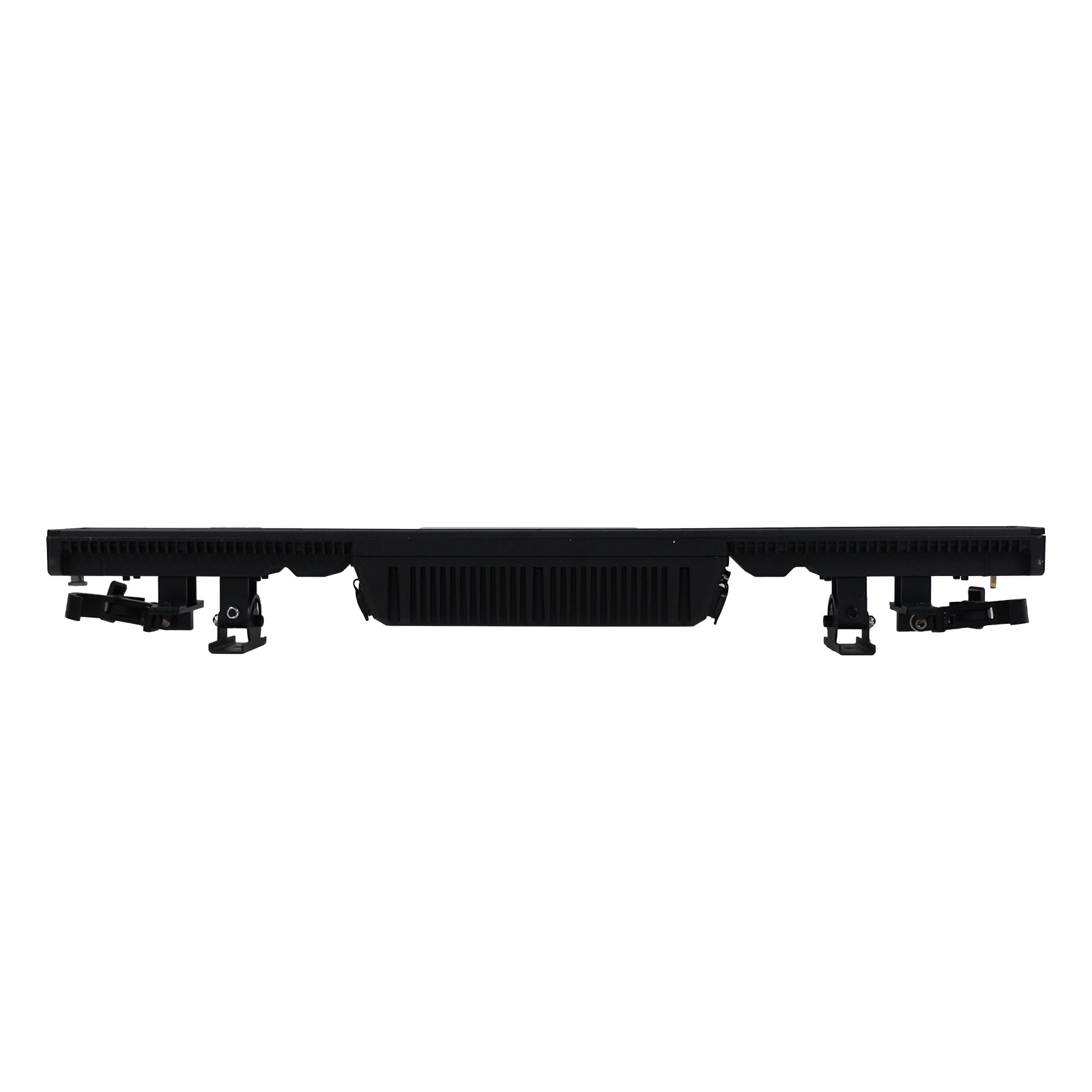

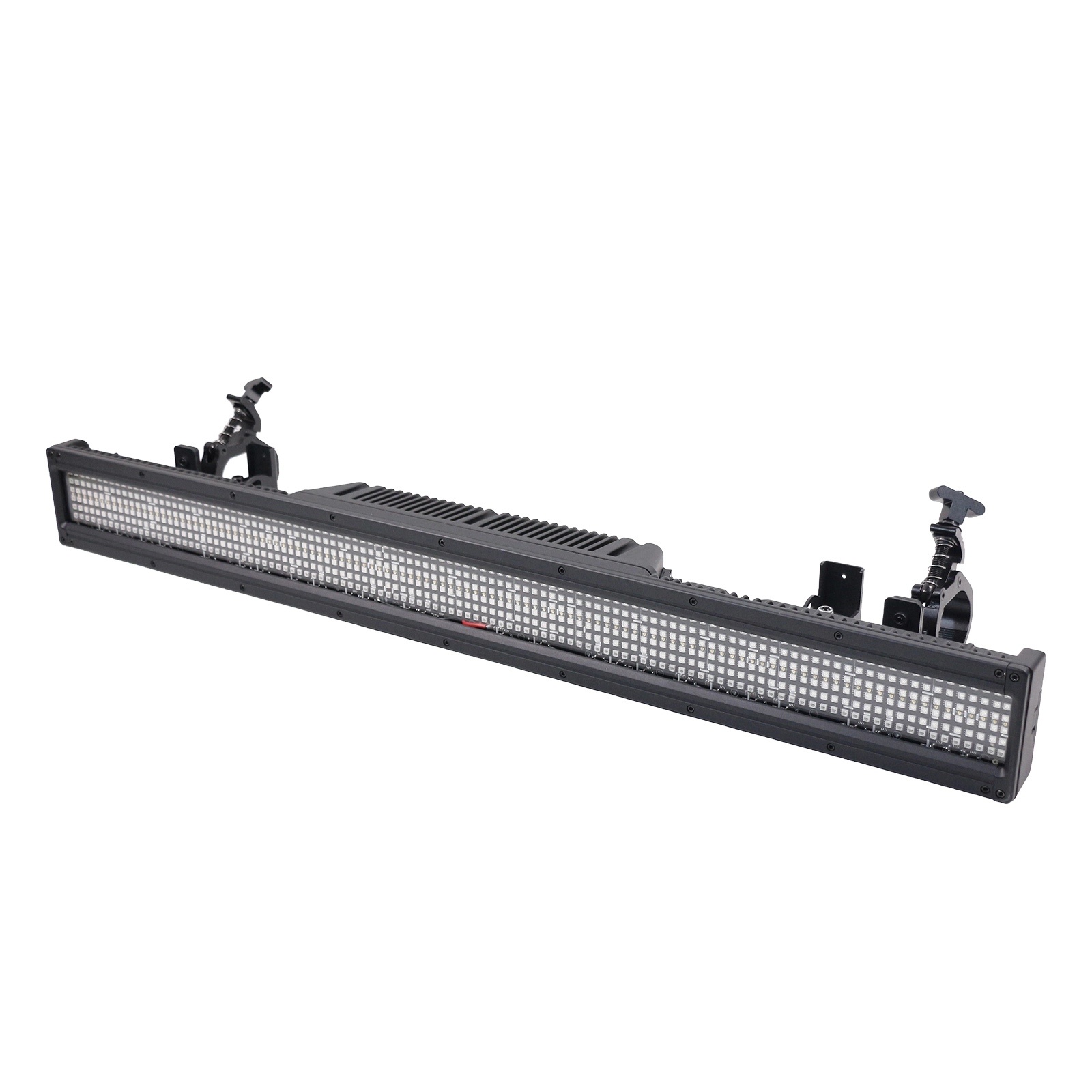

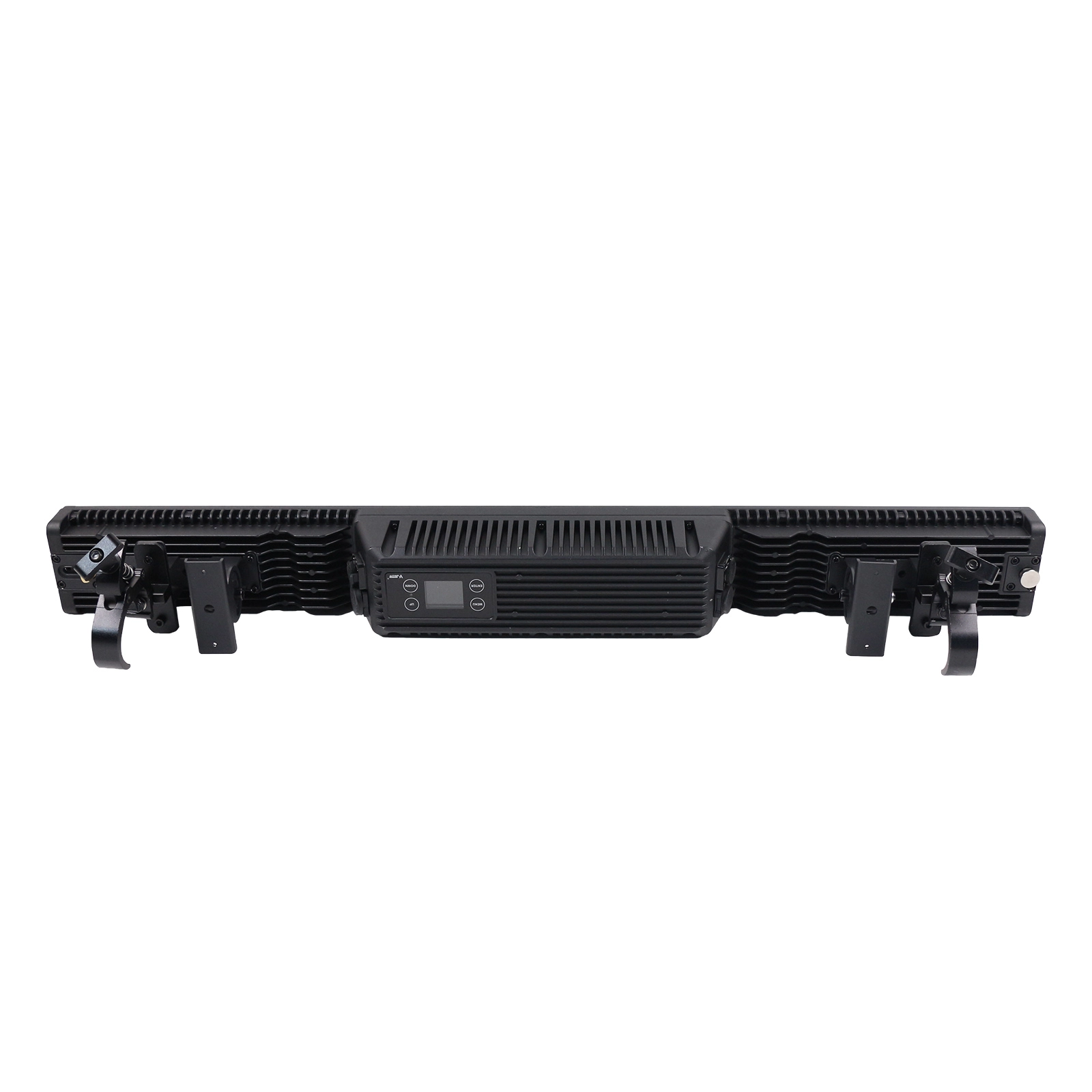

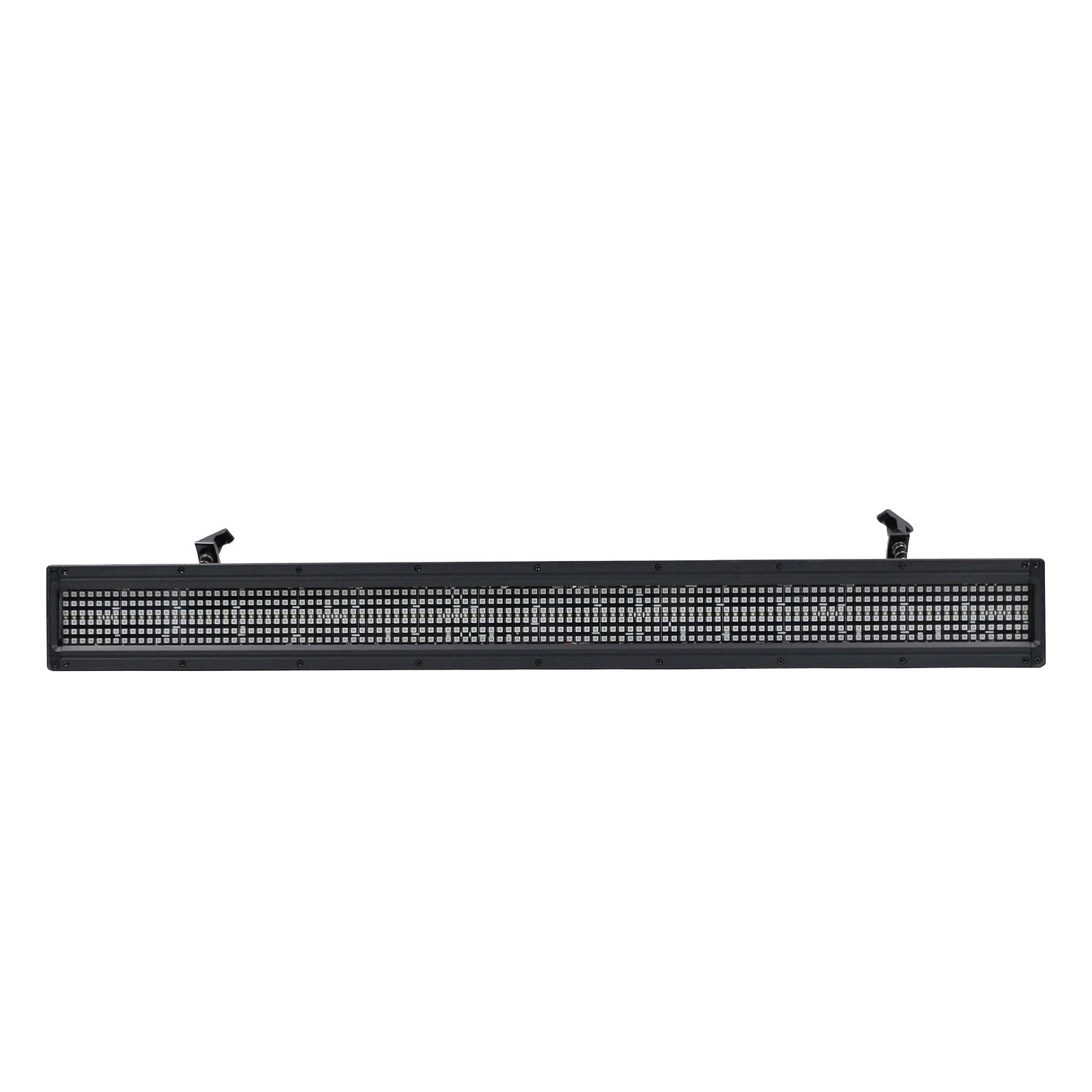

VSHOW V6 Arrow led Strobe Light 6720.5W 5050 RGB LED 1124W 3535WW/CW 2in1

V6 Arrow contains two zone controls. Zone 1 uses 672 0.5W RGB LED light engines. The 32 zones of colored light can be individually controlled. Each zone contains 21 RGB LED lamp beads. Area 2: Using 112 4W CW LED light engines, the 16 white light areas can be controlled individually.

Brand Name

VSHOW

Power consumption

500W

Power supply

600W

Place of Original

Guangdong,China

Package Size

1000x108x125mm

DMX channel

17/07/15/22/42/128/20/40/80/83/132/85CH

Operate mode

DMX512, Auto,Master/slave, sound active/RDM

Net Weight

8.8kg

Voltage

100-240V, 50/60Hz

Strobe

1-30Hz High output strobe effect

Dimming

0-100% smooth dimming

Main light

16pcs WW/CW LED zones can be controlled individually

Auxiliary light

32pcs RGB LED zones can be controlled individually

Display

OLED display

Signal input/output

3pin waterproof XLR socket (optional with 5pin)

Power socket

waterproof power connector input/output

Protection Rating

IP66

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

DMX-512 control connections，Connect the provided XLR cable to the female 3-pin XLR output of your，controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving heads be connected together through serial linking. The cable needed.

Please contact the nearest authorized technical assistance center if needed. Disconnect this product from its power source before servicing. DO use the original packaging if the device is to be transported. Avoid direct eye exposure to the light source while the product is on. DO NOT operate this product if you see damage on the housing, shields, orcables. Have the damaged parts replaced by an authorized technician at once.

Parameters

Input Voltage	100-240V, 50/60Hz	Power consumption	500W	Power supply	600W
Dimmer	0-100% smooth dimming	Strobe	1-30Hz High output strobe effect Excellent color mixing effect	Display	OLED display
Excellent color mixing effect		CW power	200W	WW power	200W
Light source	672pcs 0.5W 5050 RGB LED 112pcs 4W 3535WW/CW 2in1 LED	Color temperature	WW:2000K CW:6000K	Main light	16pcs WW/CW LED zones can be controlled individually
Auxiliary light	32pcs RGB LED zones can be controlled individually	DMX Channel	17/07/15/22/42/128/20/40/80/83/132/85CH	Operate mode	DMX512, Auto,Master/slave, sound active/RDM
Power socket	waterproof power connector input/output	Protection Rating	IP66	Size	1000x108x125mm
Net weight	8.8kg	RGB power	400W	Built in splicing pins for quick machine splicing
Signal input/output:3pin waterproof XLR socket (optional with 5pin)		Power socket: waterproof power connector input/output

Details & Features

Cob led par light

Led flat par light

Led light par

Led par light 36

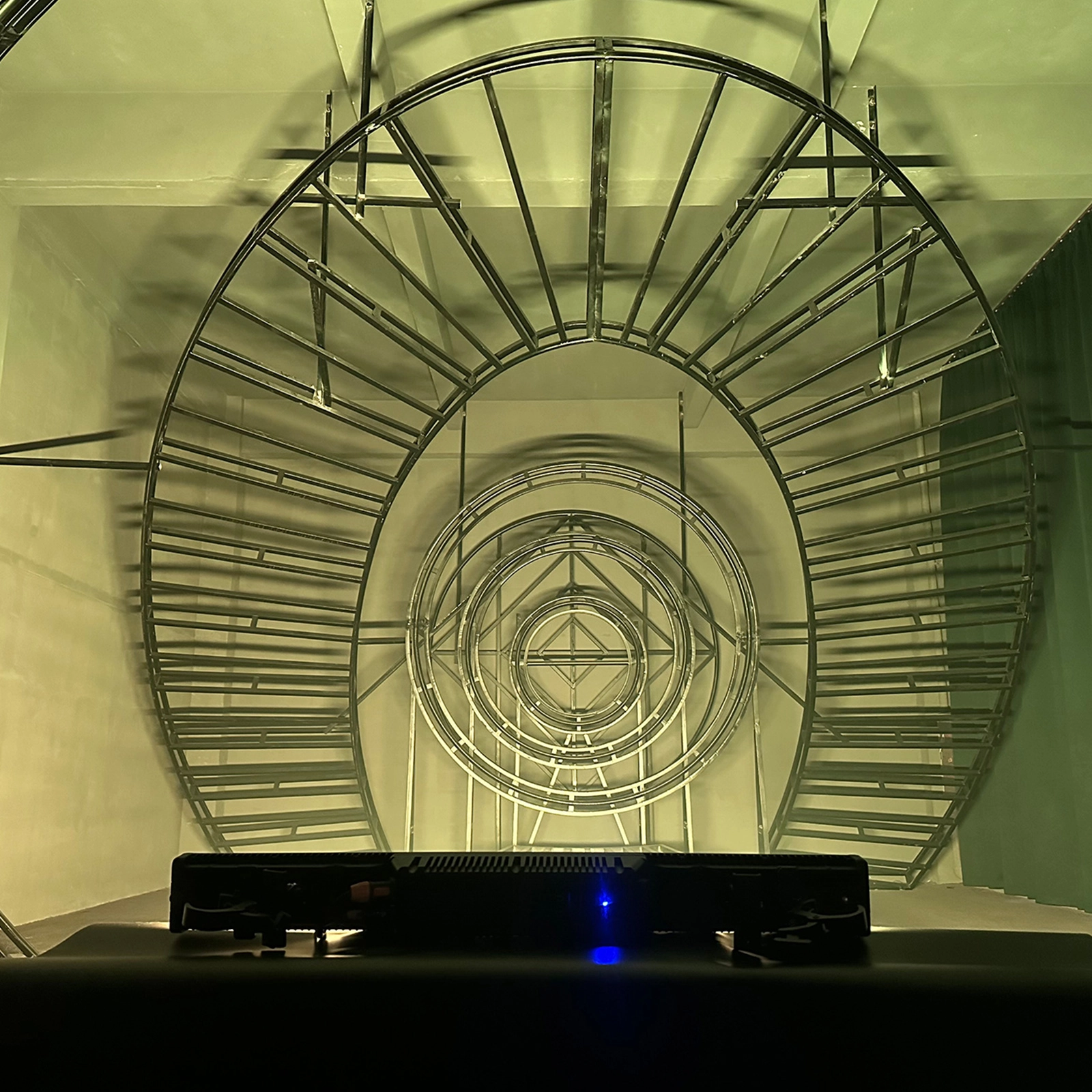

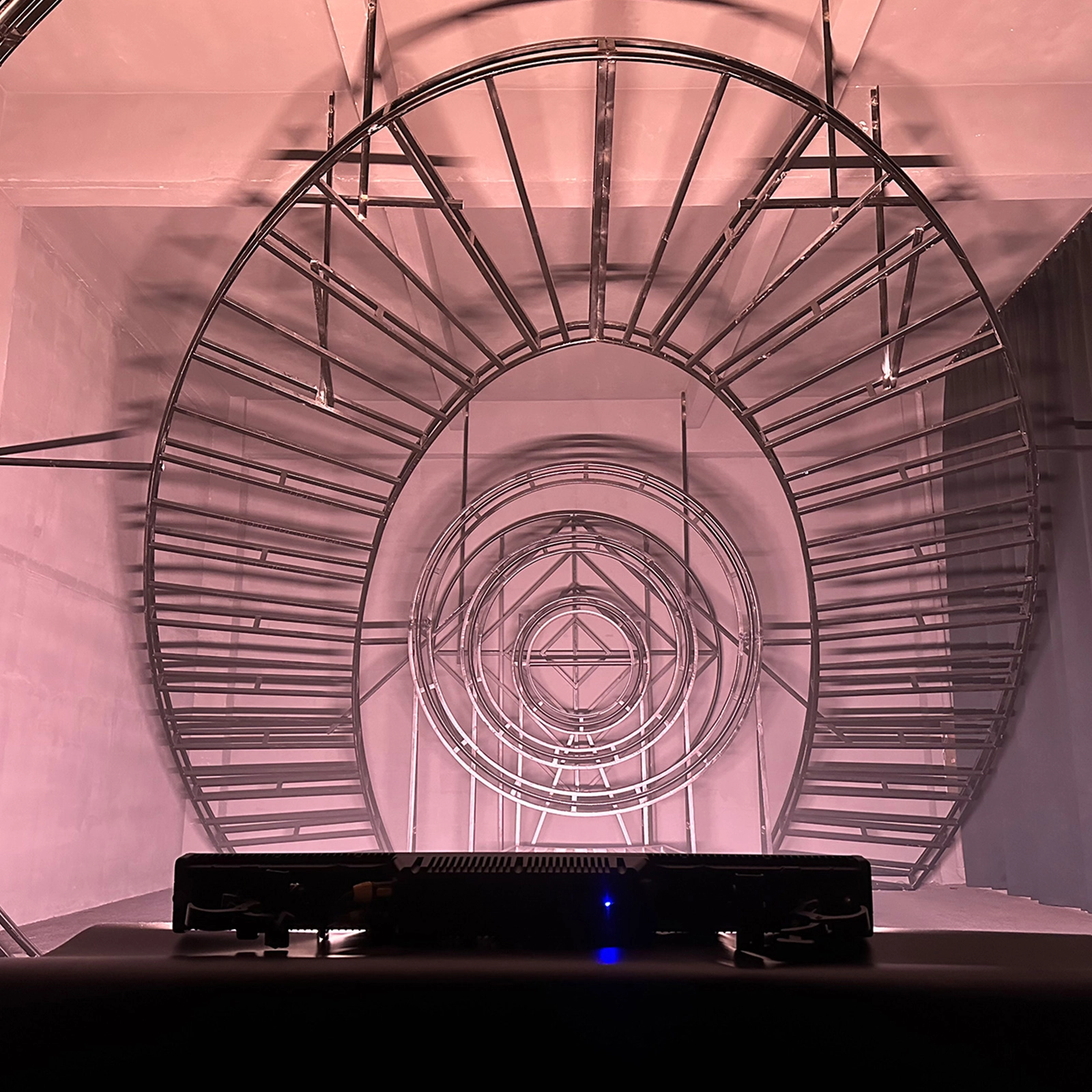

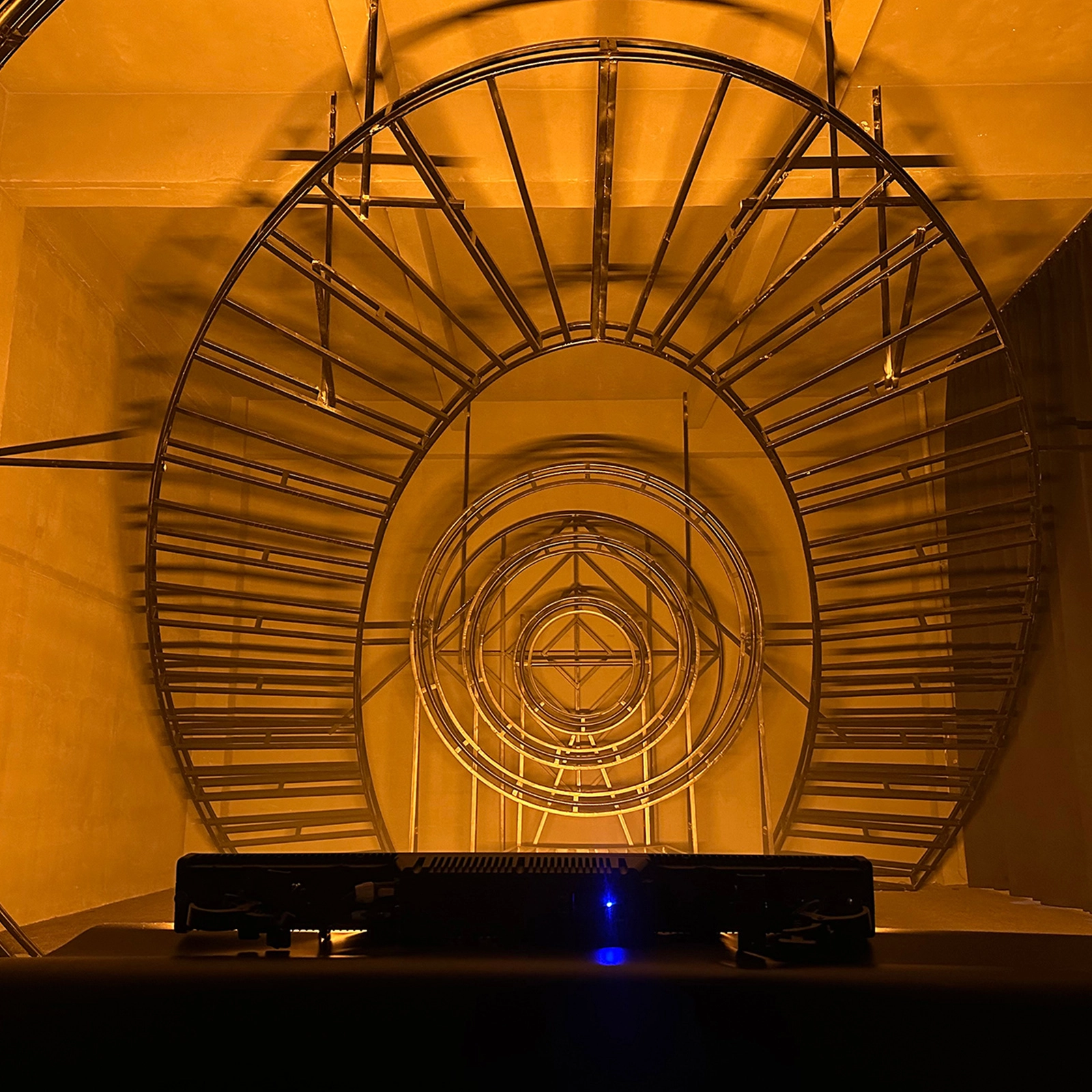

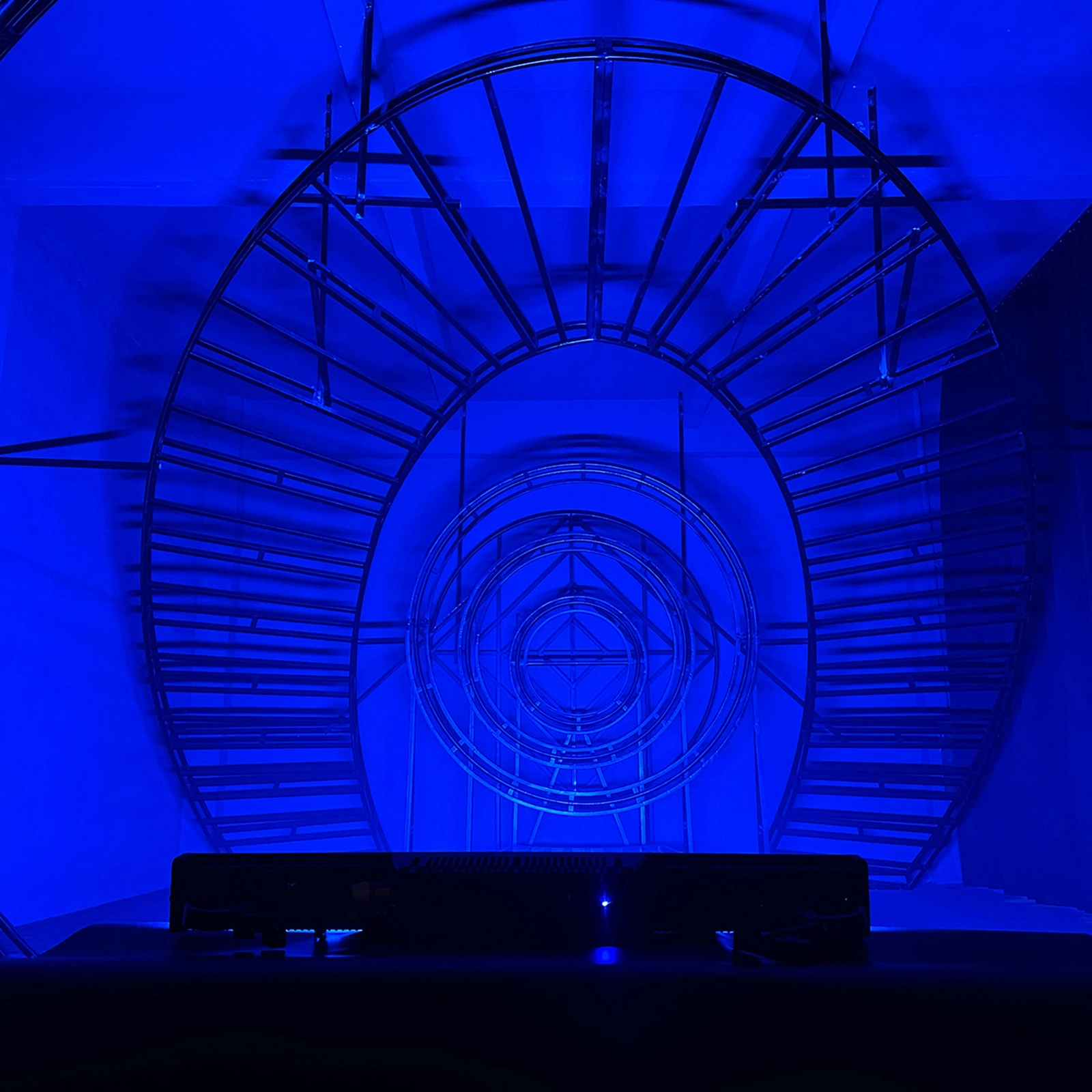

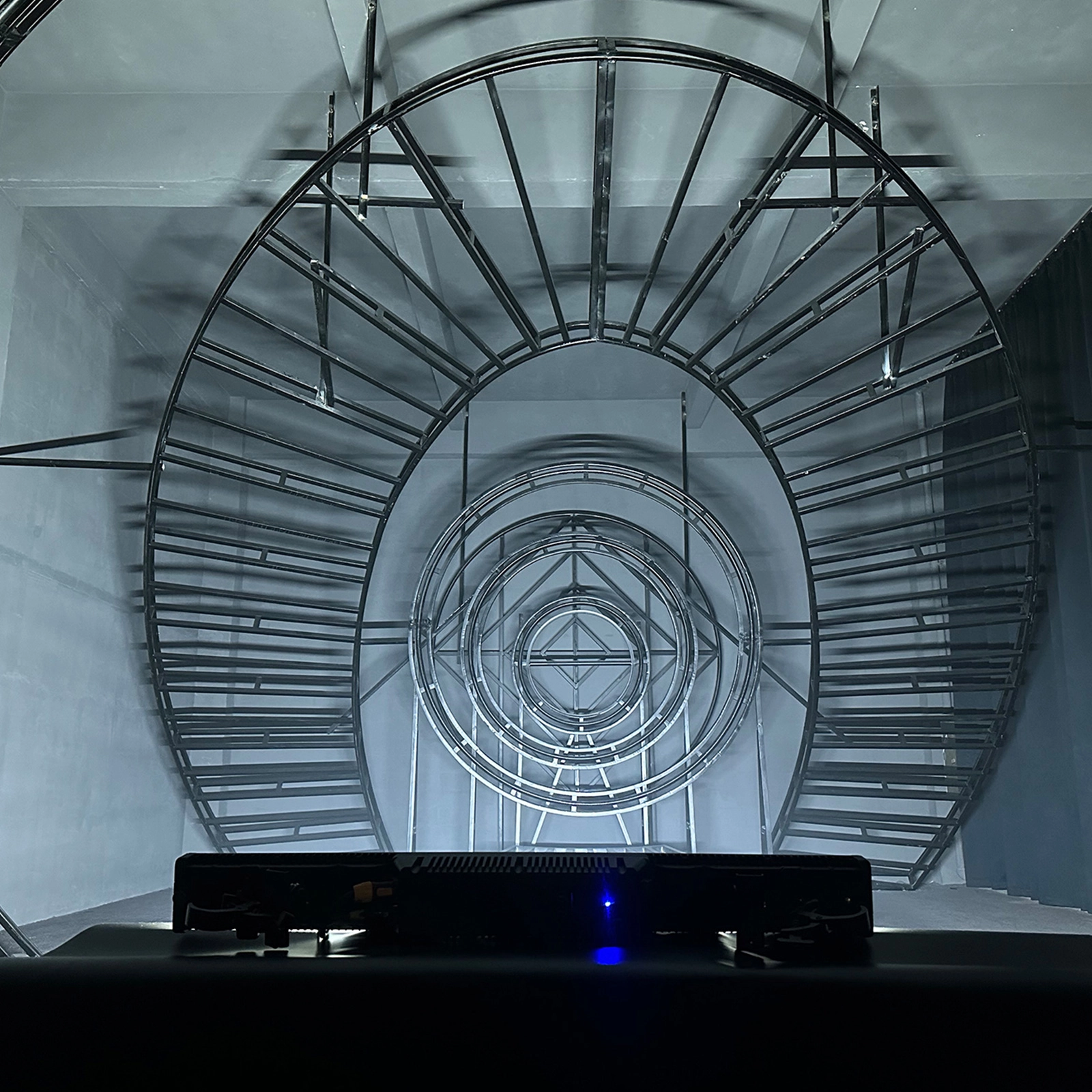

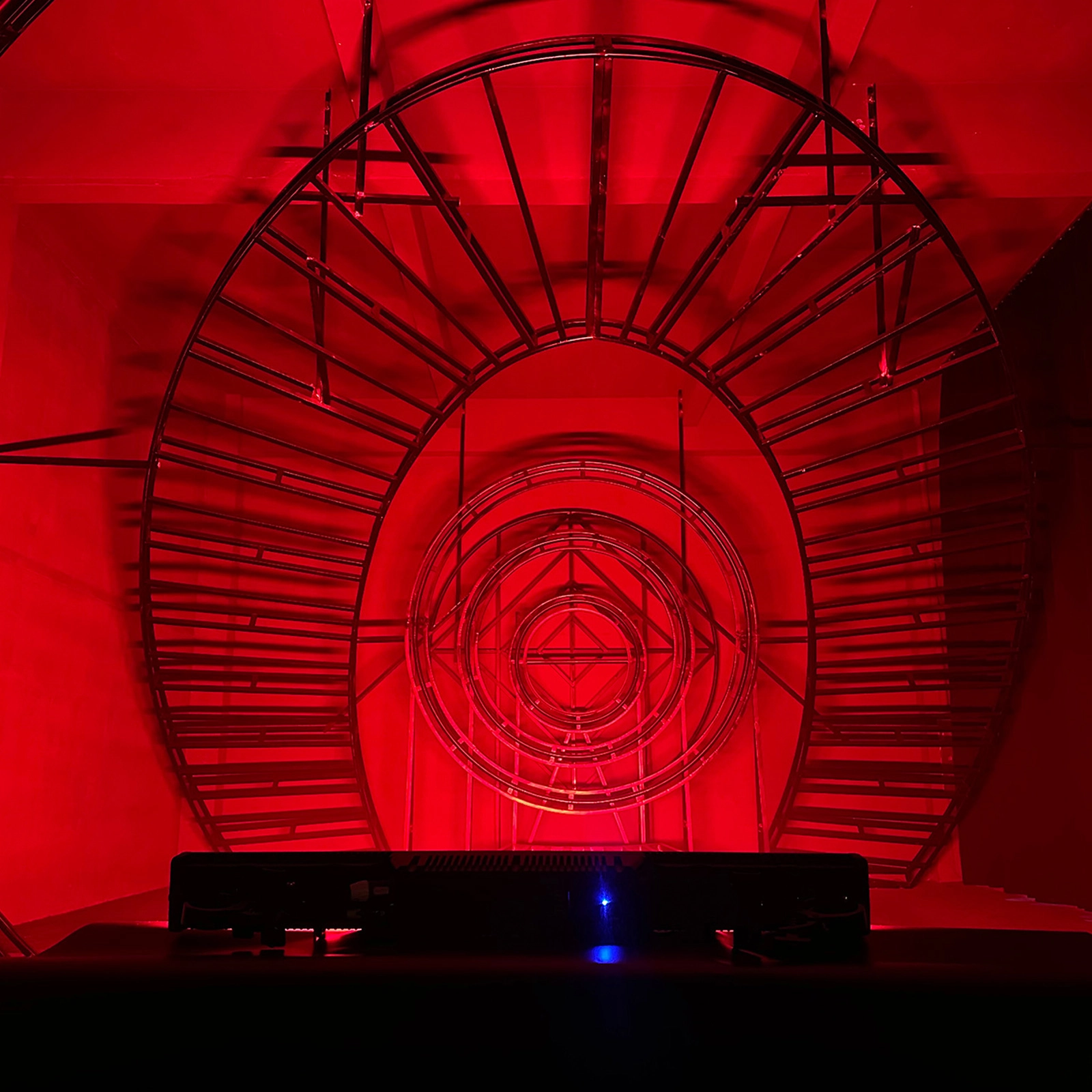

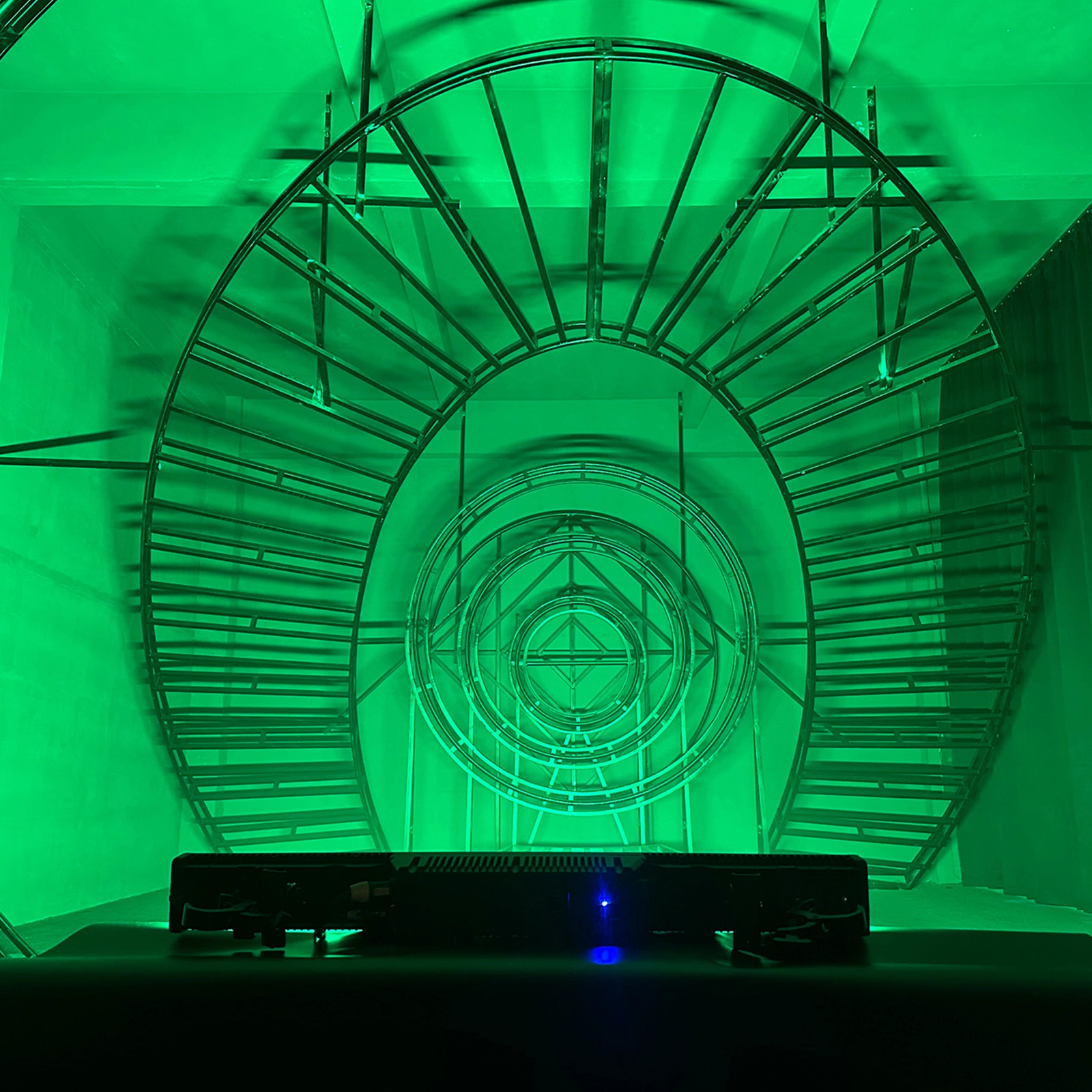

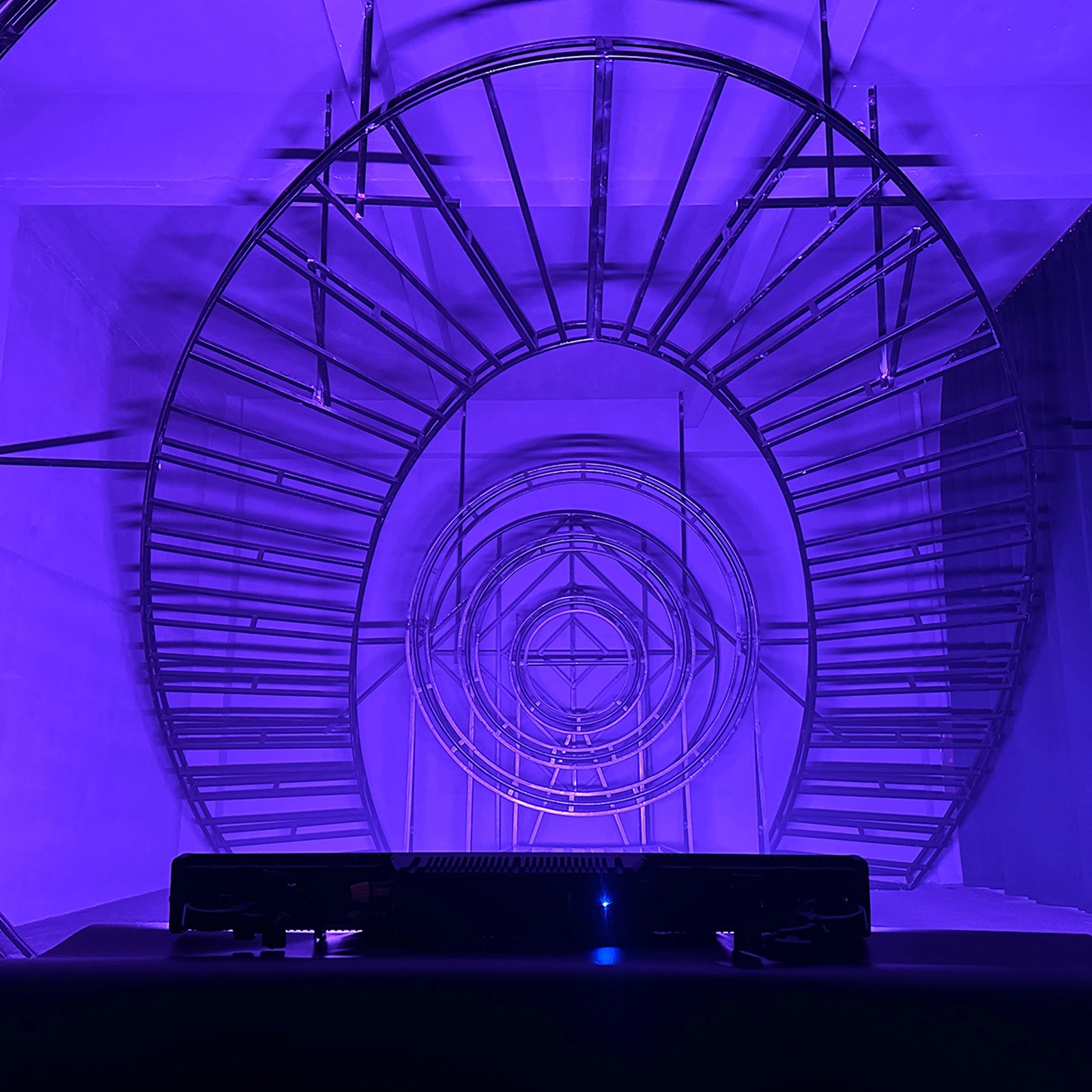

Excellent color mixing effect

• Color temperature adjustable 2500-10000K

• Fan speed can be controlled on the console

Led par stage lights

Led par wash lights

Led stage par lights

Cob led par light

Battery powered led par lights

Par can led lights

Led par can lights

Led par can light
