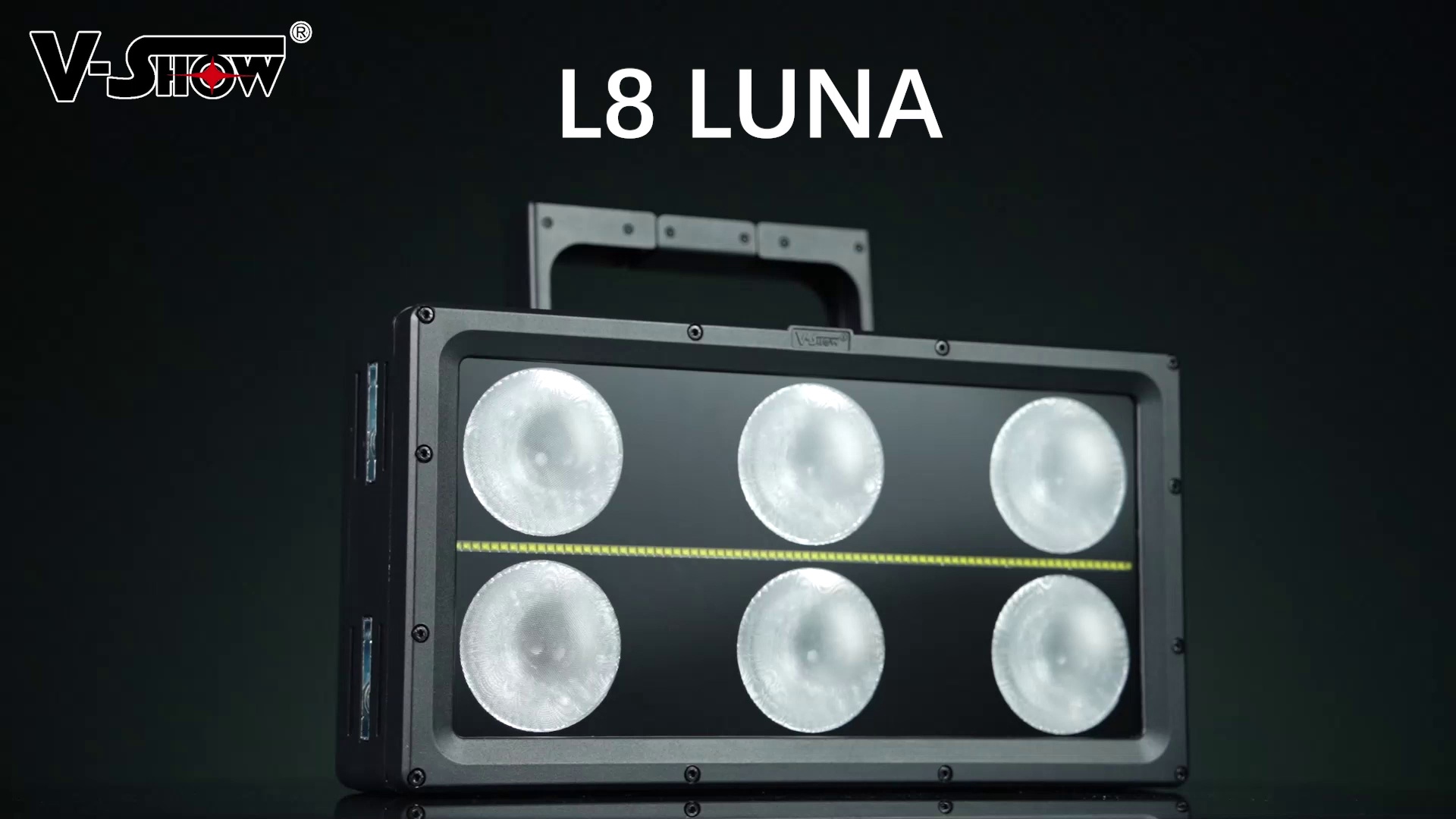

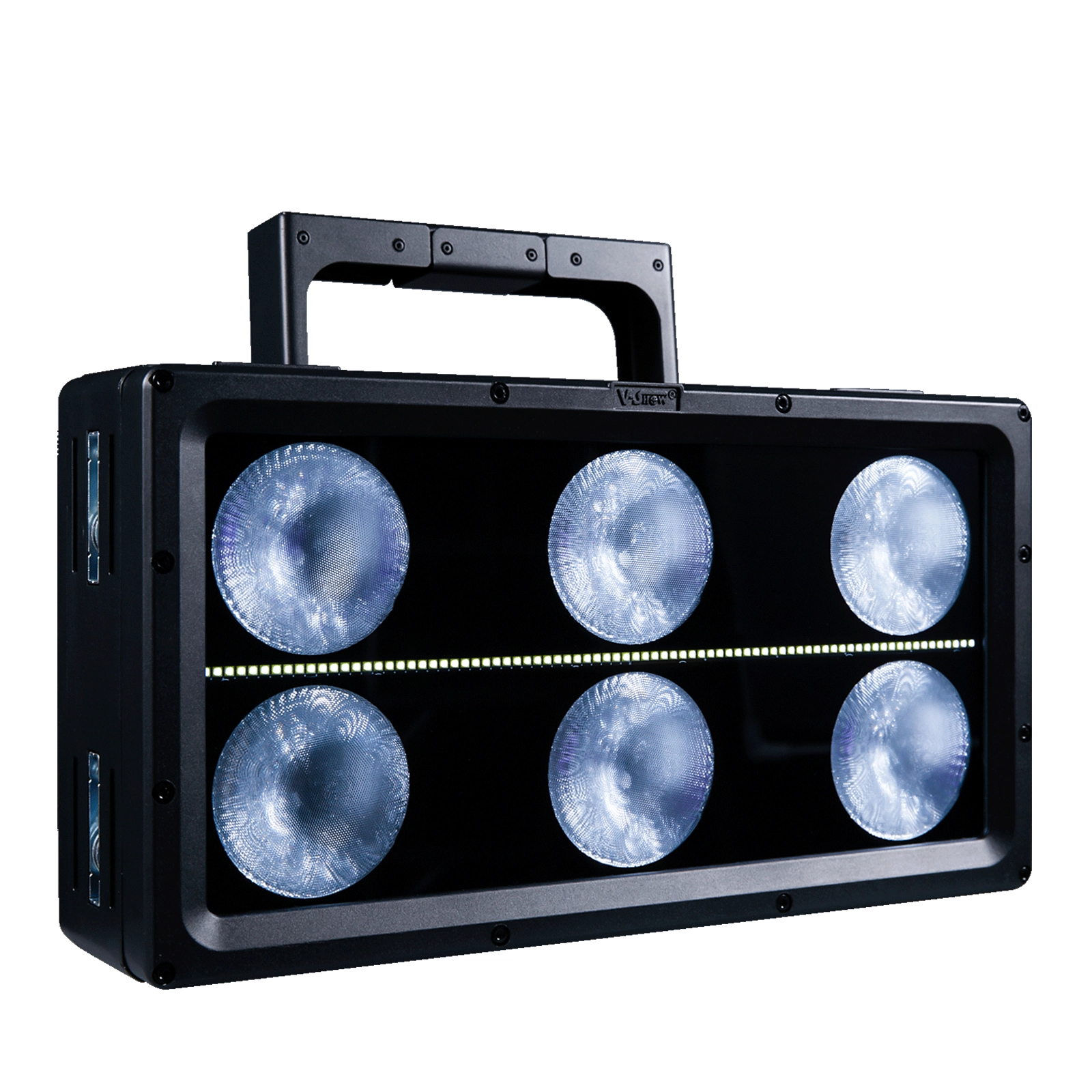

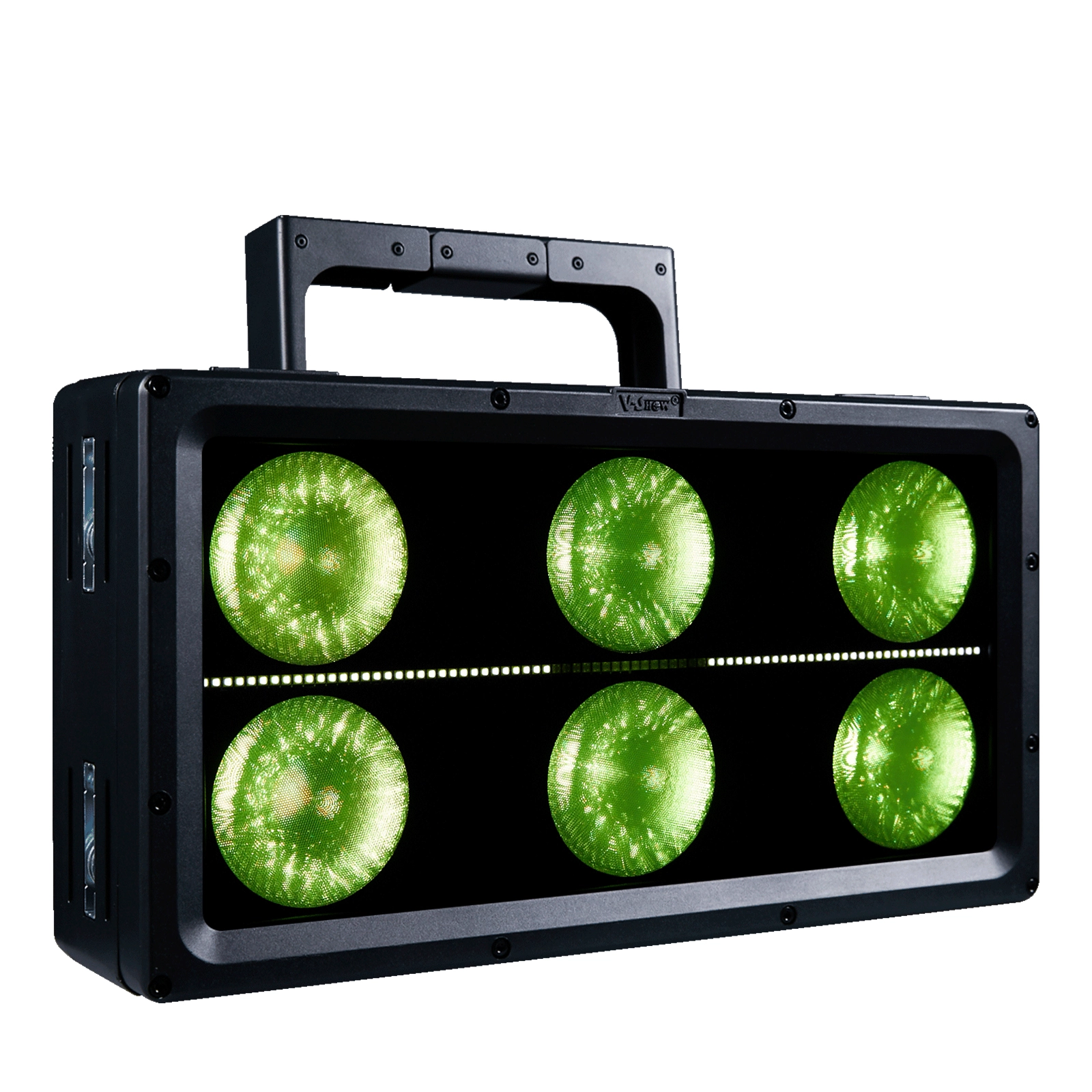

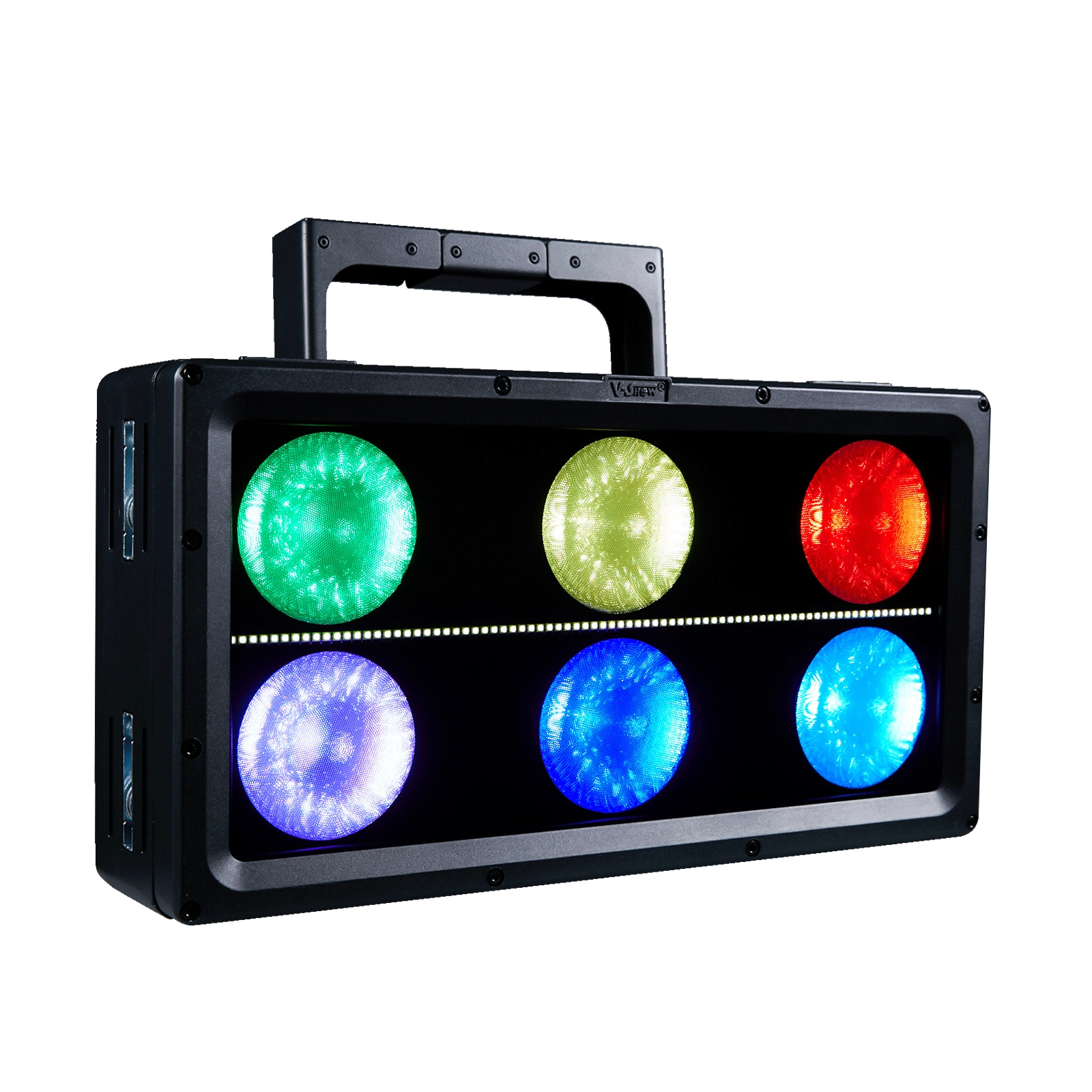

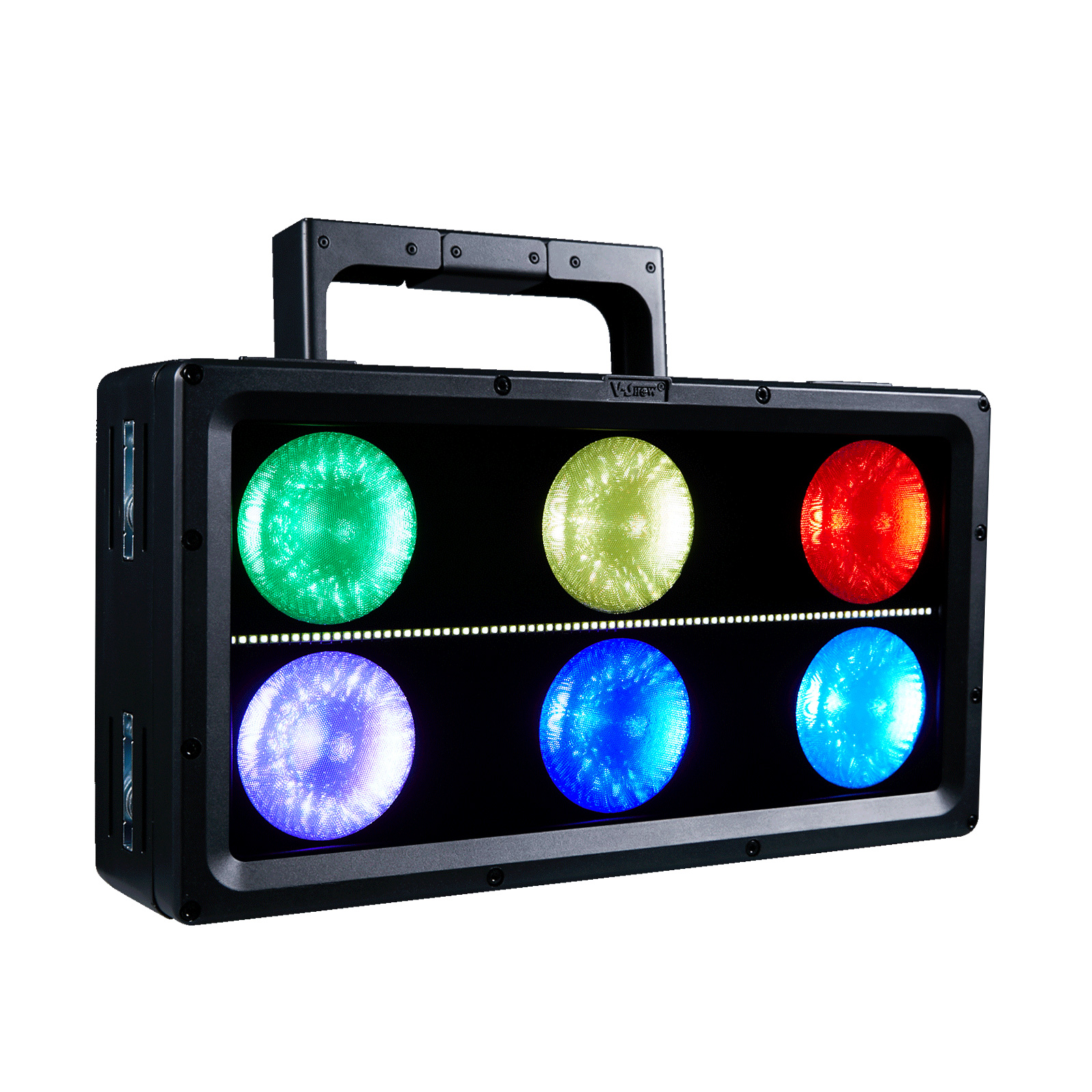

VSHOW L8 Luna 6pcs 100W RGBWW+80pcs 4W Cold white 10 group pixel Blinder Light Outdoor Patchwork IP66 6 Eyes Blinder

Brand Name
VSHOW
Input Voltage
100-240V, 50/60Hz
Power consumption
880W
Power supply
1000W
Light source
6PCSx100WRGBWW4IN1LED
Backlight LED
80PCSx4WColdWhite
Light source life
>20000Hour
Place of Original
Guangdong,China
Size
413x184x300mm
N.W
13.2kg
Power indicator
waterproofpowerconnectorinput/output ProtectionRating:IP66
Signal socket
3pinwaterproofXLRsocket(optionalwith5pin)
Cooling way
Fanmode:auto,lowspeed,highspeedExcellentcolormixingeffect
Channel
25/34/59CH
Dimming mode
0-100%Lineardimming
Operation mode
DMX512,Auto,Master/slave,/RDM
IP
IP66

Return Tips   After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection   Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

Introducing the VSHOW L8 Luna IP66, a revolutionary three-in-one hybrid fixture designed to create instant impact in any lighting scenario. This versatile unit combines strobe, wash, and blinder capabilities, allowing for dynamic effects and seamless transitions. With an IP66 rating, it excels in outdoor environments, ensuring durability and performance. Elevate your lighting design with the ultimate combination of functionality and creativity.

Parameters

 Input Voltage

100-240V, 50/60Hz

Light source

  6*100W RGBWW4IN1 LED

 Power supply

1000W

Auxiliary light

80*4W Cold White

Power consumption

880W

CCT

800K-7000K

Fresnel thread mirror

 30 °

Strobe

Strong output strobe effect at 1-20Hz

Dimming

0-100% linear dimming

Dimming frequency

Adjustable refresh rate

Fan mode Auto, low speed, high speed Excellent color mixing effect Dimming curve

Linear, Square Law, Inv SQ Law ,S Curve Multiple refresh rate settings to choose

Lifetime

≥20,000Hours
Dimming speed Fast, slow
Pixel matrix

CW LED 10 segment control

Color system

RGBWW+CW

Control Panel  OLED display Protection Grade IP66

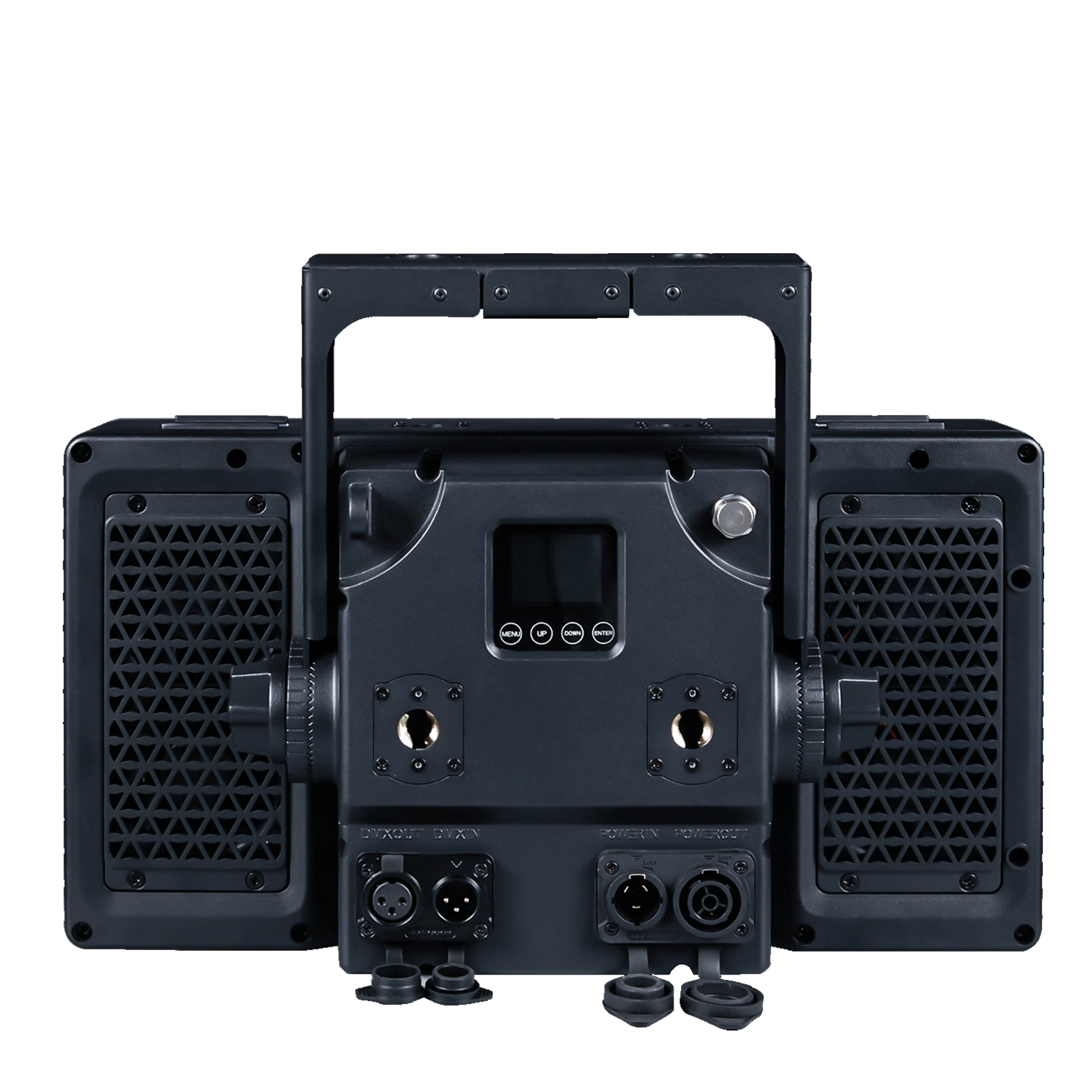

Power socket Waterproof power connector input/output

Signal socket

Waterproof 3 PIN XLR /5PIN XLR socket

DMX Channel

25/34/59CH

Operate mode

DMX512, Auto,Sound, Master/Slave

Net Weight 13.2kg

 Gross Weight

14.5kg

Fixture size

413x184x300mm

 Package size

55*52*41cm/ 31kg (Carton 2 in 1)
47*47*49cm/ 40.5kg (Flight case 2 in 1)

Details & Features

3
19
16
6
5
20
1
3
5

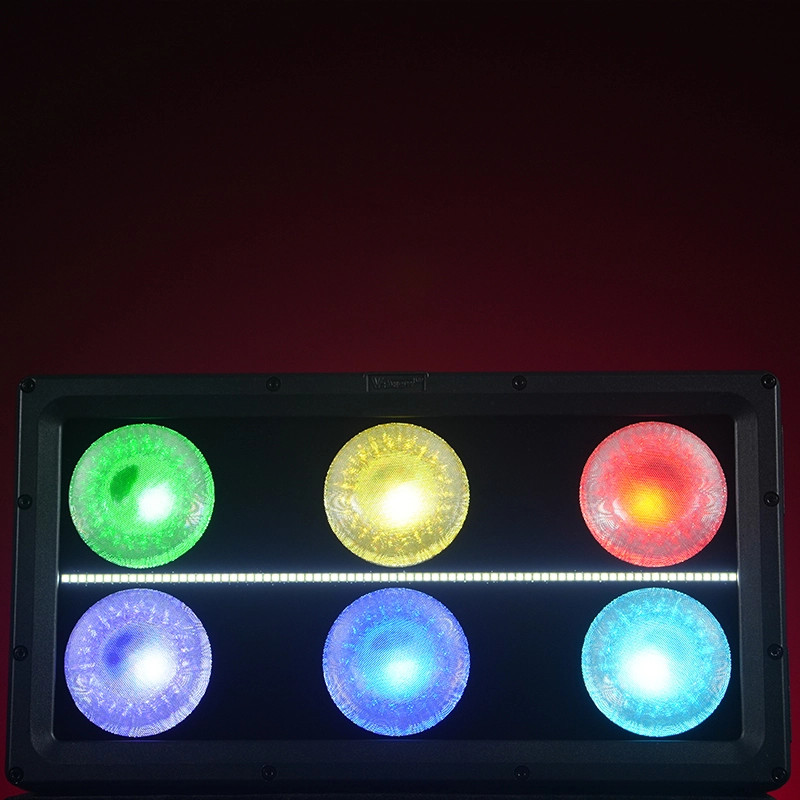

Excellent color mixing effect

2
1
3
4

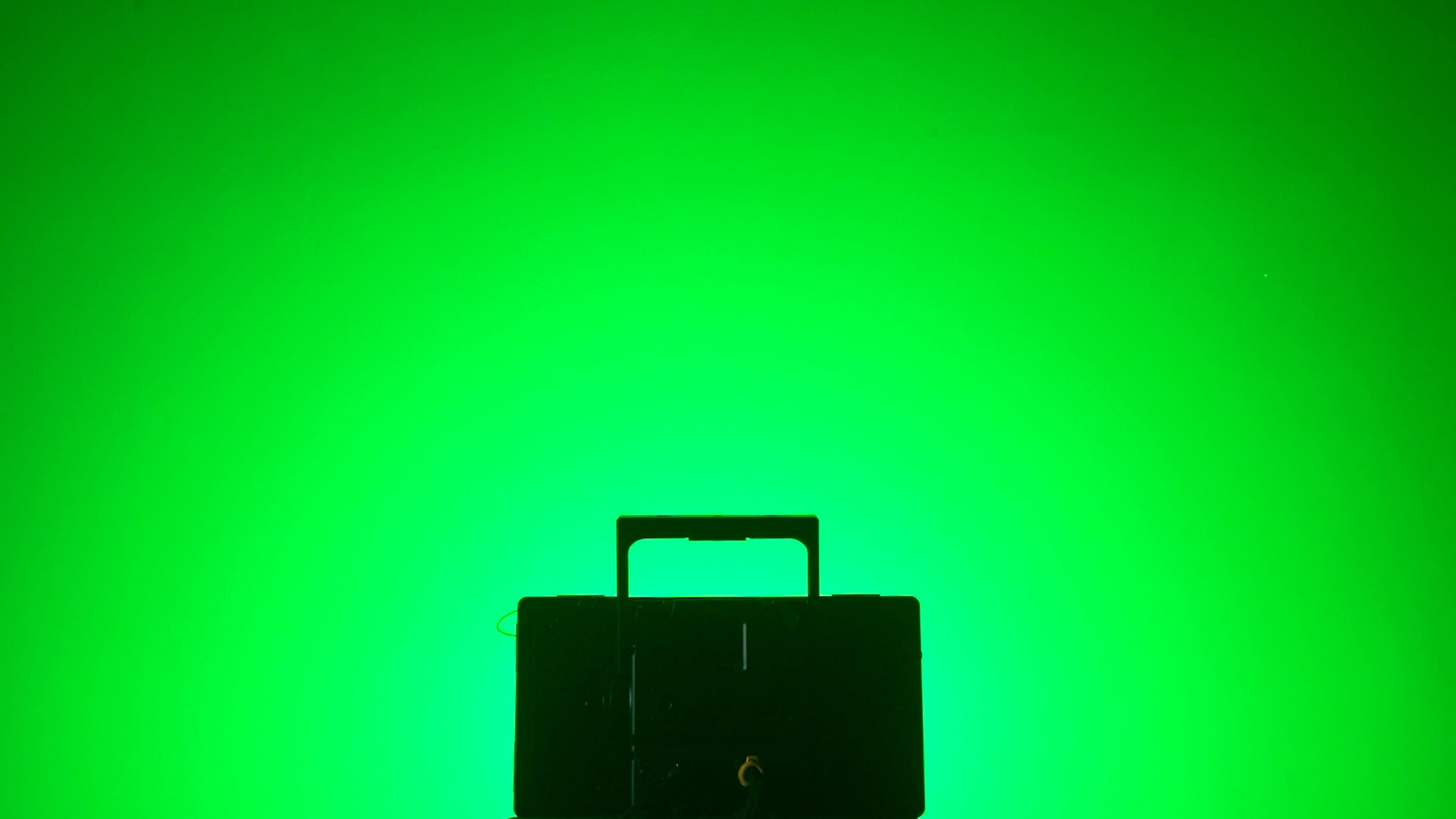

C1602_1.00_00_10_03.Still008

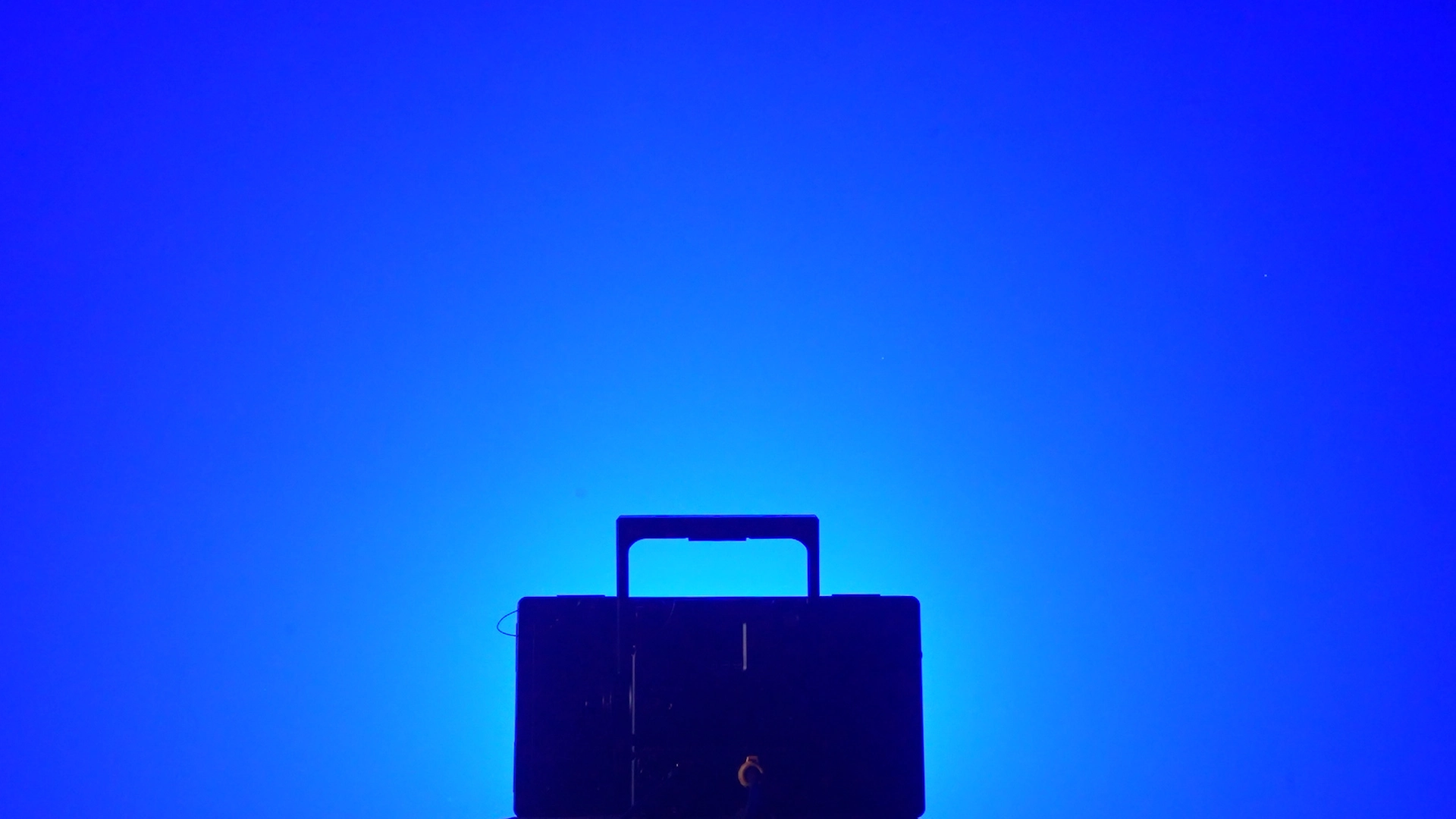

C1602_1.00_00_06_17.Still011

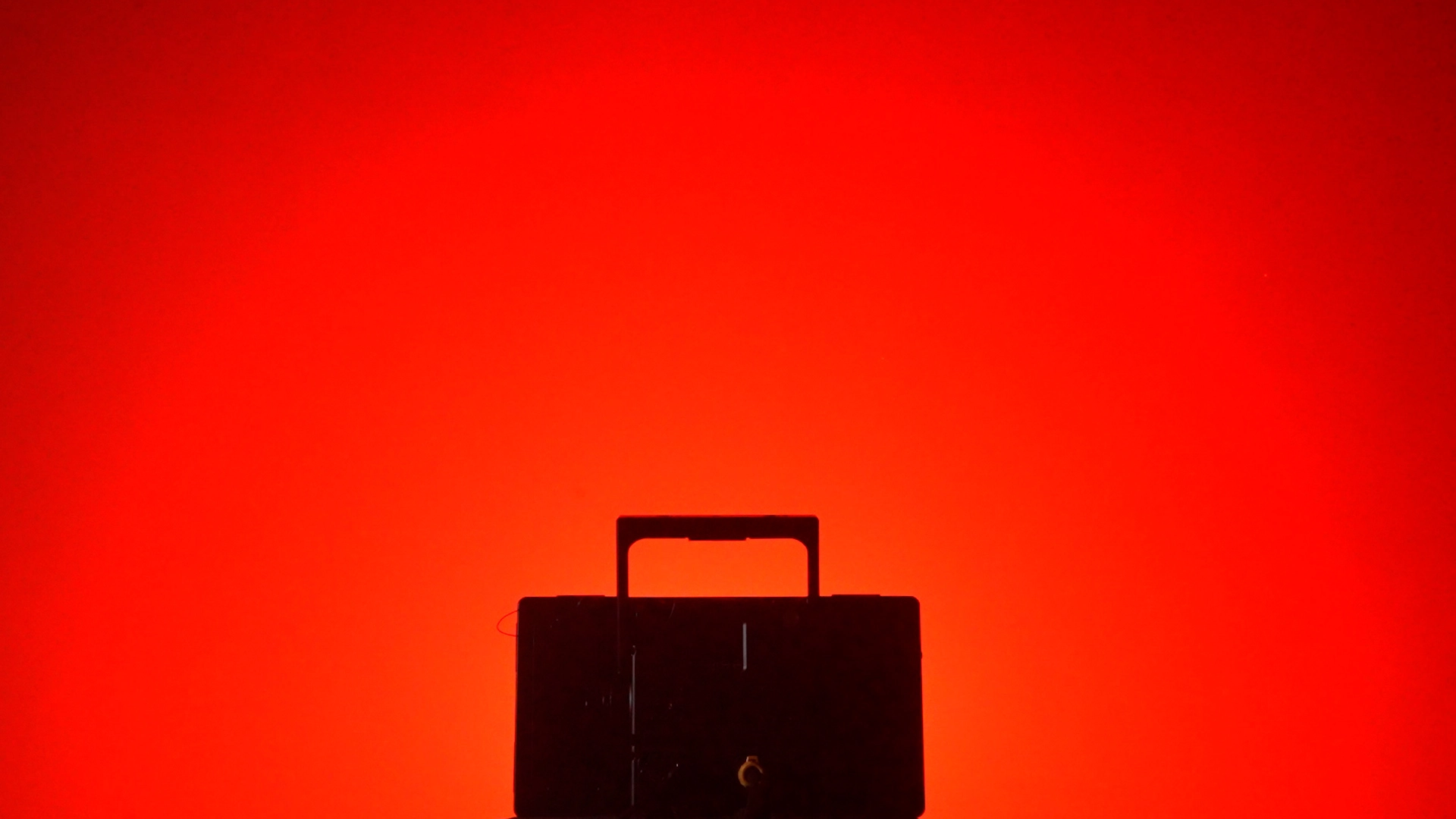

C1602_1.00_00_02_32.Still013

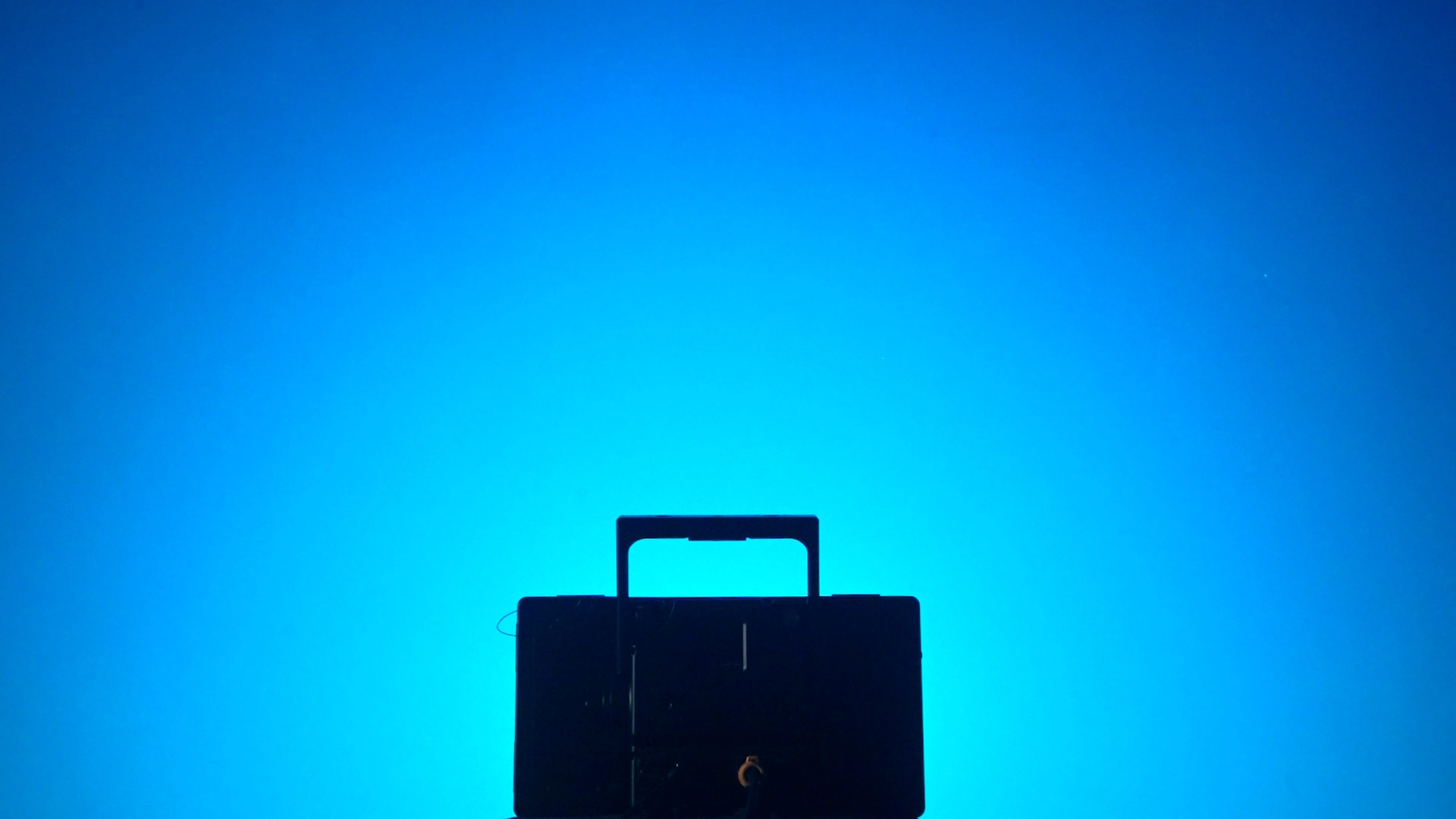

C1602_1.00_00_08_39.Still009

Download

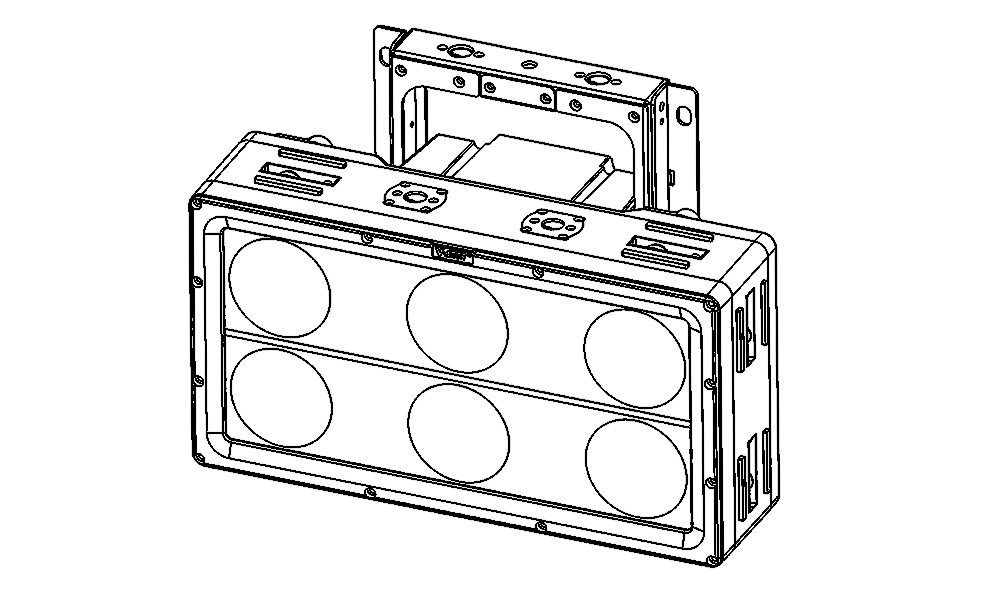

L8

L8 USER MANUAL

DOWNLOAD
压缩文件封面

L8 DWG

DOWNLOAD
