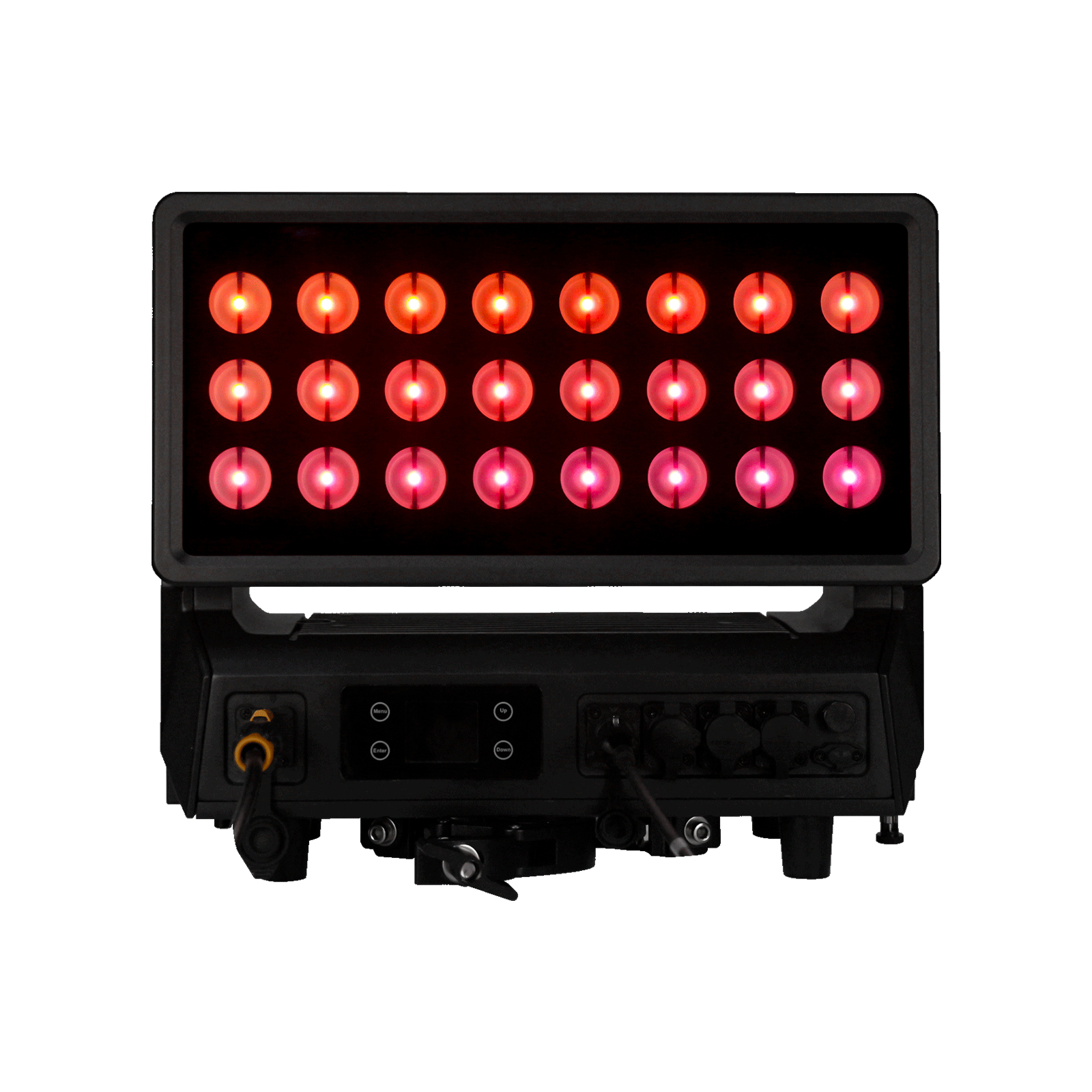

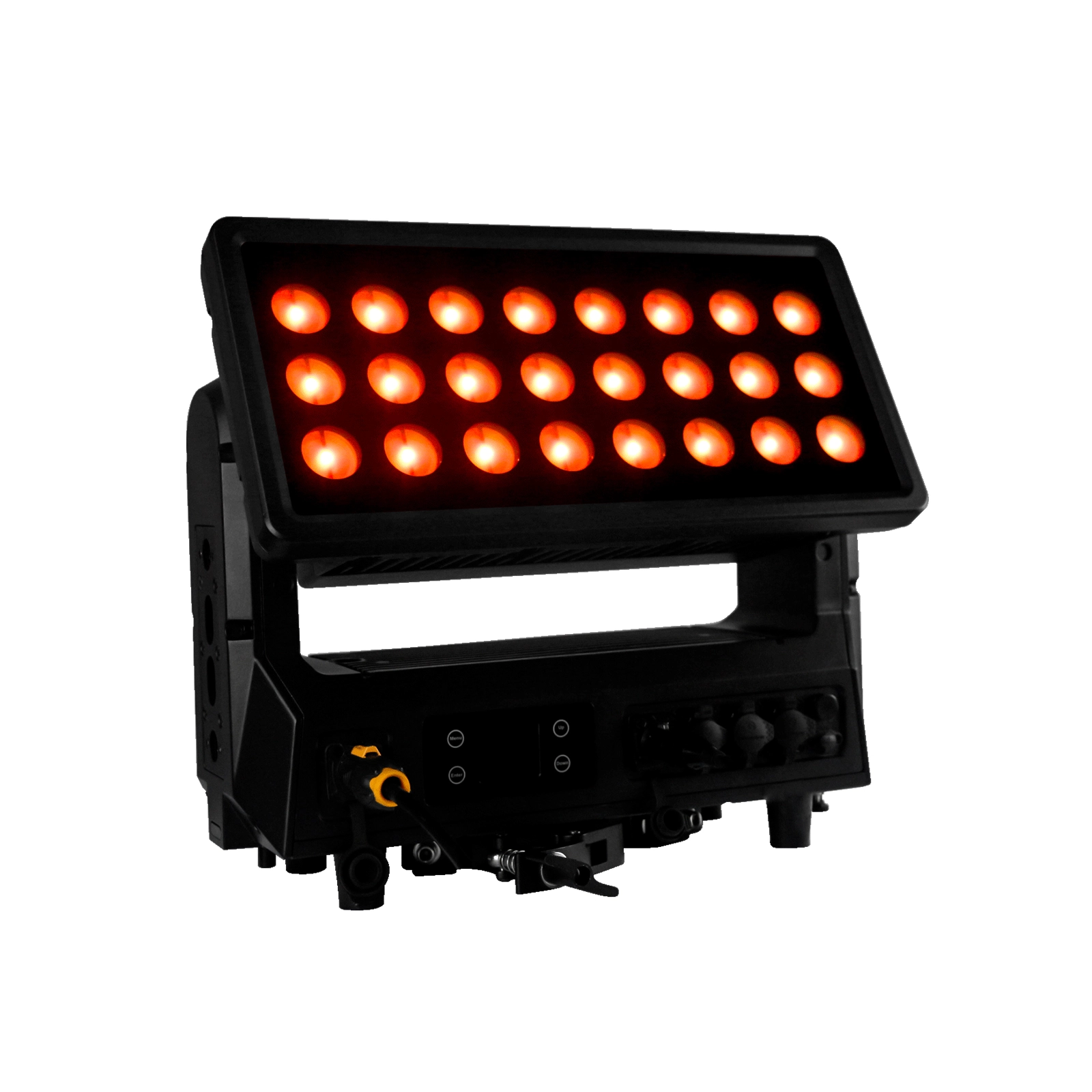

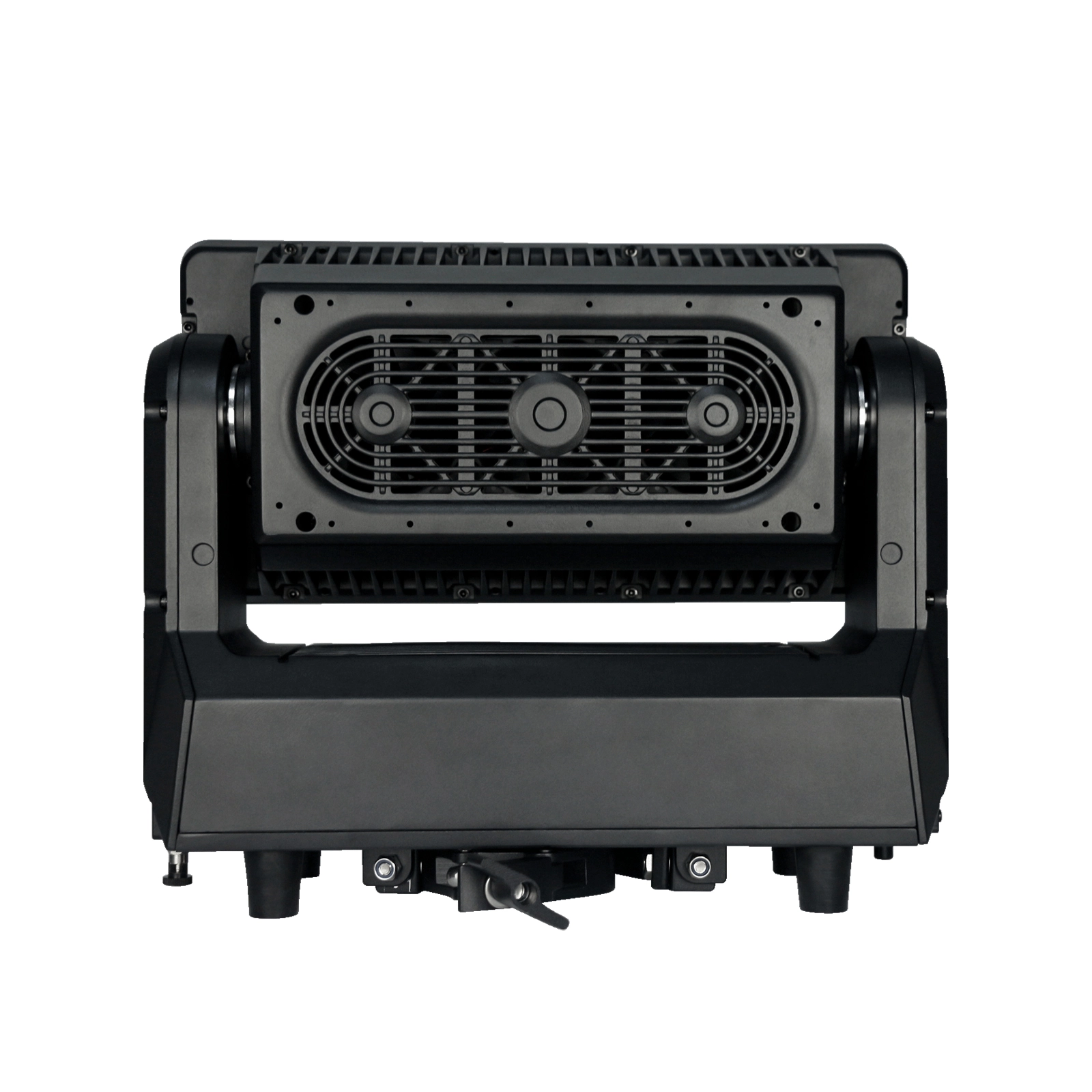

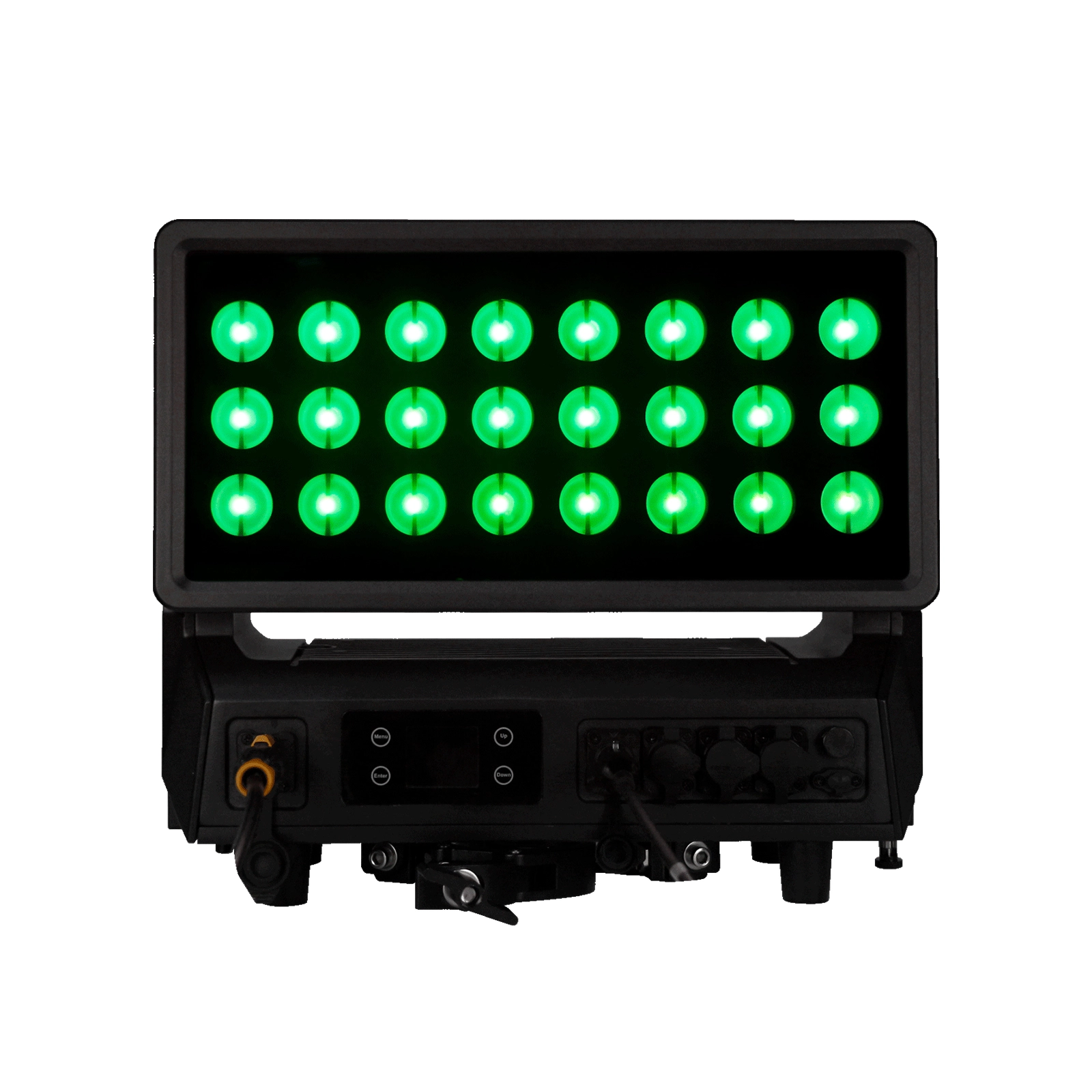

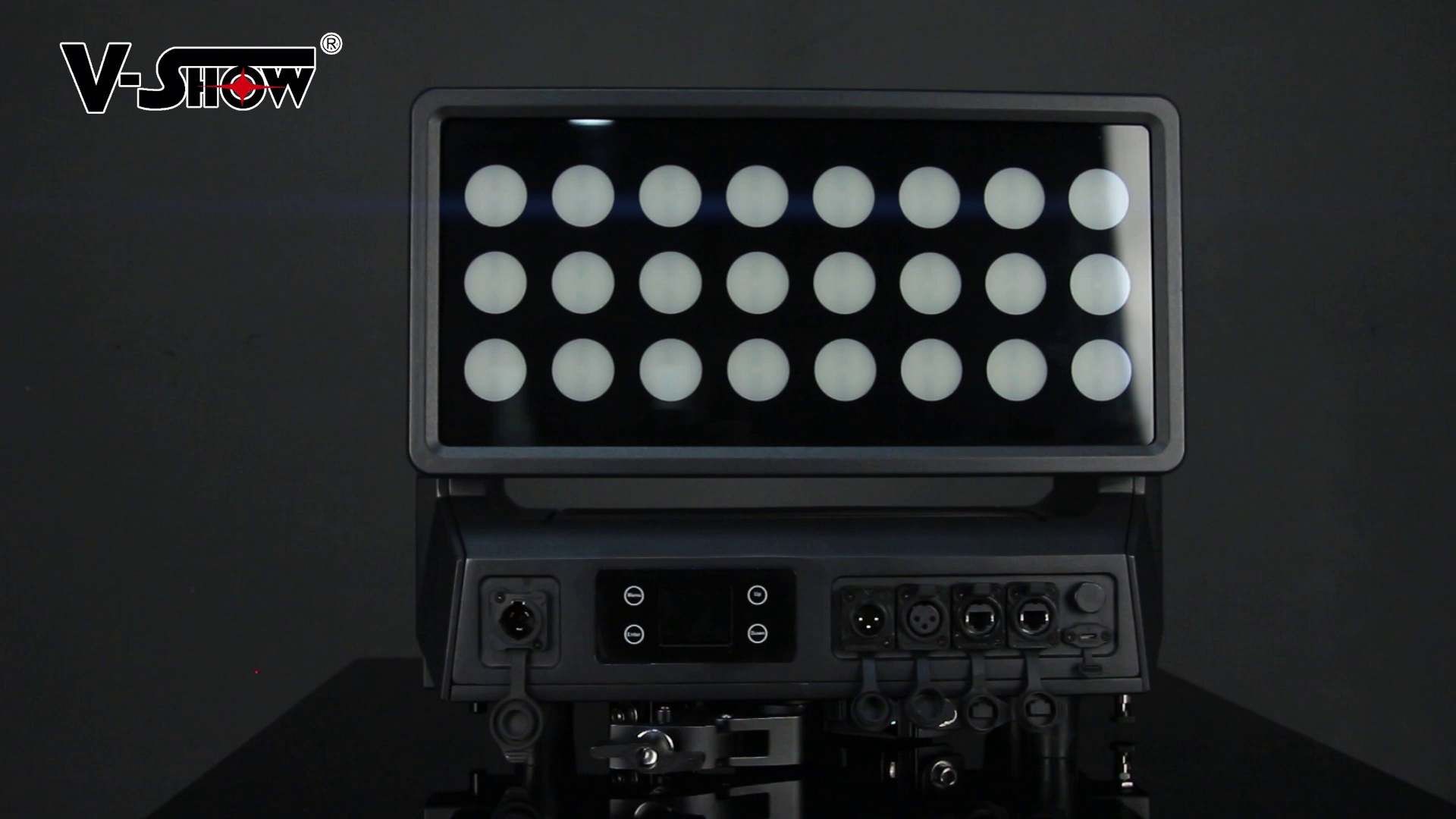

VSHOW Q12 Stormwash 12×40W RGBW 4IN1 Pixel Control Zoom LED Moving Head Light

The VSHOW Q12 Stormwash 12×40W RGBW 4in1 Pixel Control Zoom LED Moving Head Light delivers precise color mixing and dynamic pixel effects for stage and event lighting. Designed for versatility and reliability, it features smooth zoom and advanced pixel control to enhance visual impact in professional setups.

Brand Name

VSHOW

Input Voltage

100-240V, 50/60Hz

Light source

24PCSx4W RGBW 4IN1 LED；24PCSX40W RGBW 4IN1 LED

Place of Original

Guangdong,China

DMX outputs

3-pin OR 5-pin waterproof XLR sockets ,And RJ45Ethernet

Control Mode

DMX512/Auto/master-slave/ RDM/ART-NET/SACN

Net Weight

11.5kg

LED life

>20000Hour

DMX Channels

29/78/150/222/314 CH

Dimming mode

0-100% smooth linear dimming

Strobe

1-25HZ strong output flicker effect

Dimming

0-100%16BIT smooth linear dimming

Display

LCD display

Signal input/output

3-pin OR 5-pin waterproof XLR sockets ,And RJ45Ethernet

Power socket

Waterproof power connector input

Protection Rating

IP65

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

VSHOW Q12 is a 12×40W RGBW 4IN1 LED moving head light featuring independent pixel control and variable zoom. Supports DMX, Art-Net and RDM, ideal for concerts, theatres and event productions.

Parameters

Input Voltage	100-240V, 50/60Hz	Dot light source	24PCSx4W RGBW 4IN1 LED
Power consumption	760W	Cell light source	24PCSX40W RGBW 4IN1 LED
Power Supply	900W	Dimming	0-100%16BIT smooth linear dimming
Update	Support USB update and upgrade	Dimming Mode	mode1(fast),mode2(Medium) , mode3(slow)
Strobe	1-25HZ strong output flicker effect	Dimming Frequency	1000hz/2000hz/4000hz/6000hz/25K/64K
Lifetime	>20000 hours	Dimming curve	linear, square law, Inverse square law, S-curve

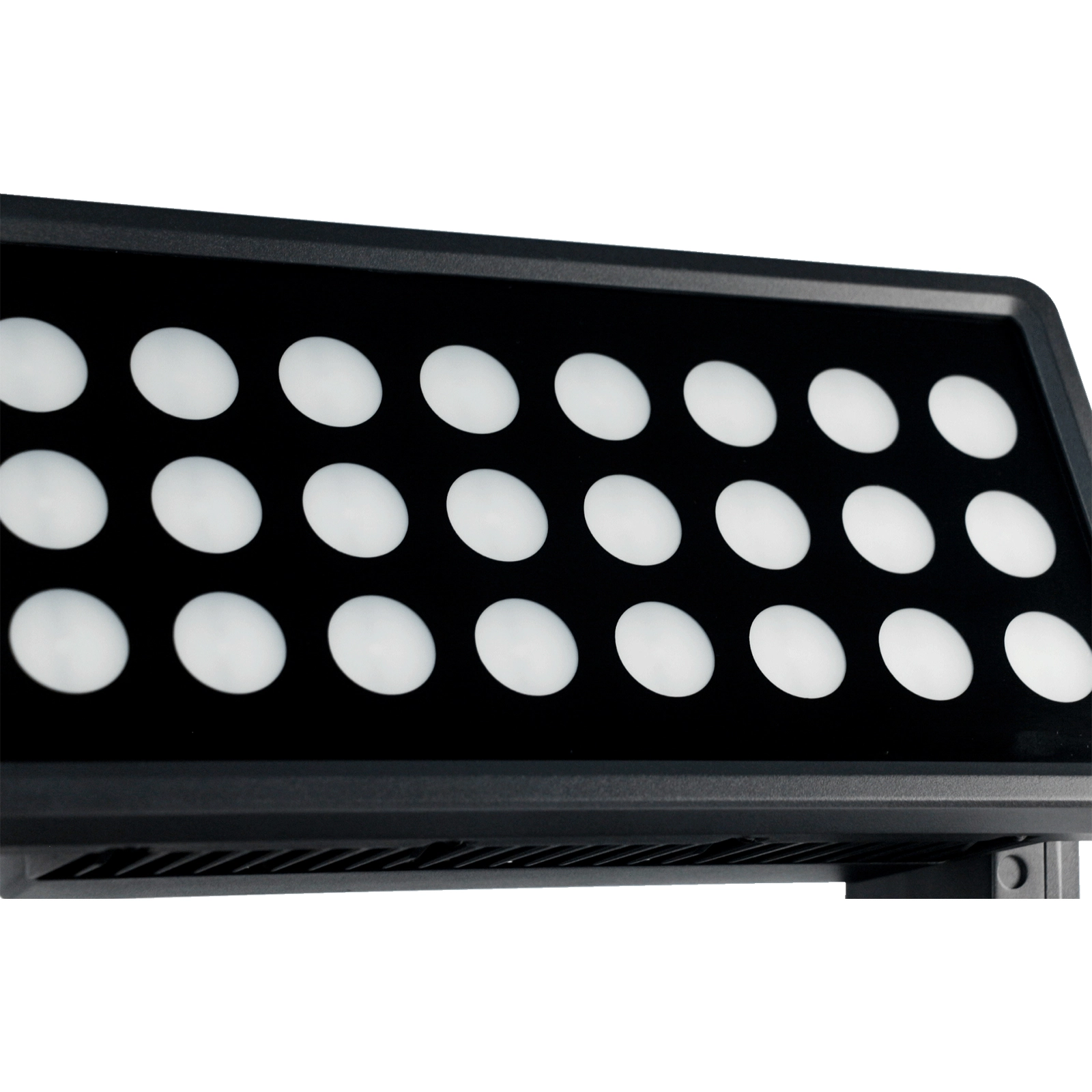

Pixel matrix	Dot LED Each cell is independently controlled Cell LED Each cell is independently controlled	Color System	Excellent Color Macro Effects Powerful color mixing effect Rich built-in macro effects
Control Panel	LCD display	Protection Grade	IP65

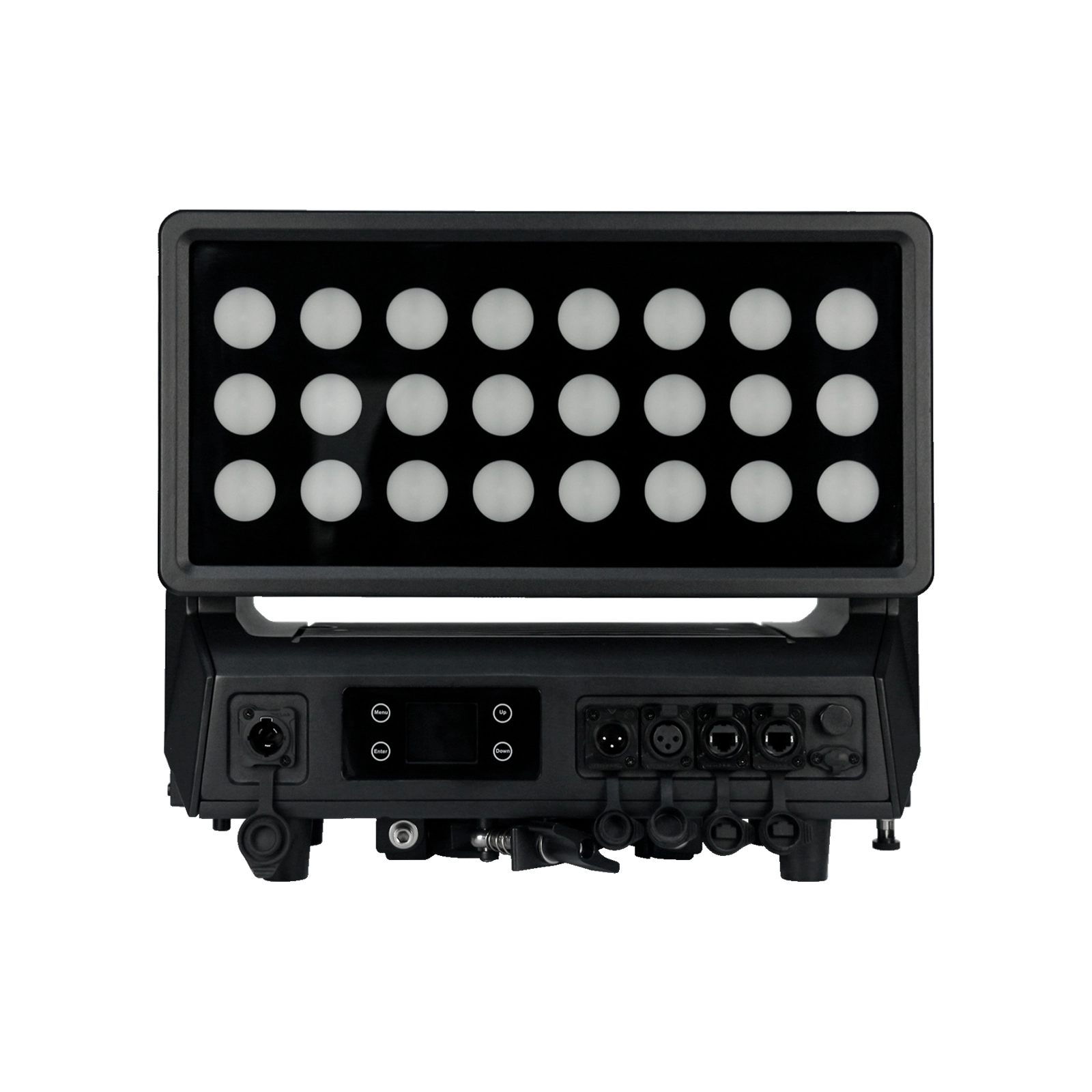

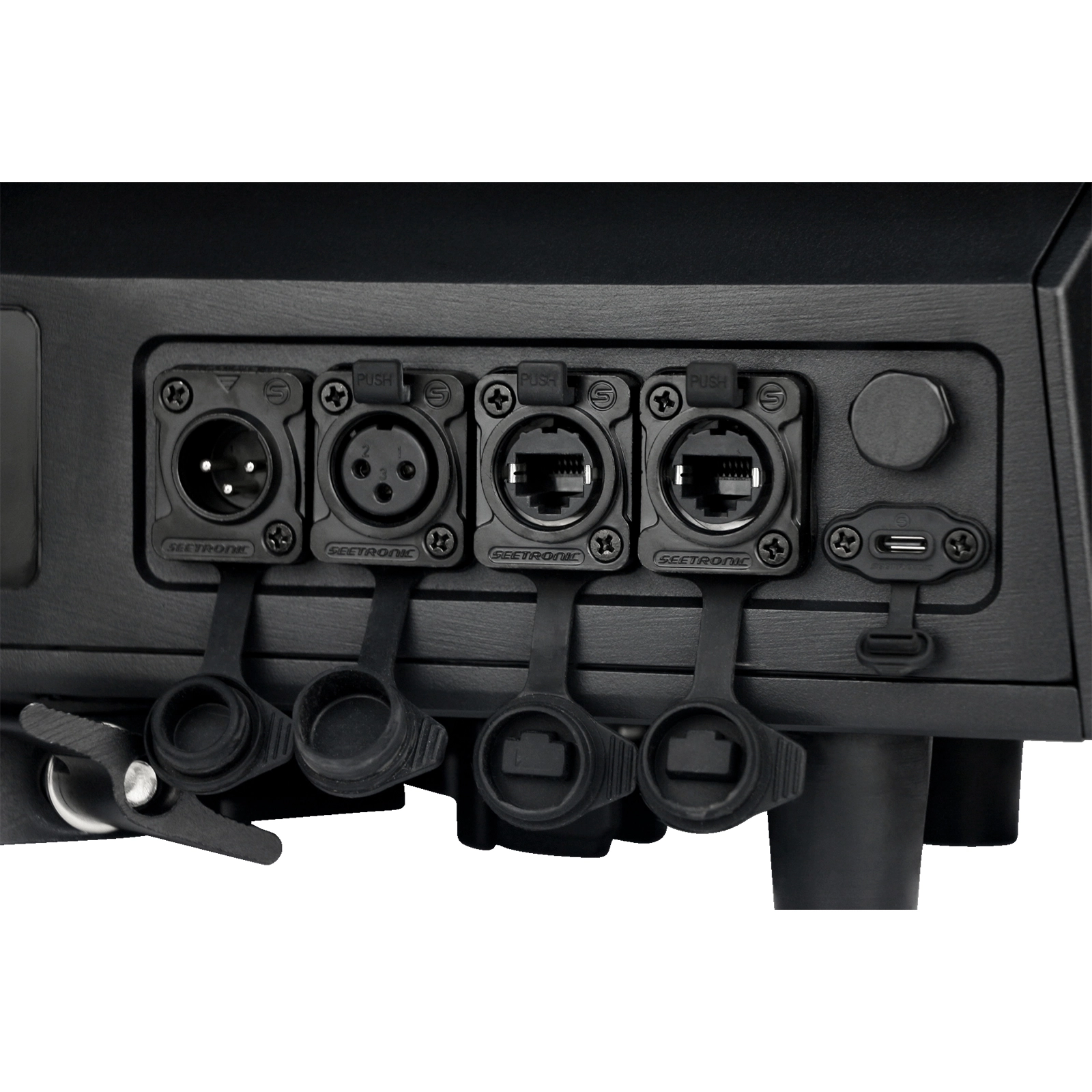

Power socket	Waterproof power connector input/output	Signal socket	Waterproof 3 PIN XLR /5PIN XLR socket and RJ45 Ethernet
DMX Channel	Single control :29/78/150/222/314ch Movement :30ch Dual control pixels :30+144ch /30+192ch 30+240ch /30+288ch Multi-layer pixels:30+72+96ch 30+96+72ch 30+96+96ch 30+120+120ch 30+120+144ch 30+144+120ch	Operate mode	DMX512/Auto/master-slave/ RDM/ART-NET/SACN
Net Weight	11.5kg	Gross Weight	14kg
Fixture size	406x202x335mm	Package size	1045459cm/ 83kg (Flight case 4 in 1）

Details & Features

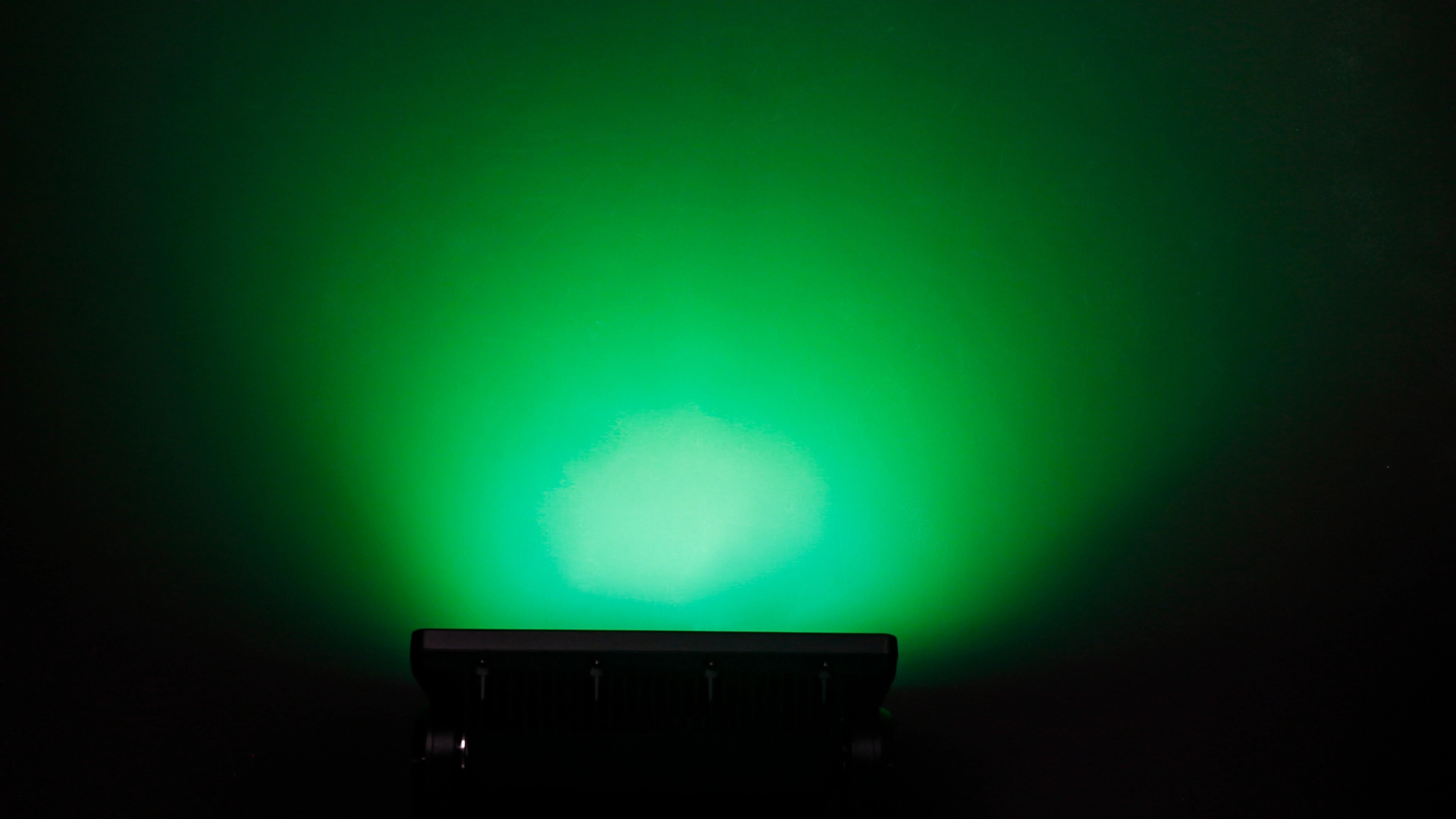

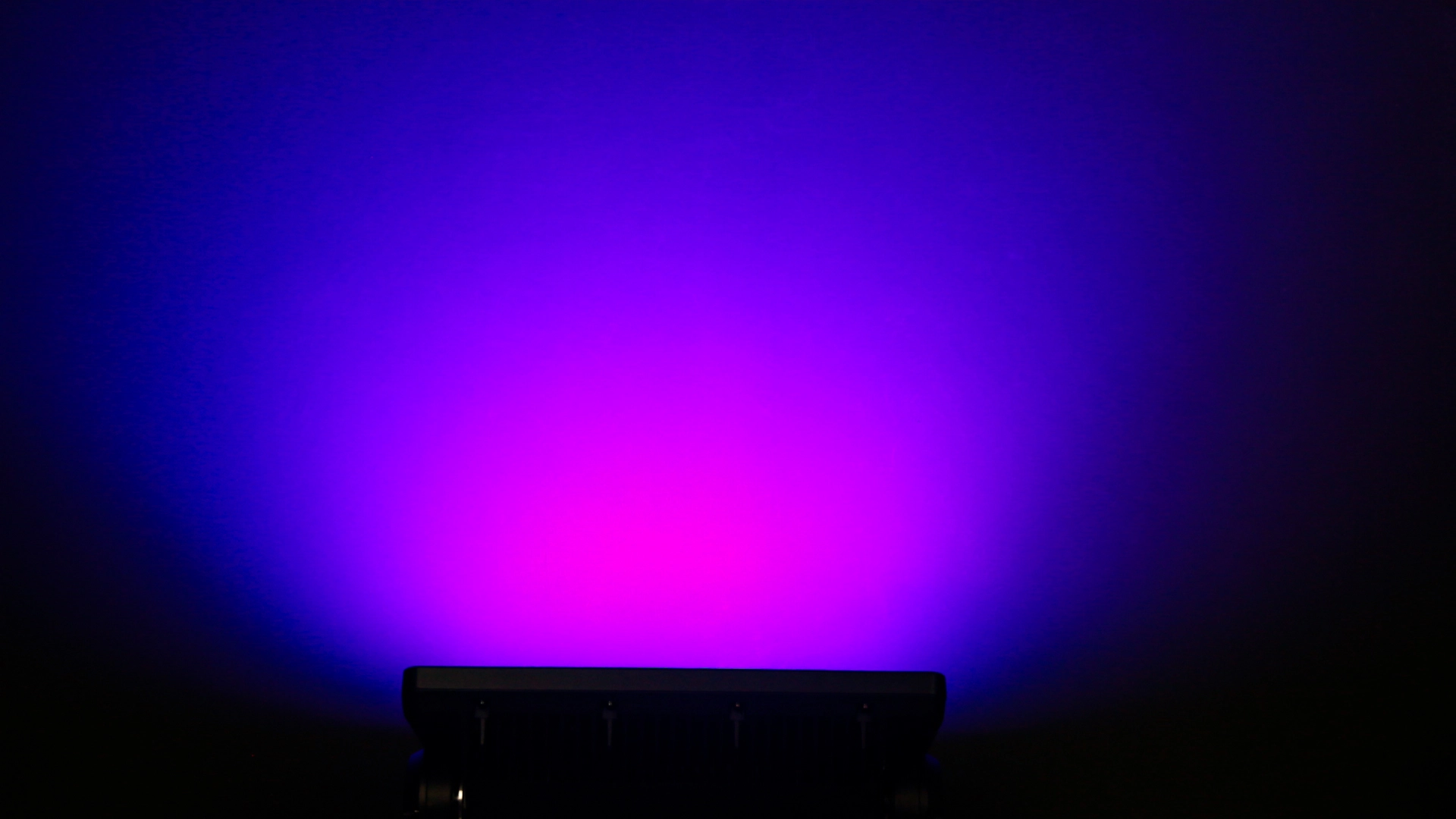

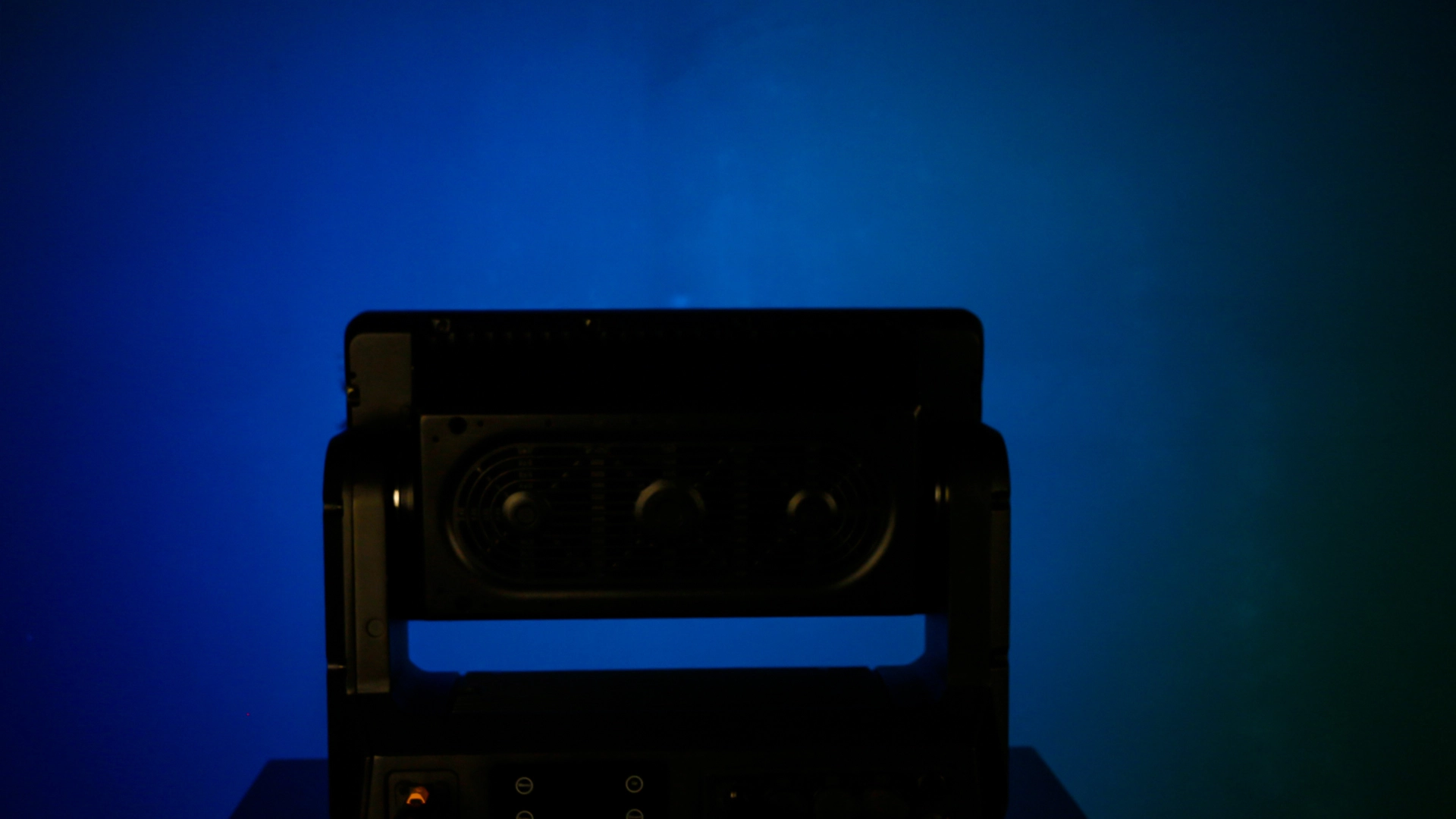

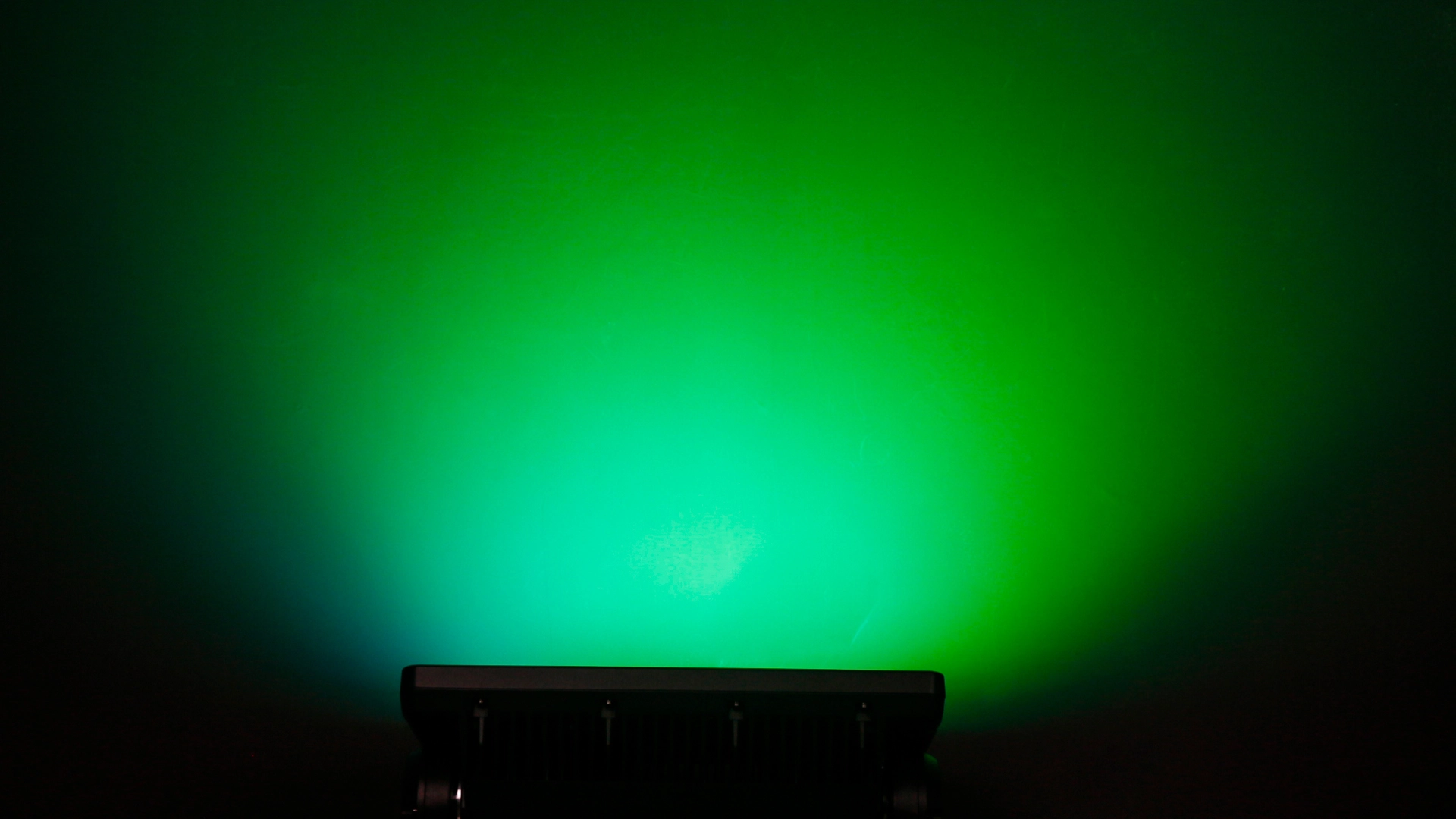

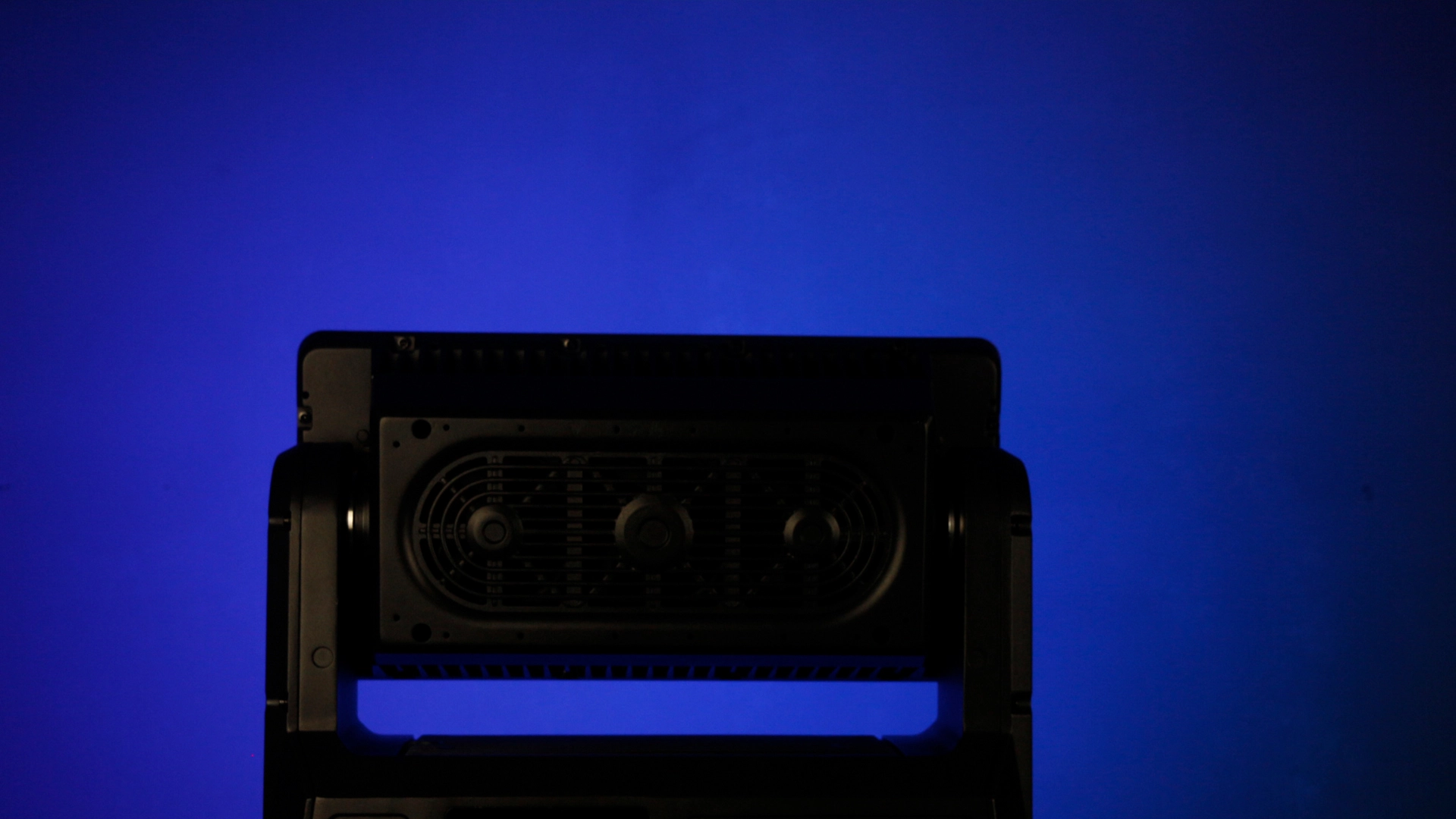

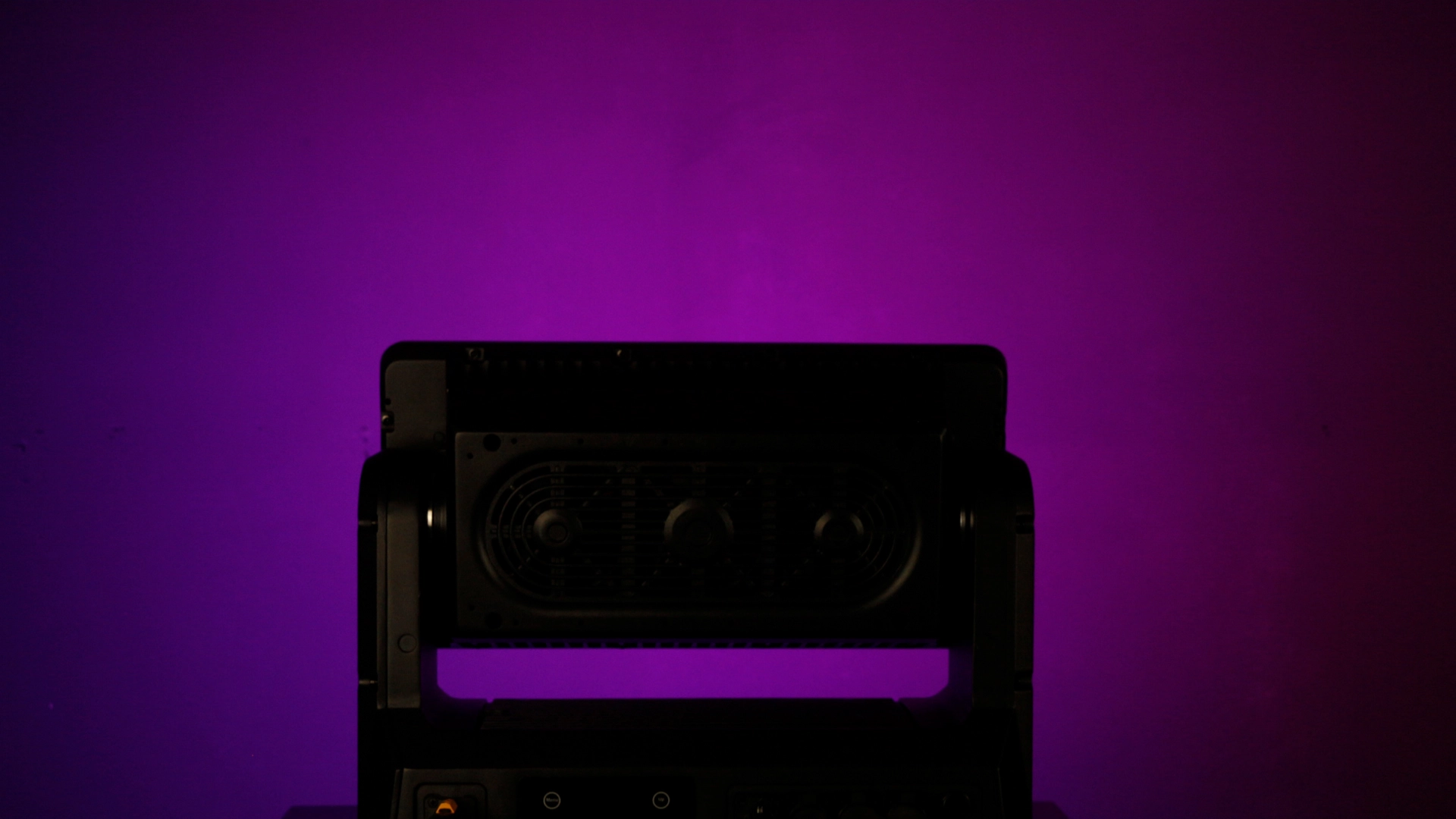

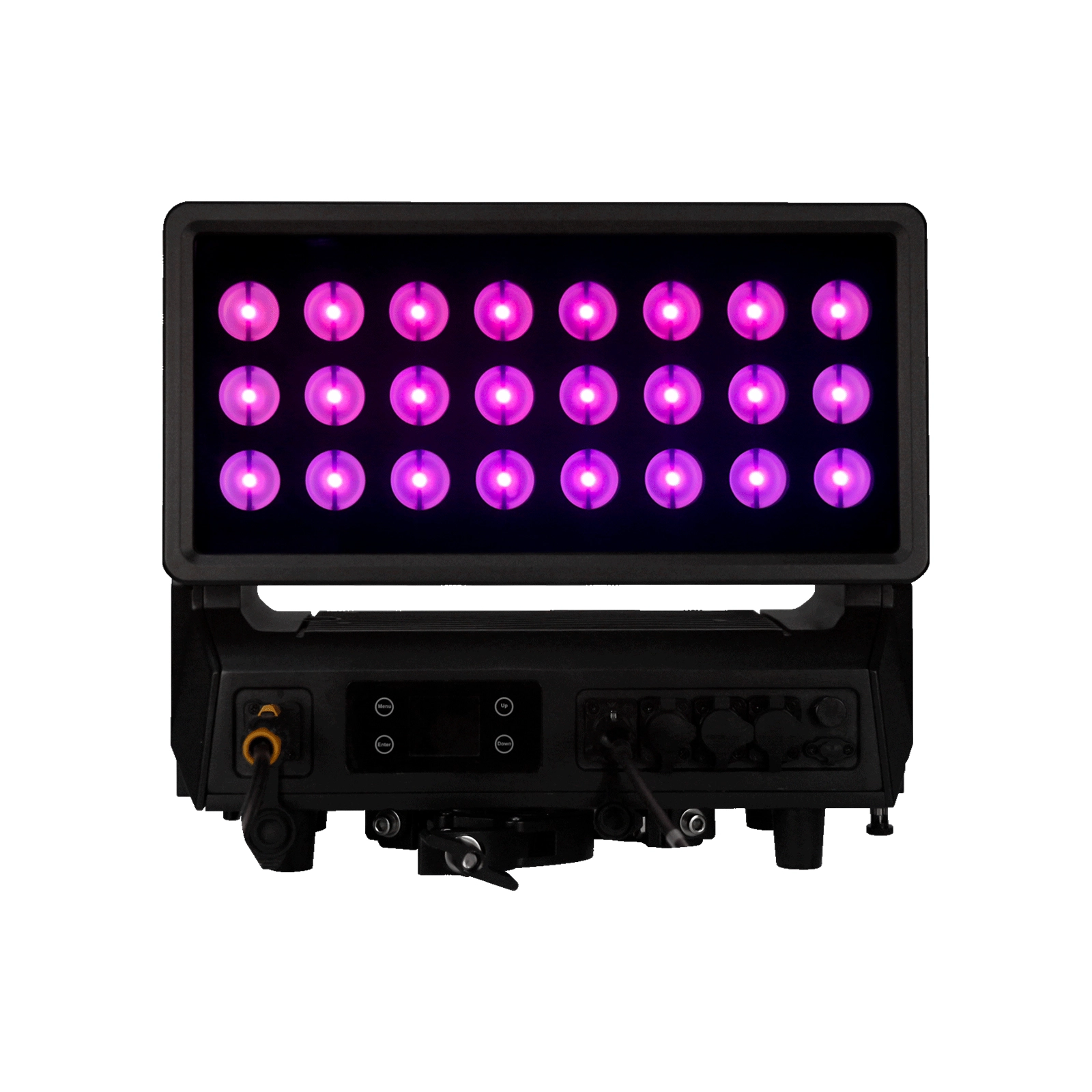

Excellent color mixing effect

• Color temperature adjustable 2500-10000K

• Fan speed can be controlled on the console

Download

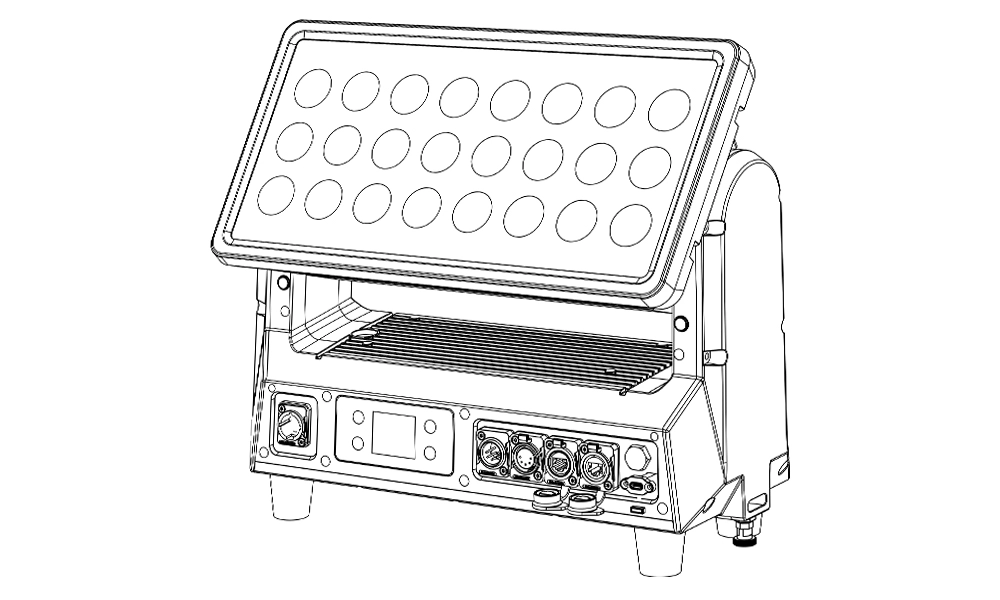

Q12 USER MANUAL

DOWNLOAD

Q12 DWG

DOWNLOAD

Q12 MA

DOWNLOAD

Q12 D4

DOWNLOAD
