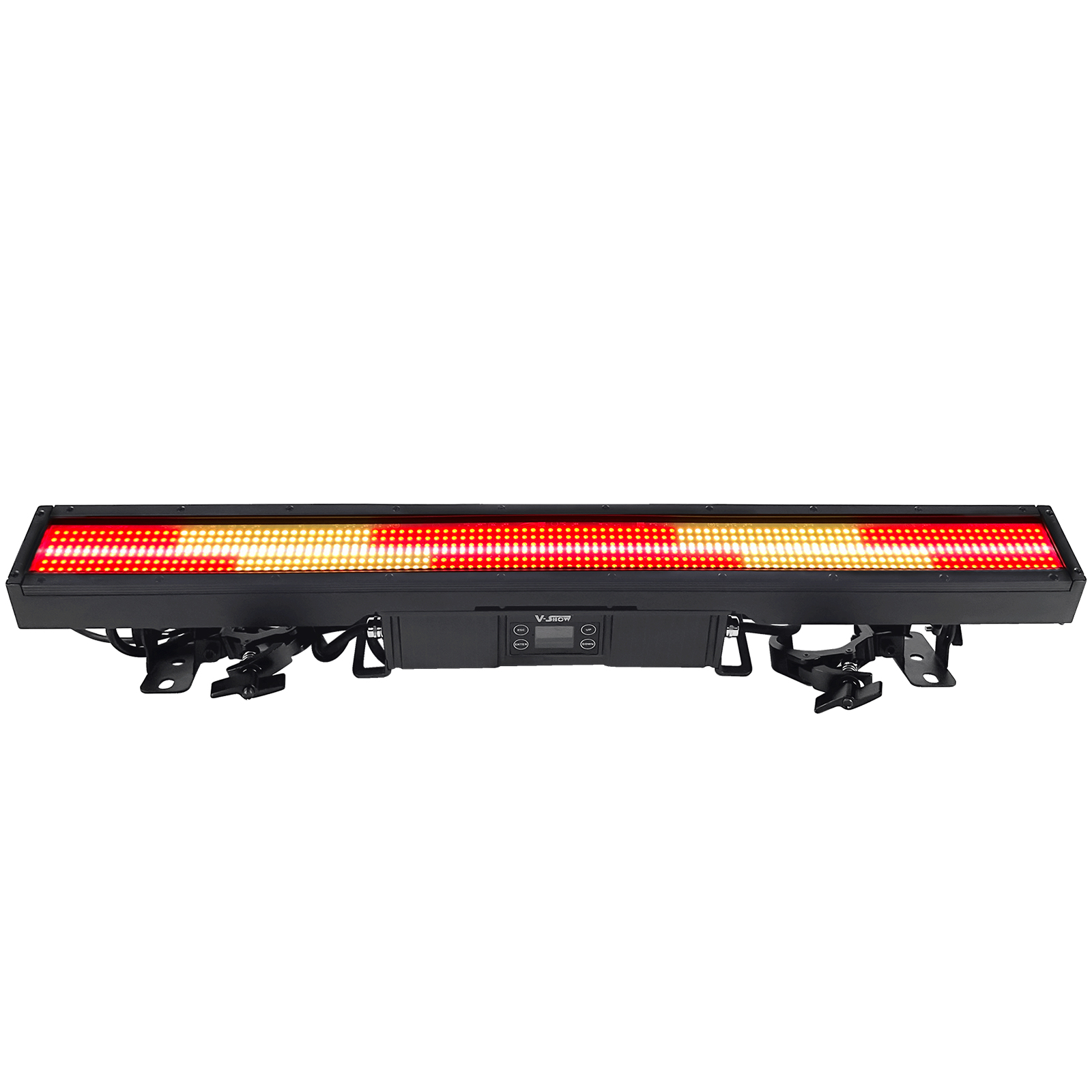

VSHOW 3IP Pixel Line IP65 LED Strobe Bar | RGB+CW Pixel Control Stage Light for Outdoor Events, Concert & Church

This 3IP Strobe and Pixel light pairs IP65-rated protection with RGB+CW pixel control for outdoor events, concerts, and church productions. The VSHOW 3IP Pixel Line LED strobe bar delivers coordinated flashes and color effects in one fixture.

Brand Name
VSHOW
Input Voltage
AC100~240V 50/60HZ
Power consumption
400W
Light source life
>20000 hours
Place of Original
Guangdong,China
DMX channel
15/07/17/21/33/39/65/68/70/85/112/117CH
Working temperature
-10℃~55℃
Net Weight
9KG
DMX Channels
15/07/17/21/33/39/65/68/70/85/112/117CH
Dimming mode
0-100% smooth dimming
IP
65
Fixture size
986x102x146mm
Voltage
100-240V, 50/60Hz
Strobe
1-25Hz High output strobe effect
Dimming
0-100% smooth dimming
Display
OLED display
Signal input/output
3pin waterproof XLR socket (optional with 5pin)
Power socket
waterproof power connector input/output
Protection Rating
IP65
Main light
672pcs 0.5W 5050 RGB LED
Auxiliary light
112pcs 3W 3535 White LED

Return Tips   After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection   Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Function description

Introducing the VSHOW V9 IP66 Outdoor Strobe Light, designed for clubs seeking robust performance. With CW 260*3W and RGB 650*0.5W LEDs, it delivers vibrant, weather-resistant illumination. Ideal for any event, this IP66-rated strobe light ensures longevity and brightness, enhancing your club's atmosphere with unrivaled energy and color.

Parameters

RGB power: 300W

 Input Voltage

100-240V, 50/60Hz

Light source

   672pcs 0.5W 5050 RGB LED

Power supply

600W
Auxiliary light
112pcs 3W 3535 White LED

Power consumption

400W
Strobe
1-25Hz High output strobe effect
W Power
260W
  Color temperature
7000-7500K

RGB Power

300W
Dimming
0-100% smooth dimming
Pixel matrix
White: 16pcs White LED zones can be controlled individually
RGB: 32pcs RGB LED zones can be controlled individually
Color System



Excellent color mixing effect



Control Panel

OLED display

Protection Grade IP65
Power socket Waterproof power connector input/output

Signal socket

Waterproof 3 PIN XLR /5PIN XLR socket and RJ45 Ethernet

DMX Channel

15/07/17/21/33/39/65/68/70/85/112/117CH

Operate mode

DMX512, Auto,Master/slave, sound active/RDM
Net Weight 8.8kg

 Gross Weight

10.5kg

Fixture size

986x102x146mm

 Package size

   109*25*21cm/ 10.2kg (Carton)
