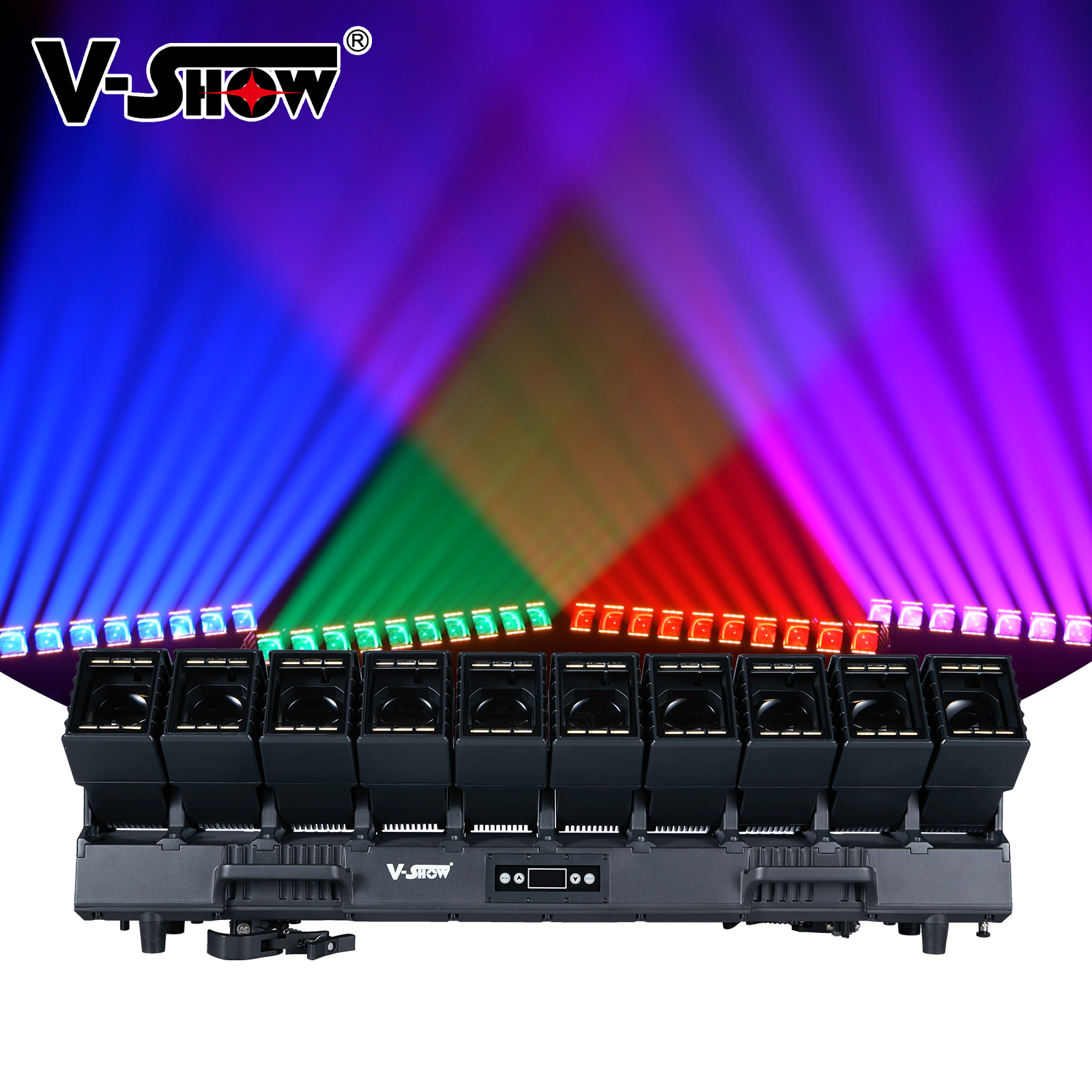

W1060 10×60W RGBW Waterproof Matrix Moving Bar Light | All-in-One Professional Lighting Master

Intro: One Light for All Scenes, Indoor & Outdoor Universal Lighting Solution

Lighting is the core soul of stage performances, immersive cultural tourism and commercial events. Conventional stage lights suffer from single functions, poor outdoor adaptability and complicated signal wiring, failing to meet diverse visual demands of music festivals, outdoor scenic shows, theaters and nightclubs.

The W1060 professional long matrix moving bar integrates independent 10-head main pixel matrix, dual-color auxiliary strobe, 4°-40° motorized zoom, IP65 full waterproof rating and multi-protocol intelligent DMX control system in one unit. It delivers beam cutting, wash lighting, pixel chase effects, dynamic strobe and adjustable color temperature in a single fixture. Breaking the barrier between indoor and outdoor lighting equipment, it unlocks unlimited creative possibilities for lighting designers.

1. Premium Dual-Layer LED Light Source, Rich & Delicate Color Gradients

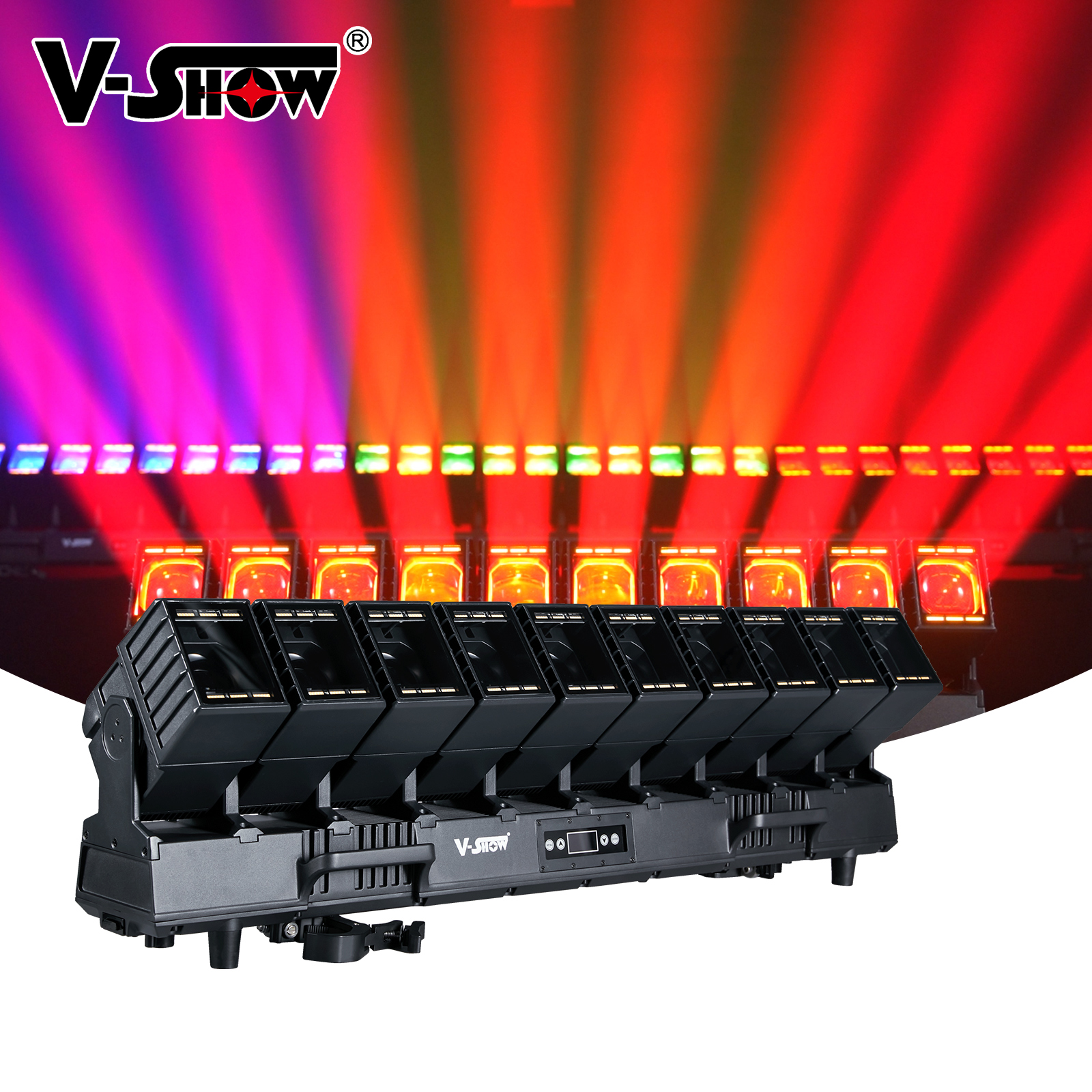

Main Source: 10PCS 60W RGBW 4-in-1 Independent Pixel Matrix

Equipped with ten high-power 60W RGBW 4-in-1 LED chips with 17-segment separate pixel control. Each moving head supports independent tilt movement, color tuning and dimmer adjustment, enabling stunning linear running water, dot matrix chase and layered beam animations. Built-in adjustable CTO color temperature system covers a full spectrum from warm 2700K soft ambient light to crisp 7500K cool highlights. Seamless color mixing and pre-programmed color macros deliver smooth fade and jump color effects without color banding. 4°~40° continuous motorized zoom switches freely between sharp narrow beam for long-distance penetration and wide flood mode for full-space coverage. It eliminates the need for separate beam and wash lights, drastically cutting your fixture inventory.

Dual Auxiliary Strobe Matrix for Immersive Atmosphere

Built-in 360PCS 0.5W cool white + warm white auxiliary LEDs with dual control modes: 60 independent segments or 10 grouped segments, which can work synchronously or separately with the main lights. Wide-frequency strobe range from 1Hz to 25Hz, covering 10 strobe styles including random flash, pulse burst, fade strobe and variable-speed flicker. 6 adjustable PWM frequencies (600Hz–15000Hz) eliminate moiré and flicker for live streaming, TV recording and outdoor film shooting. LED service lifespan exceeds 20,000 hours, ensuring stable performance for long-hour heavy-duty events and minimizing post-event replacement & maintenance costs.

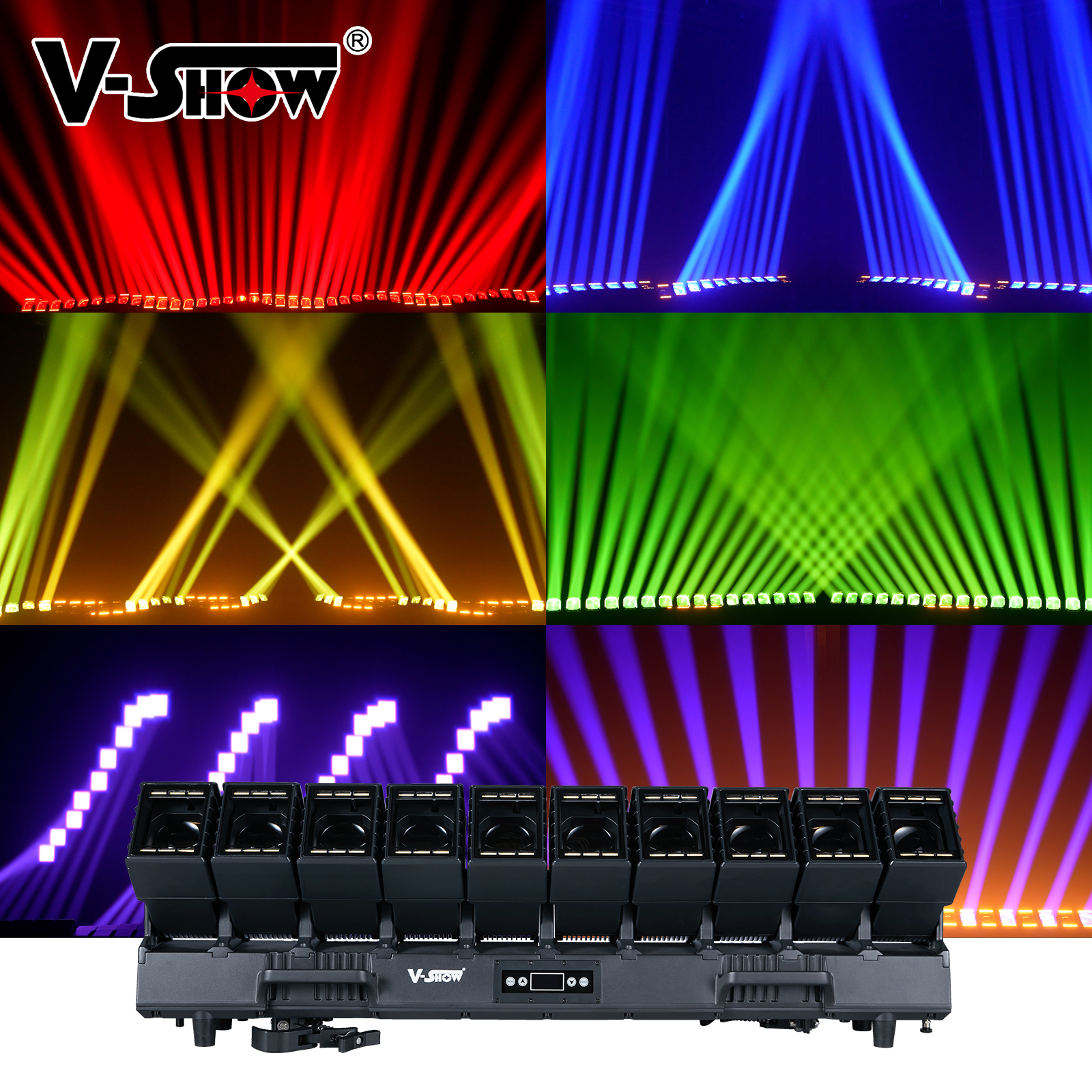

2. IP65 All-Weather Protection, Ultra-Wide Temperature Compatibility (-40℃ ~ 45℃)

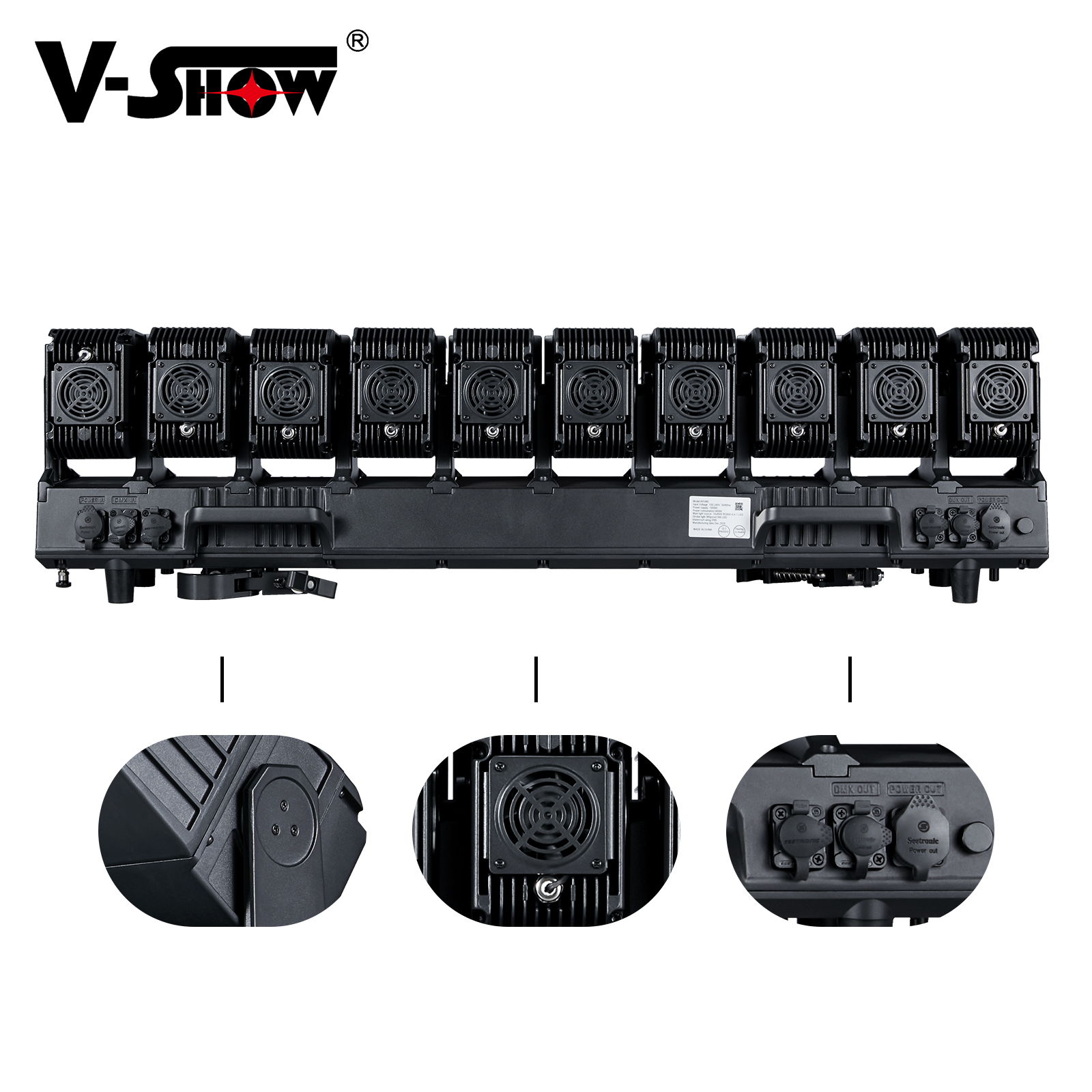

Engineered for humid and harsh environments with full IP65 dustproof & waterproof housing. All power connectors, 3/5-pin XLR signal ports and RJ45 Ethernet ports adopt fully waterproof design, perfectly suitable for rainy outdoor music festivals, coastal scenic lighting, open-air tours and damp underground clubs. Boasts an industry-leading ultra-wide operating temperature range: withstands -40℃ frigid winter outdoor events and 45℃ scorching summer open-air carnivals, stable operation all year round across global regions. Optimized internal ventilation structure ensures efficient heat dissipation when a minimum 50cm clearance is reserved between the fixture and surrounding surfaces. Three fan modes (Auto / Slow / Fast) are selectable for quiet indoor shows and high-heat outdoor use. Net weight: 30kg with robust integrated aluminum alloy frame. Dual safety protection via factory-supplied safety cable and reinforced hanging brackets complies with global stage rigging standards. Supports both overhead truss mounting and ground placement; recommended installation on walkways or spectator-free zones to avoid accidental touch by unauthorized personnel.

3. 6 DMX Channel Modes & Full Protocol Compatibility for Professional Control

6 Customizable DMX Channel Profiles for Different Precision Needs

Six built-in channel modes for flexible programming from quick setup to pixel-level detailed editing:

· 29CH Basic Mode: Fast setup for small bars & commercial shows

· 56CH Intermediate Mode: Independent tilt & zoom control for 10 heads, ideal for medium-sized galas

· 142CH / 216CH Professional Pixel Modes: 16-bit fine RGBW control per individual LED, segmented auxiliary light adjustment

· 262CH / 282CH Flagship Full Modes: Independent cold/warm white dimming for 60 auxiliary segments, ultra-smooth 16-bit grayscale, dedicated for large music festivals, immersive light shows and TV studios

Universal Industry Protocols & Stable Signal Transmission

Fully compatible with DMX512, RDM, Art-Net and sACN mainstream lighting control protocols. Daisy-chain multiple units via screened 3-pin XLR cables. For long-distance wiring or electrically noisy venues (discos, industrial plazas), install a 120Ω DMX terminator on the last fixture’s output socket to eliminate signal interference, preventing light flickering or signal loss. High-definition OLED display with English & Chinese bilingual menu for intuitive operation. Long press ENTER for 5 seconds to unlock system settings; quickly adjust DMX address, channel mode, dimming curve, pixel inversion, motor calibration, fan speed and network parameters. Check fixture runtime data or restore factory defaults with one click. 4 adjustable dimming curves (Linear, Square Law, Inverse Square Law, S-Curve) + fast/slow dimming speed options. Master-slave synchronization and standalone auto-run modes are available for events without a DMX controller, great for rental companies and temporary pop-up activities.

4. Industrial-Grade Safety Design, Comprehensive Risk Prevention

1. Electrical Safety: Wide input voltage AC100-240V 50/60Hz fits global mains supply. Mandatory yellow-green ground wire connection prevents electric shock. Anti-crush power cable design; replace damaged cables with original spare parts immediately. Do NOT connect to dimmer packs.

2. Mechanical Protection: Tilt motor reverse function, one-click tilt/zoom/all-reset functions, built-in tilt macro programs with adjustable swing range and speed to avoid motor overload damage.

3. Easy Maintenance: No user-serviceable internal components. Damaged housing, lenses or UV filters must be replaced by authorized professional technicians. Disconnect power supply fully before any inspection or repair. Use original packaging for long-distance transportation for shock resistance.

4. Fire Prevention: Keep all flammable materials at least 0.5m away from the running fixture. Prevent flammable liquid, water or metal debris from seeping into the housing. Regularly clean ventilation slots for dusty environments to extend fixture lifespan.

5. Wide Application Scenarios for All Lighting Projects

Large Outdoor Events

Music festivals, open-air concerts, city cultural light shows, scenic night tours, EDM outdoor parties, plaza galas, ice & snow carnivals, coastal holiday events. IP65 waterproof design handles rain, snow and extreme temperatures all year long.

Indoor Professional Performances

Theater dramas, variety TV studios, Livehouses, nightclubs & EDM venues, corporate annual galas, auto expos, wedding ballrooms. Stunning pixel chase effects build immersive atmosphere, flicker-free output for live streaming and video recording.

Commercial Landscape Lighting

Dynamic facade lighting for shopping malls, linear decorative lighting for pedestrian streets, art light exhibitions. All-in-one design cuts down fixture quantity, wiring labor and rigging costs for engineering projects.

Full Technical Specifications

Closing Words: Redefine Your Lighting Creation Boundaries

The W1060 long matrix moving bar stands out with four core strengths: multi-function integration, all-weather durability, pixel-level precise control and full protocol compatibility. It solves major industry pain points including redundant fixture inventory, poor environmental adaptability and limited control flexibility for lighting engineering, rental tours and cultural tourism projects.

Whether you are a lighting designer pursuing ultimate creative programming or an engineering contractor seeking cost-effective bulk deployment, the W1060 delivers rich, impactful and stable dynamic lighting effects as the core all-round fixture for all indoor & outdoor professional lighting projects.

Contact our sales team for bulk wholesale prices, customized engineering solutions, sample testing, complete DMX channel charts and official installation drawings.
