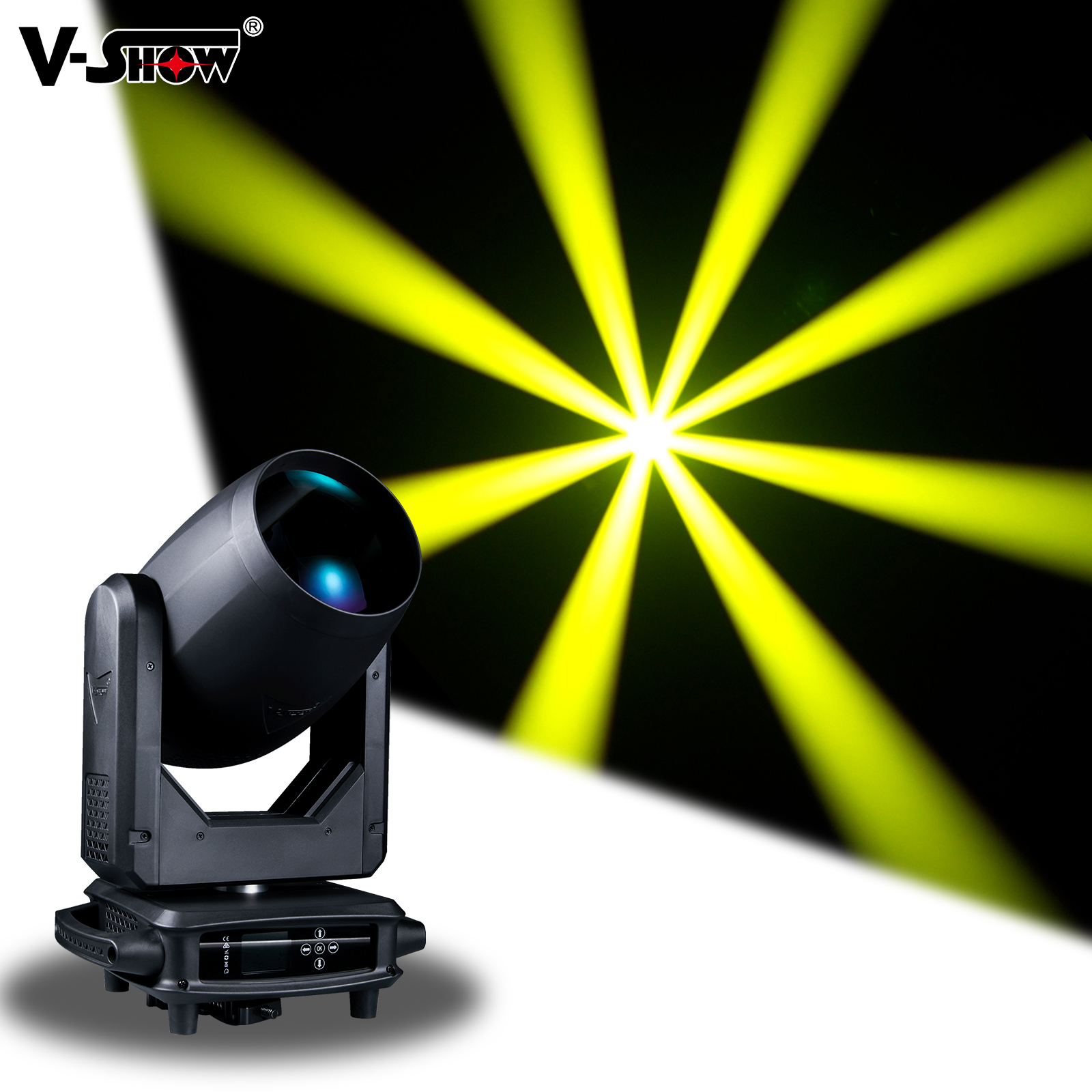

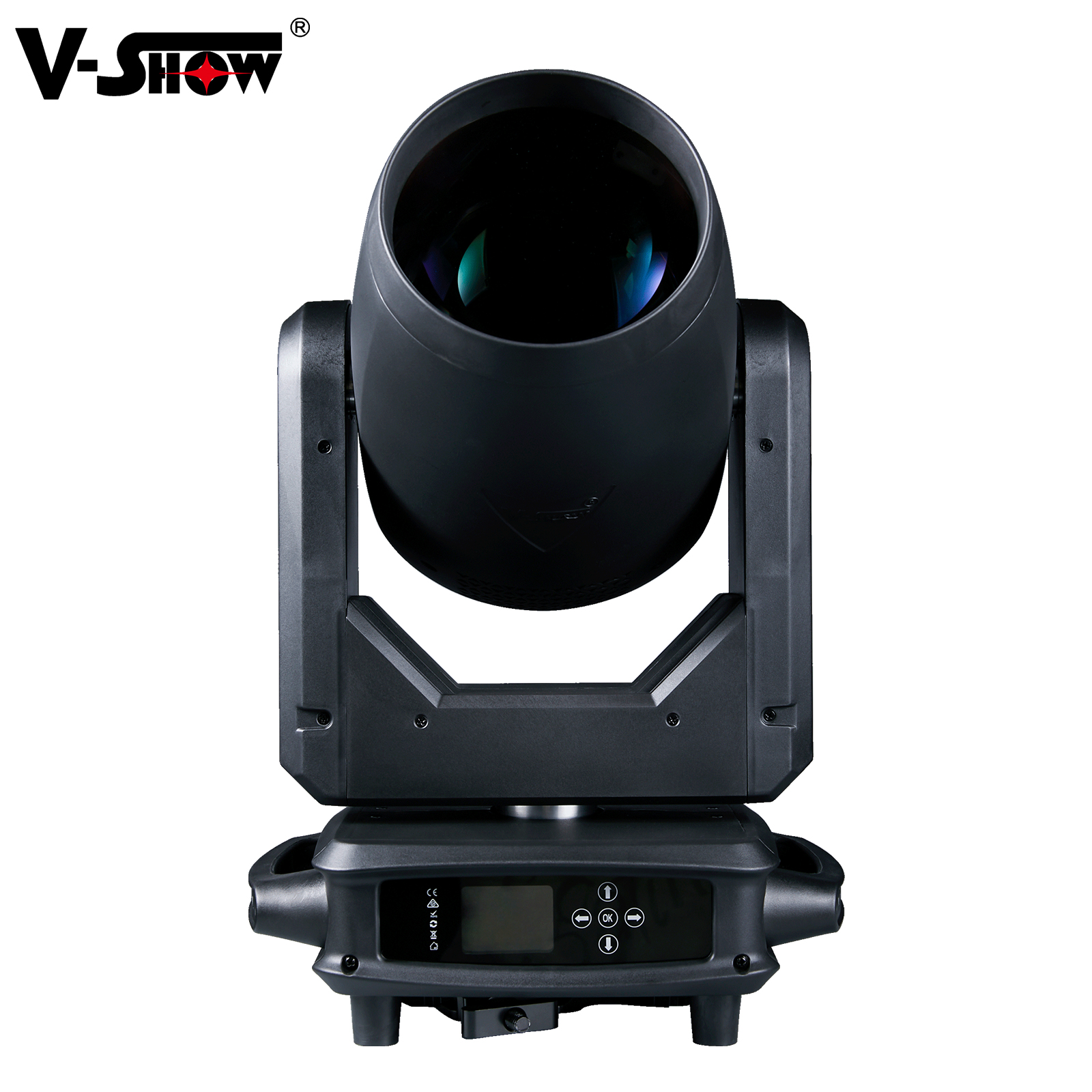

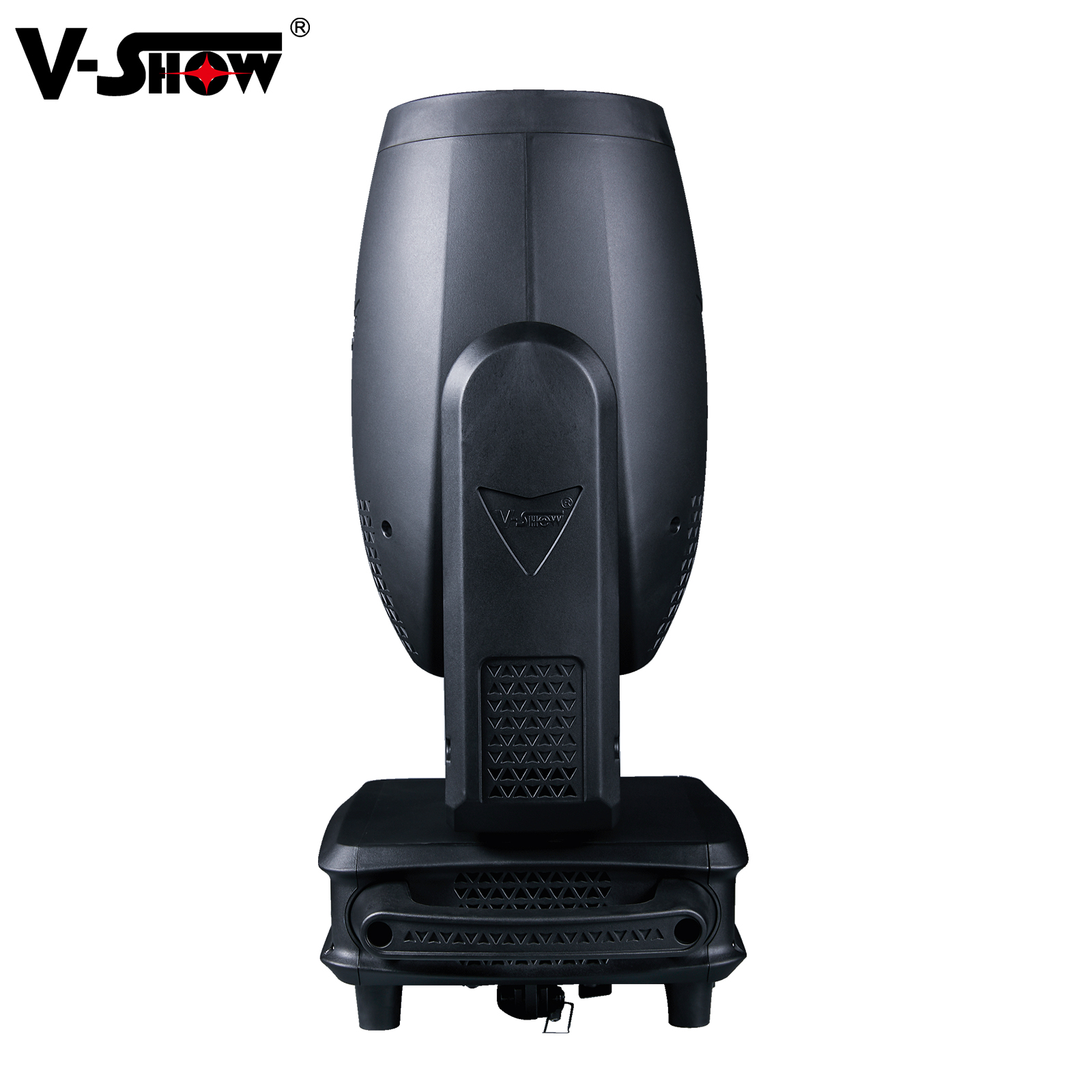

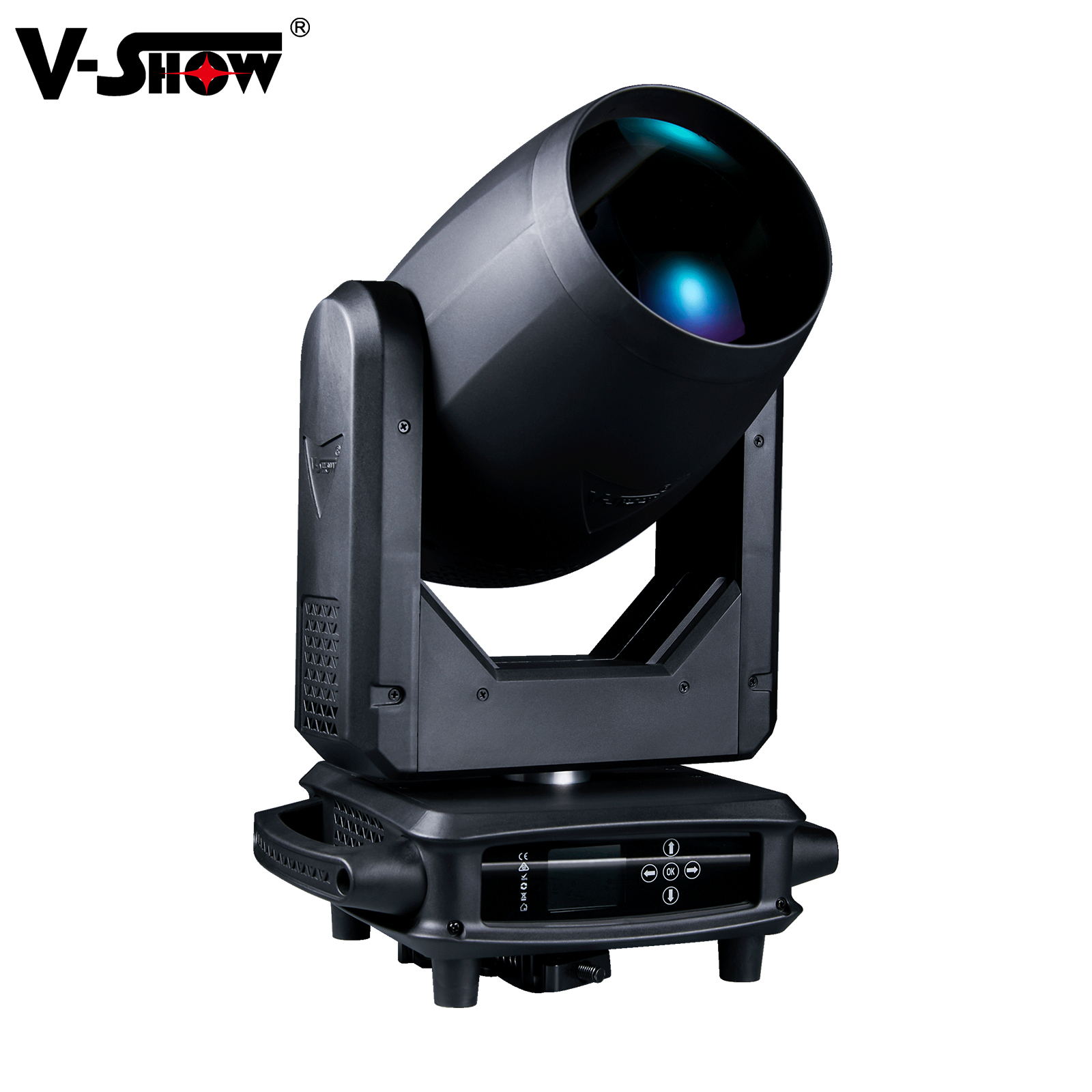

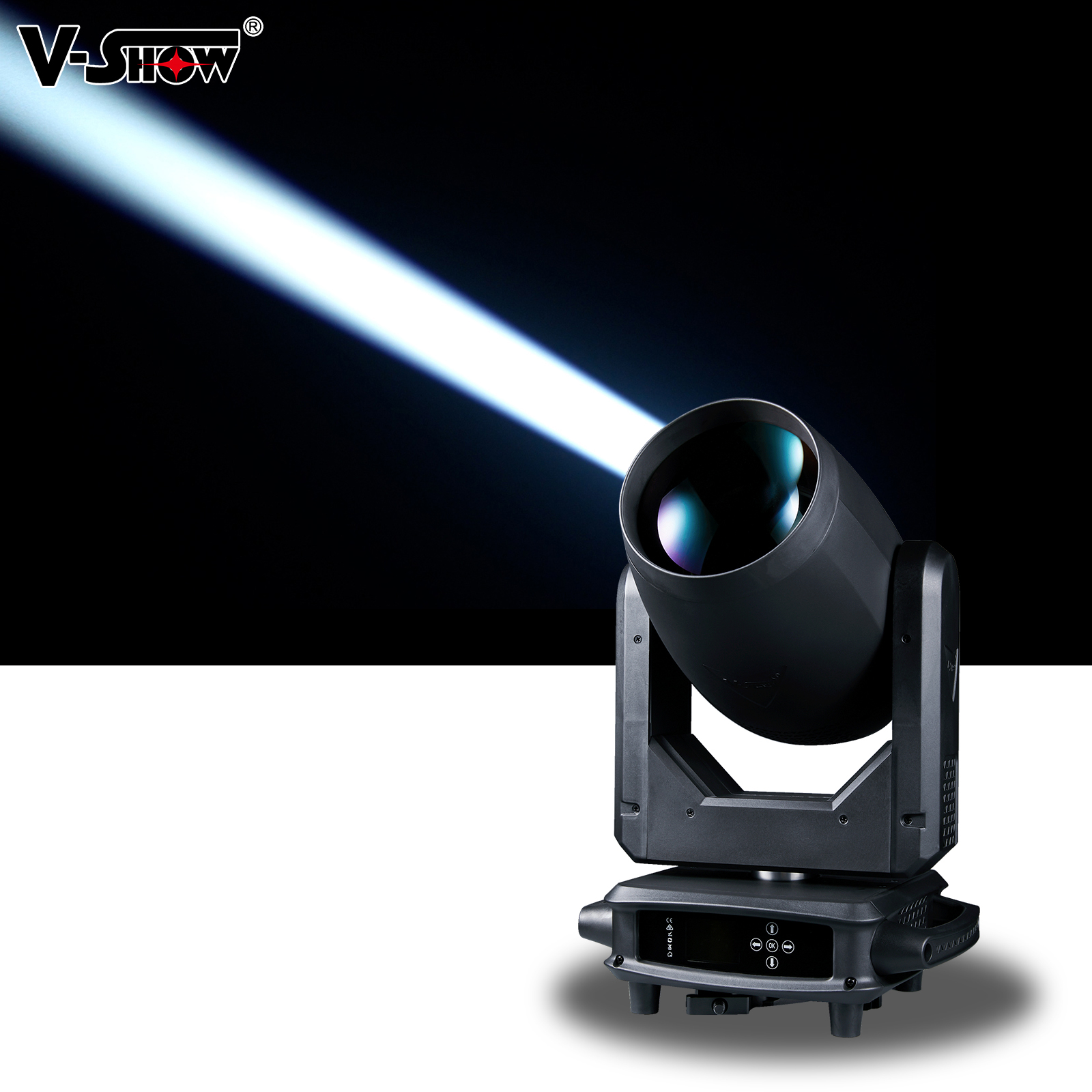

VSHOW T917 Professional 300W LED Beam Moving Head Light
This professional LED moving head light supports 100-240V universal voltage, with 350W power supply and 300W rated power. The dual-voltage design independently powers the LED driver and cooling & display system. It adopts a 9500K high-definition LED light source with 70CRI color rendering and over 20,000-hour lifespan. A 160mm large optical lens delivers ultra-precise 1.8° narrow beam long-distance projection. Featuring 17 DMX channels, 16-bit full-range smooth dimming with 4 adjustable curves and multi-speed strobe effects. It comes with rich optical effects: 14 fixed colors + white, 15 static gobos, dual stackable rotating prisms and a high-brightness frost sheet for soft wash lighting. Supporting DMX512, RDM, Auto and Master-Slave modes, it adopts SY three-phase motors and high-precision magnetic coding positioning with 540° X-axis and 270° Y-axis rotation. The LCD touch panel and overheating self-protection ensure stable, long-lasting professional stage operation.

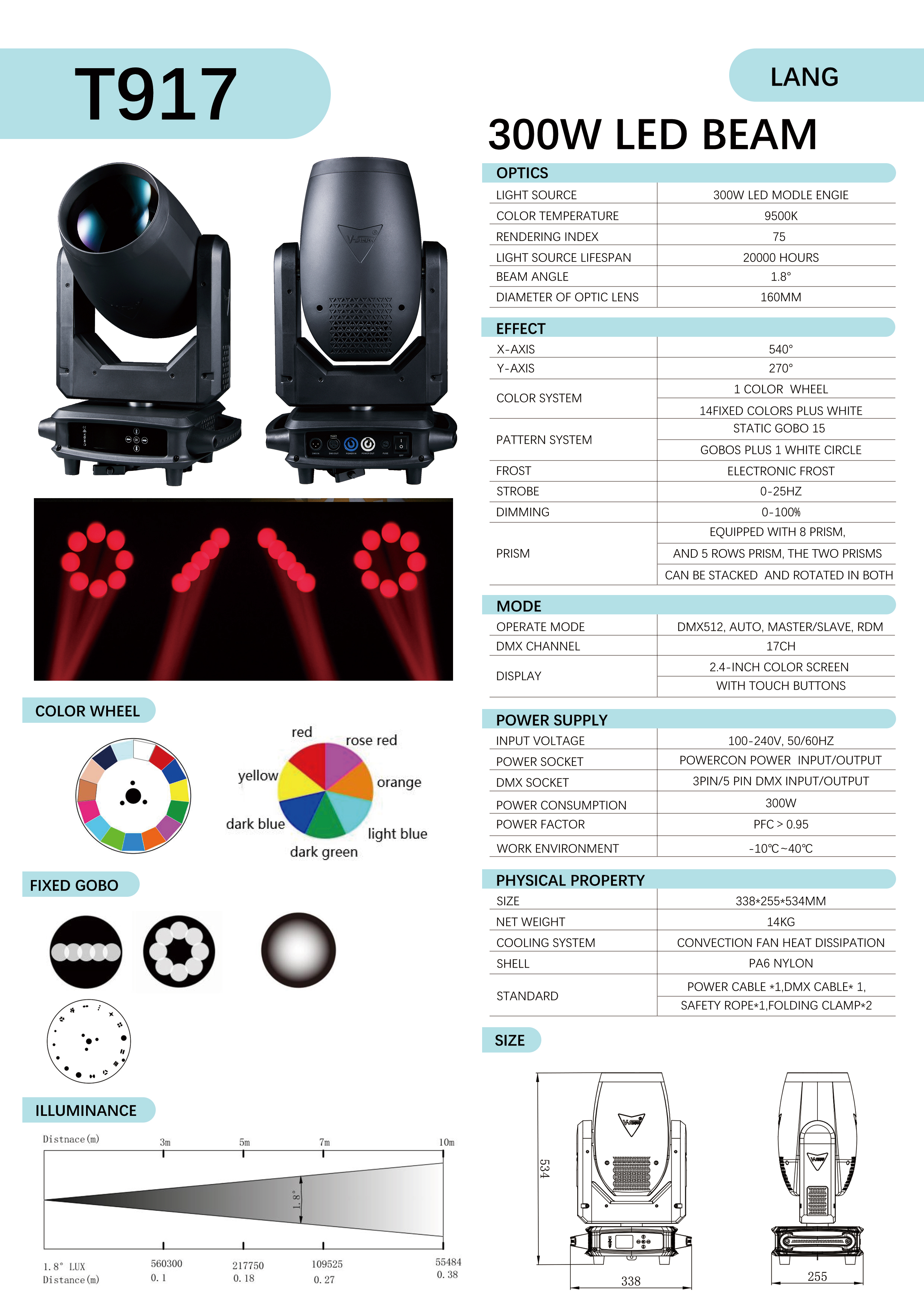

LED technical parameters
Input Voltage: 100-240V, 50/60Hz
Output Voltage: V1:36V:(LED driver)
V2:12V(cooling fan+Display)
Power consumption: 300W
Power supply: 350W
LED expected service life: ＞20000 hours
LED temperature: 9500K
Diameter of optic lens: 160mm
Beam angle: 1.8°
Standard:70CRI
DMX Channel: 17CH
Electric focusing system
Four dimming curves：Linear,Square law,Inverse squared law,S curve
Operate mode: DMX512, Auto, master/slave, RDM
0-100% 16bit linear smooth dimming
Multiple speed strobe effects
Color wheel: 1 color wheel, 14fixed colors plus white
Static gobo: 15 gobos plus 1 white circle
Prism: Equipped with 8 prism, and 5 rows prism, the two prisms
can be stacked and rotated in both
High brightness frost sheet: with smooth wash effect
Control panel: LCD Touch screen Overheating self-energy protection LED,
extending LED life
X-axis rotation angle: 540°
Y-axis rotation angle: 270°
Three phase motor with SY Brand
XY axis magnetic coding positioning is more accurate
Power Outlet: Power Connector Input/Output
Signal Line: 3-pin or 5-pin signal line
Installation: folding clamp
Fixture size: 338*254*534mm
This professional LED moving head light supports 100-240V universal voltage, with 350W power supply and 300W rated power. The dual-voltage design independently powers the LED driver and cooling & display system. It adopts a 9500K high-definition LED light source with 70CRI color rendering and over 20,000-hour lifespan. A 160mm large optical lens delivers ultra-precise 1.8° narrow beam long-distance projection. Featuring 17 DMX channels, 16-bit full-range smooth dimming with 4 adjustable curves and multi-speed strobe effects. It comes with rich optical effects: 14 fixed colors + white, 15 static gobos, dual stackable rotating prisms and a high-brightness frost sheet for soft wash lighting. Supporting DMX512, RDM, Auto and Master-Slave modes, it adopts SY three-phase motors and high-precision magnetic coding positioning with 540° X-axis and 270° Y-axis rotation. The LCD touch panel and overheating self-protection ensure stable, long-lasting professional stage operation.
