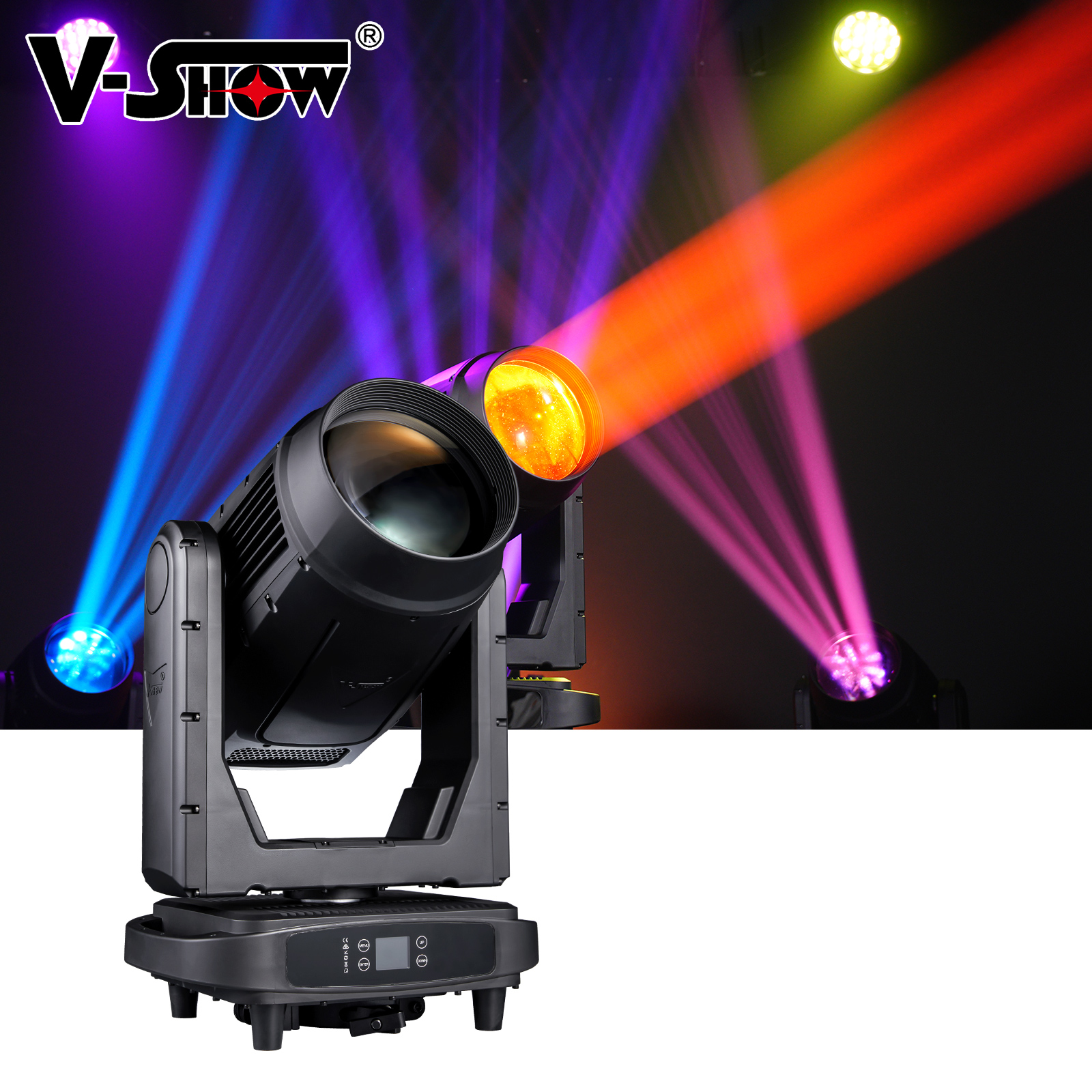

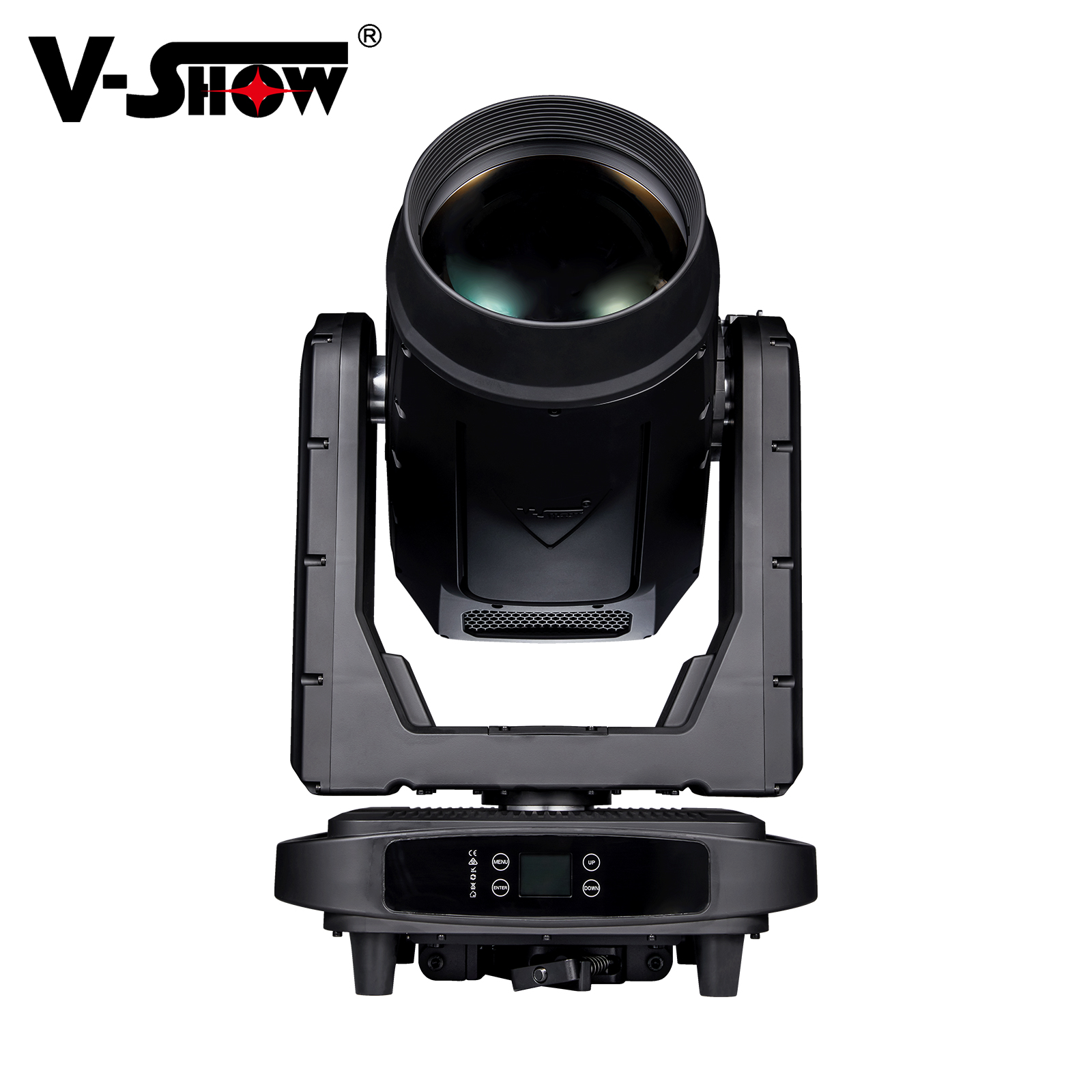

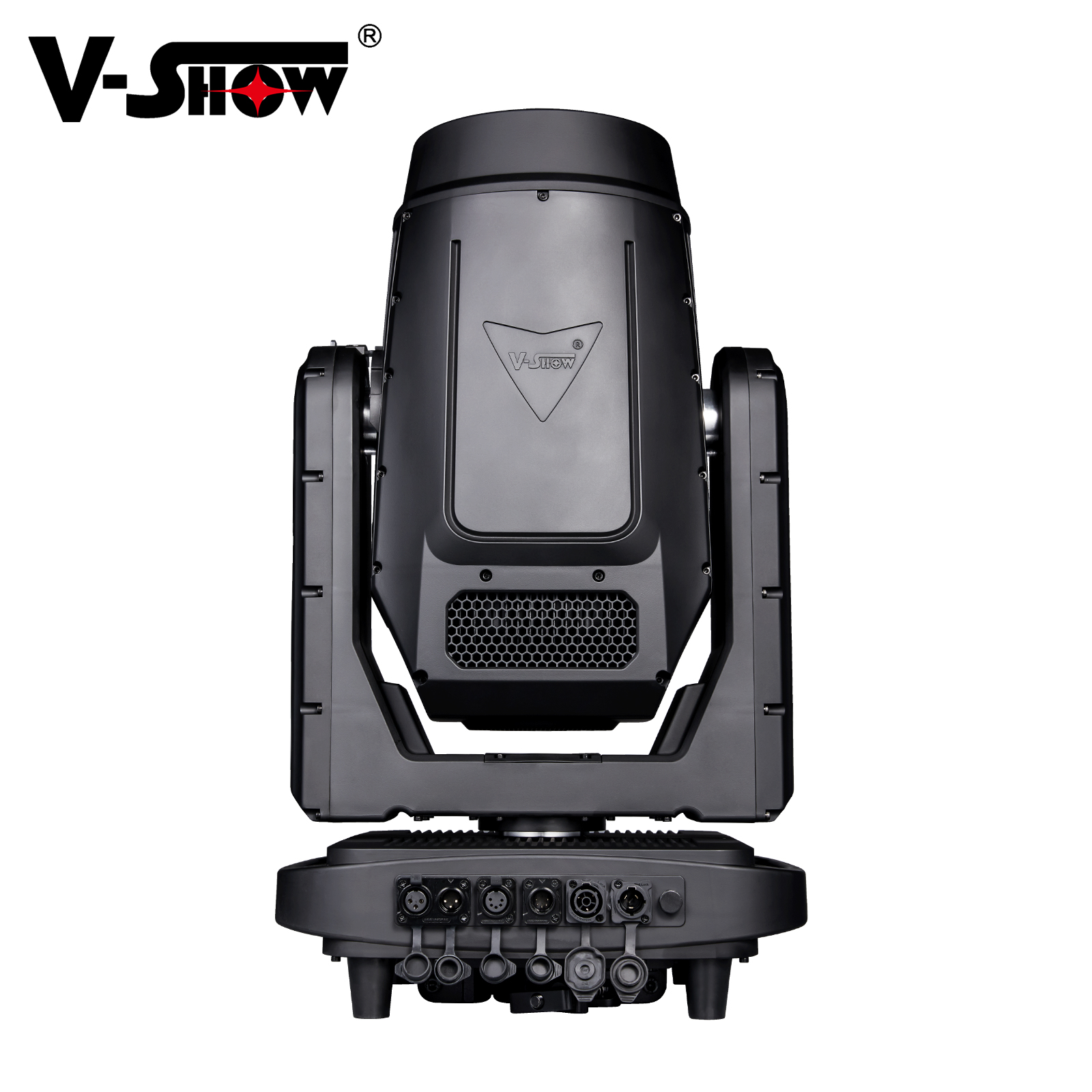

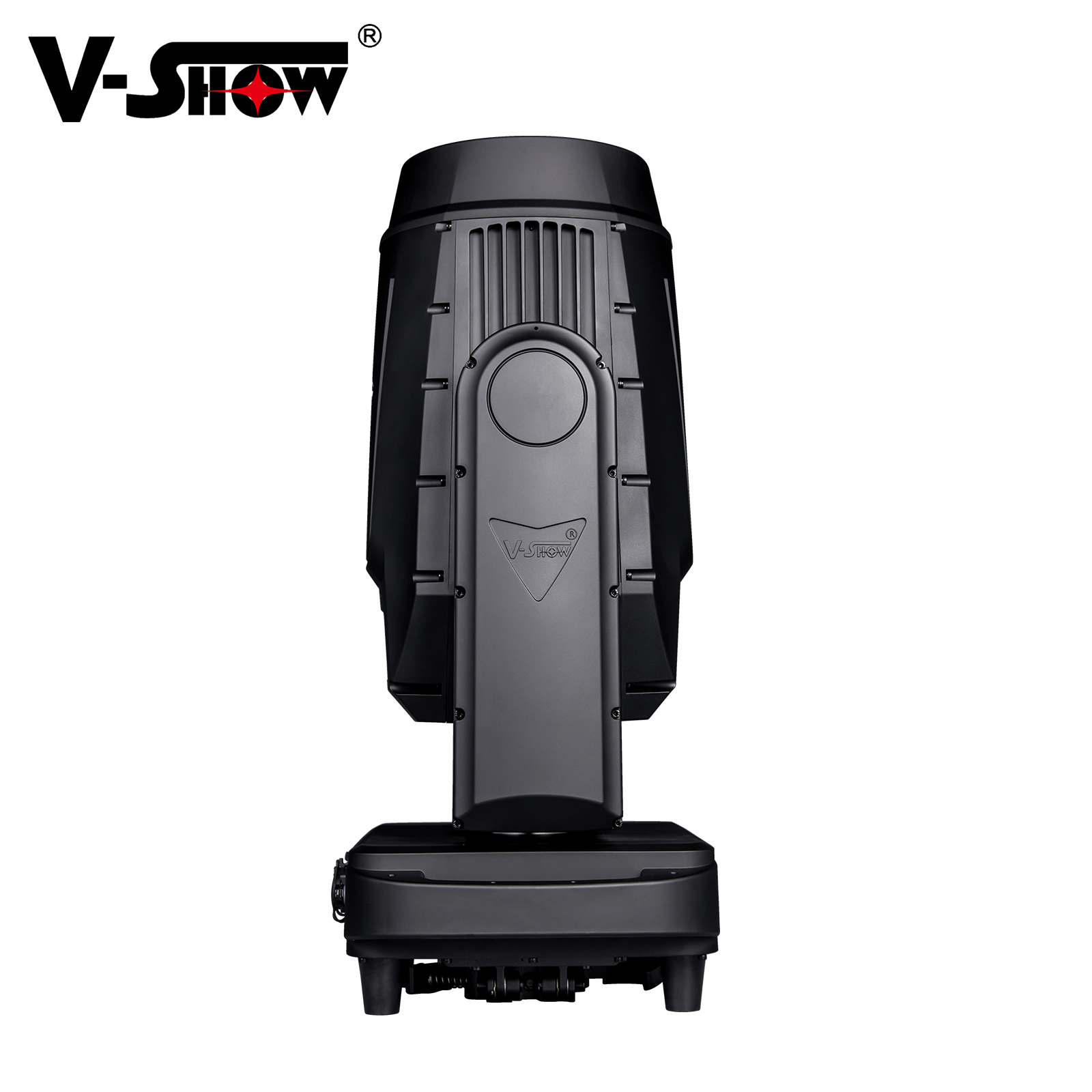

VSHOW G45 Optic IP66 420W beam moving head with CMY CTO for Event Concert

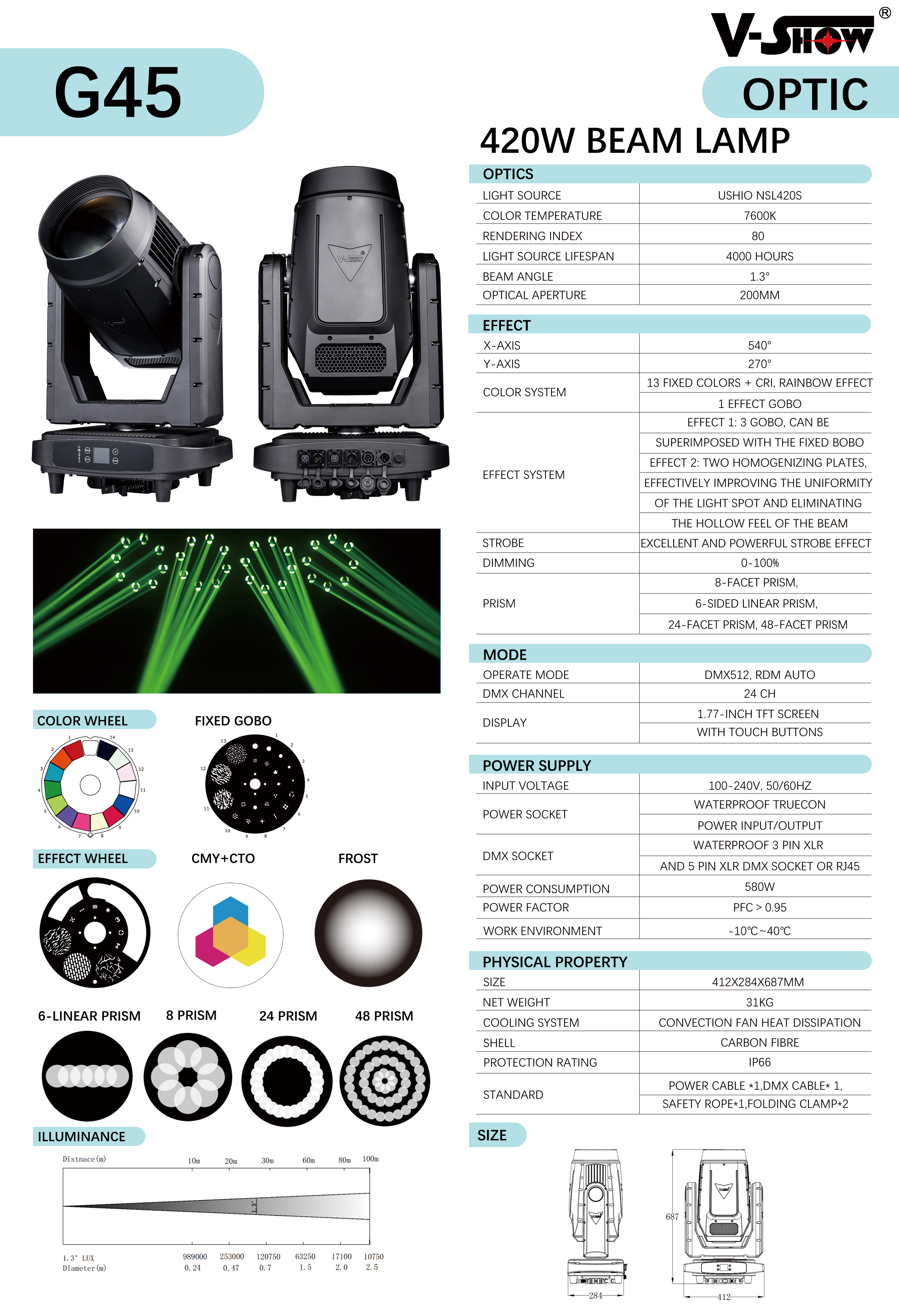

Lamp technical parameters:

Input Voltage: 100-240V, 50/60Hz

Power consumption: 580 W

Power supply: 800W

Light source: USHIO NSL420S (4000 hours)

Color temperature: 7600K

Diameter of optic lens: 200mm

Beam angle: 1.3°

Linear CMY color mixing system

Linear CTO color temperature

1 fixed gobo: 10 gobo + 3 effect gobo + white

1 color wheel: 13 fixed colors + CRI, rainbow effect

1 effect gobo

Effect 1: 3 gobo, can be superimposed with the fixed bobo

Effect 2: Two homogenizing plates, effectively improving the uniformity of the light spot and eliminating the hollow feel of the beam

Prisms: 8-facet prism, 6-sided linear prism, 24-facet prism, 48-facet prism

8-facet prism can rotate and stack with 24 or 48 prisms bidirectionally.

6-sided linear prism can rotate and stack with 24 or 48 prisms bidirectionally

can be stacked and rotated in both directions

1Pcs frost

Excellent and powerful strobe effect

DMX Channel: 24CH

Control mode: DMX512, RDM Auto

X-axis rotation angle: 540°

Y-axis rotation angle: 270°

Three phase motor

XY axis magnetic coding positioning is more accurate

Power Outlet: Power Connector Input

Signal Outlet: standard 3 Pin XLR 5 pin XLR socket

Installation: 2x fast lock folding clamp

Fixture size: 412x284x687mm

Protection Rating: IP66

Net Weight:31KG

Article Introduction：

This beam light adopts an imported light source, featuring a large aperture and high luminous efficacy. Its 1.3° beam angle delivers sharp, bright, full, and highly penetrating beams, creating a strong visual impact. Two homogenizing plates effectively improve spot uniformity and eliminate hollow beams. The color wheel and fixed gobo wheel, when combined with multiple prisms for overlay effects, along with the CMY color mixing system and CTO color temperature adjustment system, as well as 3 effect patterns that can be superimposed with the fixed gobo wheel, enable diverse prism overlay effects. The prisms feature wide angles, sharp and clear lines, and broad coverage, delivering bright and versatile beam effects. This provides lighting designers with greater creative flexibility. With an IP66 high protection rating, the fixture is suitable for all-weather use.
