Q12 Stormwash 12×40W RGBW 4IN1 IP65 Moving Head Light


Parameter:
|
Item |
Specification |
|
Input Voltage |
100-240V AC, 50/60Hz |
|
Light Source |
24×4W RGBW 4-in-1 Dot LEDs; 24×40W RGBW 4-in-1 Cell LEDs |
|
Power Consumption |
760W |
|
LED Lifespan |
>20 000 hours |
|
DMX Channels |
29-314CH multiple modes (Single / Movement / Dual-Pixels / Multi-Layer Pixels) |
|
Control Protocols |
DMX-512, RDM, Art-Net, sACN, Master-Slave, Auto |
|
Dimming |
16-bit 0-100% linear dimming; adjustable dimming curves & speeds; PWM up to 64KHz |
|
Protection Rate |
IP65 |
|
Net Weight |
11.5 kg |
|
Upgrade Method |
USB firmware update |
Key Features
· Dual-source pixel matrix: 24×4W Dot LEDs + 24×40W Cell LEDs, full independent pixel control
· RGBW 4-in-1 colour mixing, adjustable whitelight temperature, rich built-in macro effects
· Multiple DMX channel modes, max 314-ch, supports pixel mapping & video playback
· 16-bit smooth dimming, up to 64 KHz PWM, flicker-free for broadcast & camera capture
· IP65 waterproof rating for indoor & outdoor deployment
· Multi-protocol control: DMX512, RDM, Art-Net, sACN with RJ45 network port
· LCD menu, USB firmware upgrade, silent fan mode available
· LED lifespan>20 000 hours; lightweight 11.5 kg for touring and rental
Product Overview

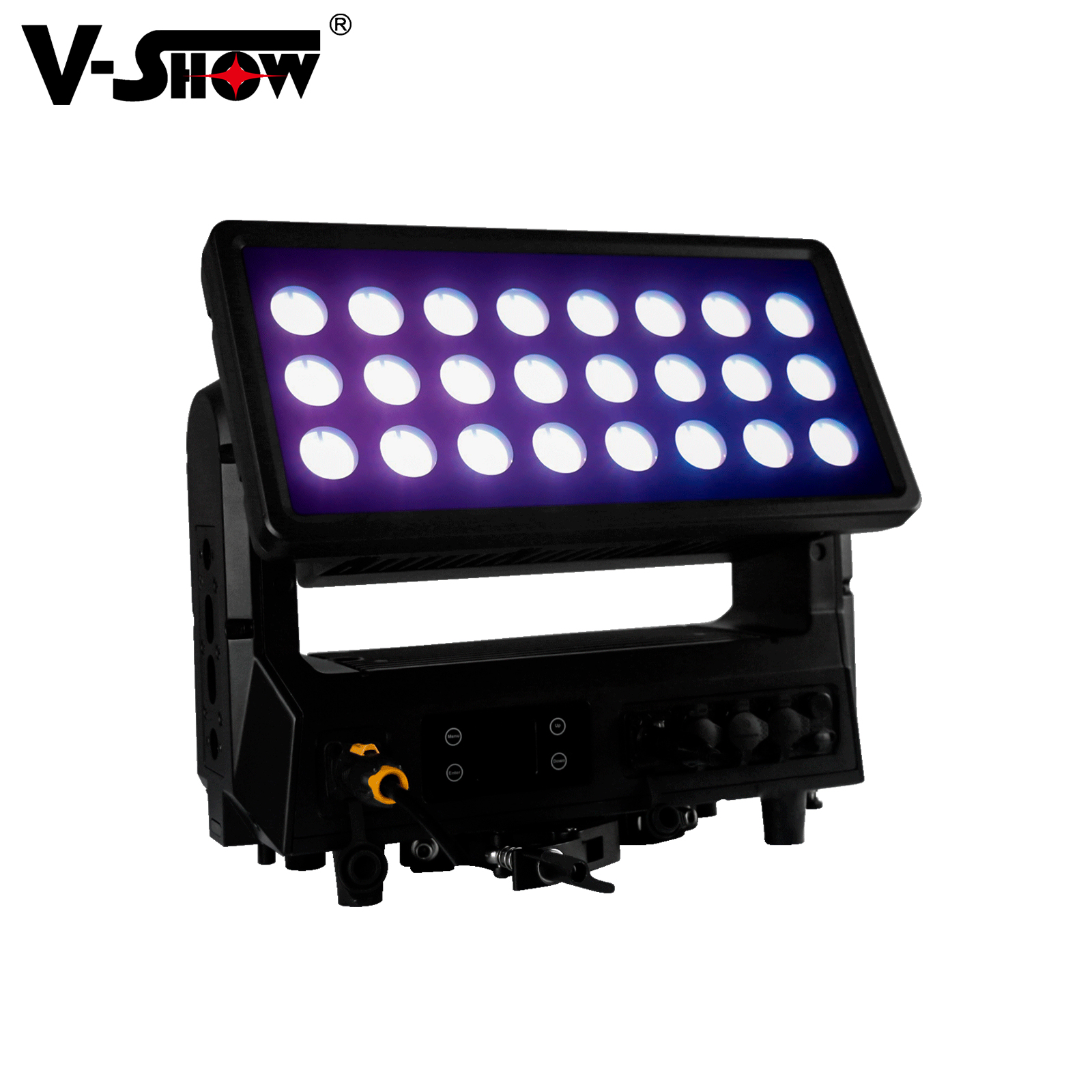

The VSHOW Q12 is an IP65rated movinghead pixel light engineered for rental tours, live events, broadcast and architectural lighting. Featuring a dualsource pixel matrix, it delivers layered visual effects for both indoor and outdoor applications.
It combines 24×4W RGBW 4-in-1 Dot LEDs and 24×40W RGBW 4-in-1 Cell LEDs with full independent pixel control. Dot LEDs render fine graphics and pixel-mapping content, while high-power Cell LEDs produce bright wide-area colour washes.
Boasting premium RGBW 4-in-1 colour mixing with adjustable white-light colour temperature and built-in macro effects, it achieves rich, saturated colour output for stage, film and architectural projects. Multiple DMX channel modes up to 314-ch support simple wall-washing as well as complex video pixel-mapping.
Built-in 16-bit smooth 0-100% linear dimming with adjustable curves, speeds and PWM frequency up to 64 KHz ensures complete flicker-free performance for camera shooting and live broadcast.
IP65 waterproof construction with waterproof power and signal connectors enables reliable outdoor operation. The LCD display and USB firmware update support convenient on-site setup and maintenance. Multiple fan modes including silent mode suit noise-sensitive venues. Weighing only 11.5 kg, it is touring-friendly for fast rigging.
It supports full-set control protocols: DMX-512, RDM, Art-Net, sACN via RJ45 port, plus master-slave and auto modes for standalone use. With 760W power consumption and LED lifespan over 20 000 hours, Q12 is a versatile solution for festivals, concerts, corporate events, churches and permanent installations.
