How to Select PAR Lights & Moving Head Lights for Stage Lighting Engineering | Full Guide

Lighting systems are the core visual backbone of stage engineering installation and live show execution. Reasonable fixture selection greatly impacts performance effects, project budgets and site safety. Focusing on PAR lights and moving head lights—the two most widely used stage luminaires—this guide breaks down their technical specs, usage scenarios, core selection metrics and typical construction mistakes, assisting engineers in making targeted purchases and cutting wasted costs.

Par light                           Moving head light

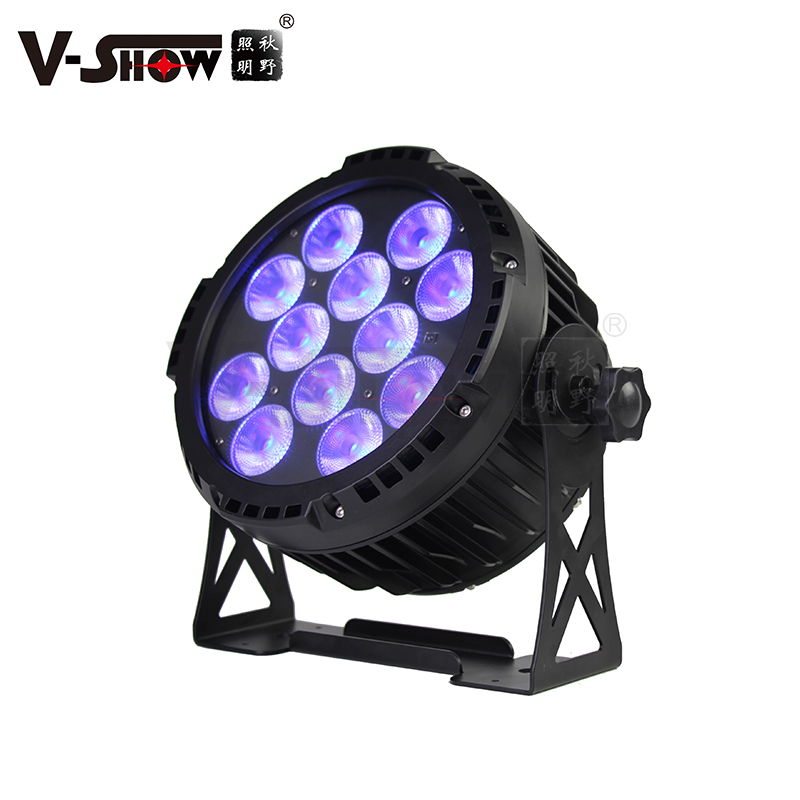

1. PAR Lights: Engineering Selection Scheme for Basic Stage Lighting

As essential parts of stage lighting systems, PAR lights excel at providing uniform wide-area supplementary lighting and creating foundational stage ambience. They meet the basic lighting demands of all performance venues and serve as the standard configuration for stage lighting.

Core Technical Parameters and Advantages

l Optical characteristics: Adopt fixed parabolic reflectors with concentrated beam angles (common 15°-60°), enabling precise coverage of lighting areas without obvious stray light spots.

l Performance parameters: Mainstream LED models have a power range of 300W-500W, luminous flux ≥15000lm, color rendering index Ra≥80 (Ra≥90 for professional performance level), supporting RGBW four-color mixing or single color temperature output.

l Engineering advantages: Simple installation structure, compatible with Truss systems, wall brackets and other scenarios, plug-and-play, no complicated debugging process, and low operation and maintenance cost.

Key Selection Pitfalls to Avoid

l For venues under 100㎡, avoid PAR lights over 500W. Overpowered fixtures create overly bright lighting, discomfort audiences and drive up power costs. The suggested layout: 1–2 units of 300W–500W PAR lights per 10 square meters.

l LED PAR lights are highly recommended. They deliver a 50,000+ hour lifespan with zero infrared or UV radiation, complying with safety standards for long-running events and crowded venues.

l Opt for 30°–60° beam angles for general fill lighting. Use narrower 15°–30° beams to shape background ambiance. Avoid blindly buying wide-angle fixtures, as they result in poor light utilization efficiency.

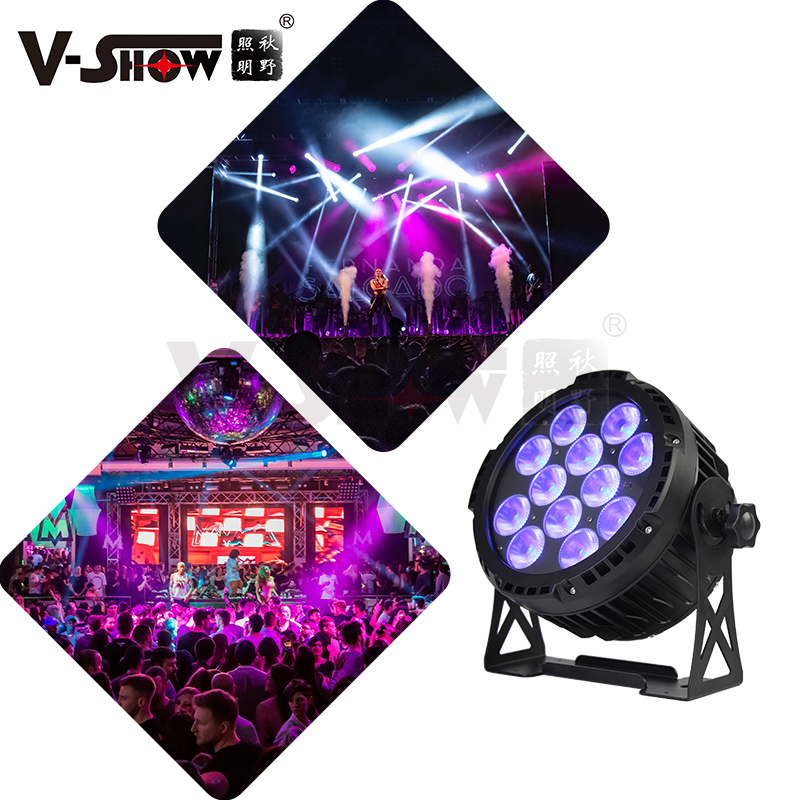

Engineering Application Scenarios

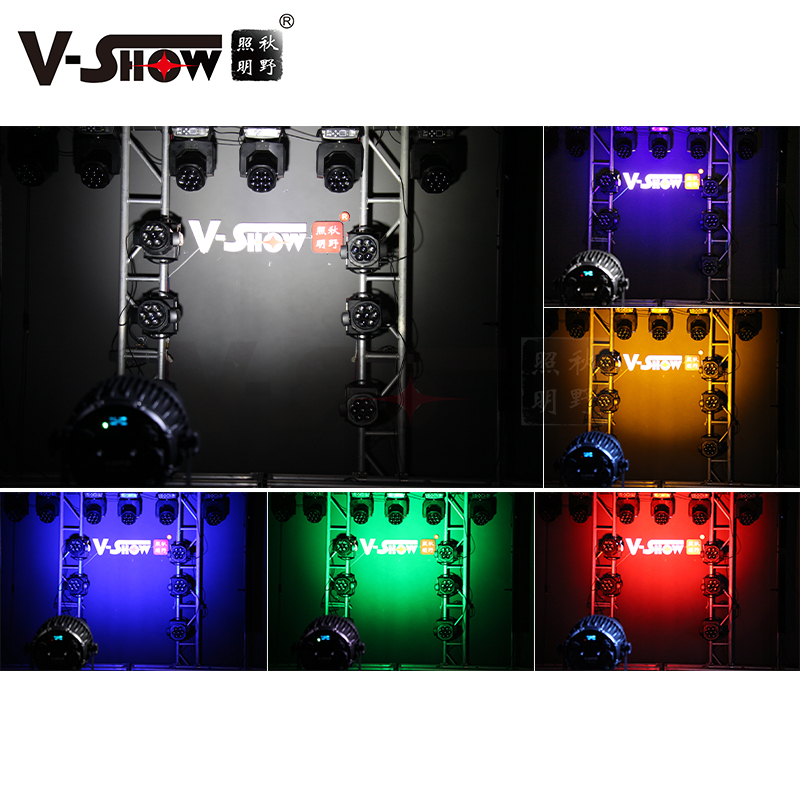

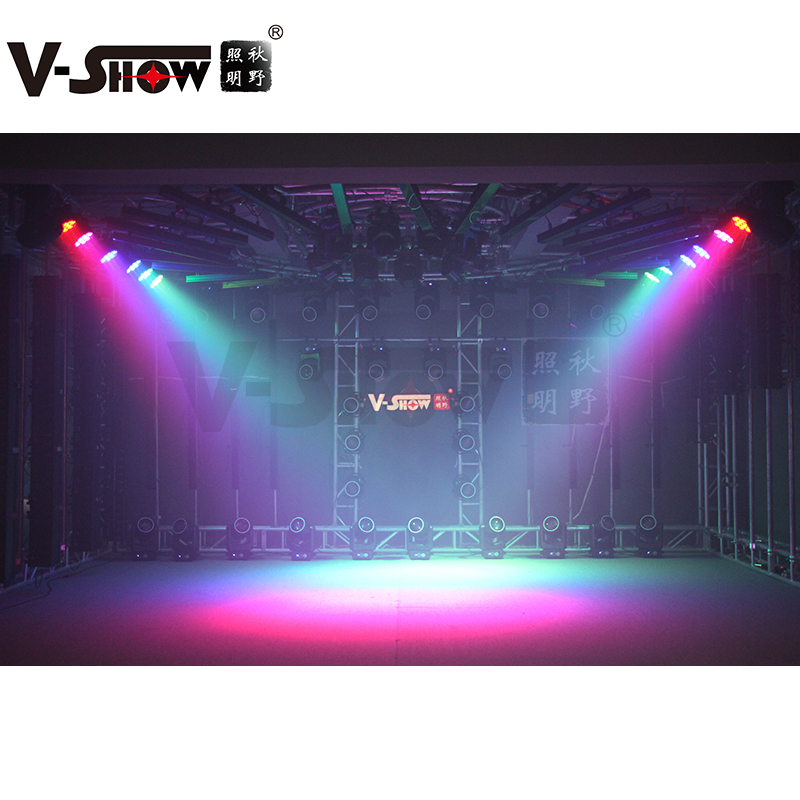

Perfect for base lighting in small commercial shows, wedding receptions and small theater ambient fill light. It also covers campus art performance venues, and is an ideal pick for budget-limited projects requiring essential stage illumination.

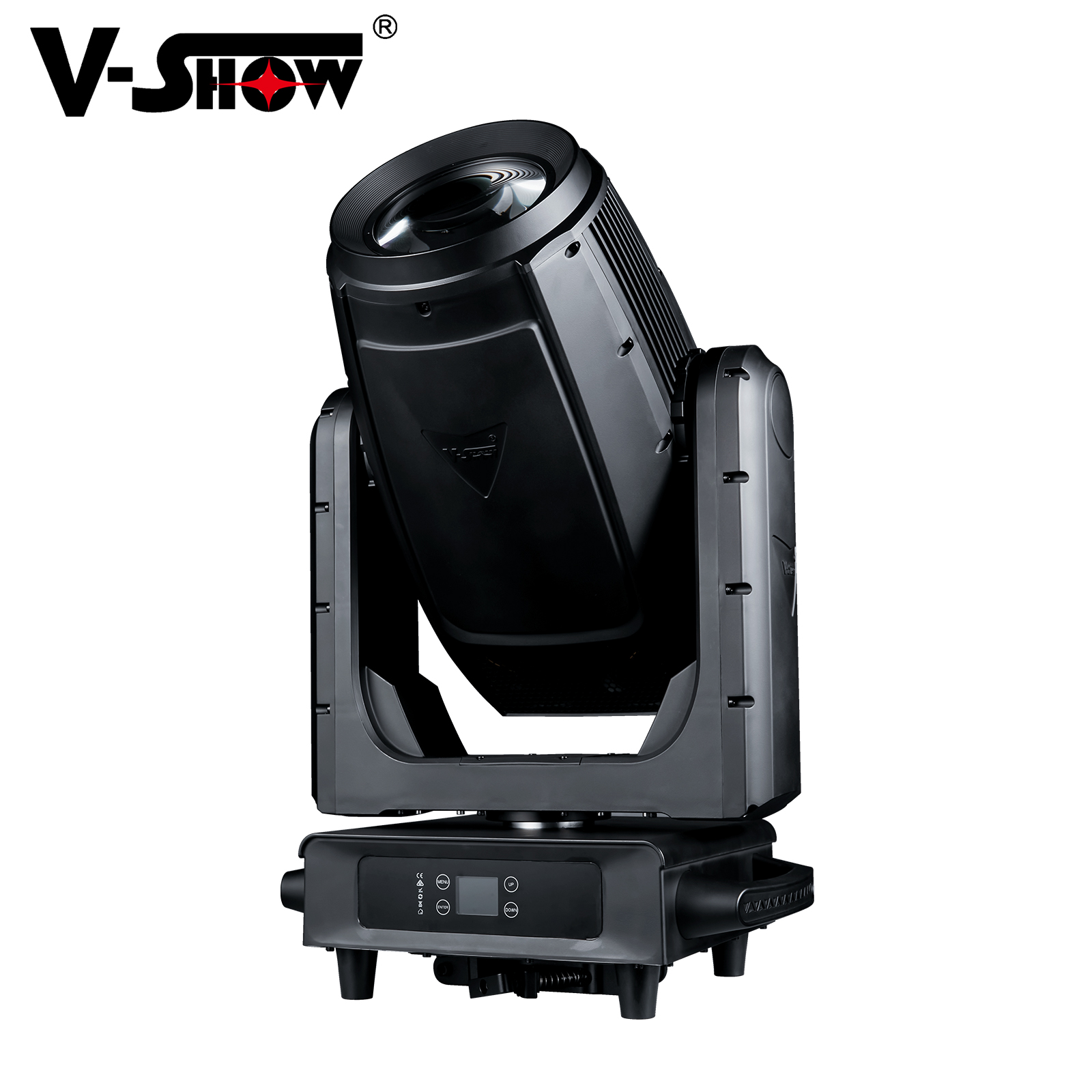

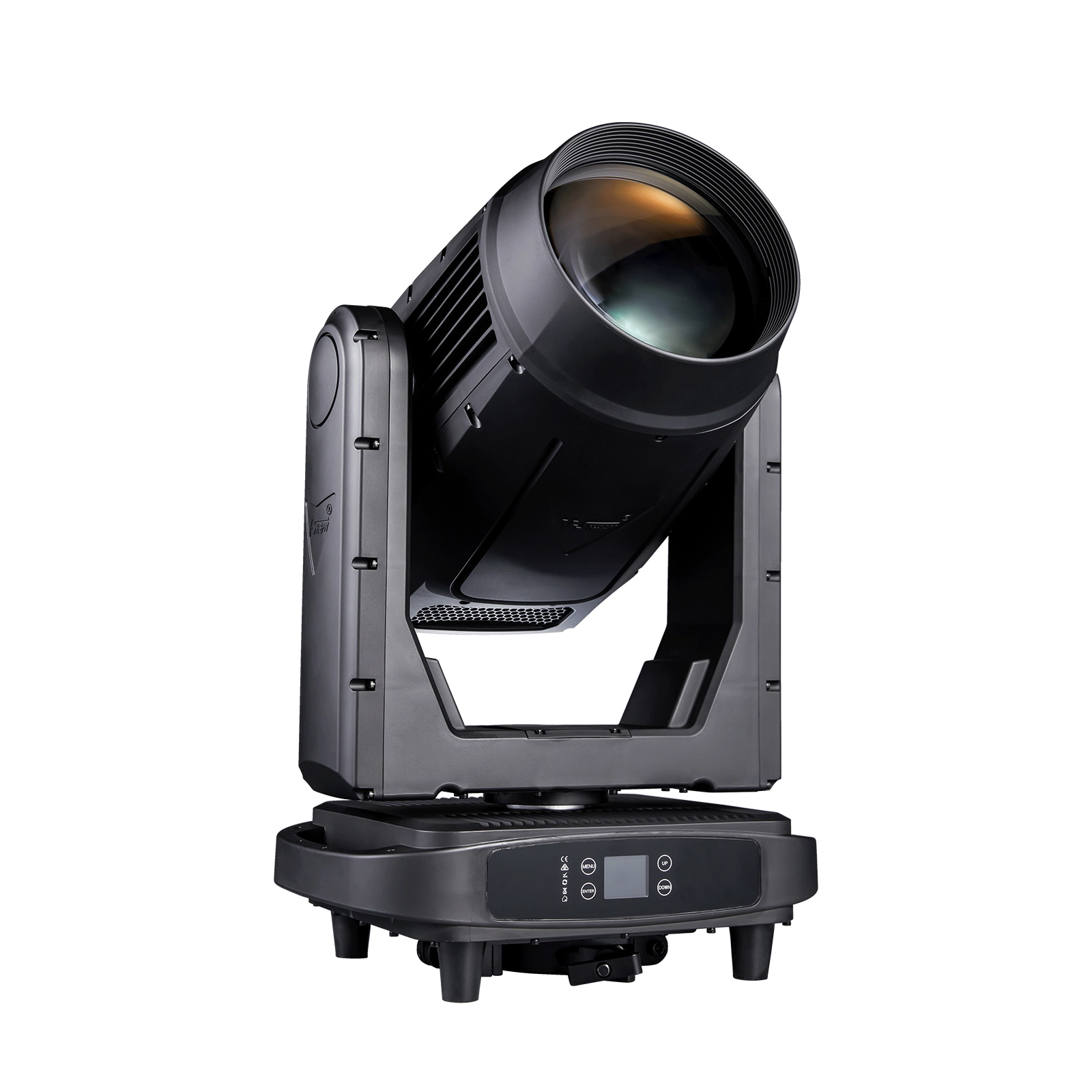

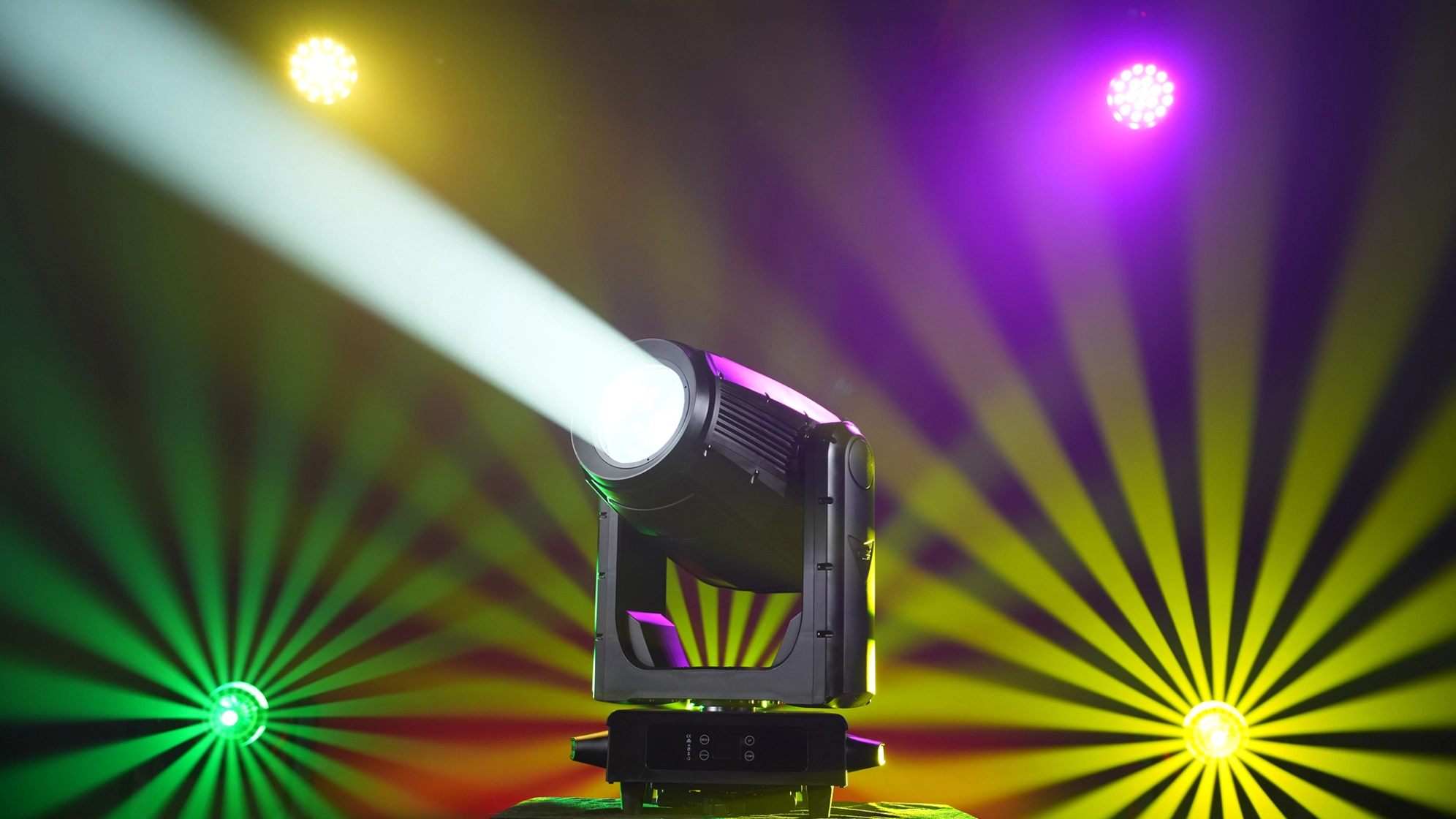

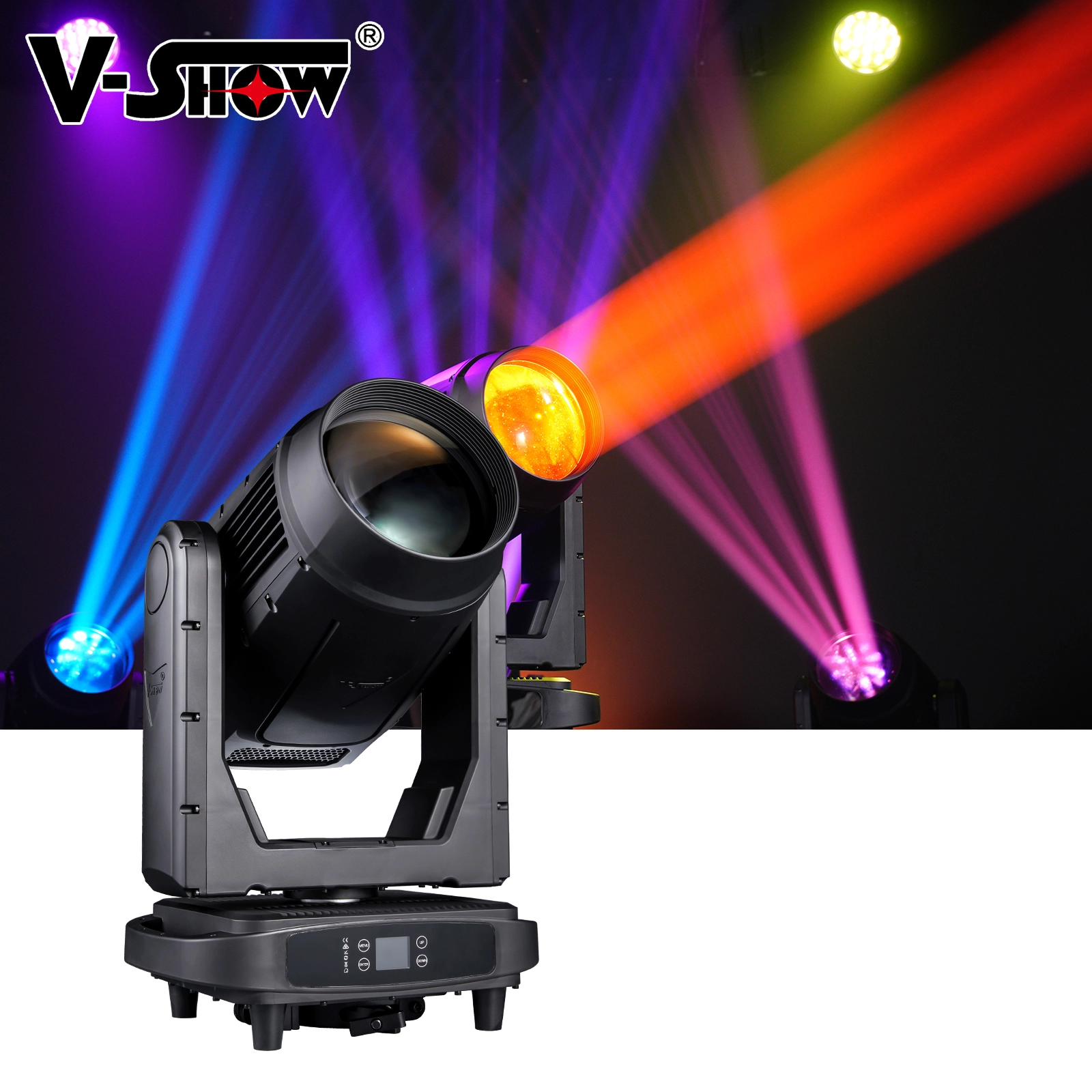

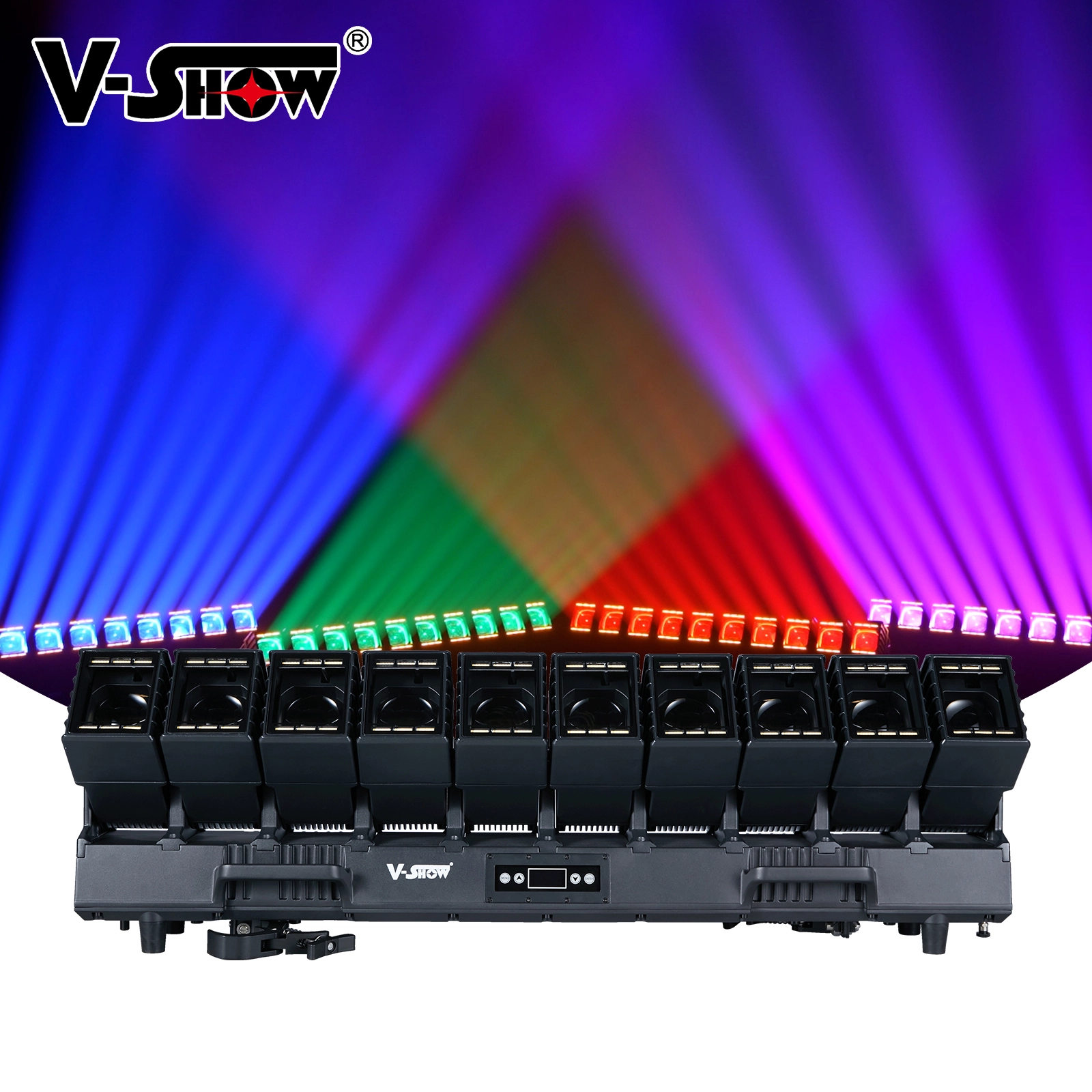

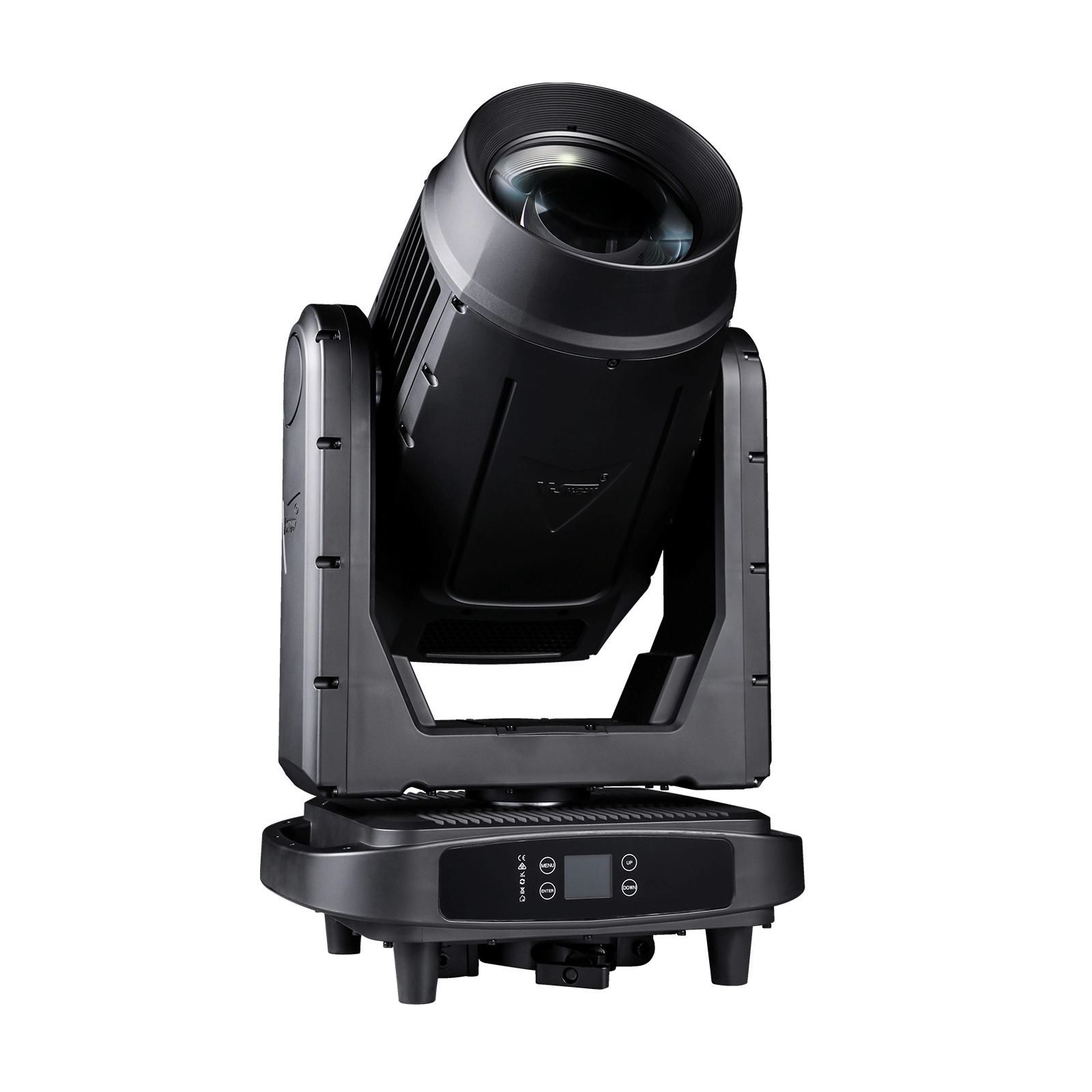

2. Moving Head Lights: Precise Selection and Safety Specifications for Stage Dynamic Vision

Boasting rotatable multi-angle beam output, moving head lights excel at crafting precise stage spotlight effects and vivid dynamic atmospheres. They serve as essential lighting gear for large-scale shows and premium events. However, poor fixture selection may lead to unnecessary budget waste and hidden safety risks.

Core Technical Parameters and Advantages

l Motion parameters: Horizontal rotation angle ≥360°, vertical rotation angle ≥270°, motion acceleration ≤0.5m/s² (compliant with GB/T 45229-2025 Stage Machinery Safety Standards), stable operation without jamming.

l Optical performance: Support multi-modes such as pattern projection, color mixing and beam switching, pattern resolution ≥1080P, color wheel with ≥14 colors, support CMY color mixing system, realizing rich light and shadow changes.

l Engineering advantages: Remote control of beam angle, color and pattern, flexible dynamic effects, fast focusing on stage core characters or scenes, improving the visual level of performances.

Key Selection Pitfalls to Avoid

l Function redundancy trap: For novice and medium-small venue projects, there is no need to purchase high-end moving head lights with complex functions such as laser and dynamic special effects. Basic models (supporting color mixing and basic pattern projection) can meet the needs, and complex functions require professional debugging, increasing operation and maintenance costs.

l Volume and load matching: When installing on large Truss systems or stage ceilings, strictly check the lamp weight (conventional models ≤8kg) to avoid exceeding the support load range. Pay attention to the heat dissipation performance of lamps and choose models with efficient heat dissipation systems to prevent equipment failure caused by high temperature.

l Safety specification neglect: Must select products compliant with GB/T 45229-2025 standards, equipped with passive mechanical hard stops and overload protection devices, meeting the fire separation and electrical safety requirements of new performance venues.

Engineering Application Scenarios

Large-scale concerts, art performances, commercial celebrations and other scenes that need to highlight stage focus and create dynamic atmosphere, suitable for large performance venues over 200㎡.

3. General Engineering Guidelines for Stage Lighting Equipment Selection

Scenario first, parameter matching

First clarify the performance type, venue area and audience scale, then select the lamp type and core parameters (power, beam angle, luminous flux) accordingly to avoid "overkill" or "insufficient parameters".

Compliance priority, safety first

All lamps must comply with GB/T 45229-2025 Safety Requirements for Theater Technology and relevant regulations of the Ministry of Culture and Tourism for new performance venues, focusing on verifying fire protection, electrical and mechanical motion safety indicators.

Cost controllable, operation and maintenance adaptation

Prioritize LED energy-saving light sources to reduce long-term operating energy consumption. For medium and small venues, select models with simple structure and easy installation and maintenance to reduce professional debugging and maintenance costs.

System compatibility, reserved expansion

Check the compatibility between lamps and existing consoles (DMX512, Art-Net protocol) before purchase, and reserve 10%-20% equipment expansion space to adapt to subsequent performance upgrade needs.
